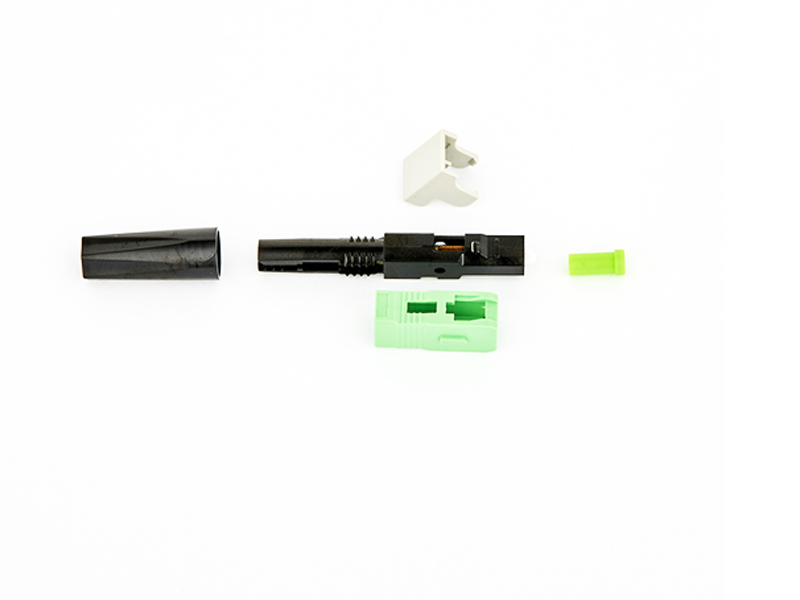

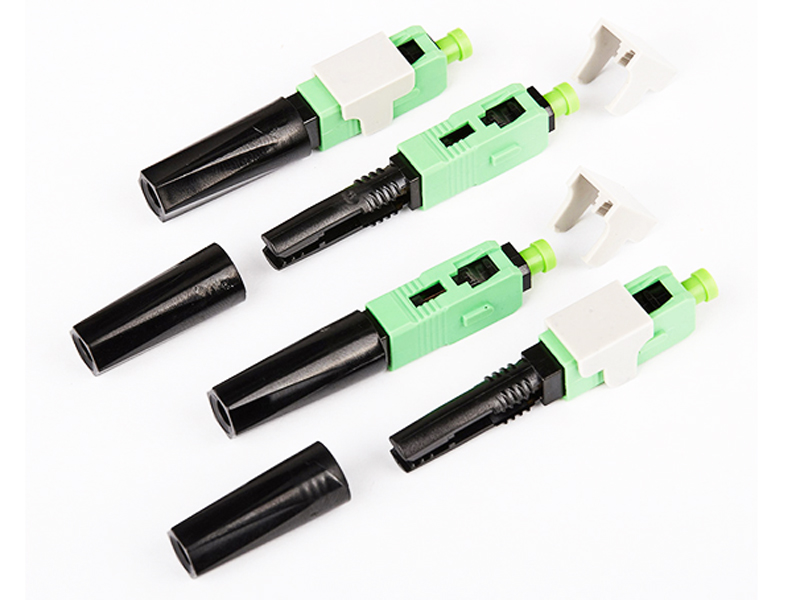

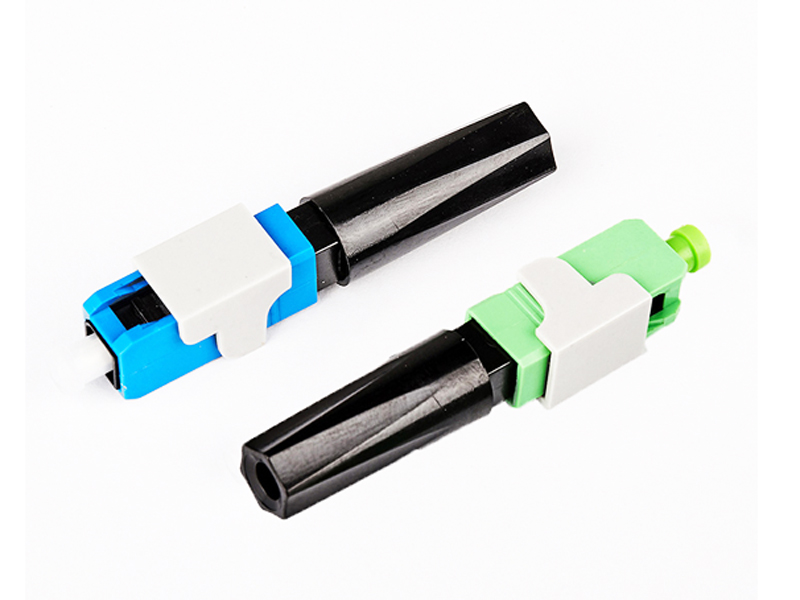

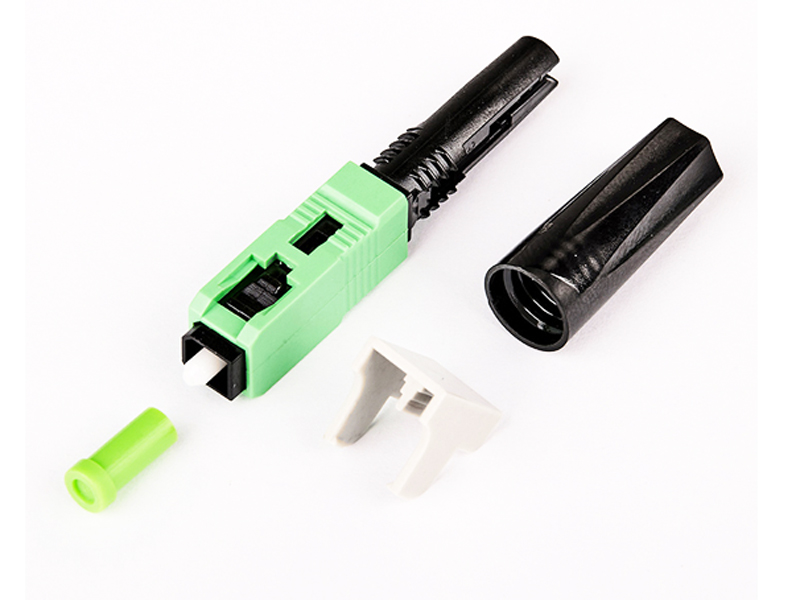

This AT H10 Fiber Optic Fast Connector is designed for quick and reliable field termination in FTTH optical networks. It provides low insertion loss (≤0.3dB typical), high return loss (≥40dB), and excellent mechanical stability to ensure consistent optical performance. Compatible with fiber diameters from 125μm to 900μm, its embedded structure allows fast installation without epoxy or polishing. Custom specifications are available to meet various application requirements. Ideal for FTTH, FTTx, broadband access networks, data centers, CATV, and optical communication systems.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient optical signal transmission with minimal attenuation |
| High Return Loss | Reduces back reflection and improves network performance |
| High Reliability & Stability | Provides reliable long-term performance in demanding environments |

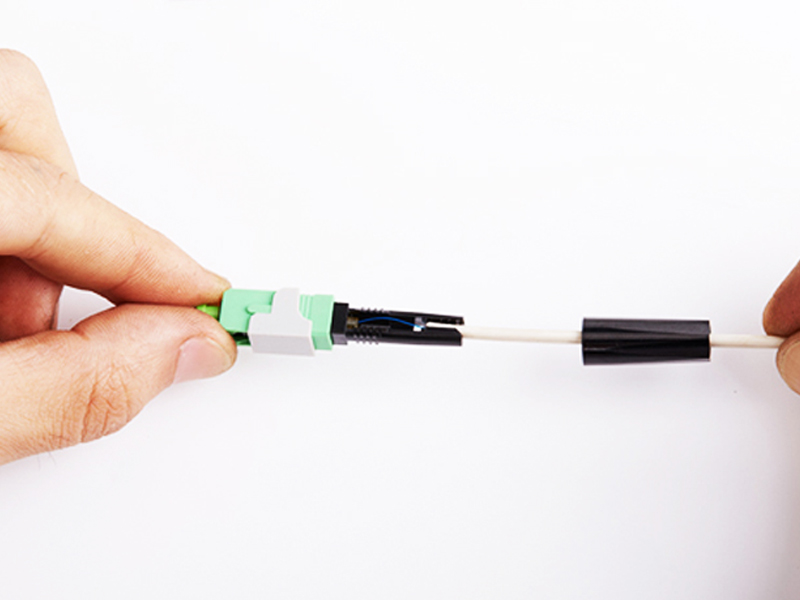

| Embedded Structure Design | Supports quick field installation without epoxy or polishing |
| Wide Fiber Compatibility | Compatible with fiber diameters from 125μm to 900μm |
| Customizable Specifications | Available according to customer-specific requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | SC | UPC or APC available |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Insertion Loss (IL) | ≤0.3 dB (Typical) ≤0.5 dB (Maximum) |
Exceeding the maximum value is considered failure |
| Return Loss (RL) | ≥40 dB | Stable optical transmission performance |
| Structure | Embedded Type | Easy and reliable field installation |
| Repeatability | IL Change ≤0.3 dB | Stable performance after repeated mating cycles |
| Customization | Available | Specifications can be customized upon request |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature | -40℃ ~ +85℃ | Stable operation across the full temperature range |
| Temperature Cycling | Standard temperature cycling test | IL Change ≤0.3 dB |
| Vibration Test | Standard vibration test | IL Change ≤0.3 dB |
| Water Immersion / Flooding Test | Simulated flooding environment | IL Change ≤0.3 dB |
