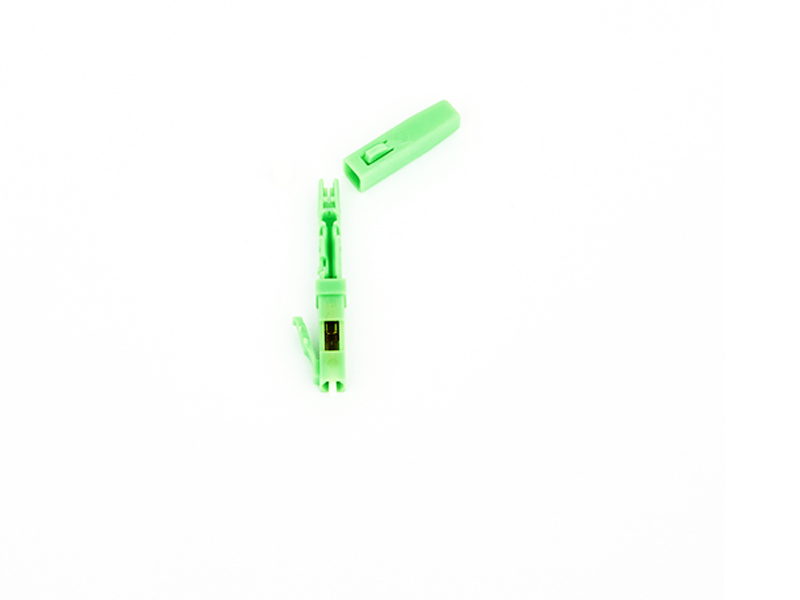

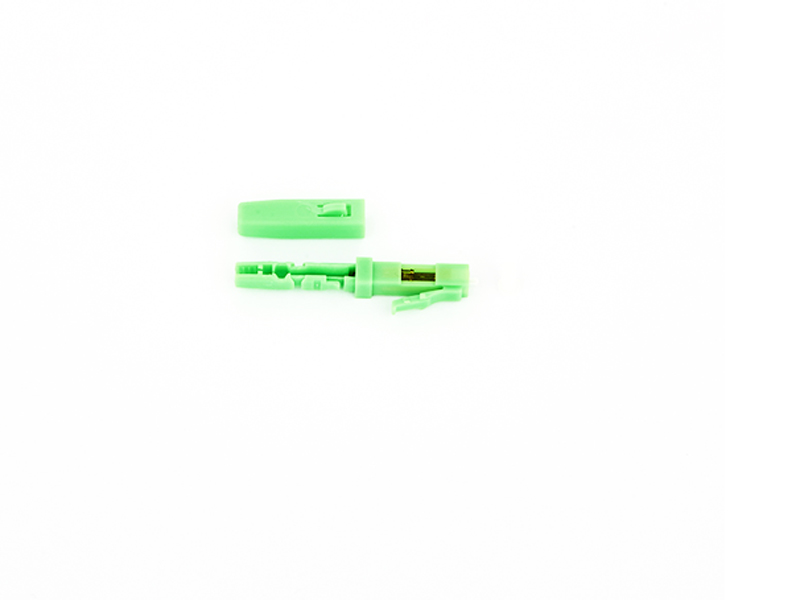

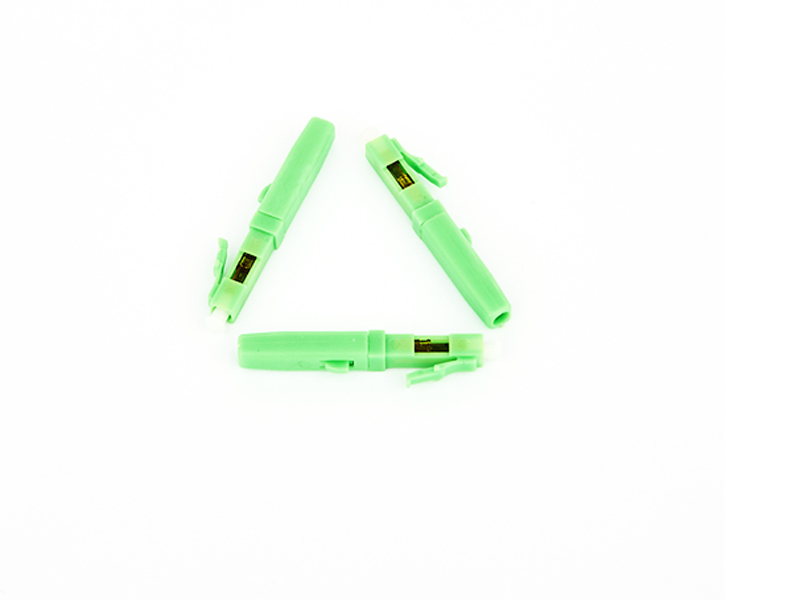

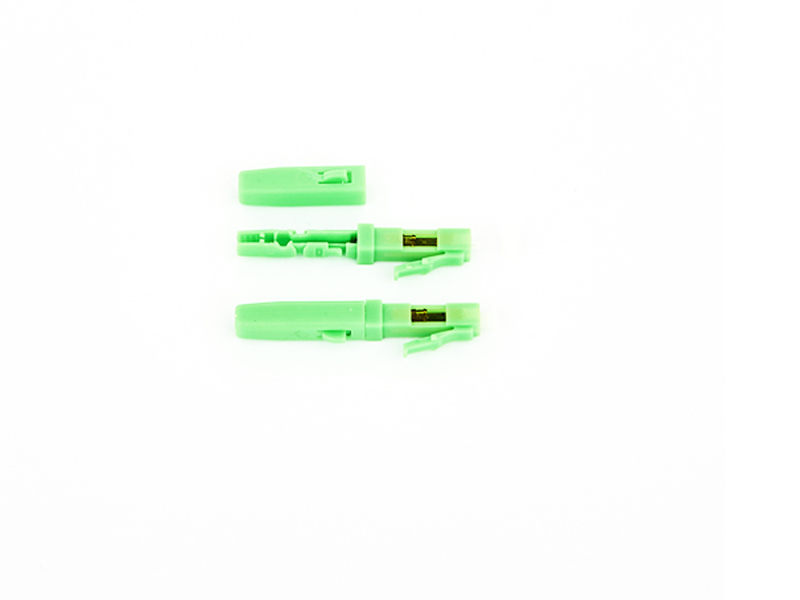

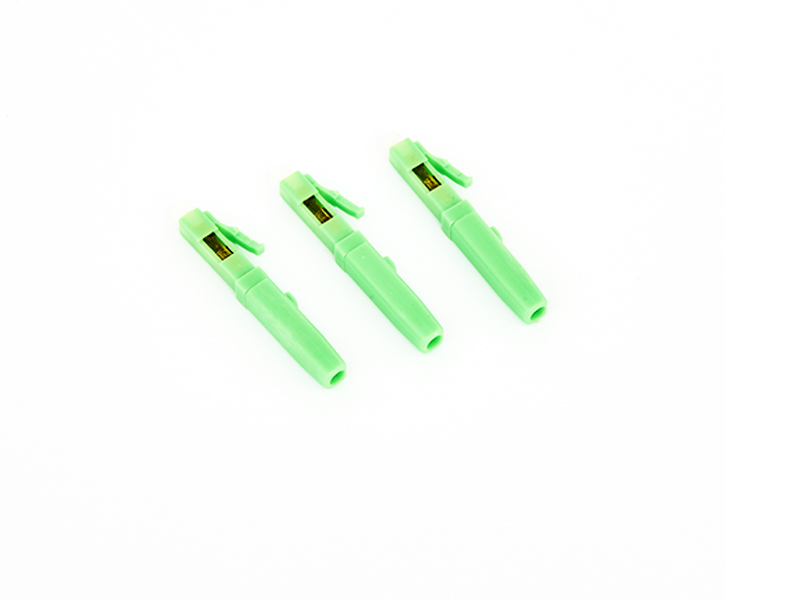

This AT-LC Fiber Optic LC APC Fast Connector is designed for fast and reliable field termination in FTTH and FTTx optical networks. It features low insertion loss (≤0.3dB typical), high return loss (≥40dB), and excellent mechanical stability for consistent optical performance. Supporting fiber diameters from 125μm to 900μm, its embedded structure enables quick installation without epoxy or polishing. Custom specifications are available to satisfy different application requirements. Ideal for FTTH, data centers, broadband access networks, CATV, and optical communication systems.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient optical signal transmission with minimal attenuation |
| High Return Loss | Reduces back reflection and enhances network performance |
| High Reliability & Stability | Delivers dependable long-term performance in demanding environments |
| Embedded Structure Design | Supports fast field installation without epoxy or polishing |
| Wide Fiber Compatibility | Supports fiber diameters from 125μm to 900μm |
| Customizable Specifications | Available according to customer-specific requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | LC APC | Field Installable Fast Connector |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Insertion Loss (IL) | ≤0.3 dB (Typical) ≤0.5 dB (Maximum) |
Exceeding the maximum value is considered failure |
| Return Loss (RL) | ≥40 dB | Stable optical transmission performance |
| Structure | Embedded Type | Easy and reliable field installation |
| Repeatability | IL Change ≤0.3 dB | Stable performance after repeated mating cycles |
| Customization | Available | Specifications can be customized upon request |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature | -40℃ ~ +85℃ | Stable operation across the full temperature range |
| Temperature Cycling | Standard temperature cycling test | IL Change ≤0.3 dB |
| Vibration Test | Standard vibration test | IL Change ≤0.3 dB |
| Water Immersion / Flooding Test | Simulated flooding environment | IL Change ≤0.3 dB |
