Product Overview

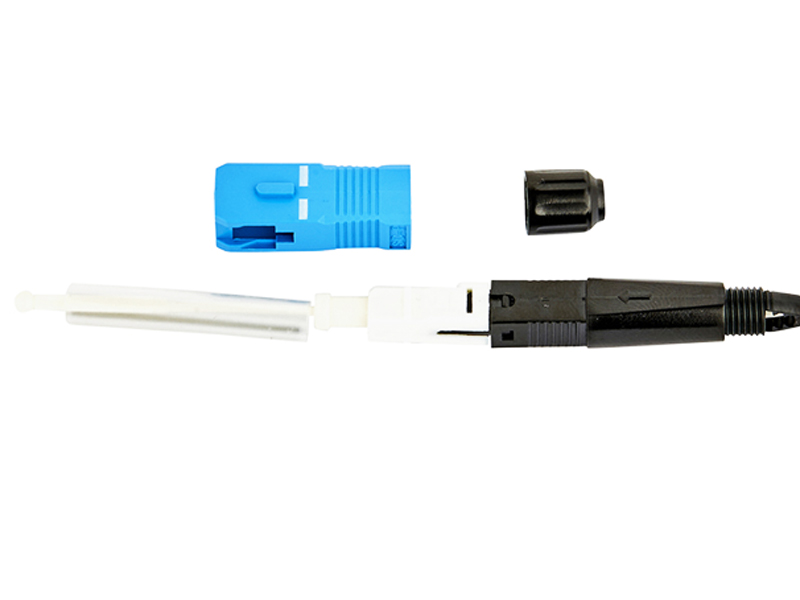

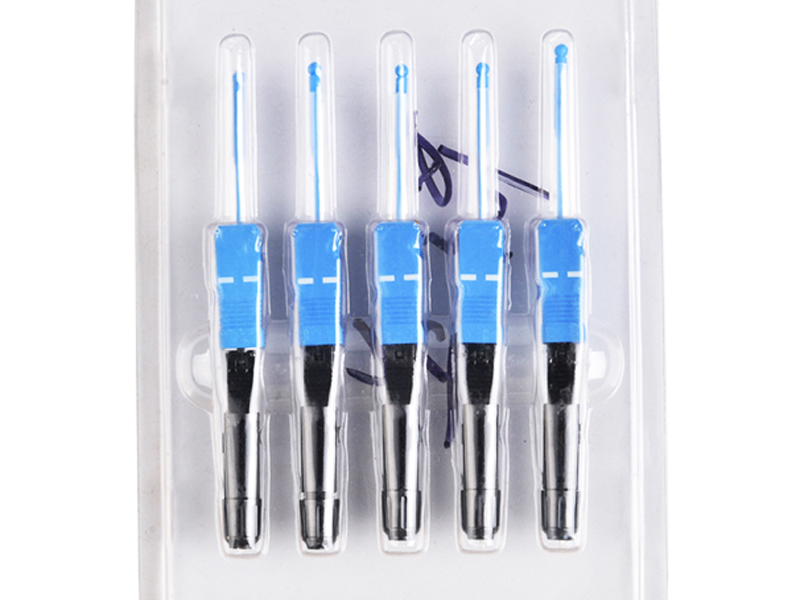

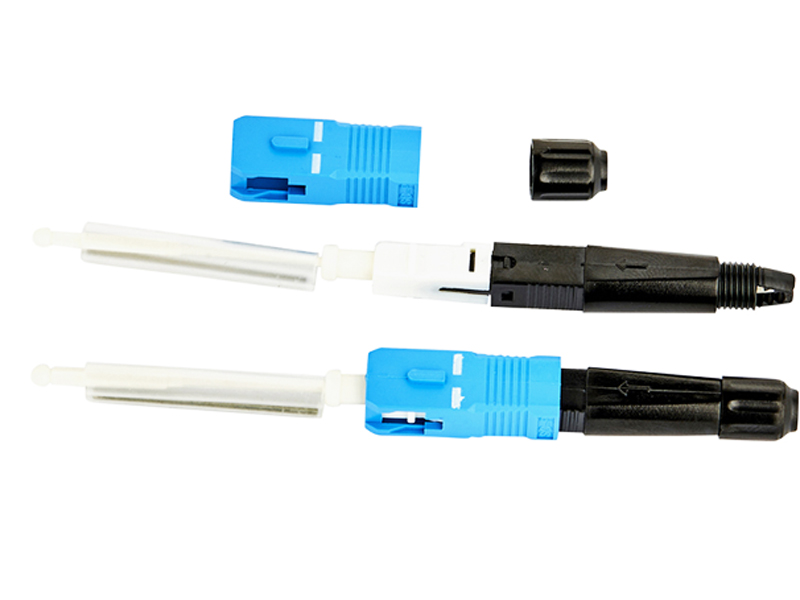

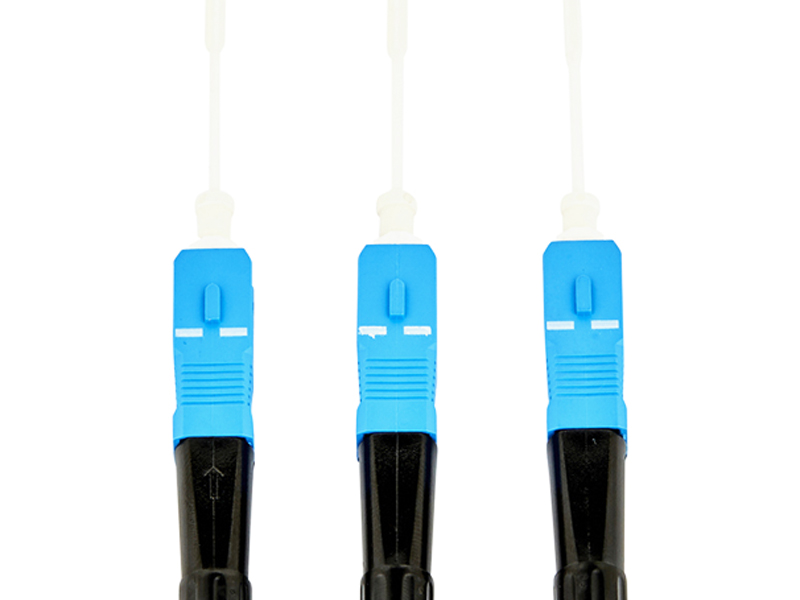

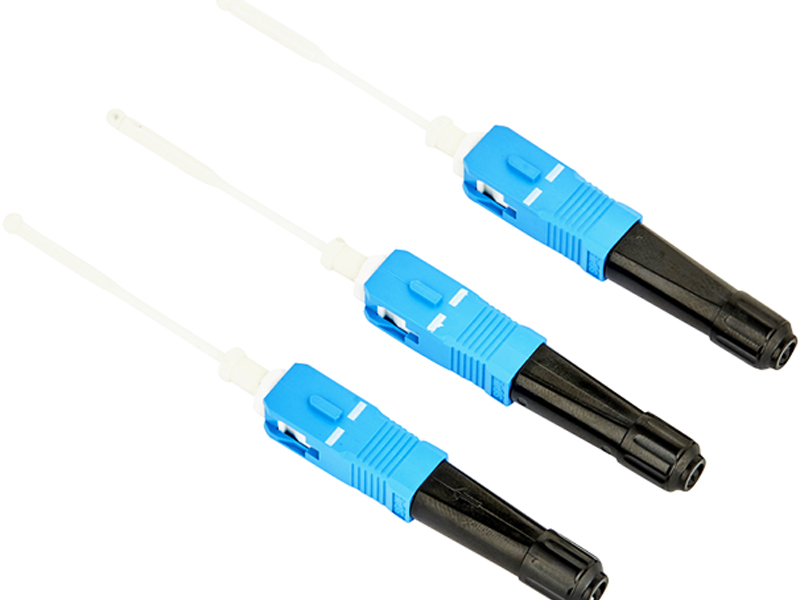

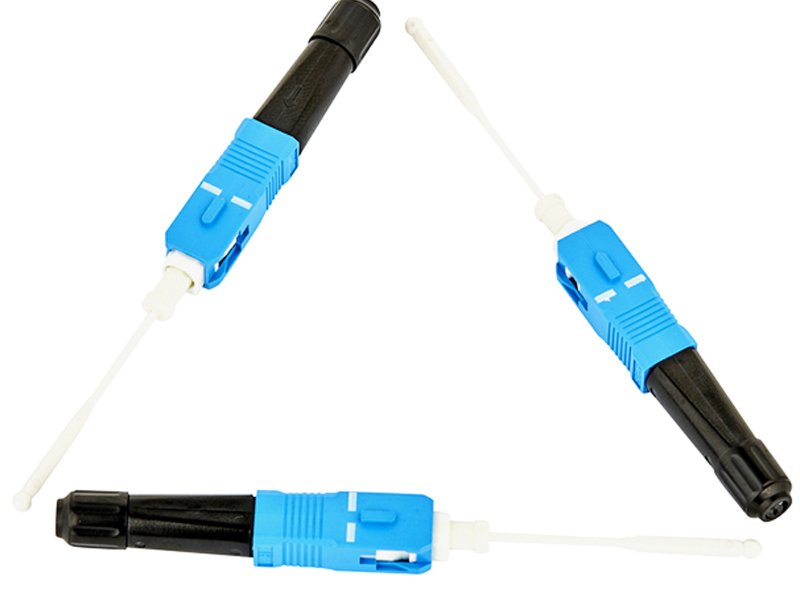

This RR SC UPC fiber optic fast connector is built for fast and reliable FTTH field termination, delivering low insertion loss (≤0.3dB typical, ≤0.5dB limit) and high return loss (≥40dB). It supports 125μm–900μm fibers and performs consistently from -40℃ to +85℃. Its embedded structure helps ensure stable connection quality under temperature cycling, vibration, water immersion, and repeated use. Custom specifications are available for FTTH, telecom, data center, and industrial fiber optic networks.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient signal transmission with reduced optical power loss |
| High Return Loss | Reduces signal reflection and supports stable optical link performance |
| High Reliability & Stability | Suitable for long-term use in FTTH and telecom installation environments |

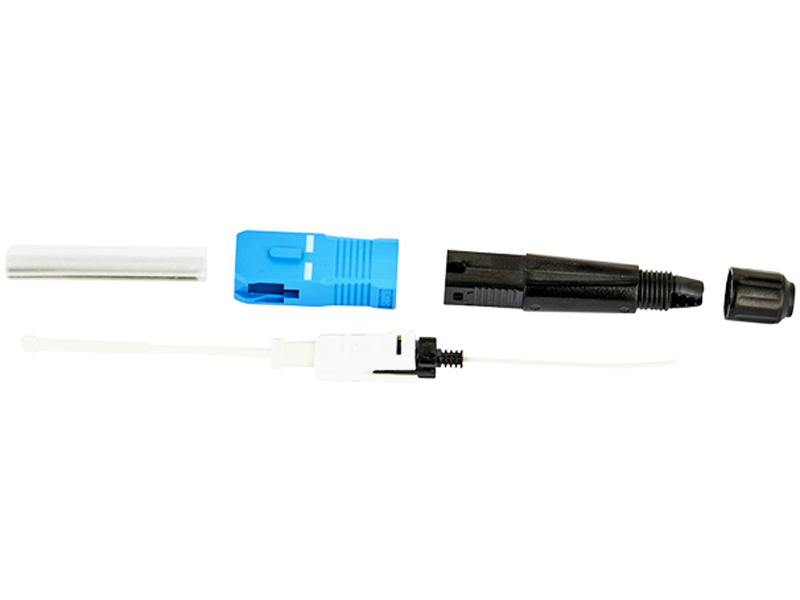

| Embedded Structure Supported | Provides convenient installation and stable field assembly |
| Customizable Specifications | Can be customized according to customer application requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with commonly used optical fibers |
| Insertion Loss (IL) | ≤ 0.3 dB typical, ≤ 0.5 dB limit | Exceeding the limit is considered failure |
| Return Loss (RL) | ≥ 40 dB | Ensures stable SC UPC optical performance |
| Repeatability | IL change ≤ 0.3 dB | Stable performance after repeated connection cycles |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Normal operation across the full temperature range |
| Temperature Cycling | Per standard test cycle | IL change ≤ 0.3 dB |
| Vibration Test | Per standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
FTTH AT-RR SC UPC Fiber Optic SC UPC Fast Connector
SC UPC fast connector for reliable FTTH termination with low loss, stable performance, and customizable specifications.
View MoreFTTH AT-RR SC APC Fiber Optic SC APC Fast Connector
SC APC fast connector with low loss, stable return loss, and reliable performance for FTTH fiber installation.
View MoreFTTH AT-RD SC-P Fiber Optic SC UPC Fast Connector
SC UPC fast connector with low insertion loss, high stability, and customizable design for FTTH fiber installation.
View MoreFTTH AT-RD SC-H Fiber Optic SC UPC Fast Connector
Low-loss SC UPC fast connector for stable FTTH installation, reliable transmission, and customizable fiber network applications.
View MoreFTTH AT-RD-FC Fiber Optic FC APC UPC Fast Connector
FC APC/UPC fast connector with waterproof design for FTTH, LAN, and 5G networks, enabling quick and reliable field installation.
View More

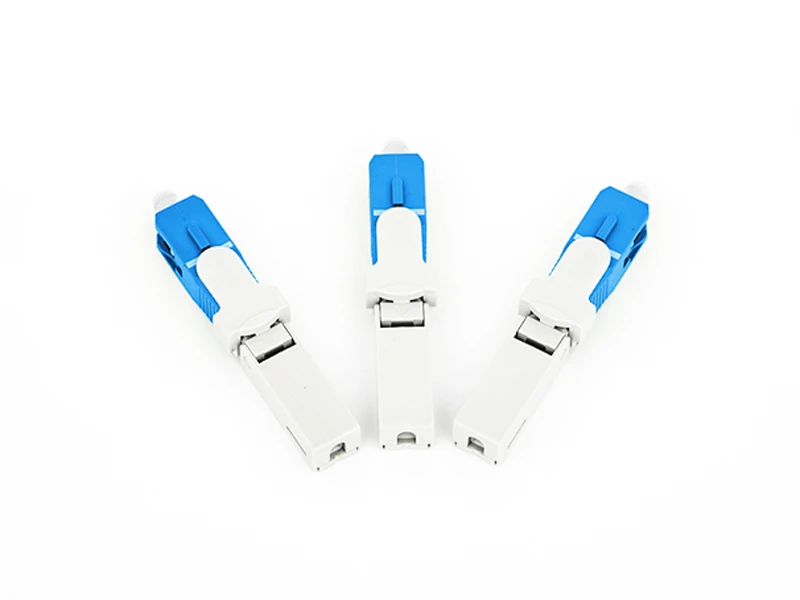

FTTH AT-Z03 Fiber Optic SC UPC Fast Connector
SC UPC fast connector with cold connection technology for quick installation, low loss, and reliable FTTH fiber connections.
View More

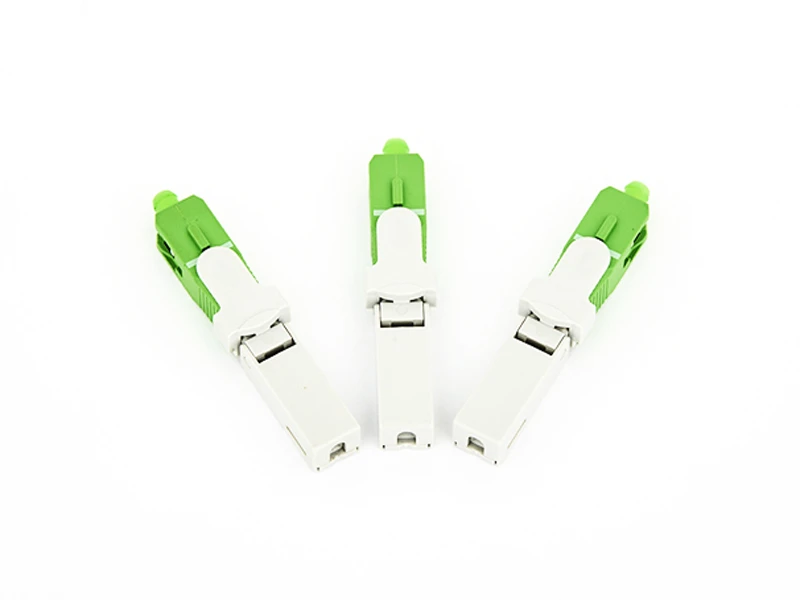

FTTH AT-Z03 Fiber Optic SC APC Fast Connector
SC APC fast connector with pre-embedded ceramic ferrule for quick field installation, low loss, and reliable FTTH fiber connections.
View More

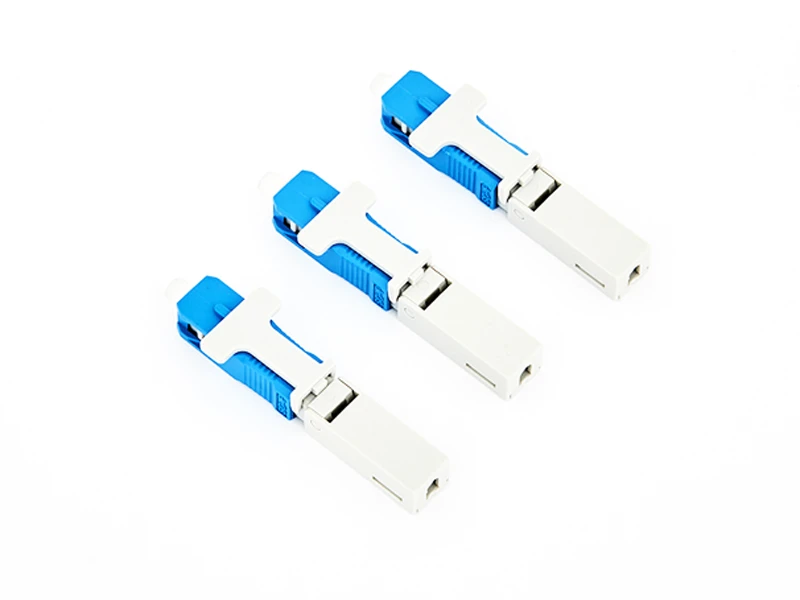

FTTH AT-Z02 Fiber Optic SC UPC Fast Connector
SC UPC fast connector with pre-polished ferrule for tool-free installation, low loss, and reliable FTTH fiber optic connections.
View More

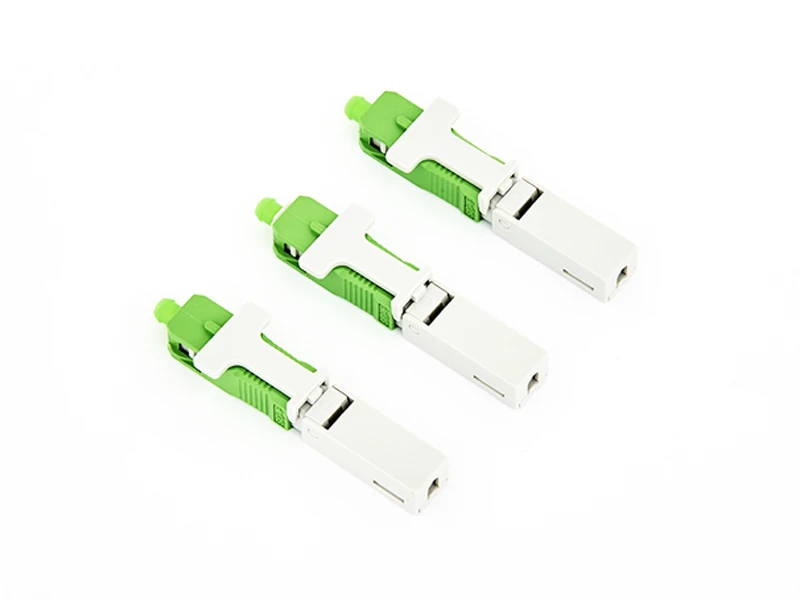

FTTH AT-Z02 Fiber Optic SC APC Fast Connector
SC APC fast connector with pre-polished ferrule for quick field installation, low loss, and reliable FTTH fiber connections.
View More

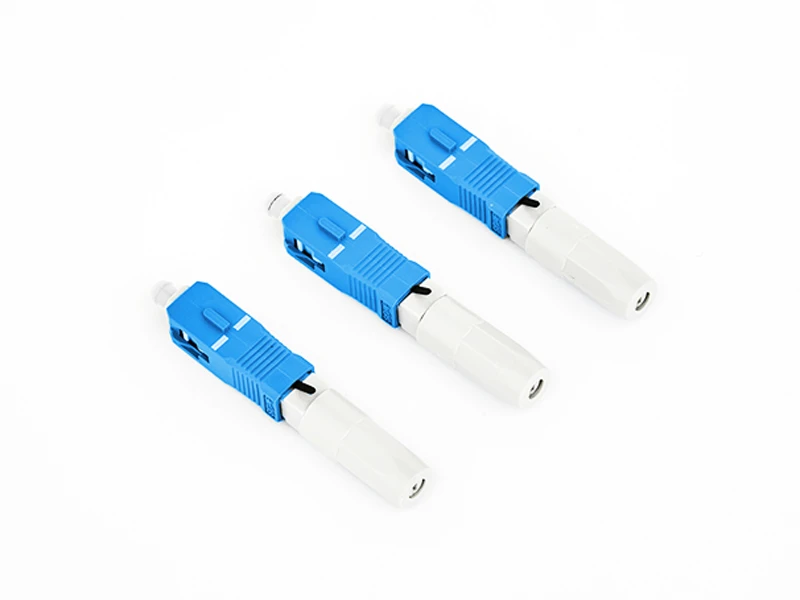

FTTH AT-Z01 Fiber Optic SC UPC Fast Connector
