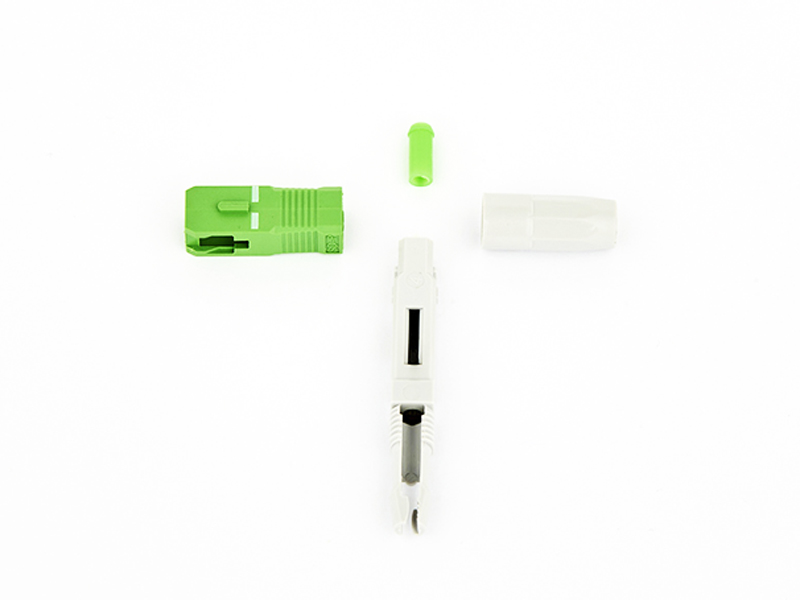

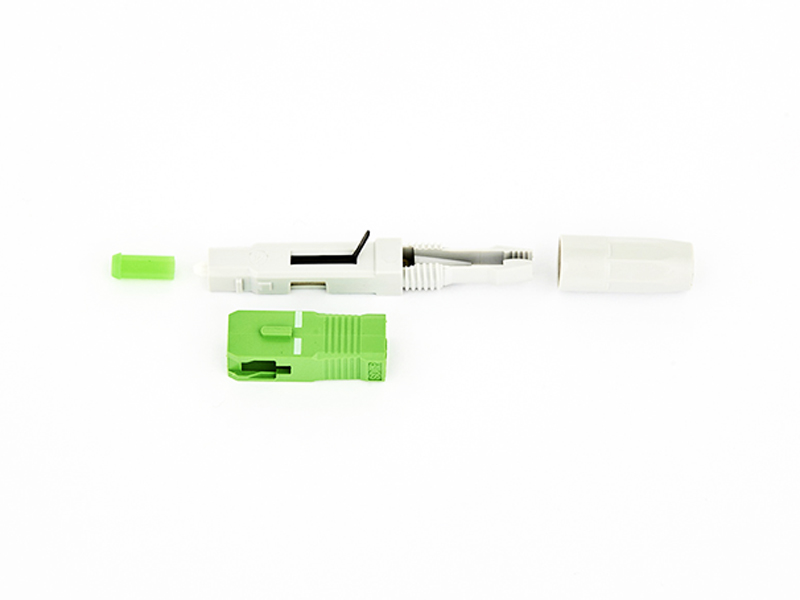

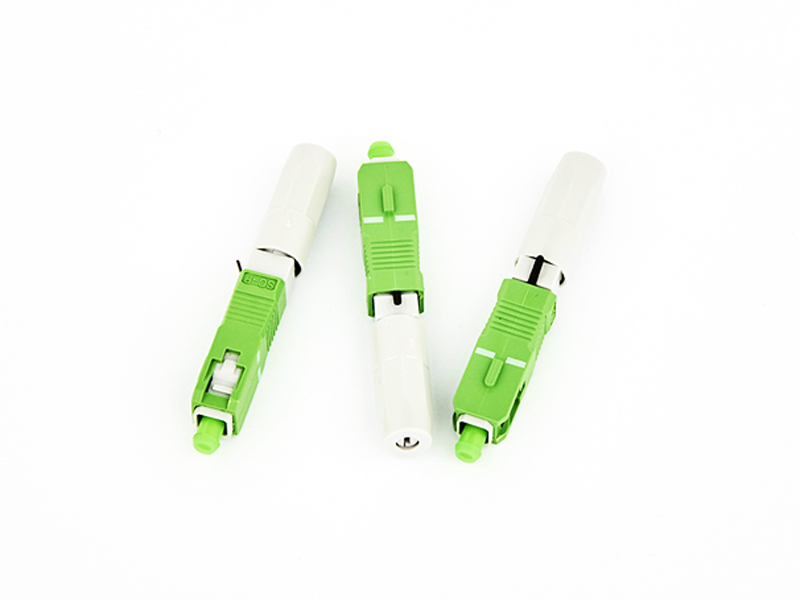

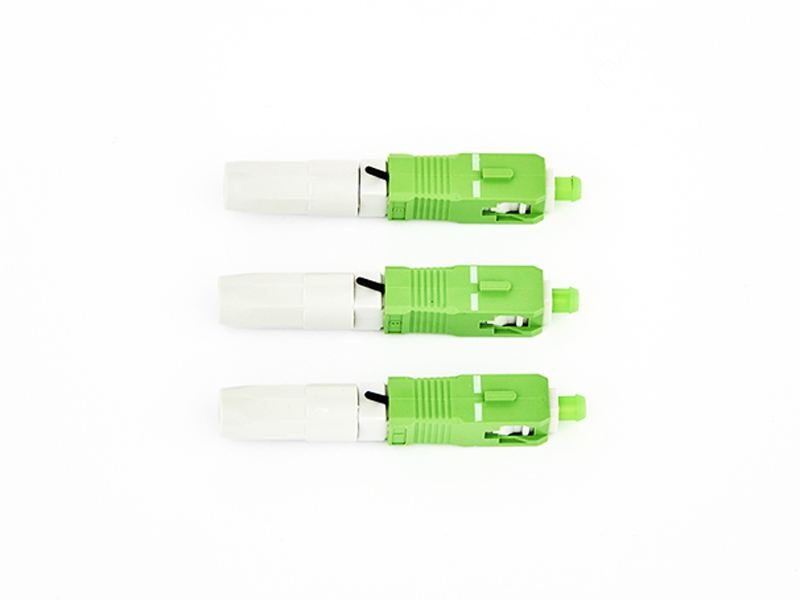

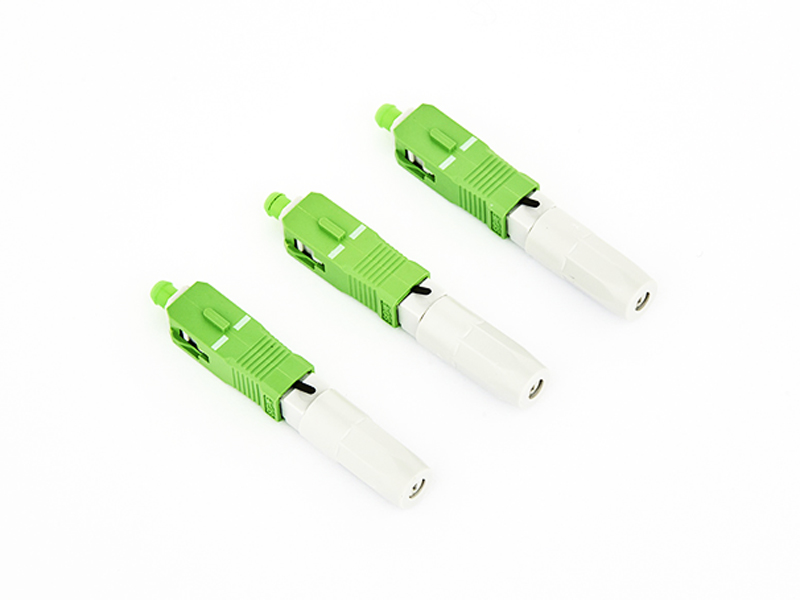

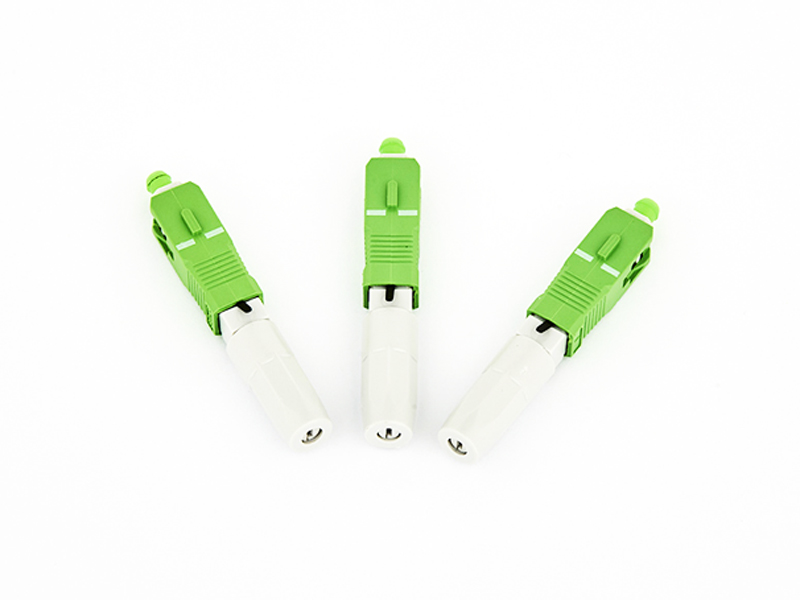

This AT-Z01 fiber optic connector is designed for reliable optical signal transmission in FTTH and fiber optic communication systems. It supports 9/125μm single-mode fiber and delivers low insertion loss (≤0.3dB) with high return loss (≥40dB) for stable network performance. Built with high reliability and precision manufacturing, it operates from -40℃ to +85℃ and withstands temperature cycling, vibration, and humidity. Customizable specifications are available, making it suitable for telecom networks, optical test equipment, fiber distribution systems, and data center applications.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient and stable optical signal transmission |
| High Return Loss | Minimizes signal reflection and improves transmission quality |
| High Reliability & Stability | Designed for long-term operation in demanding environments |
| Embedded Structure Supported | Easy integration into fiber optic systems |
| Customizable Specifications | Flexible customization to meet customer requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Insertion Loss (IL) | ≤ 0.3 dB (Typical) ≤ 0.5 dB (Maximum) |
Exceeding limit is considered failure |
| Return Loss (RL) | ≥ 40 dB | Ensures high optical performance |
| Tensile Strength | > 20 N | Reliable mechanical durability |
| Repeatability | IL change ≤ 0.3 dB | Stable after repeated use |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Reliable operation across the full temperature range |
| Temperature Cycling | Standard thermal cycling test | IL change ≤ 0.3 dB |
| Vibration Test | Standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
