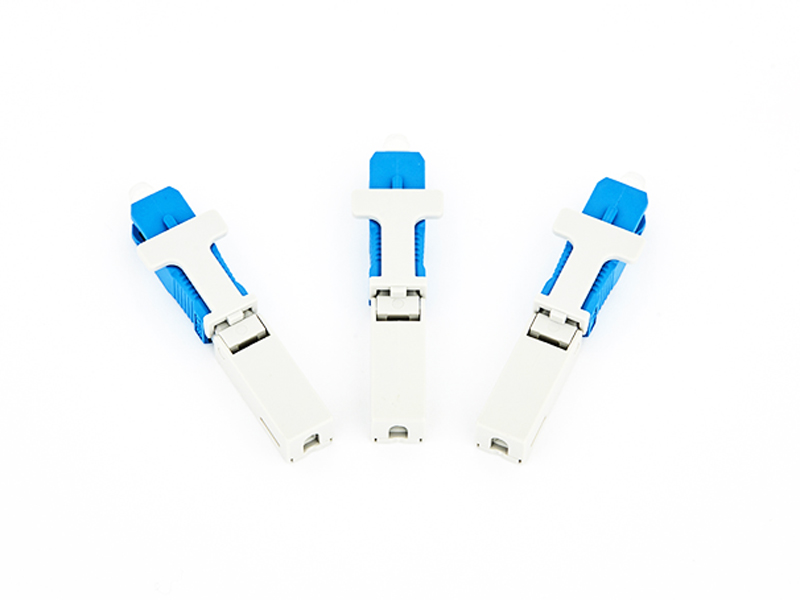

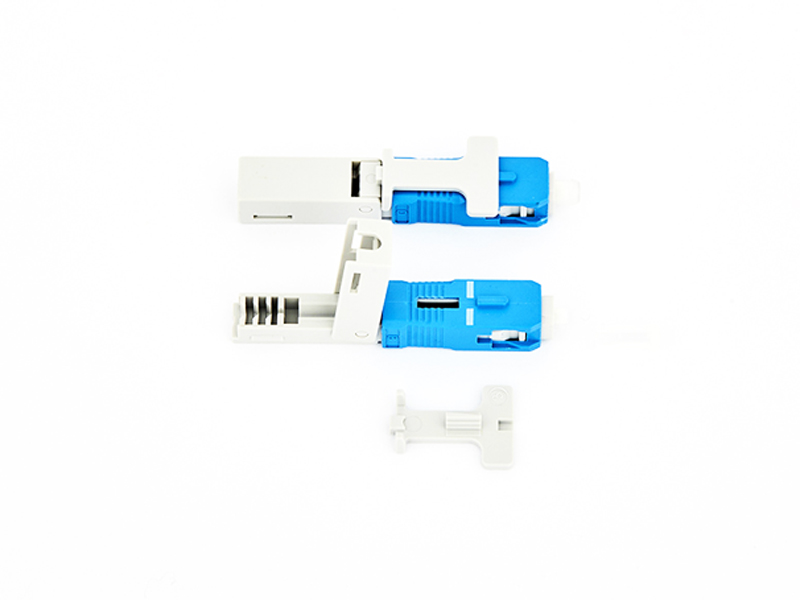

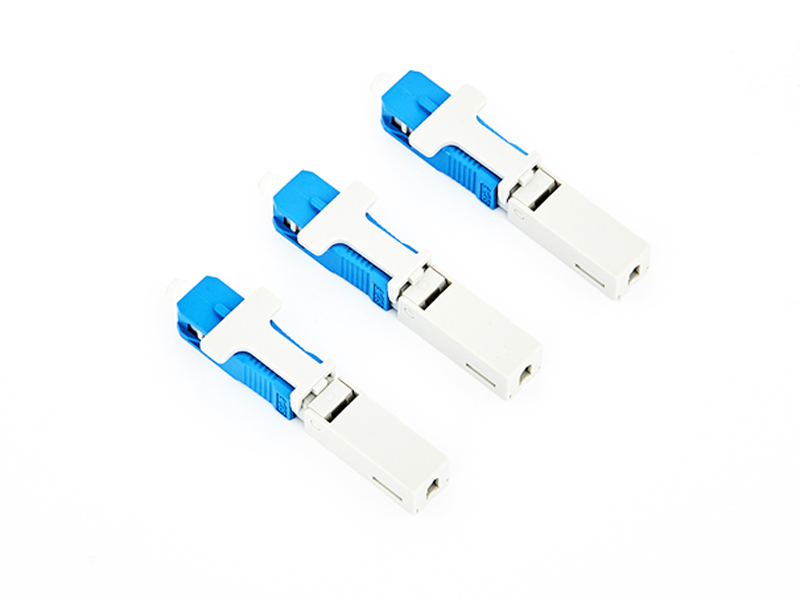

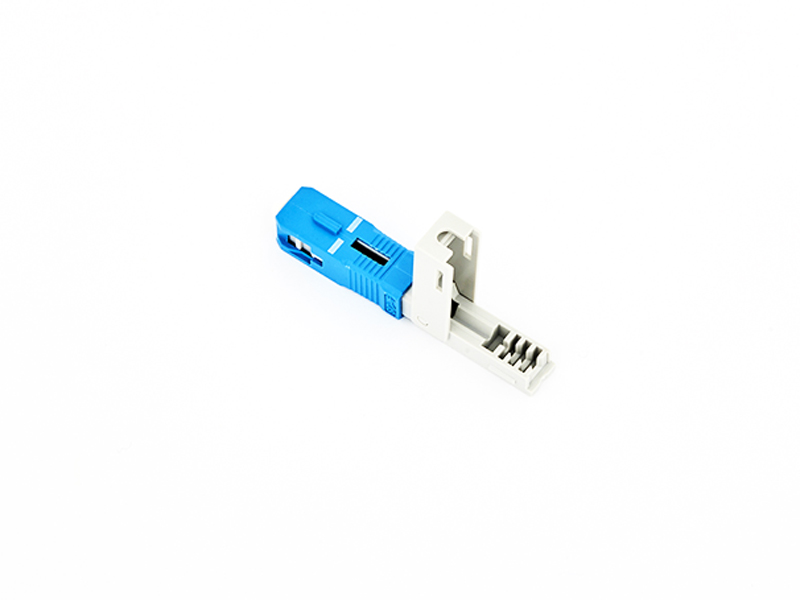

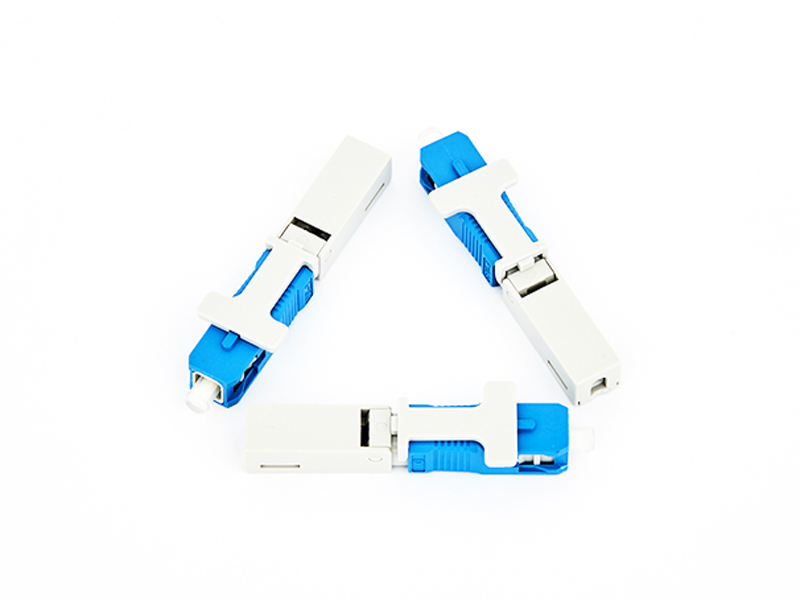

This AT-Z02 SC UPC fiber optic fast connector is designed for fast and efficient FTTH fiber optic installations. Featuring a pre-polished ferrule, it eliminates the need for epoxy, polishing compounds, or special installation tools, enabling quick and reliable field termination. Compatible with 125μm–900μm single-mode fibers, it delivers low insertion loss (≤0.3dB) and high return loss (≥40dB) for stable optical transmission. Engineered for long-term performance, it operates reliably from -40℃ to +85℃ and withstands temperature cycling, vibration, and water immersion. It is an ideal solution for FTTH deployments, telecom networks, optical distribution systems, and fiber optic maintenance.
| Feature | Description |
|---|---|
| Pre-Polished Ferrule Design | No epoxy or polishing required for quick field termination |
| Tool-Free Installation | No special tools required, simplifying on-site installation |
| Low Insertion Loss | Ensures efficient and stable optical signal transmission |
| High Return Loss | Minimizes signal reflection and enhances network performance |
| High Reliability & Stability | Designed for long-term operation in harsh environments |
| Embedded Structure Supported | Easy integration into various fiber optic systems |
| Customizable Specifications | Available according to customer requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | SC / UPC | FTTH Fast Connector |
| Fiber Type | Single-Mode | Suitable for FTTH applications |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Installation Method | Pre-Polished Field Assembly | No epoxy, polishing, or special tools required |
| Insertion Loss (IL) | ≤ 0.3 dB (Typical) ≤ 0.5 dB (Maximum) |
Exceeding limit is considered failure |
| Return Loss (RL) | ≥ 40 dB | Ensures excellent optical performance |
| Tensile Strength | > 20 N | Reliable mechanical durability |
| Repeatability | IL change ≤ 0.3 dB | Stable performance after repeated connections |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Reliable operation under extreme temperatures |
| Temperature Cycling | Standard thermal cycling test | IL change ≤ 0.3 dB |
| Vibration Test | Standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
