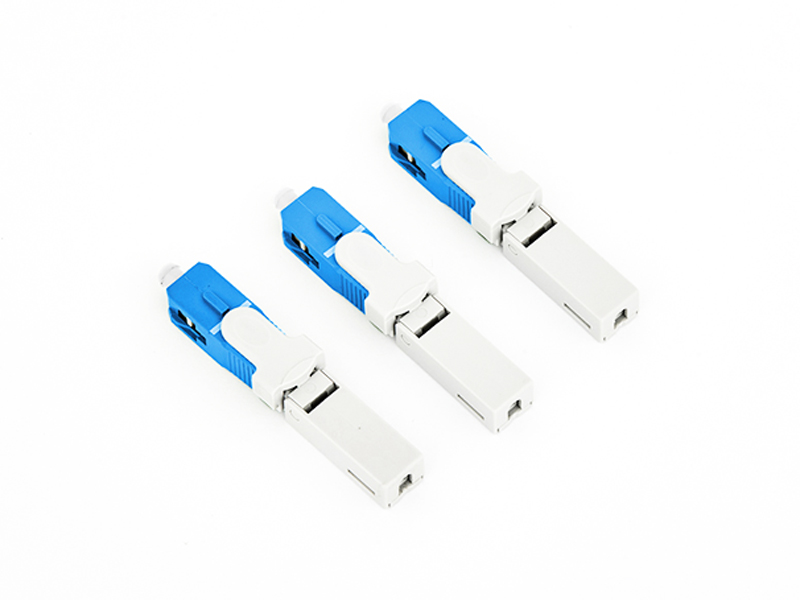

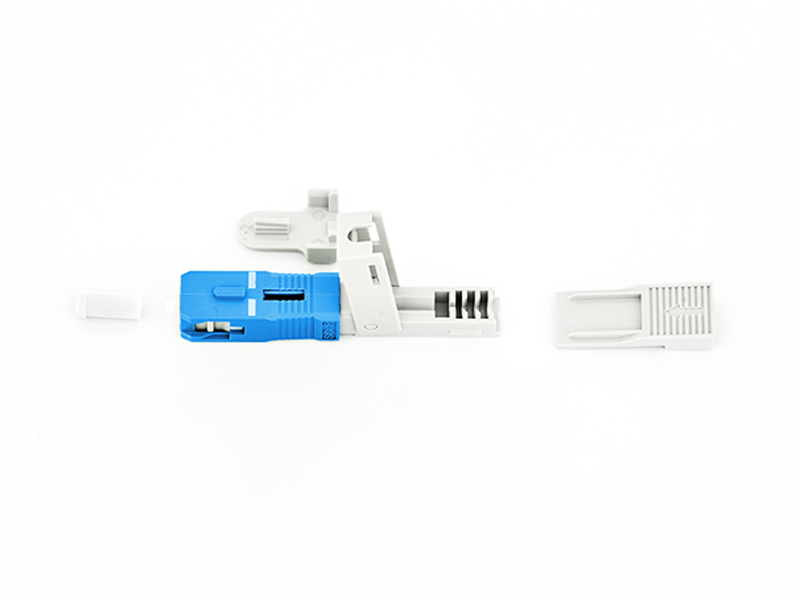

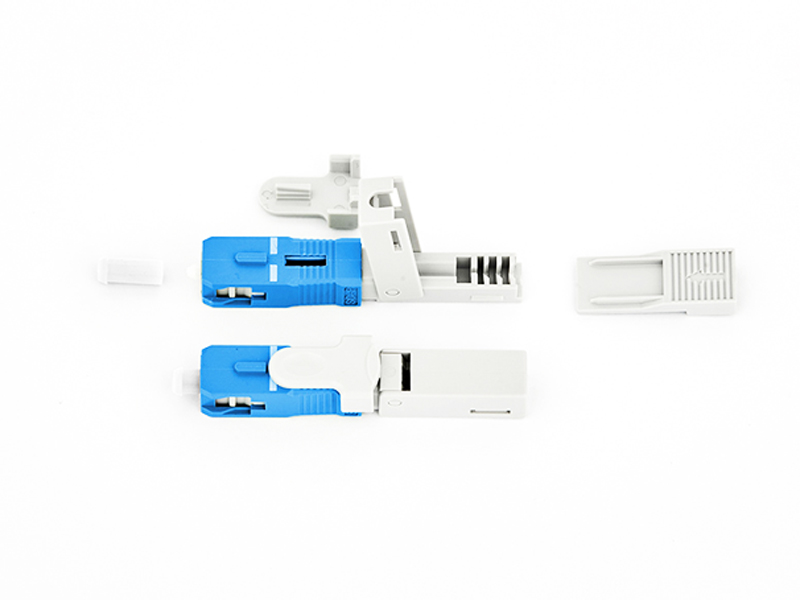

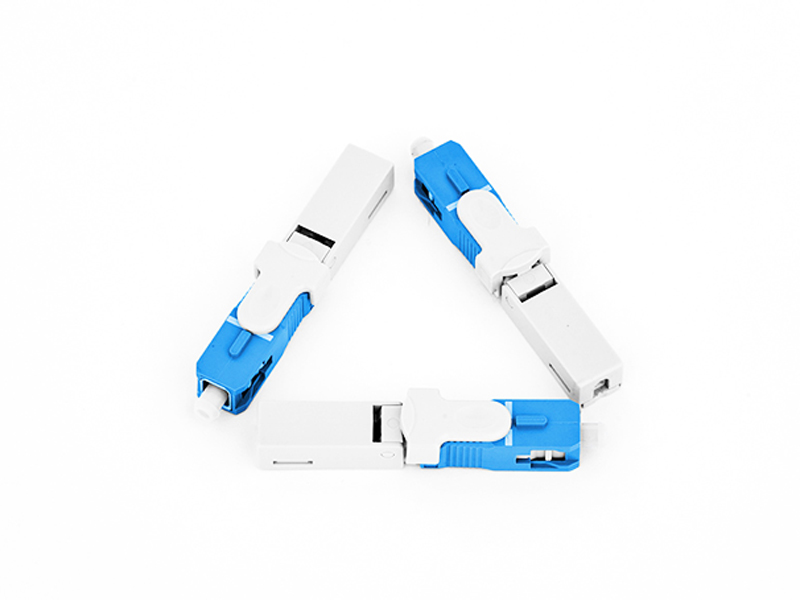

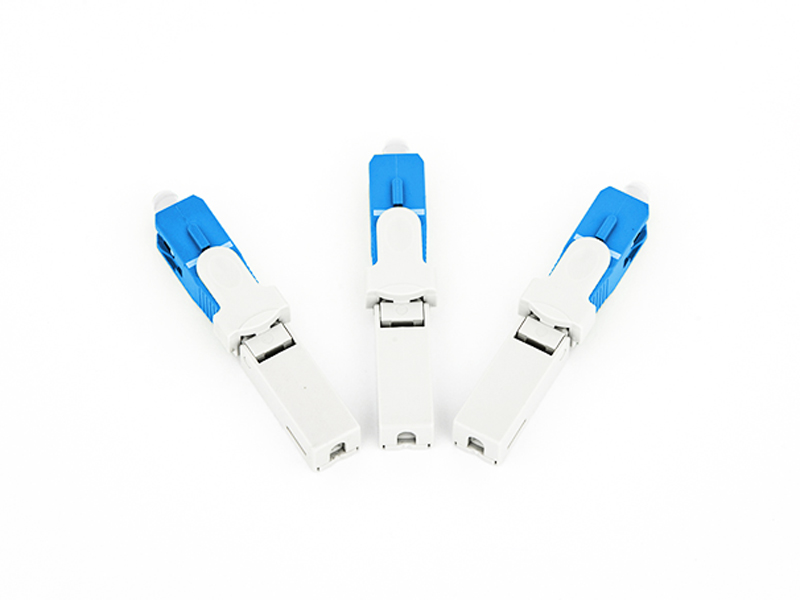

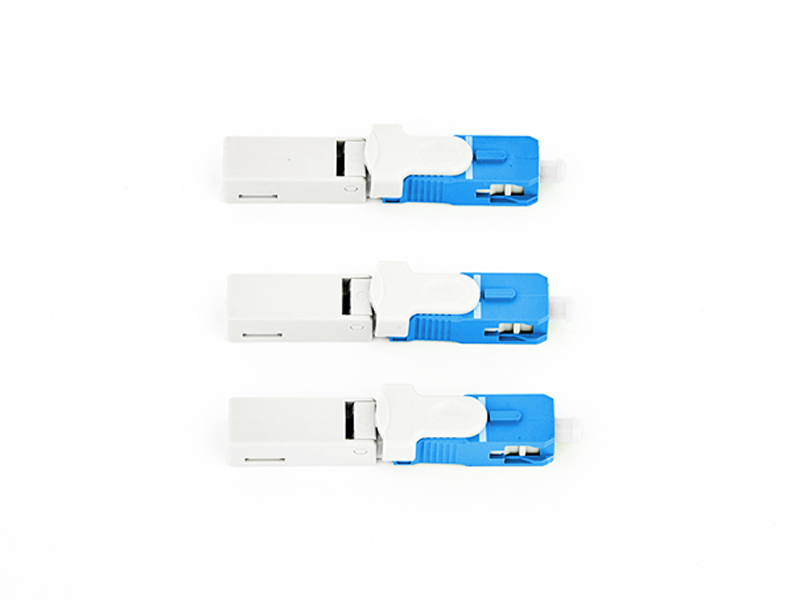

This AT-Z03 SC UPC fiber optic fast connector is designed for fast field termination in FTTH networks. Using cold connection technology, it requires no fusion splicing, epoxy, or polishing. It provides low insertion loss (≤0.3dB), high return loss (≥40dB), and stable optical performance. Compatible with 125μm–900μm single-mode fibers, it is ideal for FTTH installations, telecom networks, and fiber optic maintenance.
| Feature | Description |
|---|---|
| Cold Connection Technology | Enables fast field termination without fusion splicing |
| Low Insertion Loss | Ensures efficient and stable optical signal transmission |
| High Return Loss | Minimizes back reflection for reliable network performance |
| High Reliability & Stability | Suitable for long-term use in harsh environments |
| Embedded Structure Supported | Easy integration into various fiber optic systems |
| Quick Installation | No epoxy or polishing required for field assembly |
| Customizable Specifications | Available according to customer requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | SC / UPC | FTTH Fast Connector |
| Fiber Type | Single-Mode | Suitable for FTTH applications |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Installation Method | Cold Connection | No fusion splicing, epoxy, or polishing required |
| Insertion Loss (IL) | ≤ 0.3 dB (Typical) ≤ 0.5 dB (Maximum) |
Exceeding limit is considered failure |
| Return Loss (RL) | ≥ 40 dB | Ensures excellent optical performance |
| Tensile Strength | > 20 N | Reliable mechanical durability |
| Repeatability | IL change ≤ 0.3 dB | Stable performance after repeated connections |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Reliable operation under extreme temperatures |
| Temperature Cycling | Standard thermal cycling test | IL change ≤ 0.3 dB |
| Vibration Test | Standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
