Overview

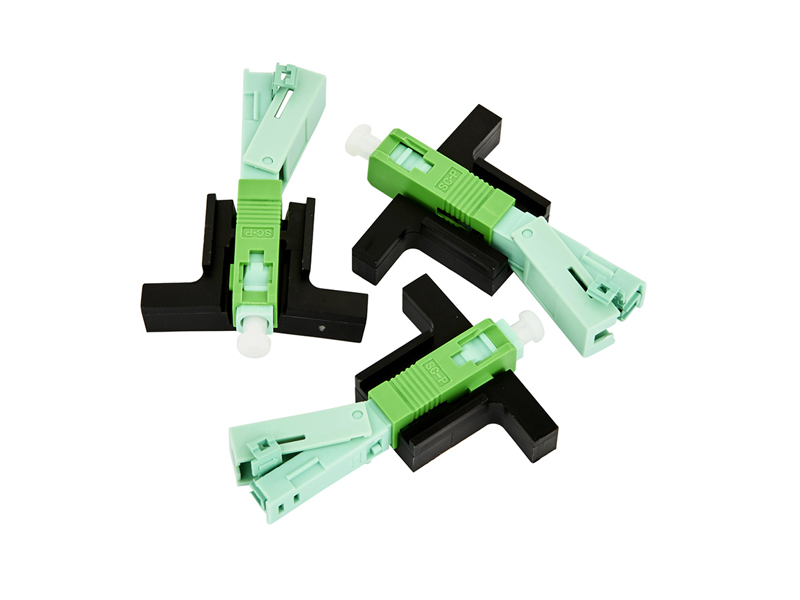

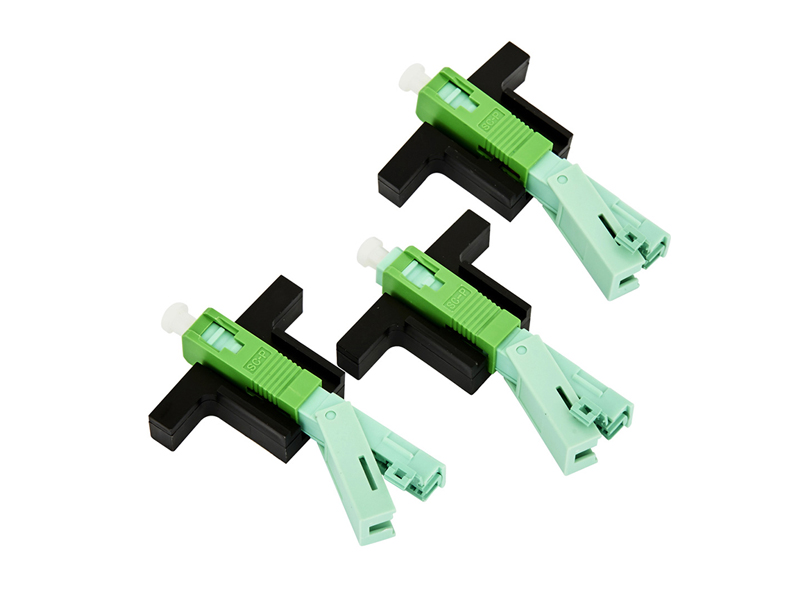

This AT13 Fiber Optic Fast Connector is designed for fast and reliable field termination in FTTH optical networks. Featuring low insertion loss (≤0.3dB typical), high return loss (≥40dB), and excellent mechanical stability, it supports fiber diameters from 125μm to 900μm. Its embedded structure ensures easy installation and long-term durability. Custom specifications are available to meet different application requirements. Ideal for FTTH, FTTx, data centers, LANs, CATV, and optical communication systems.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient and stable optical signal transmission |
| High Return Loss | Reduces back reflection and improves network performance |
| High Reliability & Stability | Delivers long-term performance in demanding environments |
| Embedded Structure Design | Enables convenient installation and secure fiber connection |
| Wide Fiber Compatibility | Supports fiber diameters from 125μm to 900μm |
| Customizable Specifications | Available according to different customer requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|

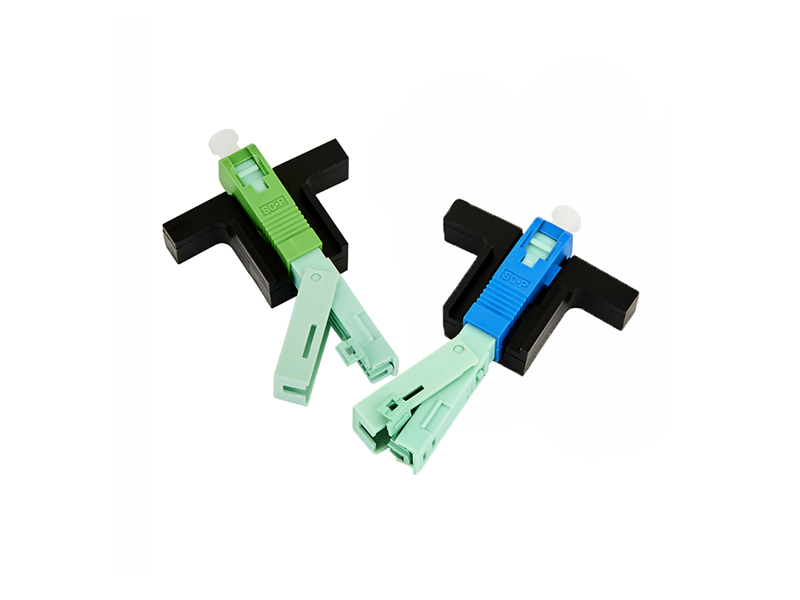

| Connector Type | SC | UPC or APC available |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Insertion Loss (IL) | ≤0.3 dB (Typical) ≤0.5 dB (Maximum) |
Exceeding the maximum value is considered failure |
| Return Loss (RL) | ≥40 dB | Stable optical performance |

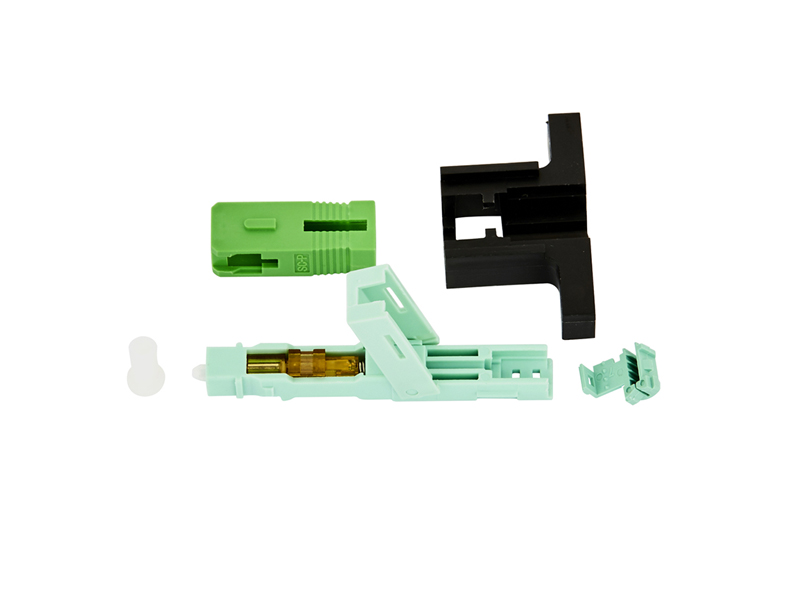

| Structure | Embedded Type | Easy field installation |
| Repeatability | IL Change ≤0.3 dB | Reliable after repeated connections |
| Customization | Available | Specifications can be customized |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature | -40℃ ~ +85℃ | Stable operation throughout the temperature range |
| Temperature Cycling | Standard temperature cycling test | IL Change ≤0.3 dB |
| Vibration Test | Standard vibration test | IL Change ≤0.3 dB |
| Water Immersion Test | Simulated flooding environment | IL Change ≤0.3 dB |
