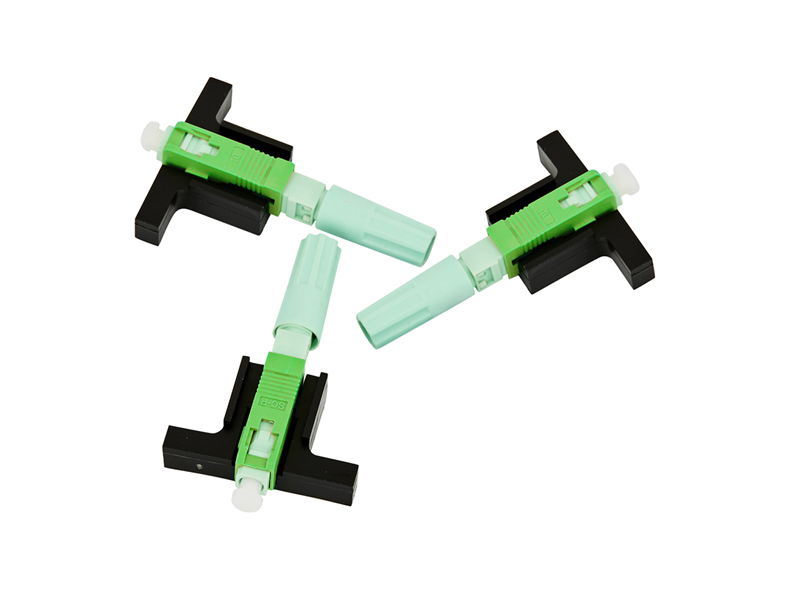

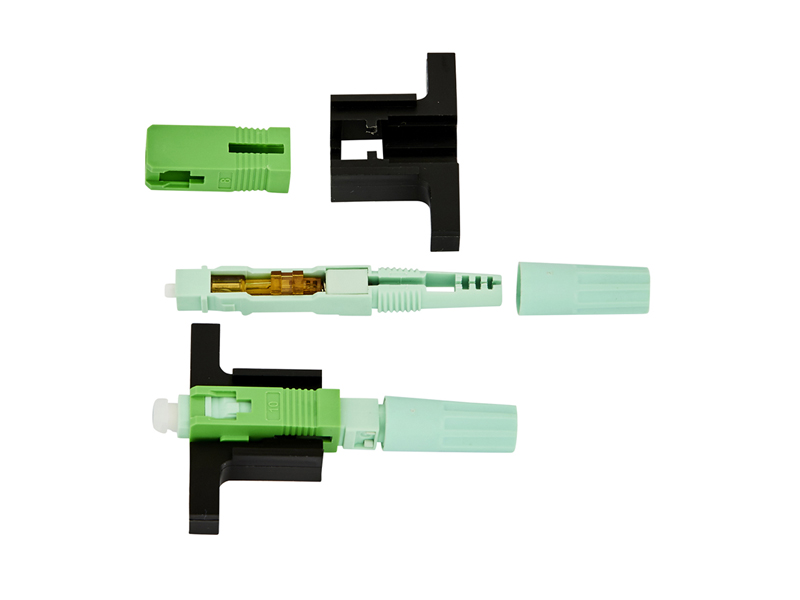

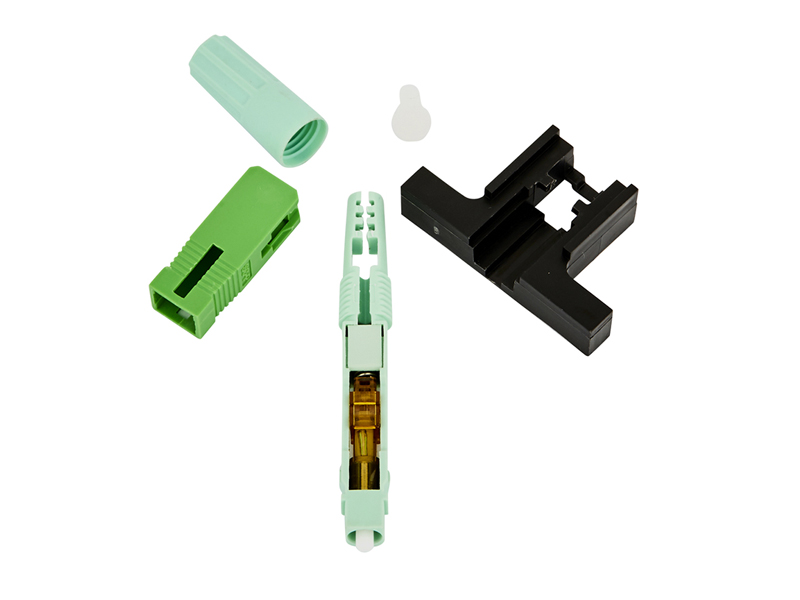

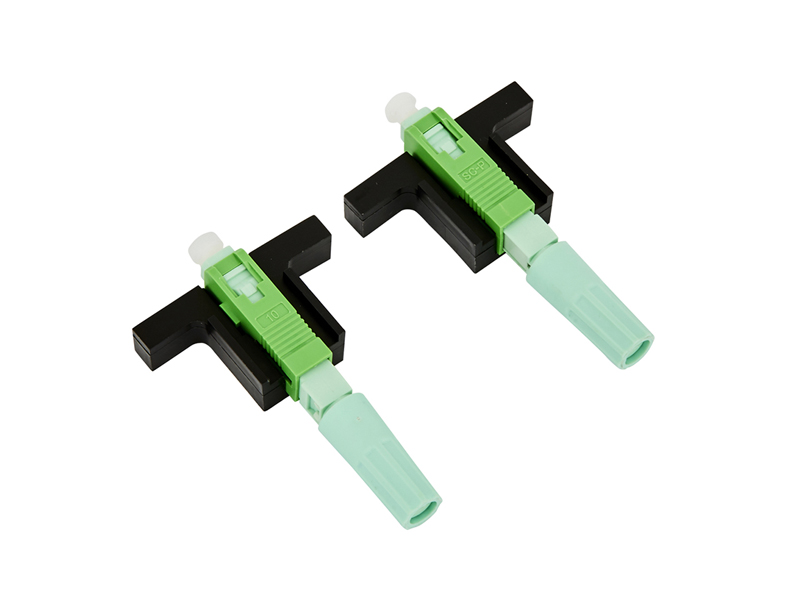

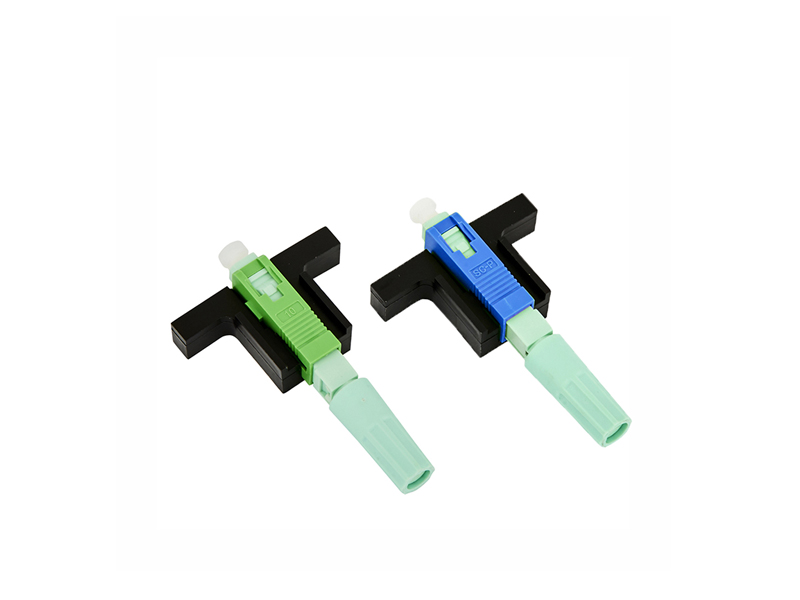

This AT18 Fiber Optic Fast Connector is designed for fast and reliable field termination in FTTH optical networks. It features low insertion loss (≤0.3dB typical), high return loss (≥40dB), and outstanding mechanical stability for dependable optical performance. Supporting fiber diameters from 125μm to 900μm, the embedded structure enables quick installation and long-term durability. Custom specifications are available to meet various project requirements. Ideal for FTTH, FTTx, LANs, CATV, data centers, and optical communication systems.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient optical signal transmission with minimal attenuation |
| High Return Loss | Reduces back reflection for improved network stability |
| High Reliability & Stability | Designed for long-term operation in demanding environments |
| Embedded Structure Design | Enables quick installation and secure fiber termination |
| Wide Fiber Compatibility | Supports fiber diameters from 125μm to 900μm |
| Customizable Specifications | Available according to customer-specific requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Connector Type | SC | UPC or APC available |
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with standard optical fibers |
| Insertion Loss (IL) | ≤0.3 dB (Typical) ≤0.5 dB (Maximum) |
Exceeding the maximum value is considered failure |
| Return Loss (RL) | ≥40 dB | Ensures reliable optical transmission |
| Structure | Embedded Type | Easy field installation |
| Repeatability | IL Change ≤0.3 dB | Stable performance after repeated mating cycles |
| Customization | Available | Specifications can be customized upon request |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature | -40℃ ~ +85℃ | Stable operation throughout the temperature range |
| Temperature Cycling | Standard temperature cycling test | IL Change ≤0.3 dB |
| Vibration Test | Standard vibration test | IL Change ≤0.3 dB |
| Water Immersion / Flooding Test | Simulated flooding environment | IL Change ≤0.3 dB |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
FTTH AT18 Fiber Optic SC UPC/APC Fast Connector
High-performance SC fiber optic fast connector with low insertion loss, quick field installation, and reliable transmission for FTTH and FTTx networks.
View More

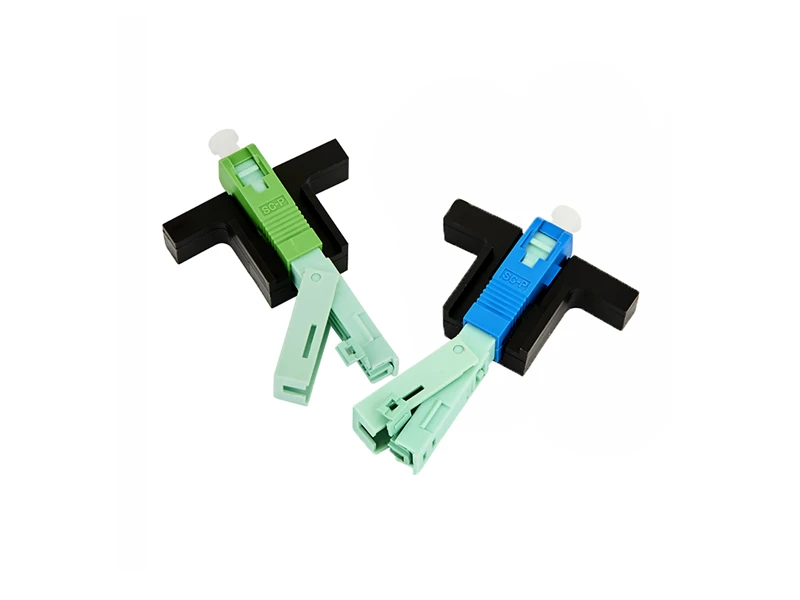

FTTH AT13 Fiber Optic SC UPC/APC Fast Connector
Reliable SC fiber optic fast connector for FTTH networks, offering low insertion loss, stable performance, quick installation, and customizable specifications.
View More

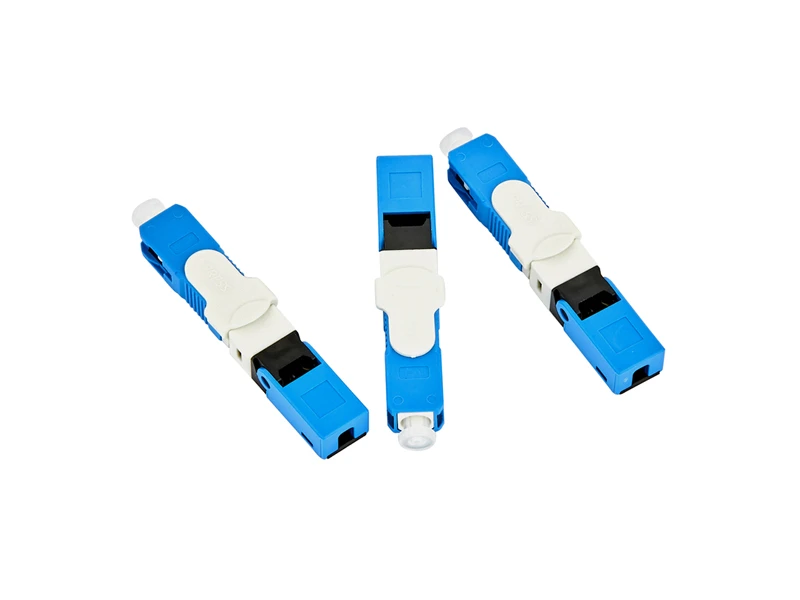

FTTH ESC250D Fiber Optic SC UPC Fast Connector
