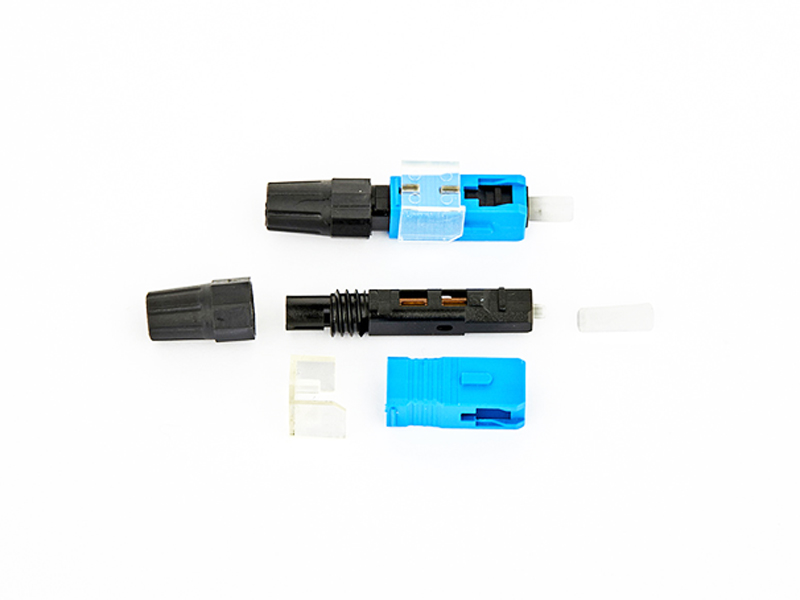

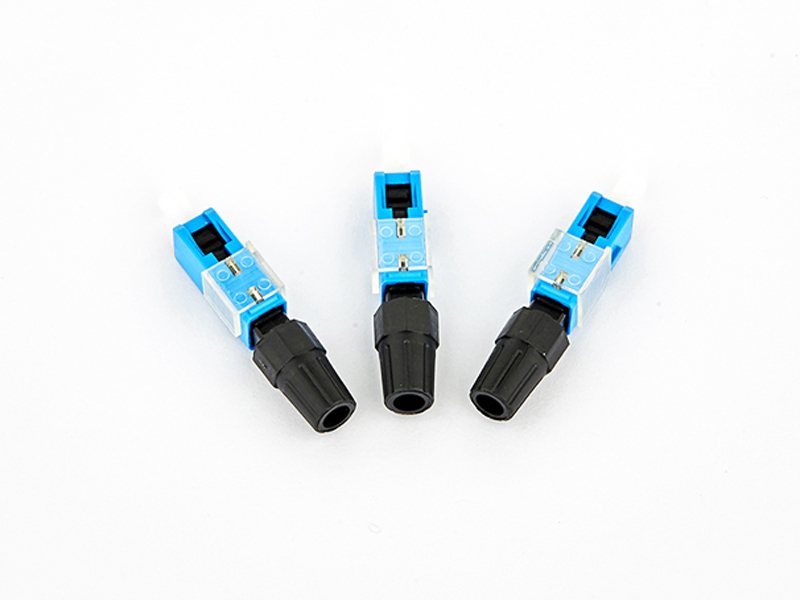

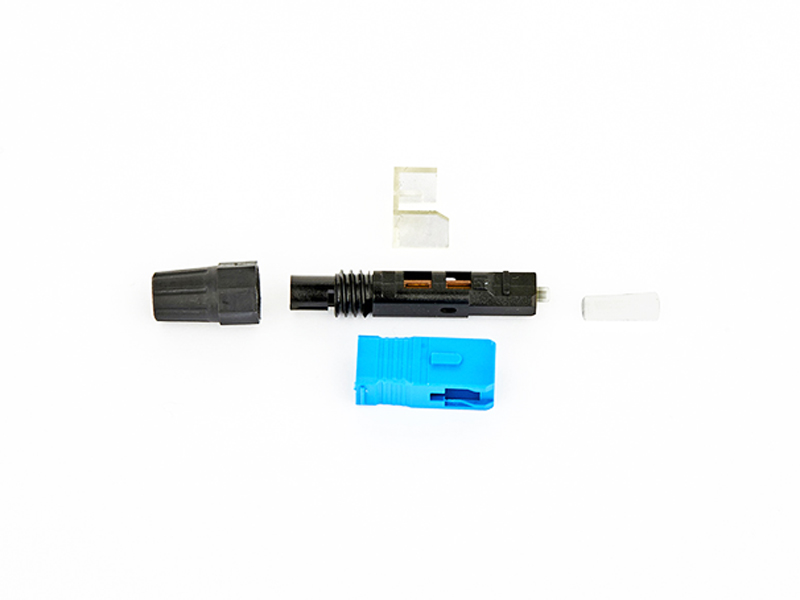

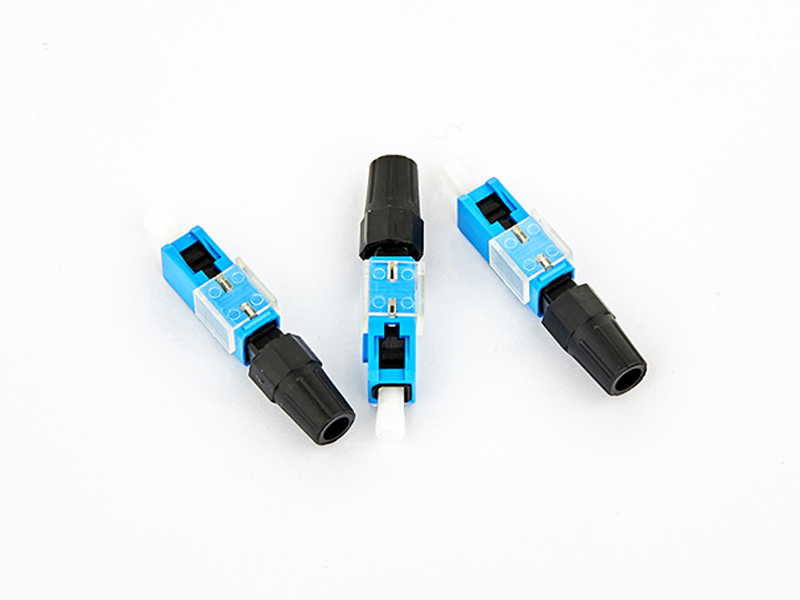

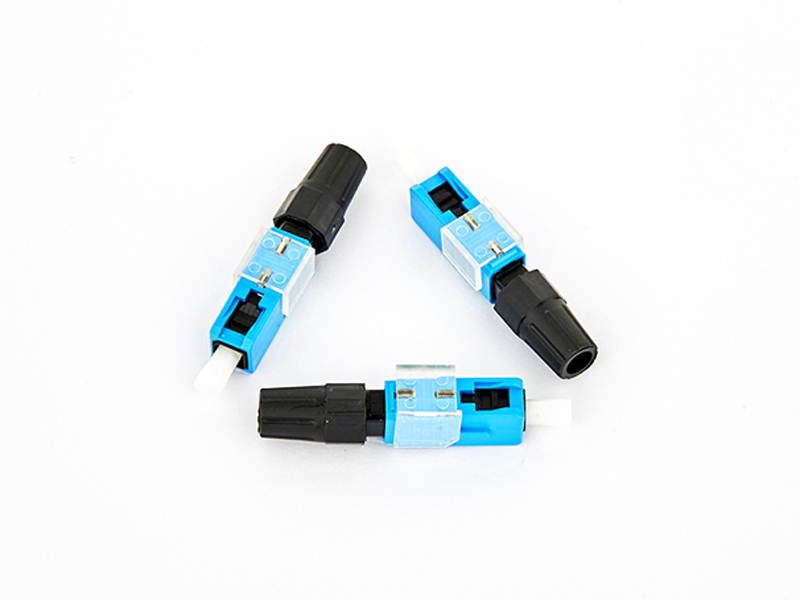

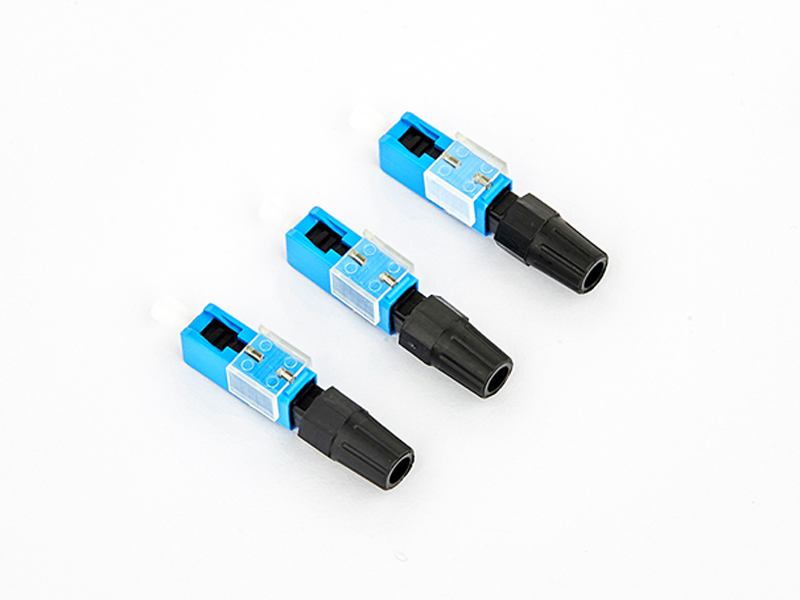

This RD SC-H fiber optic fast connector delivers low insertion loss (≤0.3dB typical, ≤0.5dB limit) and high return loss (≥40dB) for stable optical transmission. It supports 125μm–900μm fibers and operates reliably from -40℃ to +85℃. Designed with an embedded structure, it withstands temperature cycling, vibration, water immersion, and repeated connection. Custom specifications are available for FTTH, telecom, data center, and industrial fiber networks.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient signal transmission with reduced optical power loss |
| High Return Loss | Minimizes signal reflection and improves overall network performance |
| High Reliability & Stability | Suitable for long-term use in demanding fiber optic environments |
| Embedded Structure Supported | Designed for convenient integration and stable field installation |
| Customizable Specifications | Can be customized according to customer application requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with commonly used optical fibers |
| Insertion Loss (IL) | ≤ 0.3 dB typical, ≤ 0.5 dB limit | Exceeding the limit is considered failure |
| Return Loss (RL) | ≥ 40 dB | Ensures reliable SC UPC optical performance |
| Repeatability | IL change ≤ 0.3 dB | Stable performance after repeated connection cycles |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Normal operation across the full temperature range |
| Temperature Cycling | Per standard test cycle | IL change ≤ 0.3 dB |
| Vibration Test | Per standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
