Product Overview

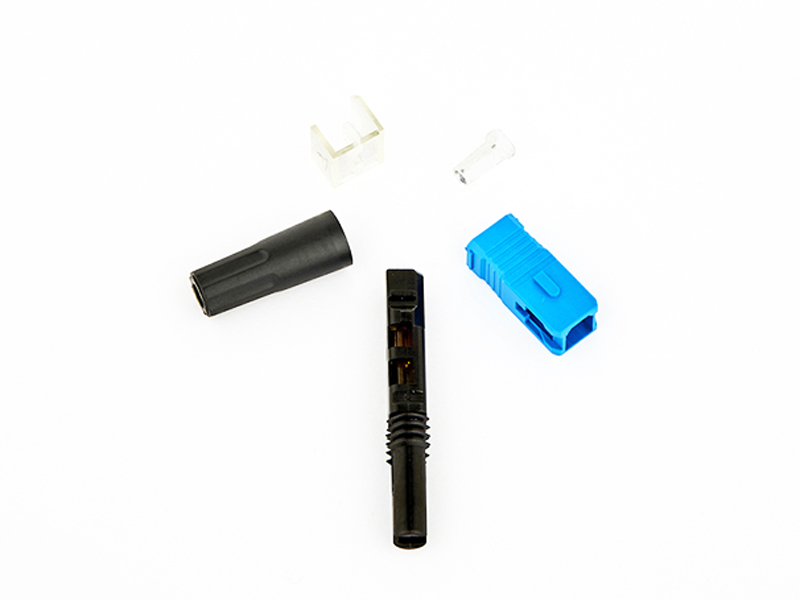

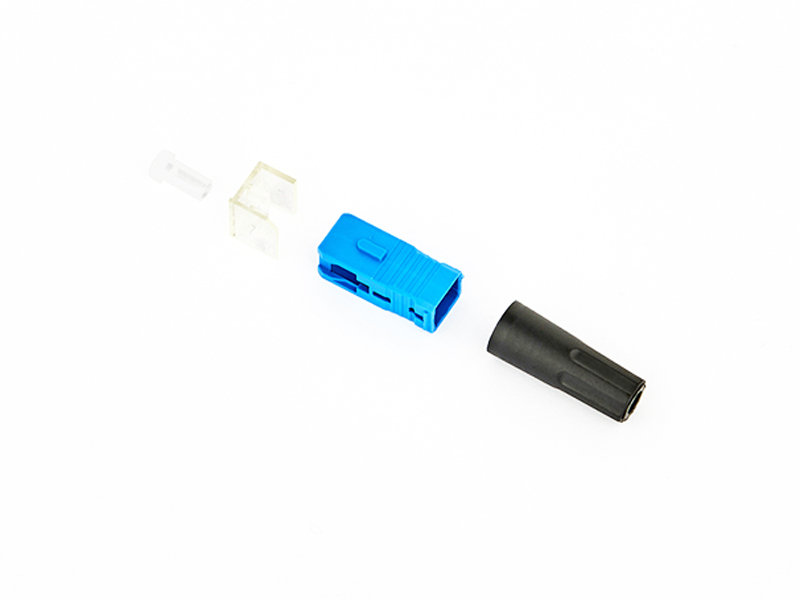

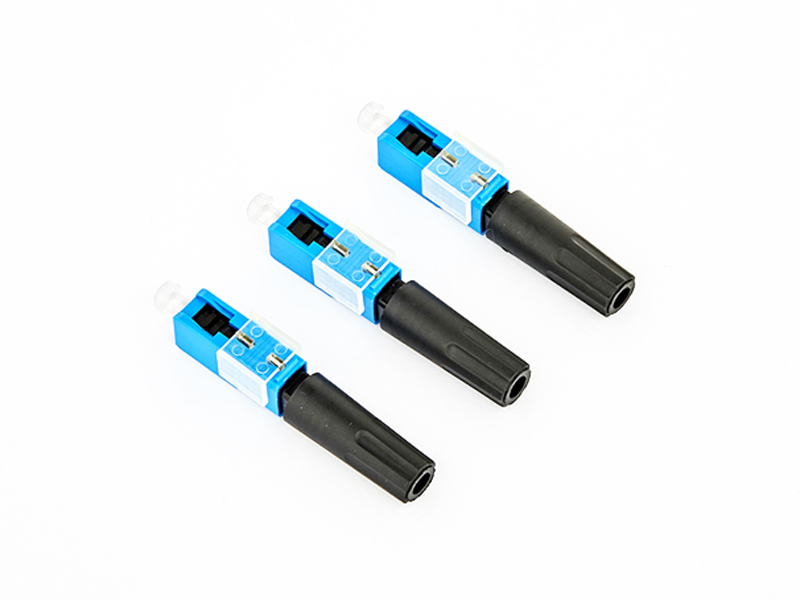

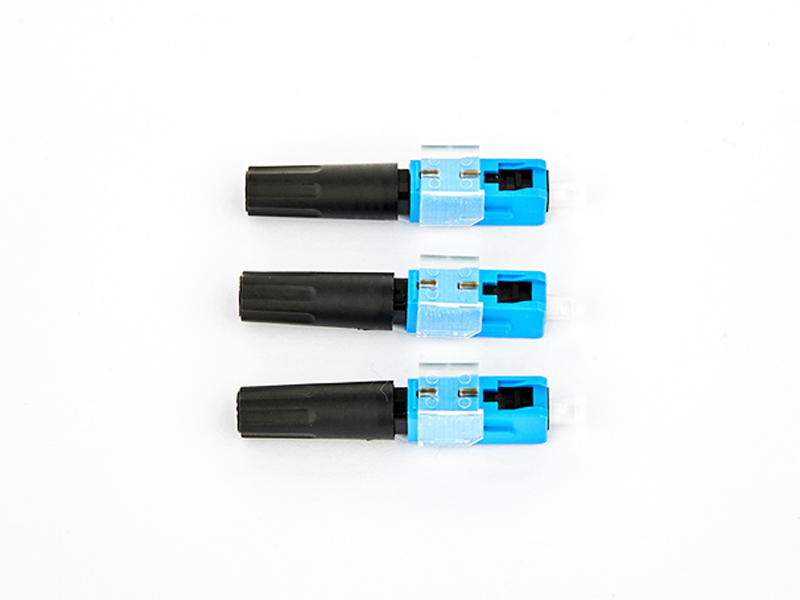

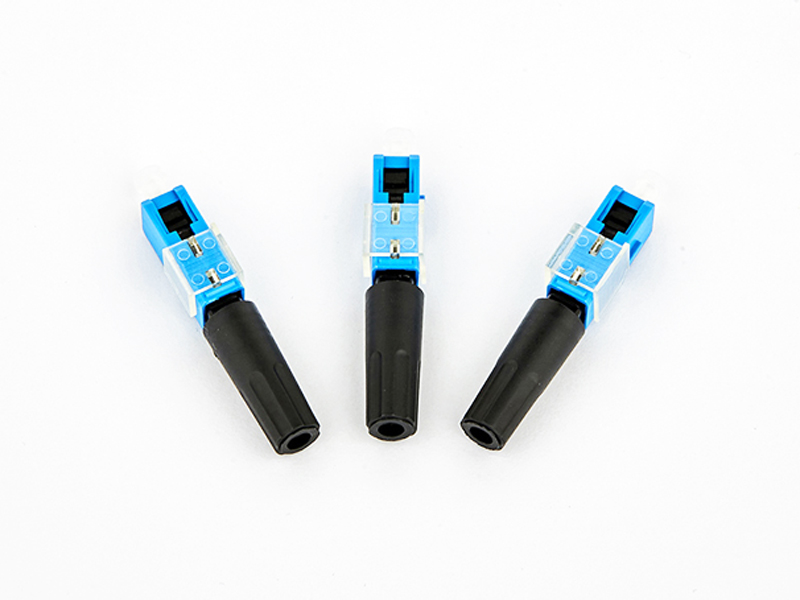

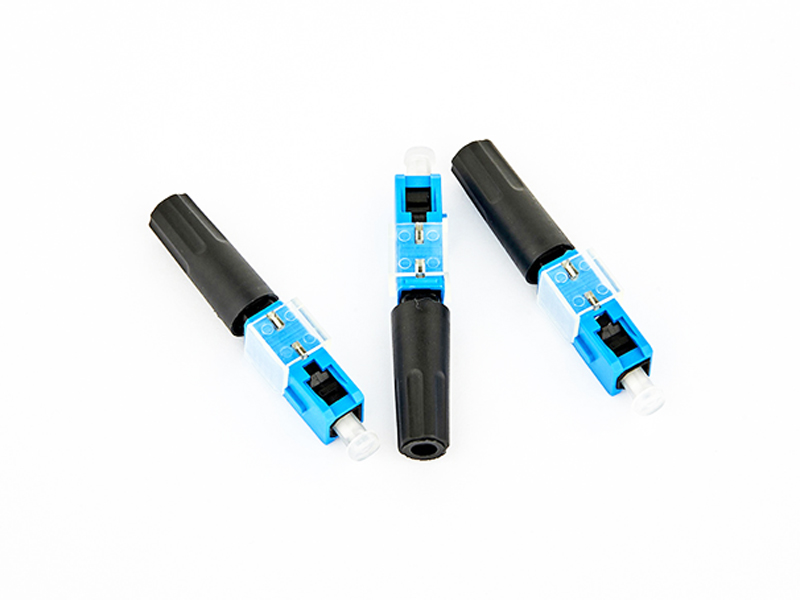

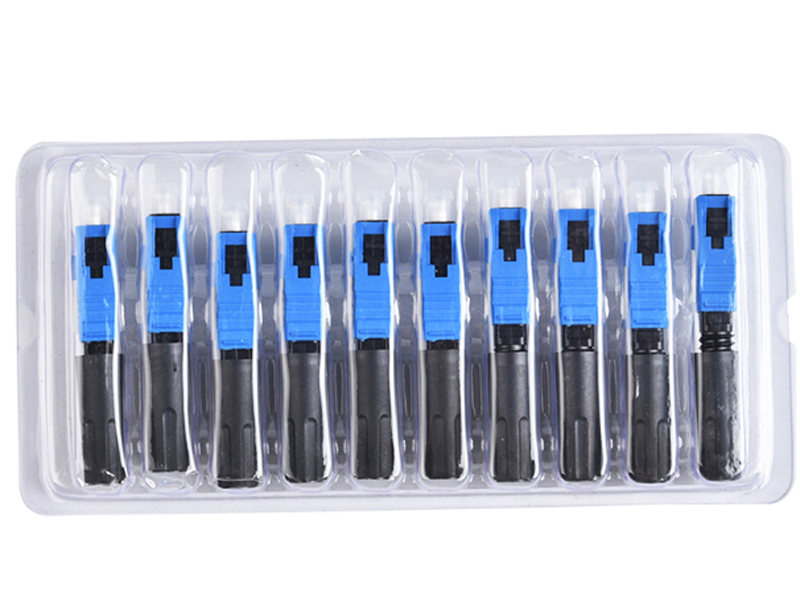

This RD SC-P fiber optic fast connector provides low insertion loss (≤0.3dB typical, ≤0.5dB limit) and high return loss (≥40dB) for stable and efficient optical transmission. It supports 125μm–900μm fibers and operates reliably from -40℃ to +85℃. With an embedded structure, it offers strong reliability under temperature cycling, vibration, water immersion, and repeated connection. Custom specifications are available for FTTH, telecom, data center, and industrial fiber network applications.
| Feature | Description |
|---|---|
| Low Insertion Loss | Ensures efficient signal transmission with reduced optical power loss |
| High Return Loss | Minimizes signal reflection and improves overall network performance |
| High Reliability & Stability | Suitable for long-term use in demanding fiber optic environments |
| Embedded Structure Supported | Designed for convenient integration and stable field installation |
| Customizable Specifications | Can be customized according to customer application requirements |
| Parameter | Specification / Requirement | Remarks |
|---|---|---|
| Fiber Diameter Range | 125μm ~ 900μm | Compatible with commonly used optical fibers |
| Insertion Loss (IL) | ≤ 0.3 dB typical, ≤ 0.5 dB limit | Exceeding the limit is considered failure |
| Return Loss (RL) | ≥ 40 dB | Ensures reliable SC UPC optical performance |
| Repeatability | IL change ≤ 0.3 dB | Stable performance after repeated connection cycles |
| Test Item | Condition / Requirement | Performance Criterion |
|---|---|---|
| Operating Temperature Range | -40℃ ~ +85℃ | Normal operation across the full temperature range |
| Temperature Cycling | Per standard test cycle | IL change ≤ 0.3 dB |
| Vibration Test | Per standard vibration condition | IL change ≤ 0.3 dB |
| Water Immersion / Flooding Test | Simulated humid or submerged environment | IL change ≤ 0.3 dB |
