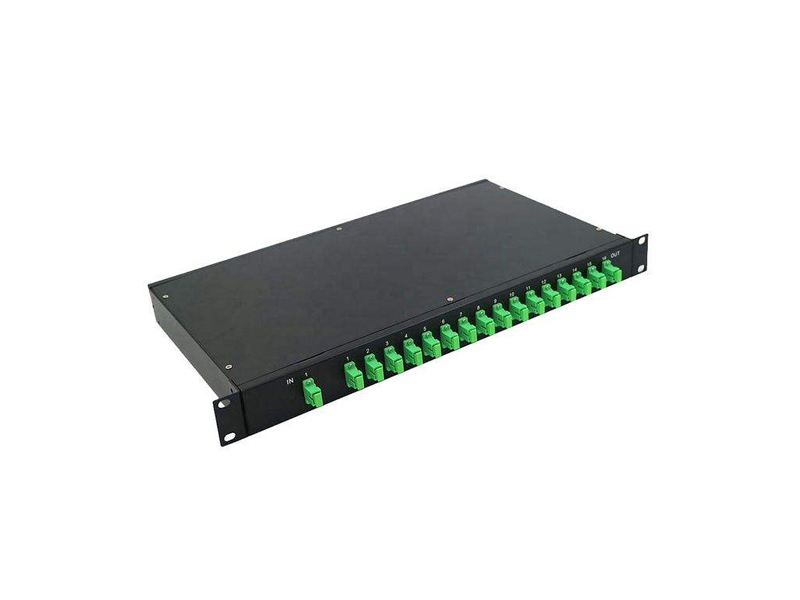

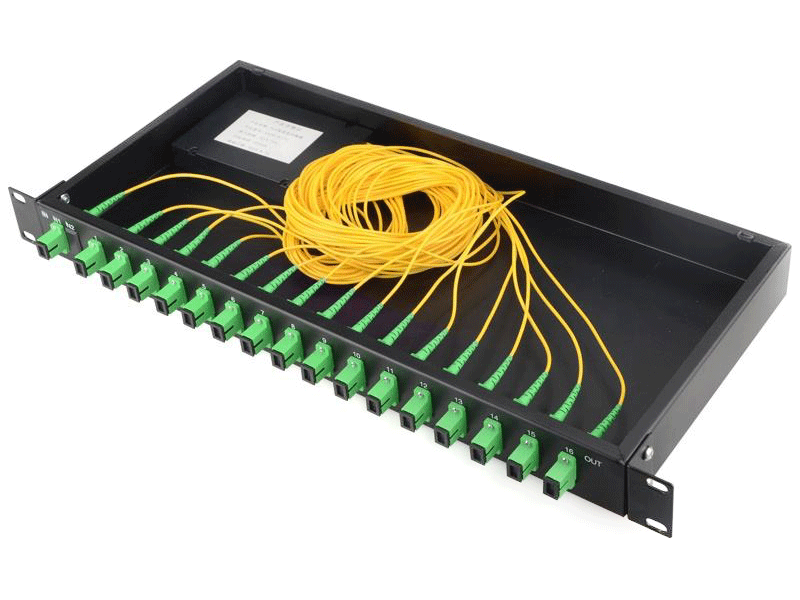

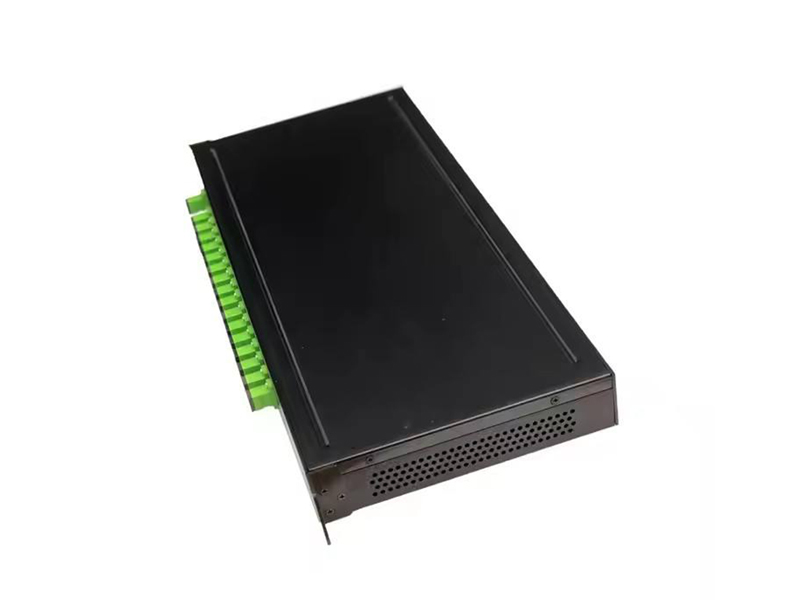

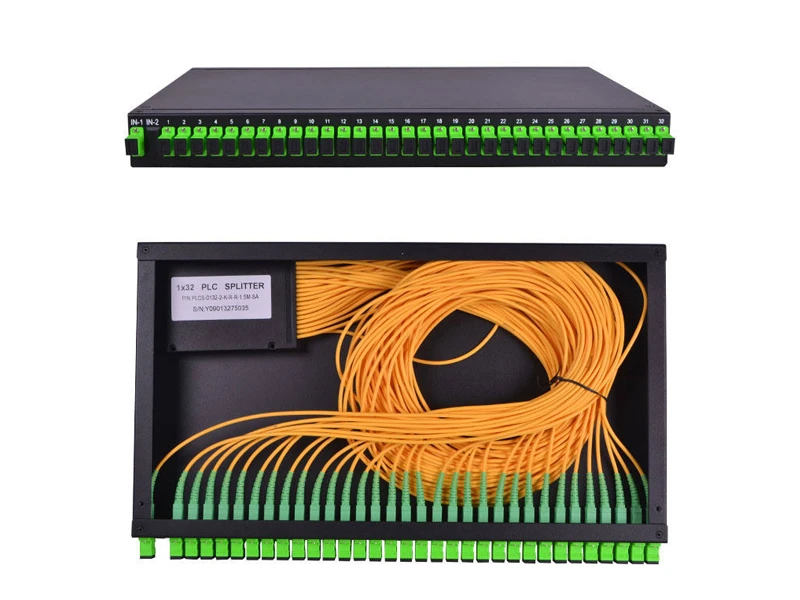

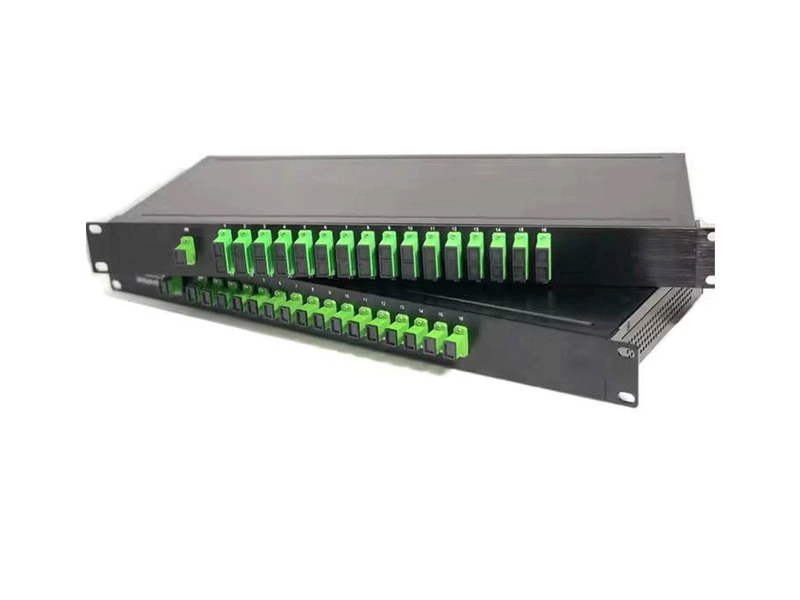

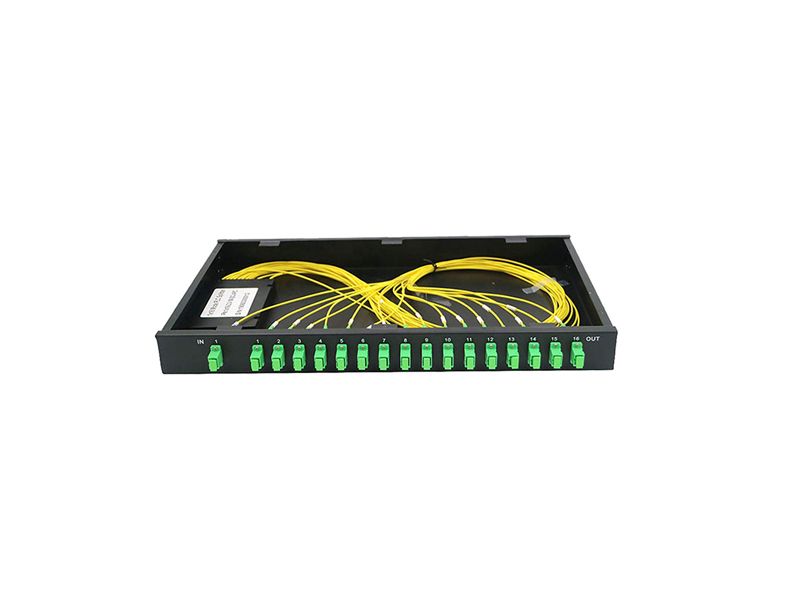

Rack-Mount PLC (Planar Lightwave Circuit) splitter is an optical splitter used in passive optical networks (PONs) to divide a single optical signal into multiple outputs. The rack-mount design is specifically intended for installation in a standard 19-inch rack to fit into a data center or telecommunication facility. The rack-mount PLC splitter uses a planar waveguide circuit to distribute the optical signal evenly across the output ports, minimizing signal loss and ensuring uniform power splitting. The rack-mount design typically allows the splitter to be installed in multiple configurations, such as 1U, 2U, 3U, or 4U form factors, to meet high-density fiber-optic requirements.
Features:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
High Reliability and Stability
-ADVANTAGES
-Uniform power splitting
-Low Insertion Loss and High Retum Loss
-Good channel-to-channel uniformity
-Low polarization-dependent loss (PDL)
-Compact size for installation
Wavelength Range: 1260~1650nm
Compliant with Telcordia GR-1209-core/GR-1221-core specification and RoHS requirements.
Typical Usage:
Fiber-to-the-Antenna (FTTA)
Automation and industrial cabling
Surveillance systems
Broadcast
|
Split Way |
1*2/4/8/16/32/64/96
2*2/4/8/16/32/64 All Customizable |
|
Outer Dimension |
1U/ 2U Optional |
|
Rack Case Material |
Steel or Aluminum |
|
Operating Wave Length (nm) |
1260-1650 |
|
Splitting Ratio |
Symmetrical |
|
Connector Type |
SC, LC, FC, ST, E2000(LSh), MU |
|
Polishing |
APC, UPC |
|
Cable Outside Diameter (OD) |
0.9/2.0/3.0mm (Customizable) |
|
Return Loss (dB) |
50(UPC) 55(APC) |
|
Insertion Loss (dB) |
≤ 16.9dB |
|
Exterior Material |
Steel |
|
Cord Jacket Material |
PVC, LSZH |
|
Certification |
ETL, ISO9001, CE, ROHS |
| Product name | PLC Optic Splitter | Product Type | RACK type |
| Product Model | PLC SC/APC 1:16 | Optical Connector | SC/FC/LC/ST |
| 1 × N PLC Optic Splitter Specification | |||||
| OperatingWavelength(μm) | 1260~1650 | ||||
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 |
| Insertion Loss (dB) | 3.6 | 7.5 | 10.2 | 13.5 | 16.9 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
| Polarization Dependent Loss (dB) | 0.2 |
0.2 |
0.2 | 0.25 | 0.3 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 |
| Temperature Dependent Loss(-40~85) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
| Returm Loss (dB) | 55/50 | ||||
| Operating Temperature (℃) | -40~+85 | ||||
| Directivity (dB) | ≥55 | ||||
| Storage Temperature (℃) | -40~+85 | ||||
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
Optical splitters are core passive optical devices in fiber optic communication links, enabling power distribution and combining of optical signals. They can distribute single or dual-channel optical signals evenly or according to specified ratios to multiple outputs, and can also combine multiple optical signals in reverse. Among these, PLC (Planar Lightwave Circuit) splitters are based on quartz substrate integrated waveguide technology and are suitable for high-channel-count Passive Optical Network scenarios. FBT (Fused Biconical Taper) splitters are manufactured through fiber fusion tapering and are ideal for low-channel-count applications requiring specific splitting ratios. Both product types are widely used in fiber optic communications, CATV, fiber optic sensing, and other fields. As key components in building FTTX, PON, and other fiber networks, they feature stable transmission, strong adaptability, and compact size, meeting various optical signal distribution requirements across different fiber networks.
View More
Optical splitters are core passive optical devices in fiber optic communication links, enabling power distribution and combining of optical signals. They can distribute single or dual-channel optical signals evenly or according to specified ratios to multiple outputs, and can also combine multiple optical signals in reverse. Among these, PLC (Planar Lightwave Circuit) splitters are based on quartz substrate integrated waveguide technology and are suitable for high-channel-count Passive Optical Network scenarios. FBT (Fused Biconical Taper) splitters are manufactured through fiber fusion tapering and are ideal for low-channel-count applications requiring specific splitting ratios. Both product types are widely used in fiber optic communications, CATV, fiber optic sensing, and other fields. As key components in building FTTX, PON, and other fiber networks, they feature stable transmission, strong adaptability, and compact size, meeting various optical signal distribution requirements across different fiber networks.
View More

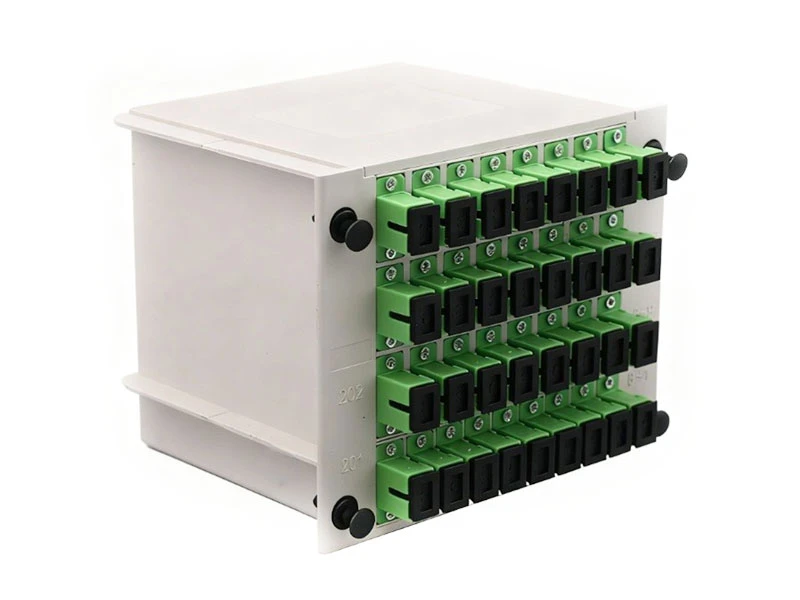

1x32 PLC Fiber Optic Splitter, SC/APC & SC/UPC Single Mode, LGX Cassette Module - Factory Price
