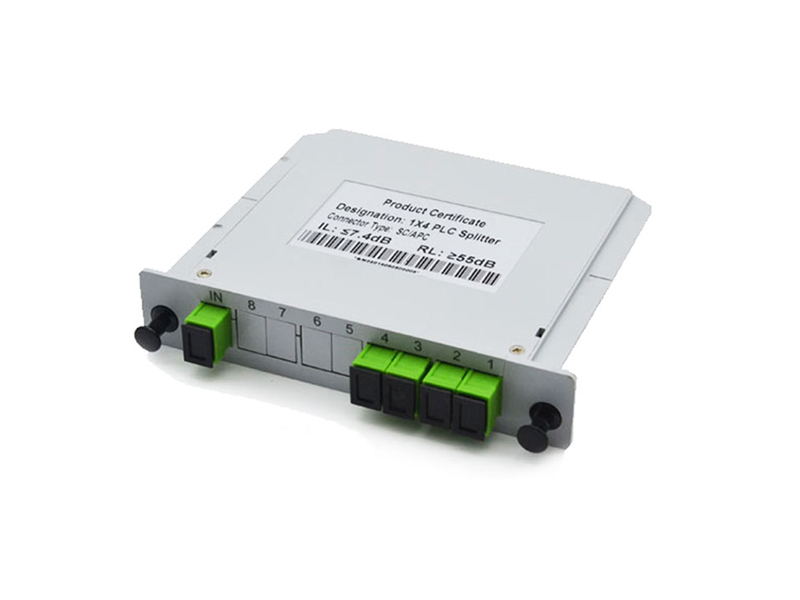

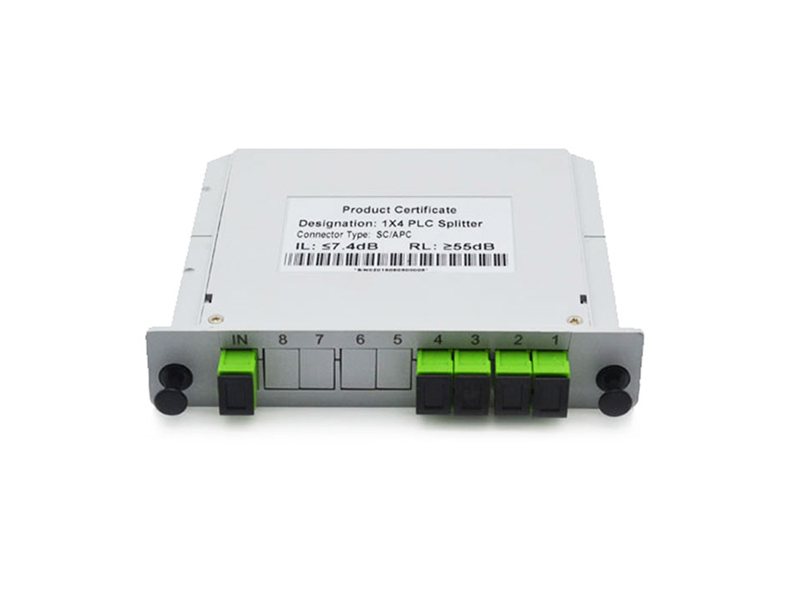

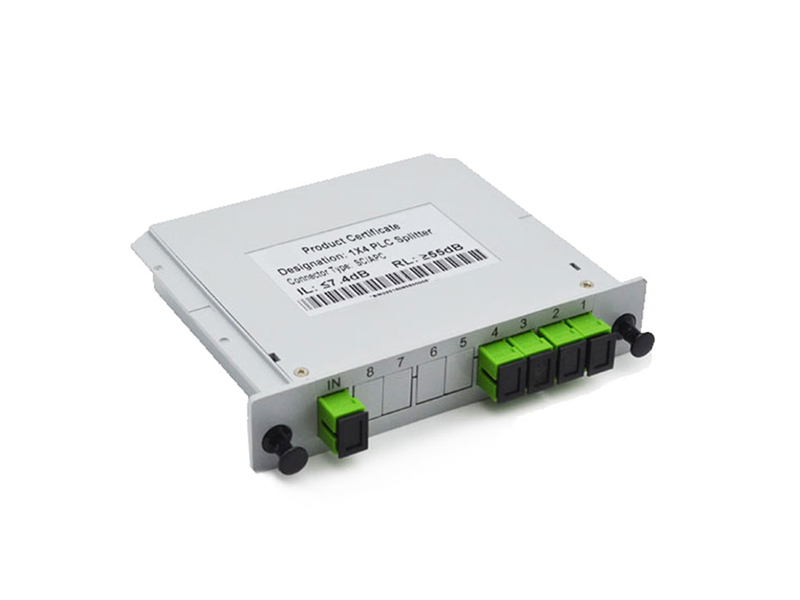

This PLC planar waveguide splitter, using a standard LGX metal box package and paired with SC/APC beveled polished connectors, is a dedicated optical power equalization device in passive optical networks. It is passive and consumes zero power throughout the entire process, ensuring stable signal transmission. It is tailor-made for small and medium-scale fiber optic splitting scenarios. With the high return loss characteristics of SC/APC, it is perfectly suited for various fiber optic projects with sensitive signal reflection and stringent transmission quality requirements.
Description
- Material: Typically made from durable plastic or metal casings to protect the internal optical components.
- Size: Compact and modular design, often fitting into standard rack-mount or wall-mount enclosures.
- Ports: Multiple input and output ports to facilitate splitting or combining optical signals.
- Type: Commonly used types include PLC (Planar Lightwave Circuit) splitters and FBT (Fused Biconical Taper) splitters.
Features
- High Performance: Low insertion loss and high return loss ensure efficient signal transmission.
- Scalability: Modular design allows easy scaling of network infrastructure by adding more splitter cassettes as needed.
- Flexibility: Can be configured in various splitting ratios (e.g., 1x2, 1x4, 1x8, 1x16, etc.) to meet different network requirements.
- Protection: Enclosed design protects the delicate optical fibers and splitters from environmental factors and physical damage.
- Easy Management: Standardized cassette format simplifies cable management, making it easier to organize, label, and access connections.
Applications
- Telecommunications: Used in central offices, remote terminals, and access points to distribute fiber optic signals.
- FTTH (Fiber to the Home): Provides efficient signal distribution from a central point to multiple homes or businesses.
- Data Centers: Facilitates high-density fiber distribution and management within data centers.
- Cable TV (CATV): Distributes optical signals for cable television networks.
- Passive Optical Networks (PON): Integral to PON architectures, enabling the distribution of optical signals to multiple endpoints.
Advantages
- Space-Saving: Compact design maximizes the use of available rack or wall space.
- Easy Installation: Plug-and-play design allows for quick and straightforward installation and reconfiguration.
- Cost-Effective: Reduces the need for multiple individual splitters, lowering overall system costs.
- Improved Organization: Neat and organized cabling improves maintenance and troubleshooting efficiency.
Specifications
- Splitting Ratios: Available in various ratios such as 1x2, 1x4, 1x8, 1x16, 1x32, etc.
- Insertion Loss: Typically ranges from 3.5 dB for 1x2 splitters to around 16-18 dB for 1x32 splitters.
- Return Loss: Generally greater than 55 dB for UPC (Ultra Physical Contact) connectors and 60 dB for APC (Angled Physical Contact) connectors.
- Operating Wavelength: Usually designed for single-mode fibers, covering wavelengths like 1260-1650 nm.
- Operating Temperature Range: Typically -40°C to +85°C, suitable for various environmental conditions.
|
Parameters |
Standard Fiber opic PLC Splitter |
|
|
Fiber Type |
SM(G.652/G.657) |
MM(OM1/OM2/OM3/OM4/OM5) |
|
Connector Type |
FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP |
|
|
Testing Wavelengths |
1310±30/1550±30nm |
850±30/1300±30nm |
|
Insertion Loss (dB) |
≤0.25dB |
≤0.3dB |
|
TIA/EIA-455-107 |
(PC/UPC/APC) |
(PC/UPC) |
|
Return Loss (dB) |
≥50dB(PC/UPC) |
≥40dB(PC/UPC) |
|
TIA/EIA-455-107 |
≥60dB(APC) |
|
|
Exchange-ability |
≤0.2dB |
|
|
Operating Temperature (℃) |
-10 ~ +70 |
|
|
Storage Temperature (℃) |
-40 ~ +85 |
|
|
Package |
1 pieces/bag |
|
|
All values specified are with connectors |
||
