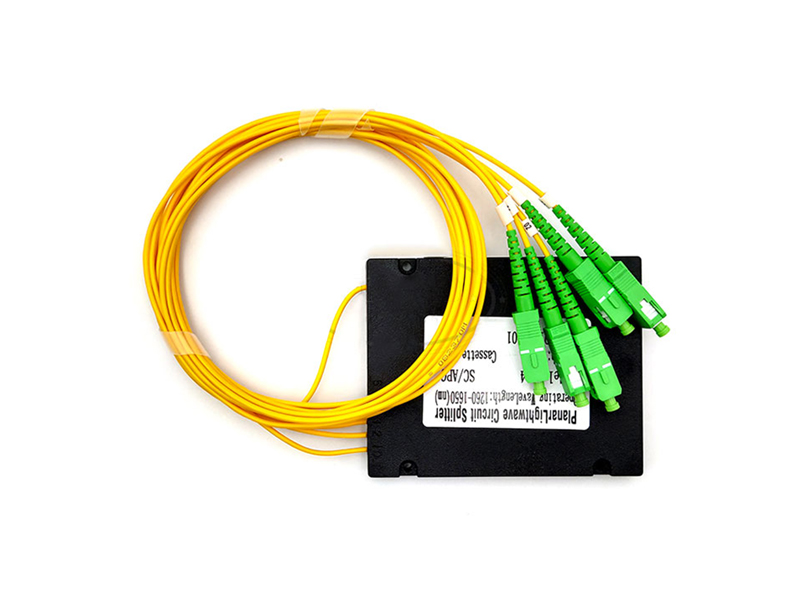

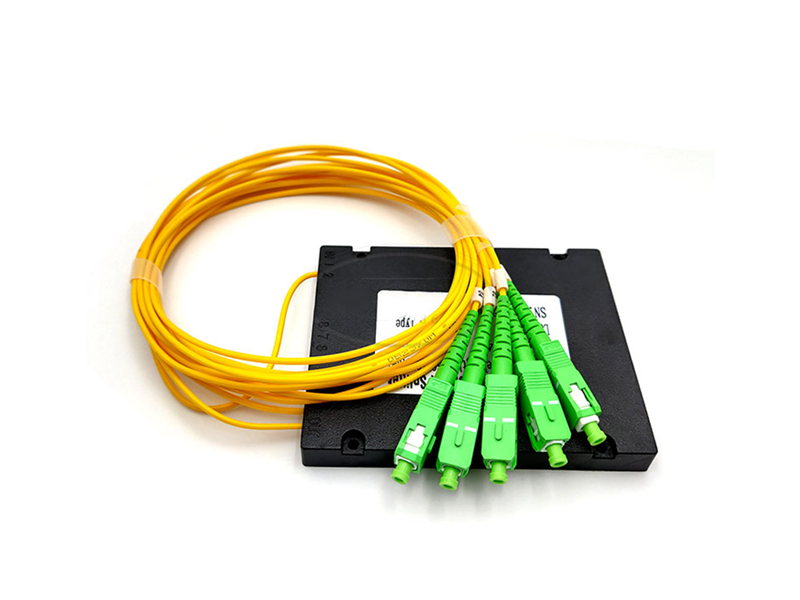

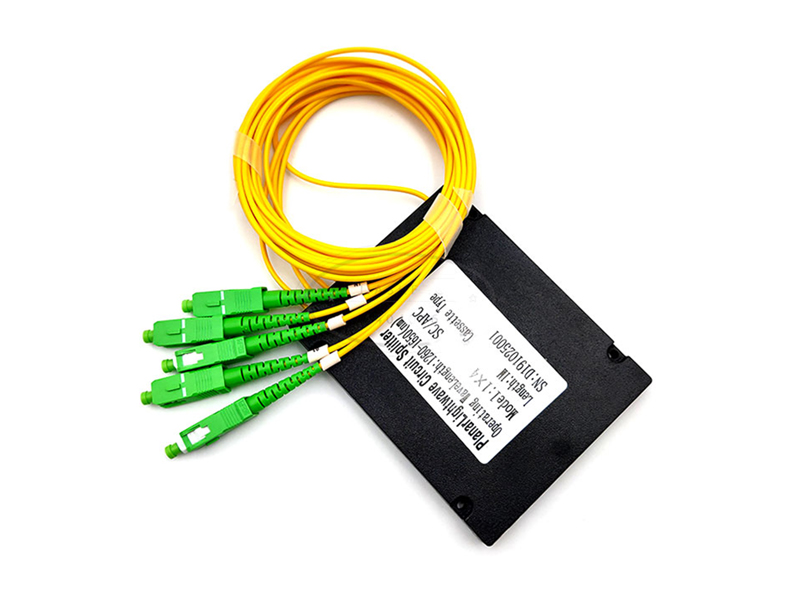

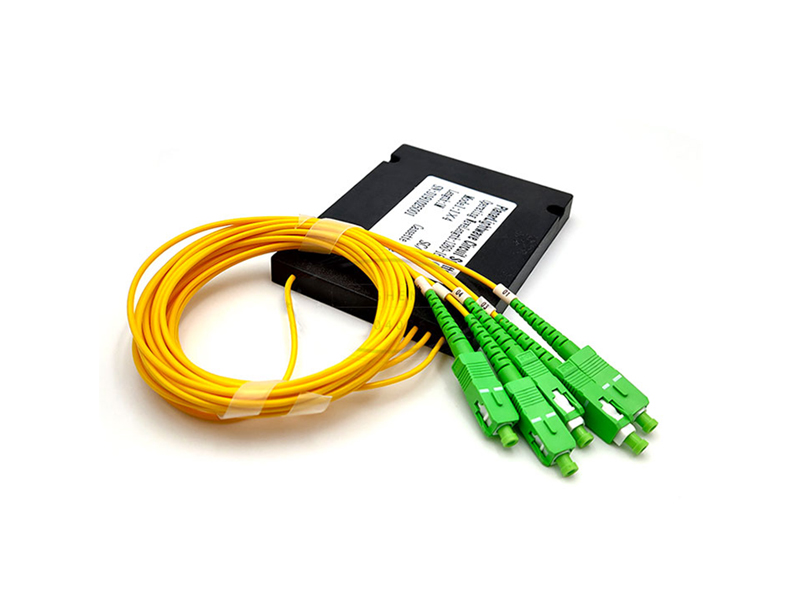

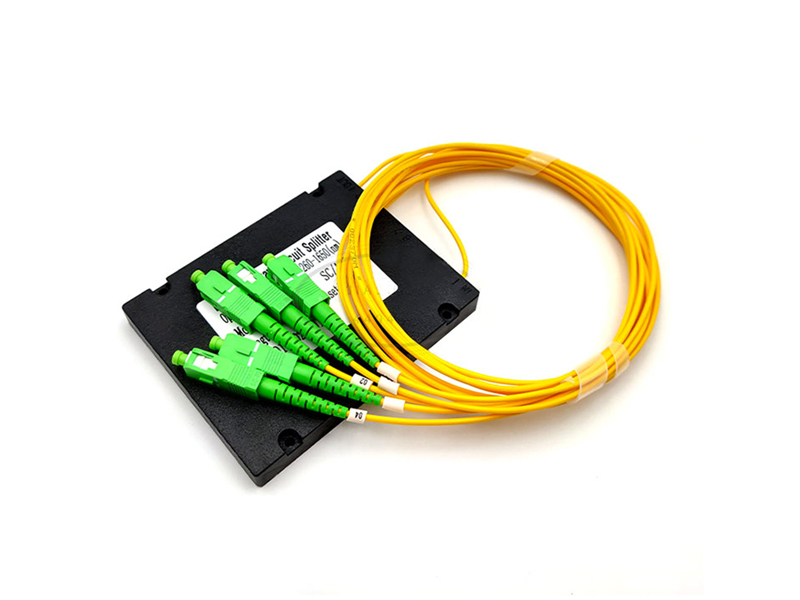

Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
|
Technical Performance |
||||||
|
1*N |
||||||
|
Item |
Parameter |
|||||
|
Specification |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Working Wavelength |
1260nm～1650nm |
|||||
|
Test Wavelength |
1310nm,1550nm |
|||||
|
Insertion Loss （Grade P standard） |
≤3.8dB |
≤7.2dB |
≤10.3dB |
≤13.5dB |
≤16.7dB |
≤20.4dB |
|
Uniformity |
≤0.6dB |
≤0.8dB |
≤1.0dB |
≤1.3dB |
≤1.6dB |
≤2.0dB |
|
Polarization Dependent Loss |
≤0.25dB |
≤0.25dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.35dB |
|
Return Loss |
UPC≥50dB,APC≥60dB |
|||||
|
Directivity |
≥55dB |
|||||
|
Operating temperature |
-40℃～85℃ |
|||||
|
Storage temperature |
-40℃～85℃ |
|||||
| Note:
1, Specified without connectors. 2, Add an additional 0.4dB loss per connector. |
||||||
|
Technical Performance |
||||||
|
2*N |
||||||
|
Item |
Parameter |
|||||
|
Specification |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Working Wavelength |
1260nm～1650nm |
|||||
|
Test Wavelength |
1310nm,1550nm |
|||||
|
Insertion Loss （Grade P standard） |
≤4.1dB |
≤7.6dB |
≤10.9dB |
≤14.3dB |
≤17.6dB |
≤21.2dB |
|
Uniformity |
≤0.9dB |
≤1.1dB |
≤1.3dB |
≤1.7dB |
≤2.0dB |
≤2.3dB |
|
Polarization Dependent Loss |
≤0.25dB |
≤0.25dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.35dB |
|
Return Loss |
UPC≥50dB,APC≥60dB |
|||||
|
Directivity |
≥55dB |
|||||
|
Operating temperature |
-40℃～85℃ |
|||||
|
Storage temperature |
-40℃～85℃ |
|||||
| Note:
1, Specified without connectors. 2, Add an additional 0.4dB loss per connector. |
||||||
|

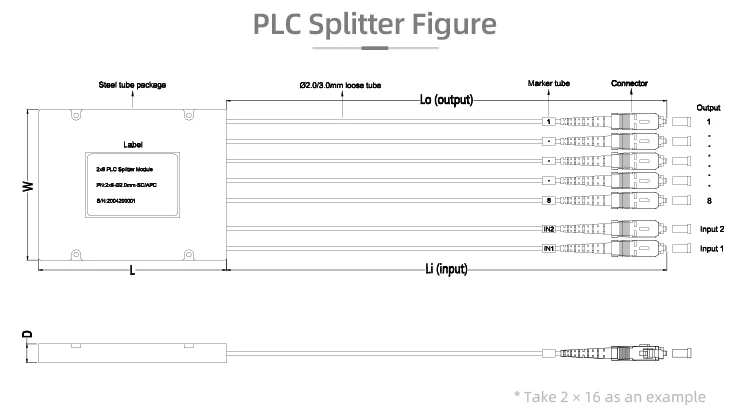

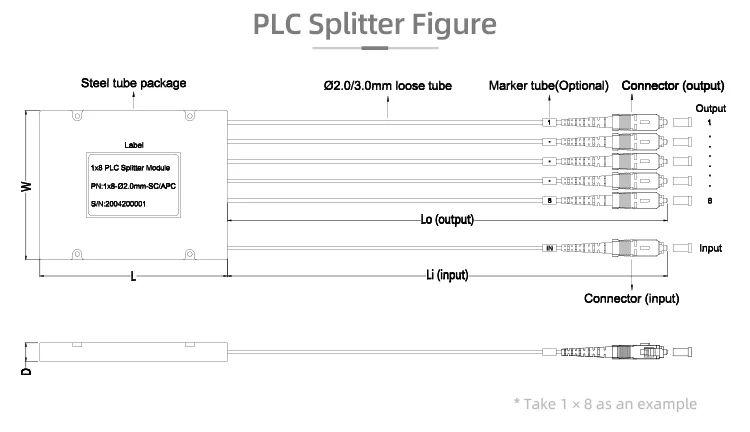

Product Parameters |
|||||||
|
Item |
Parameter |
||||||
|
PLC Splitter SPEC |
2*N |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
|
Fiber Type |
G657A1 |
||||||
|
Package Size(L×W×D) (mm) |
100×80×10 |
120×80×18 |
140×115×18 |
||||
|
Tube Type |
Input |
2.0/3.0mm yellow jacket |
|||||
|
Output |
2.0/3.0mm yellow jacket |
||||||
|
Input length |
1.5m/customizable |
||||||
|
Output length |
1.5m/customizable |
||||||
|
Connector Type （IN） |
Conncetor Model |
SC/FC/LC/ST/Other unconventional connectors |
|||||
|
Polishing |
APC/UPC |
||||||
|
Connector Type （OUT） |
Conncetor Model |
SC/FC/LC/ST/Other unconventional connectors |
|||||
|
Polishing |
APC/UPC |
||||||
With compact structure and bending insensitive cables, the ABS Module Splitter takes less distortion during use, which ensures reliable optical transmission.
Uniform Distribution of Optical Signal
PLC splitters enable the transmission power at each splitter output port to be the same, which simplifies the network design and reduces the costs.
Widely Used in FTTX Projects and Data Communication Centers

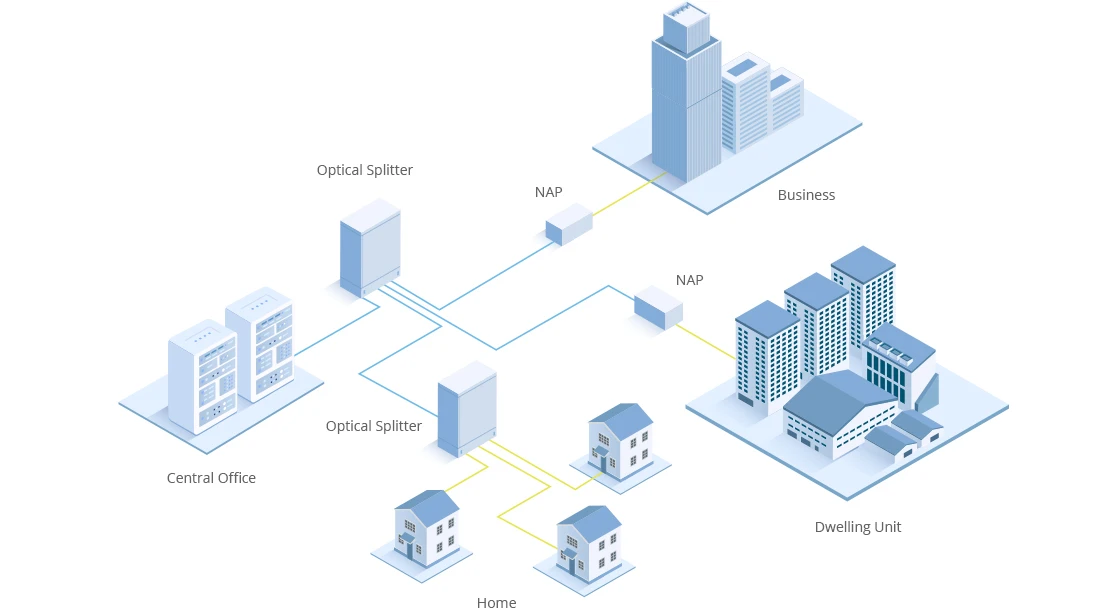

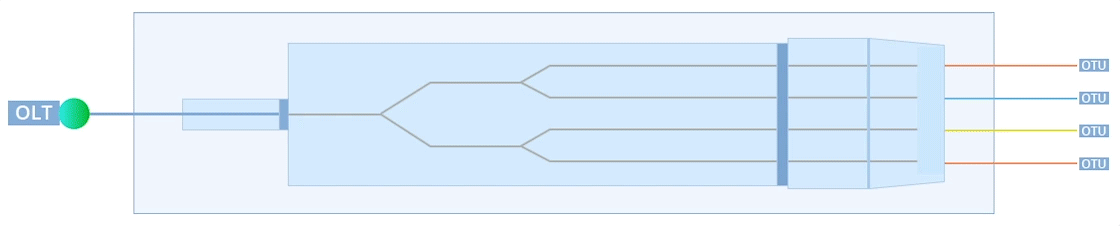

Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON Interface to be shared among many subscribers.
