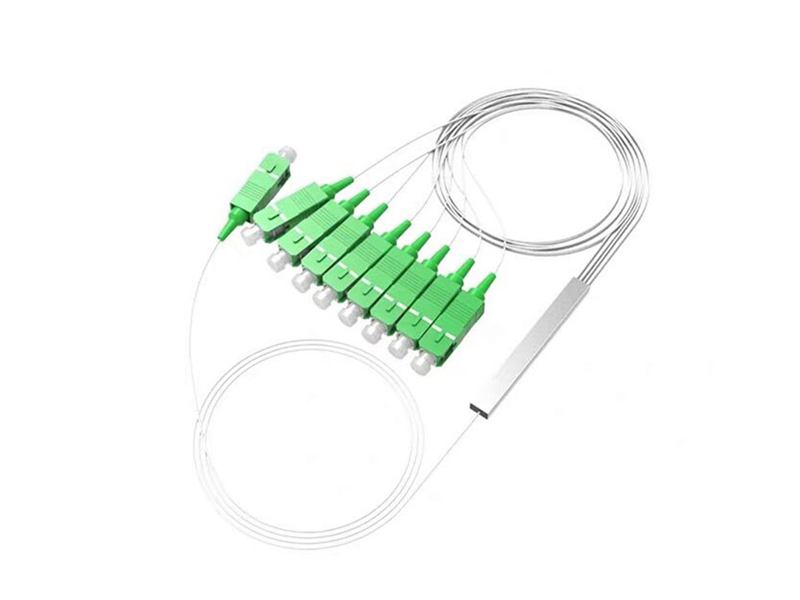

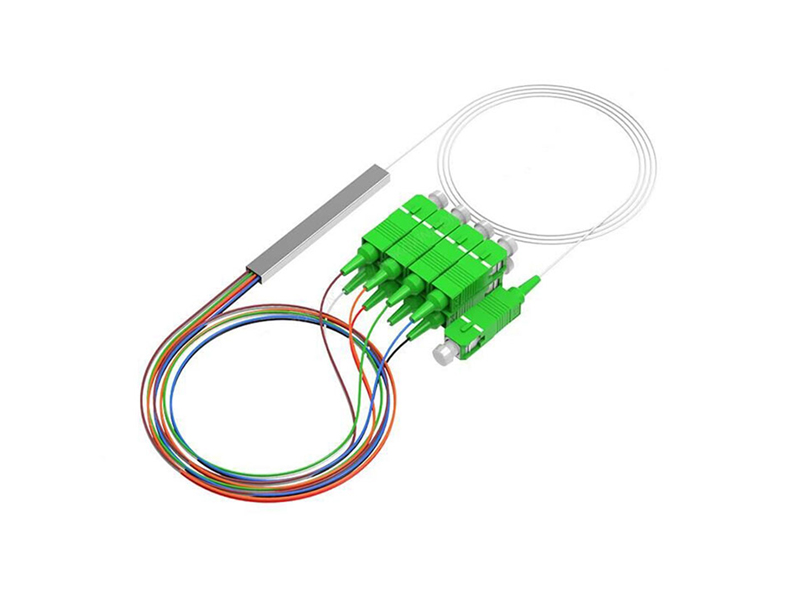

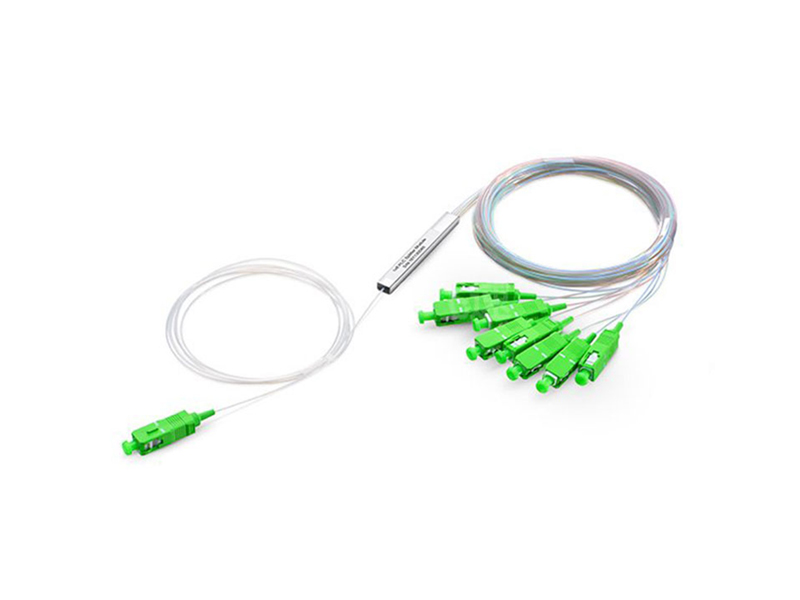

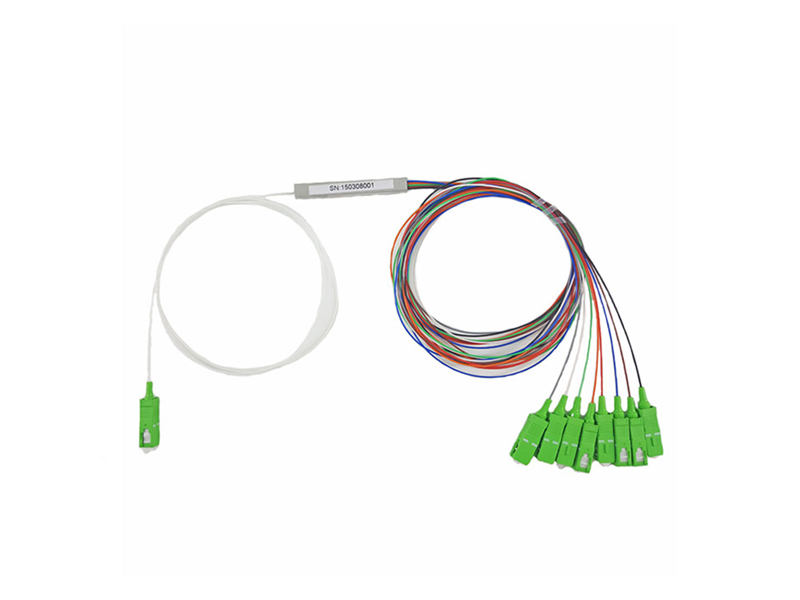

Alteoptic PLC splitter (Planner Light-wave Circuit Splitter) is based on planner light wave technology, and it has the advantages as smart appearance, wide range in working wave, high reliability and excellent uniform distribution. PLC splitters are widely used to connect the terminal device and distribution the light signals in FTTX, EPOM, and GPON field. We are variable to supply 1xN and 2xN series products, complying RoHS, which is customized to produce TLC certificated splitters in all occasions.
Planar lightwave circuit (PLC) optical fiber splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Alteoptic can produce PLC Splitter in balanced split ratio or unbalanced split ratio, which feature small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. Balanced splitter mainly are splitter 1*2, 1*4, 1*8, 1*16, 1*32, 1*64, 1*128, 2*2, 2*4, 2*8, 2*16, 2*32, 2*64, etc. Unbalanced splitter mainly are splitter 1*3, 1*5, 1*6, 1*9, 1*12, etc.
Features:
| Split ratio (%) | 85/15 | 80/20 | 70/30 | 60/40 | |
| Operating wavelength (nm) | 1260-1650 | ||||
| Fiber type | G657A or customized | ||||
| IL max(dB) | channel 1 | 1.6 | 1.8 | 2.1 | 2.7 |
| channel 2-9 | 21.0 | 18.6 | 16.5 | 15.1 | |
| IL uni(dB) | Channel 2-9 | 1.8 | 1.8 | 1.8 | 1.8 |
| Return loss (dB) | ≥55 | ||||
| Directivity (dB) | ≥55 | ||||
| PDL (max.) | 0.3 | 0.3 | 0.3 | 0.3 | |
| Uniformity (max.) | 0.8 | 0.8 | 0.8 | 0.8 | |
| Wavelength dependent loss (dB) | ≤0.3 | ||||
| TDL (max.) | 0.5 | ||||
| Operating temperature | -40 ~+85 | ||||
| Storage temperature | -40 ~+85 | ||||
| Dimension (mm) / LXWXH | Bare fiber | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 |
| 900um | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 | |
| ABS box | 120x80x18 | 120x80x18 | 120x80x18 | 120x80x18 | |
Note:
Application
*FTTx Deployments(GPON/BPON/EPON) *Cable television (CATV) *Local area networks (LAN) *Test equipment *Passive optical networks(PON)
Drawing:
|
Type |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
|
Working Bandwidth (nm) |
1260-1650 |
|||||
|
Insertion Loss (dB) Max w/o connectors |
3.8 |
7.1 |
10.2 |
13.5 |
16.8 |
20.2 |
|
Insertion Loss (dB) Max with connectors |
4.1 |
7.4 |
10.5 |
13.8 |
17.1 |
20.5 |
|
Wavelength Dependent Loss (dB) Max. |
0.2 |
0.3 |
0.4 |
0.6 |
0.8 |
1 |
|
Return Loss (dB) Min.(APC) |
55 |
|||||
|
Temperature Dependent Loss(dB) Max |
0.5 |
|||||||||
|
Stability in Hot Environment (dB/°C) Max |
1 |
|||||||||
|
Uniformity (dB) Max |
0.6 |
0.6 |
0.8 |
1.1 |
1.5 |
2 |
||||
|
Polarization Dependent Loss (dB) Max |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
||||
|
Orientation (dB) Min |
50 |
|||||||||
|
Power (mW) Max |
300 |
|||||||||
|
Steel Tube Size(mm) |
60*7*4 |
60*7*4 |
60*7*4 |
60*12*4 |
80*20*6 |
100*40*6 |
||||
|
Optical Fiber |
SMF-28, G657A1, G657A2 or customized |
|||||||||
|
Input / Output length |
1meter standard or customized length |
|||||||||
|
Cable Color |
White or customized |
|||||||||
|
Cable Diameter |
250um or 900um |
|||||||||
|
Connector |
SC APC, SC UPC or without connector |
|||||||||
|
Operating Temperature (℃) |
-40 to 85 |
|||||||||
|
Storage Temperature (℃) |
-40 to 85 |
|||||||||
|
Standard |
Telcordia GR-1209, Telcordia GR-1221, IEC 61300, IEC 6175321 |
|||||||||
