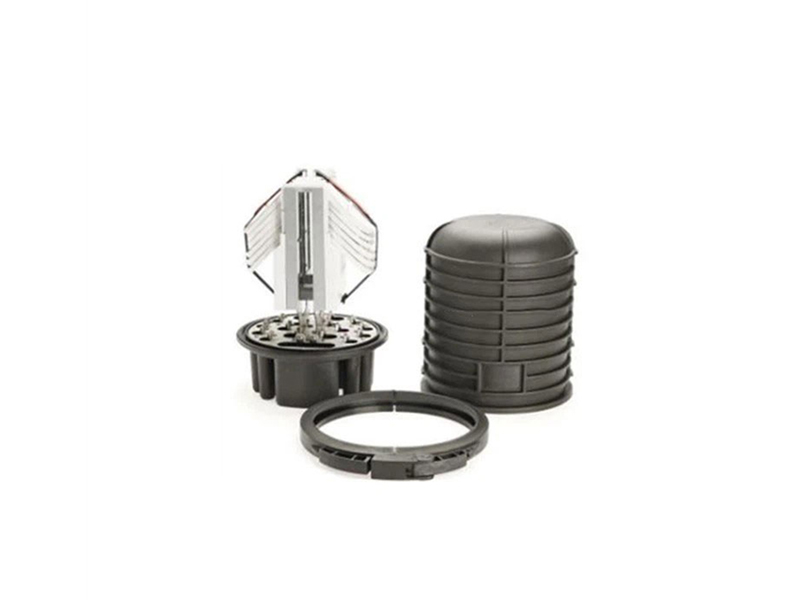

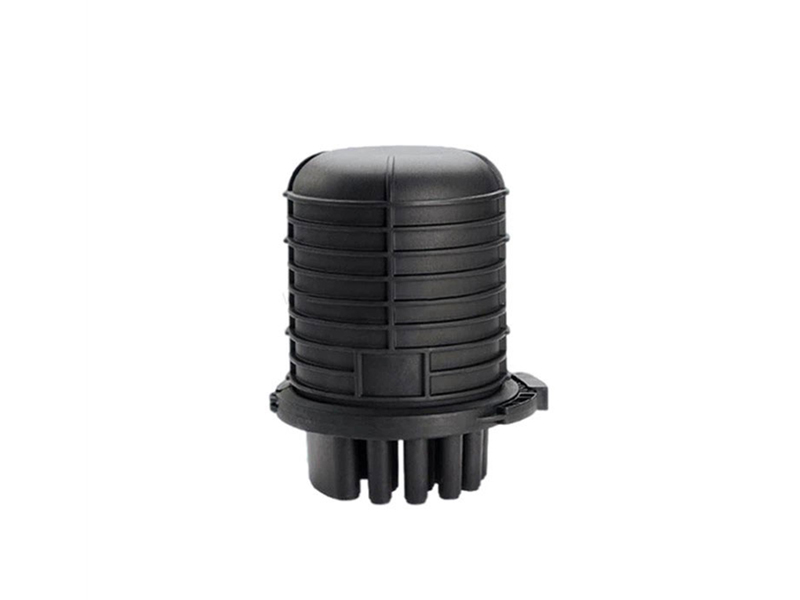

Alteoptic Model No. SC-ATD144-05 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Specification:
Alteoptic Model No. SC-ATD144-05 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Technical Index:
|
Model No. |
SC-ATD144-05 |
Color |
Black |
|
Capacity |
144 cores |
Protection Level |
IP68 |
|
Material |
PP |
Inlet/outlet |
1+16 |
|
Dimension(MM) |
400*Ф270 |
Port Sealing Method |
Heat shrinkable |
|
Inlet cable port |
Ф10-Ф25 |
Outlet cable port |
Ф8-Ф16, Ф14-Ф22 |
Features
1.The body is made of high quality engineering plastic with good strength;
2.With good waterproof design, the fiber optical splice closure can be applied into underground and aerial;

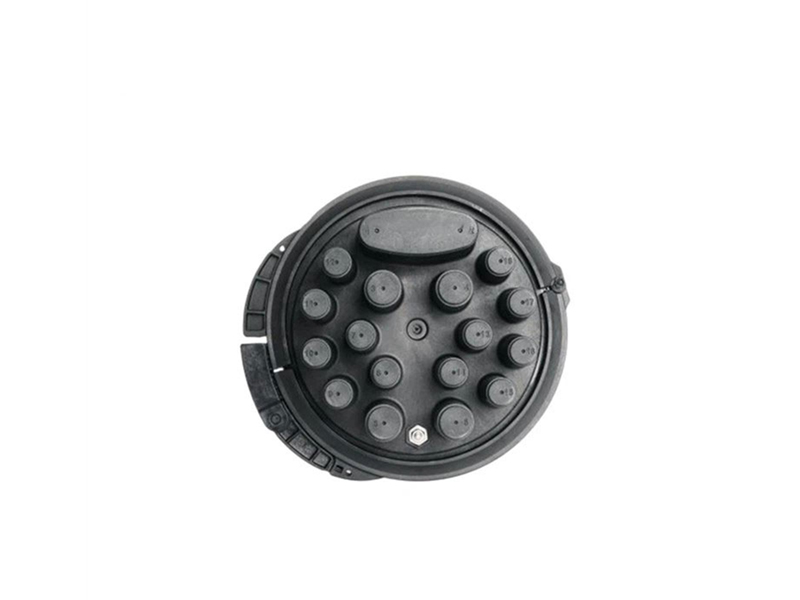

3.4 branch ports forφ14-22mm, 12 branch ports forφ8-16mm; 1 uncut port’s range is 10-25mm.
In additional, 17 ports could be designed into 7 branch ports forφ8-17.5mm cable, 2 ports for different types of soft cable and 1 port forφ10-22mm uncut cable;

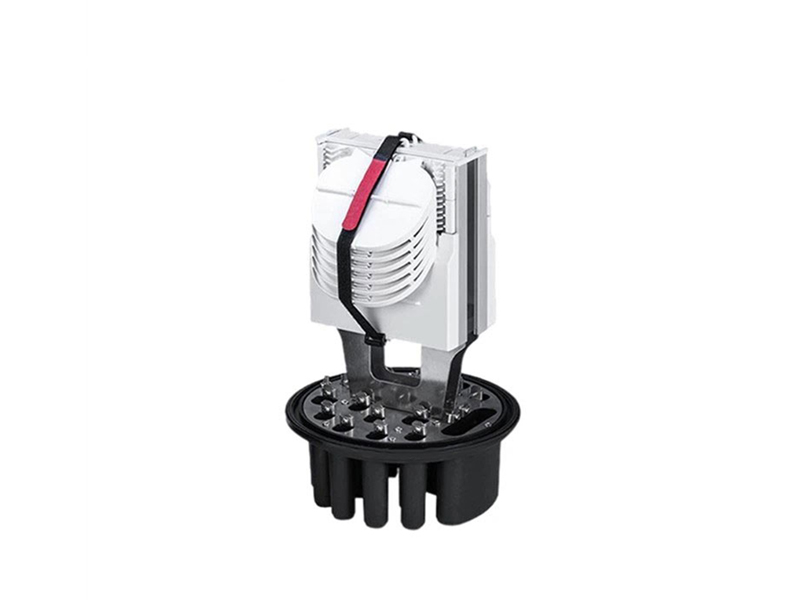

4.Capacity: 12-144F (12×12F /per tray or 24×6F /per tray);
5.It could be installed with 2×1:4 or 1×1:8 micro type splitter if use PLC splice trays;
6.Mechanical seal and heat shrink seal can be optional for cable ports; With good sealing performance;
7.6F or12F splice trays can be optional.
