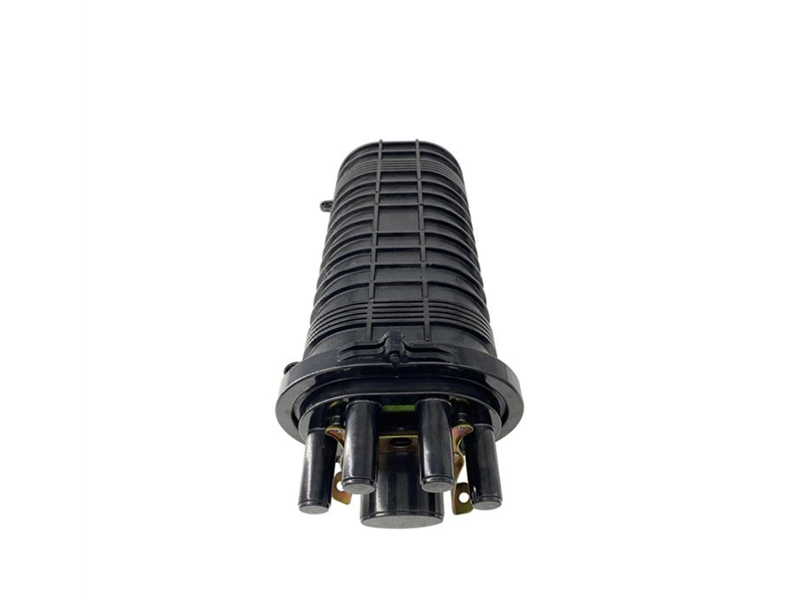

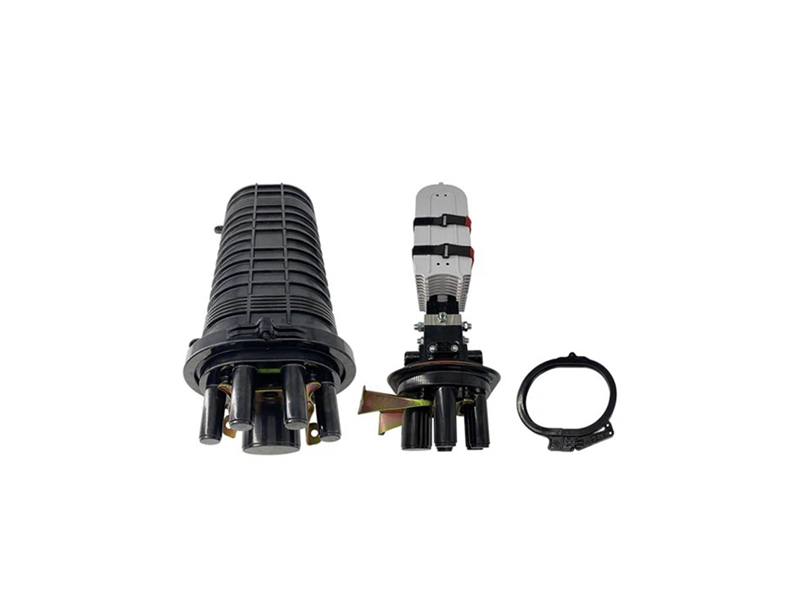

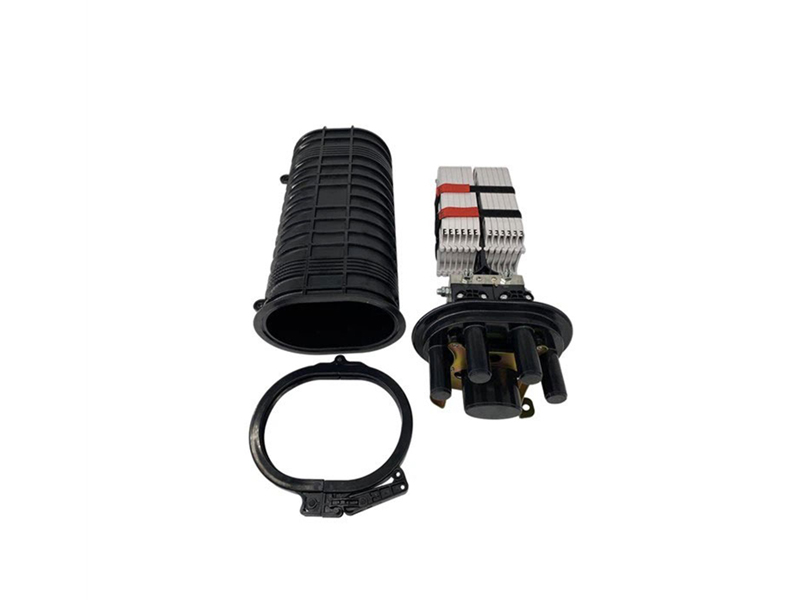

Alteoptic Model No. SC-ATD288-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
1 Overview:
Alteoptic Model No. SC-ATD288-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
2.Specification:
|
Model No. |
SC-ATD288-01 |
Color |
Black |
|
Capacity |
288 cores |
Protection Level |
IP68 |
|
Material |
PC, PC+ABS,PP |
Inlet/outlet |
1+4 |
|
Dimension(MM) |
485*186*136 |
Sealing Method For Inlets |
Heat shrinkable |
|
Inlet cable port |
Ф14-Ф29 |
Outlet cable port |
Ф9-Ф22 |
3.Features:
1.The body is made of high quality engineering plastic with good strength;
2.With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.

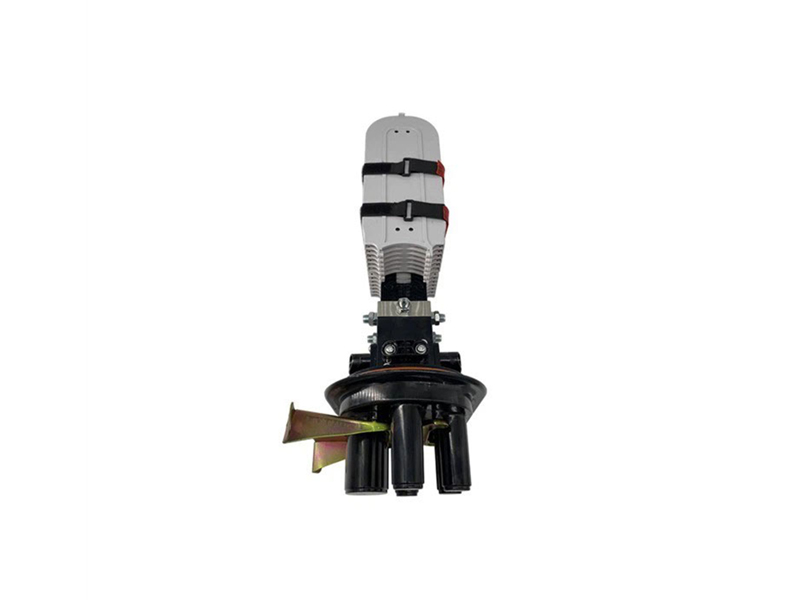

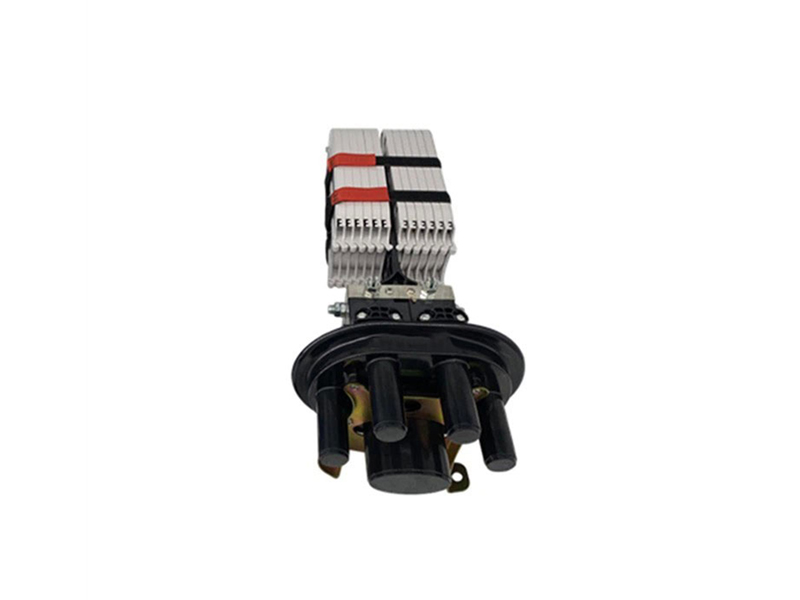

3.Be equipped with 12 splice trays (each capacity is 24 cores) (Pic#4 for details);
4.Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber storage space.
4 Package Information:
1.Plastic bag size:750*500mm
2.Inner box with single corrugated size: 495*215*215mm
3.Carton with double corrugated size: 445*445*510mm(4PCS/Box)
4.Weight per carton：14.5 KG
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
1+3 Inlet/outlet 48Cores Dome Type Fiber Joint Box
Alteoptic Model No. SC-ATD048-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
View More
1+4 Inlet/outlet Vertical Type 288Core Dome Splice Closure
Alteoptic Model No. SC-ATD288-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
View More

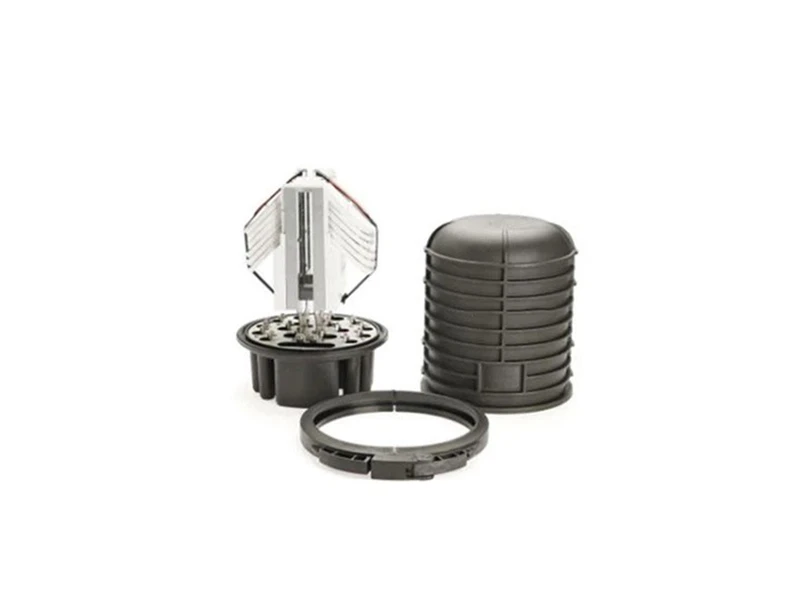

1+16 Inlet/outlet Heat shrinkable 144cores Access Points Splice Closure
