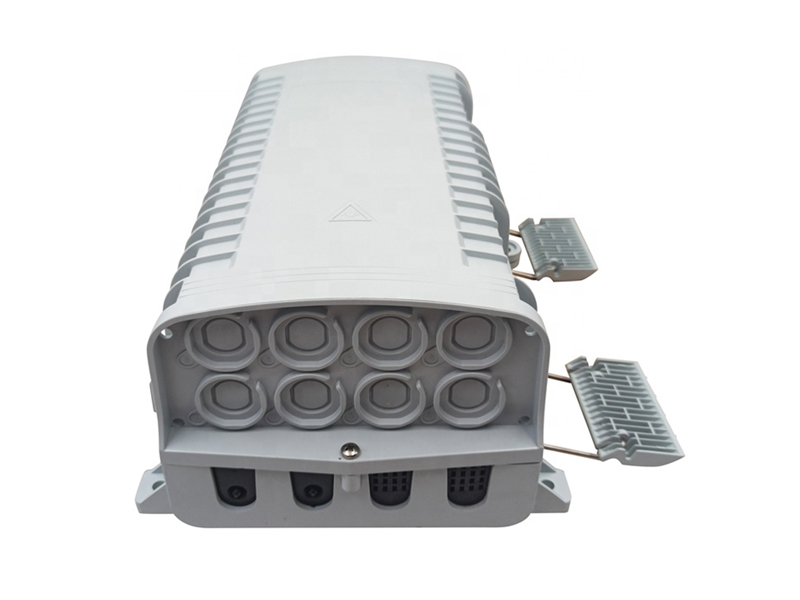

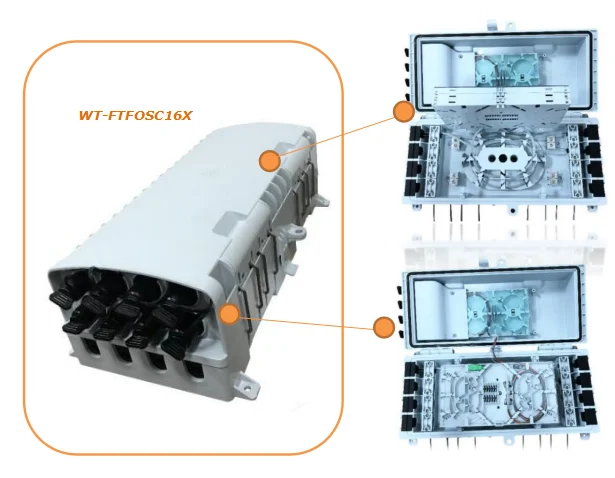

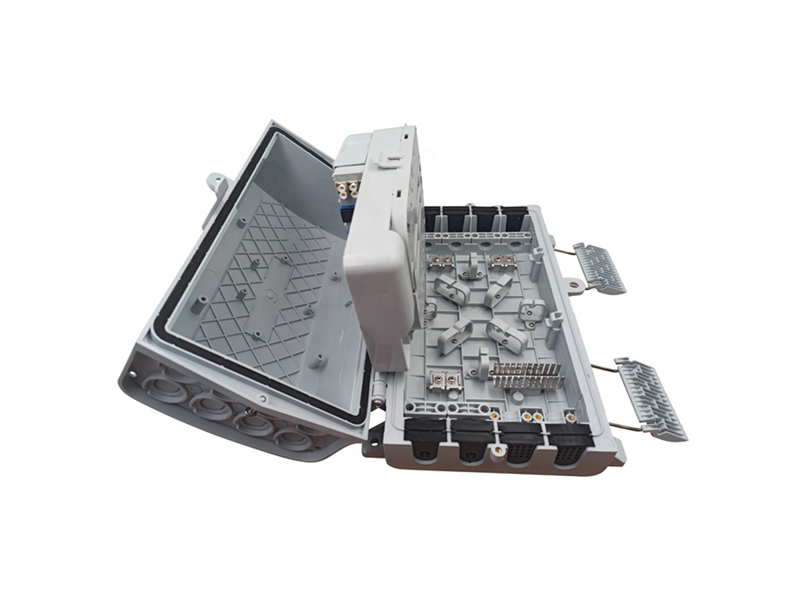

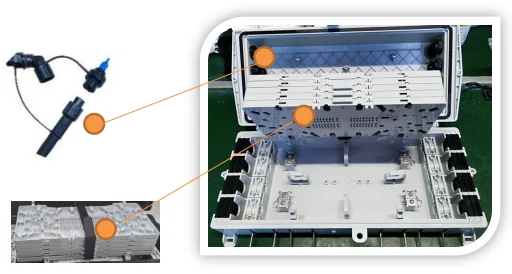

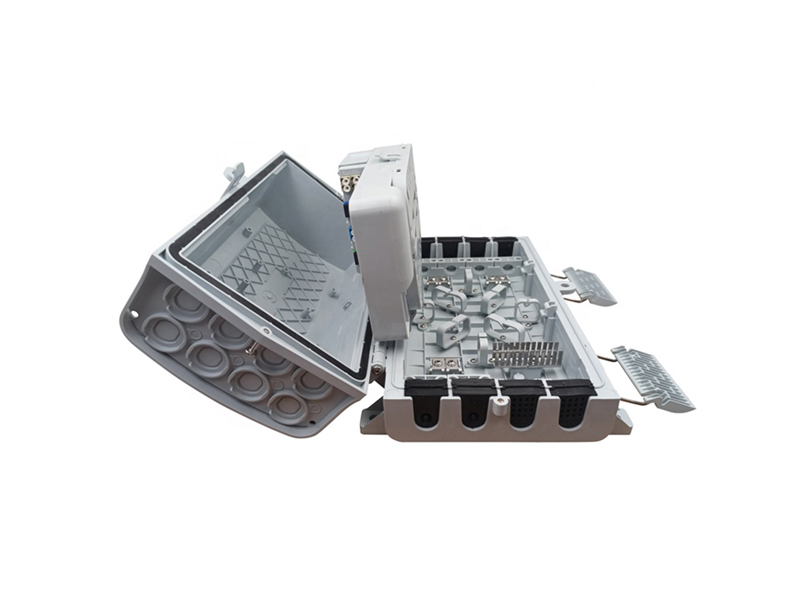

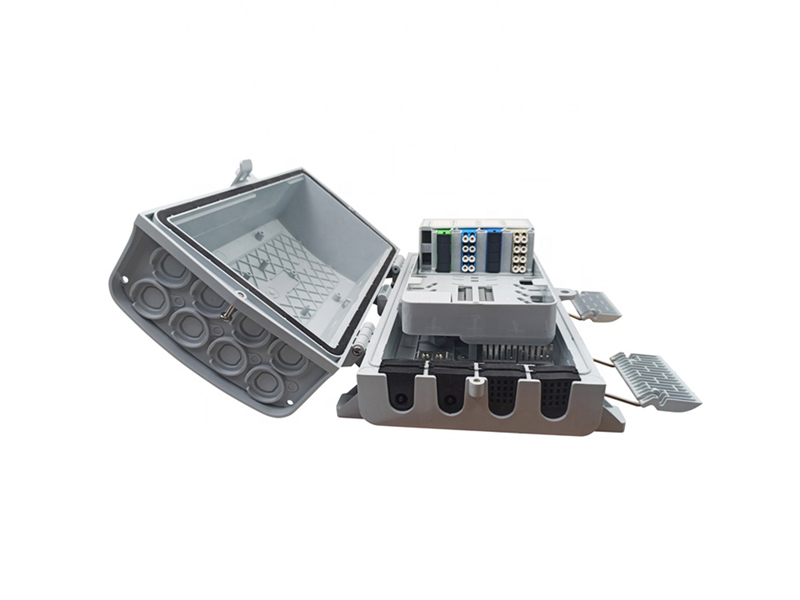

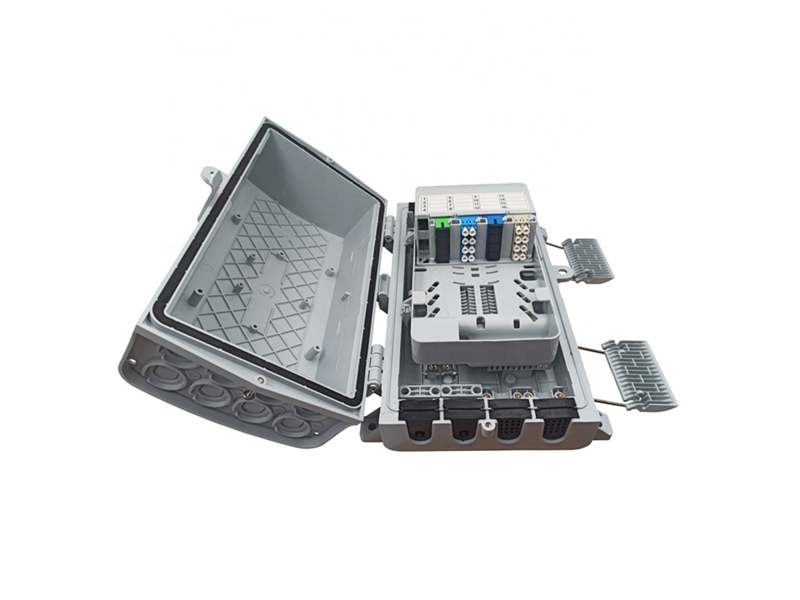

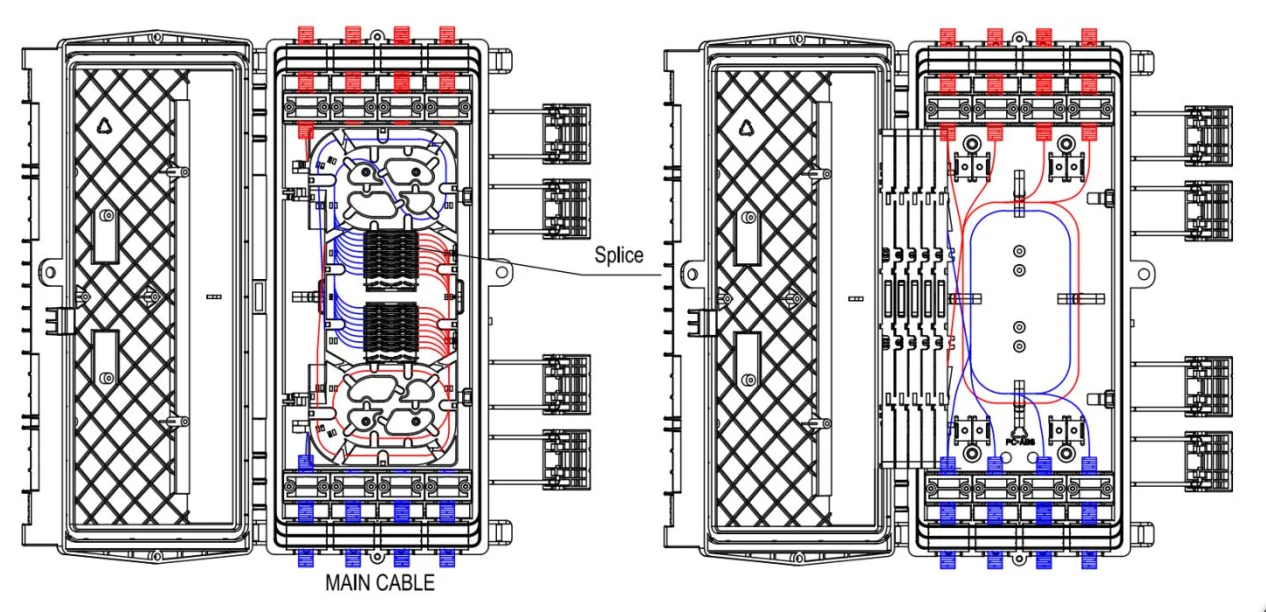

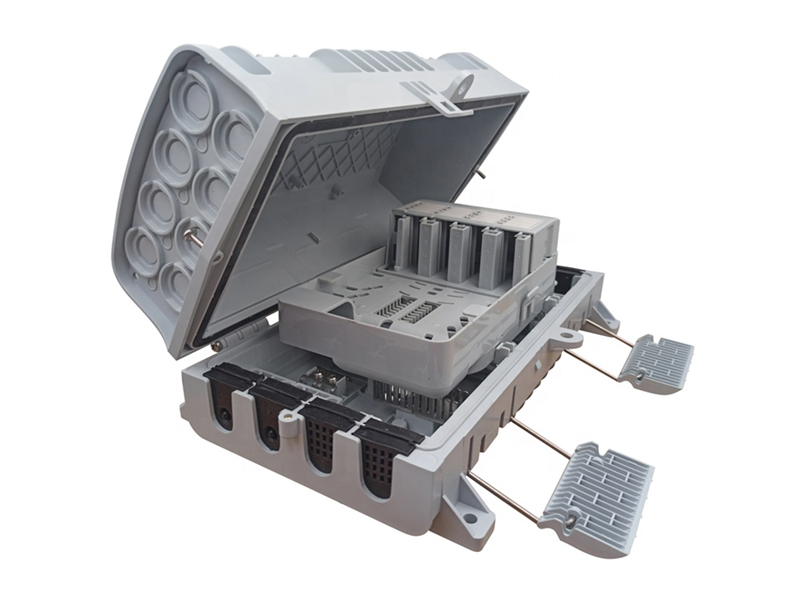

This 16core Fiber Optic joint box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
* FTTH access network
* Telecommunication network
* CATV networks
* Data communications network
* Local area networks

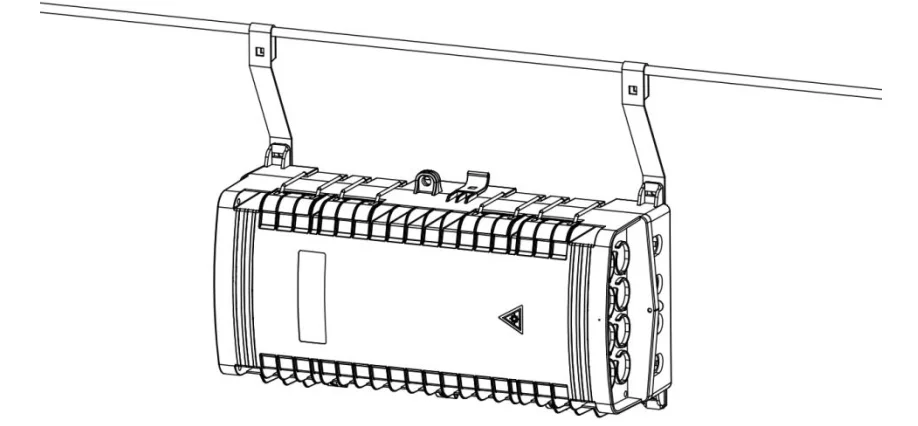

Installation
|
Dimensions and Capability
|
|
|
Dimensions (W*H*D)
|
380*198.5*121
|
|
Material
|
PP
|
|
Number of Cable Entrance/Exit
|
12/12
|
|
Capacity
|
160cores
|
|
Installation
|

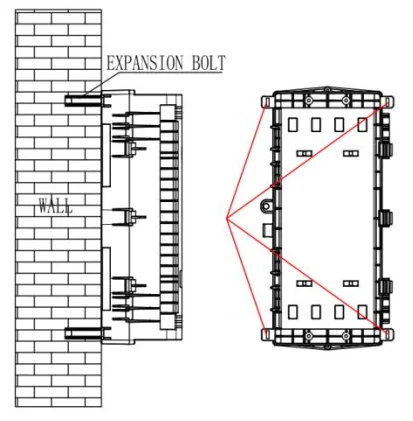

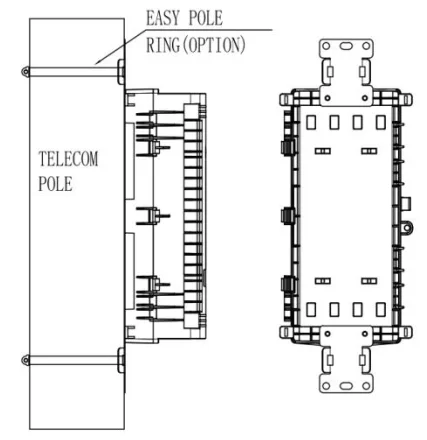

Wall Mounted/ Pole-mounted/ overhead
|
|
IP Rate
|
IP65
|
|
Cable Entries
|
Supporting uncut (with Branch Holes)
|
|
Max cable Diameter
|
Φ10mm
|
|
No. ofadaptor&Splitter
|
16core(FRE-Connection)
|
|
Weight
|
1.85kg（empty）
|
|
Color
|
Gray or Black
|
|
Operation Conditions
|
|
|
Temperature
|
-40℃ -- 85℃
|
|
Humidity
|
≤85% at 30℃
|
|
Air Pressure
|
70kPa – 106kPa
|
|
Shipping Information
|
|
|
Package Contents
|

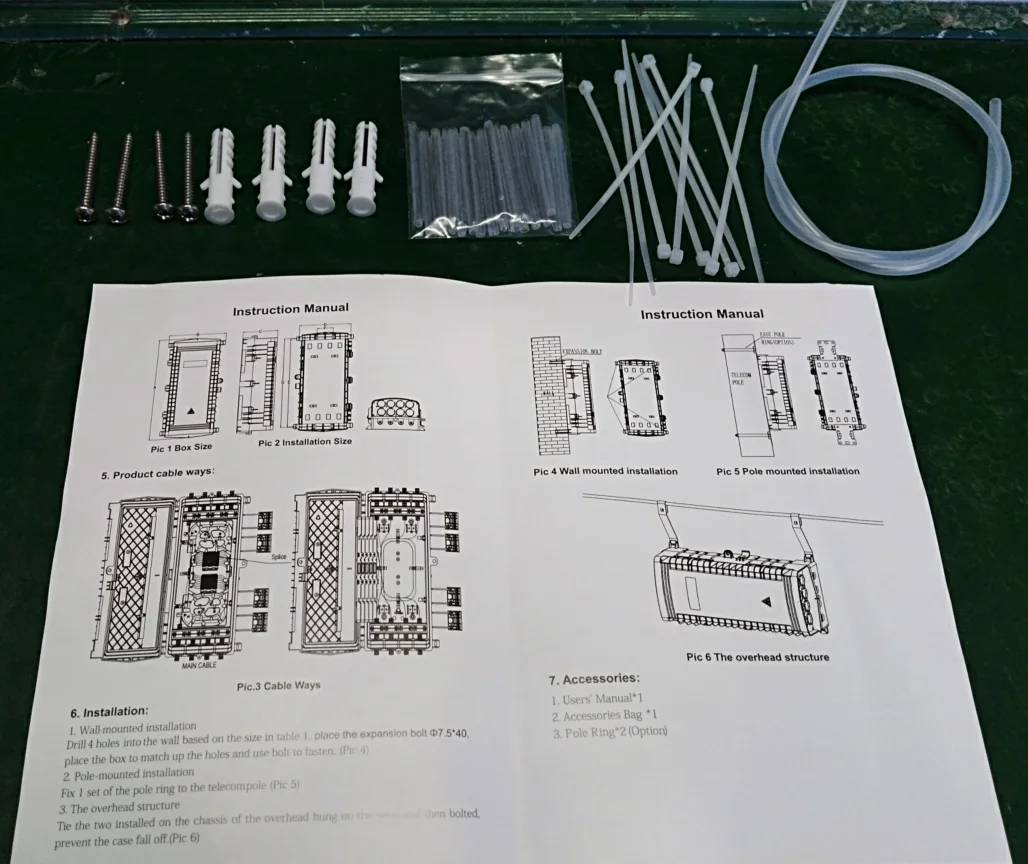

· Pole Ring*2 (Option); Accessories Bag*1; Users' Manual*1
|
|
Package Dimensions(W*H*D)
|
450*210*145mm
|
|
Material
|
Carton box
|
|
Weight
|
2.2KG
|
