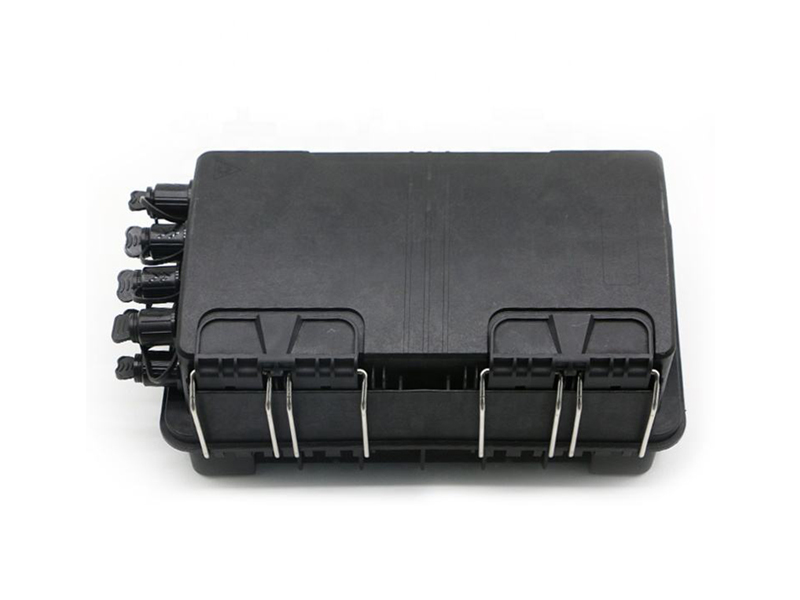

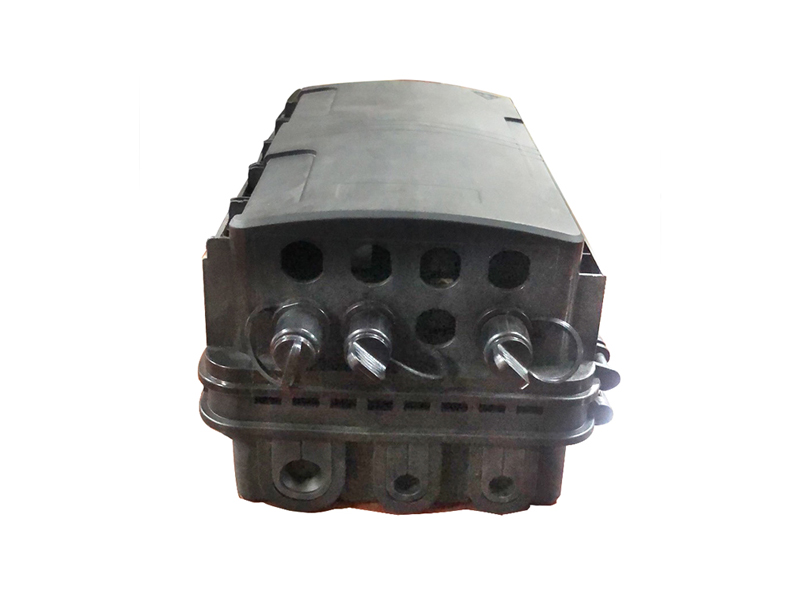

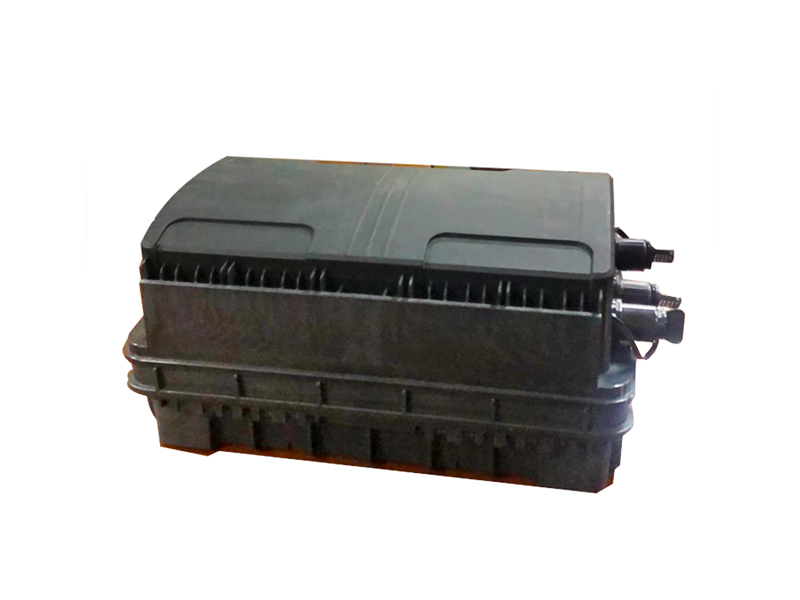

Model No. FTB-AT16N-3 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
1 Overview
Model No. FTB-1AT6N-3 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
2 Technical Index
|
Model No. |
FTB-AT16N-3 |
Color |
Black |
|
Capacity |
16cores |
Protection Level |
/ |
|
Material |
PP+Glass Fiber |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
336*190*120 |
Splitter |
Can be with 2x1:8 tube splitter |

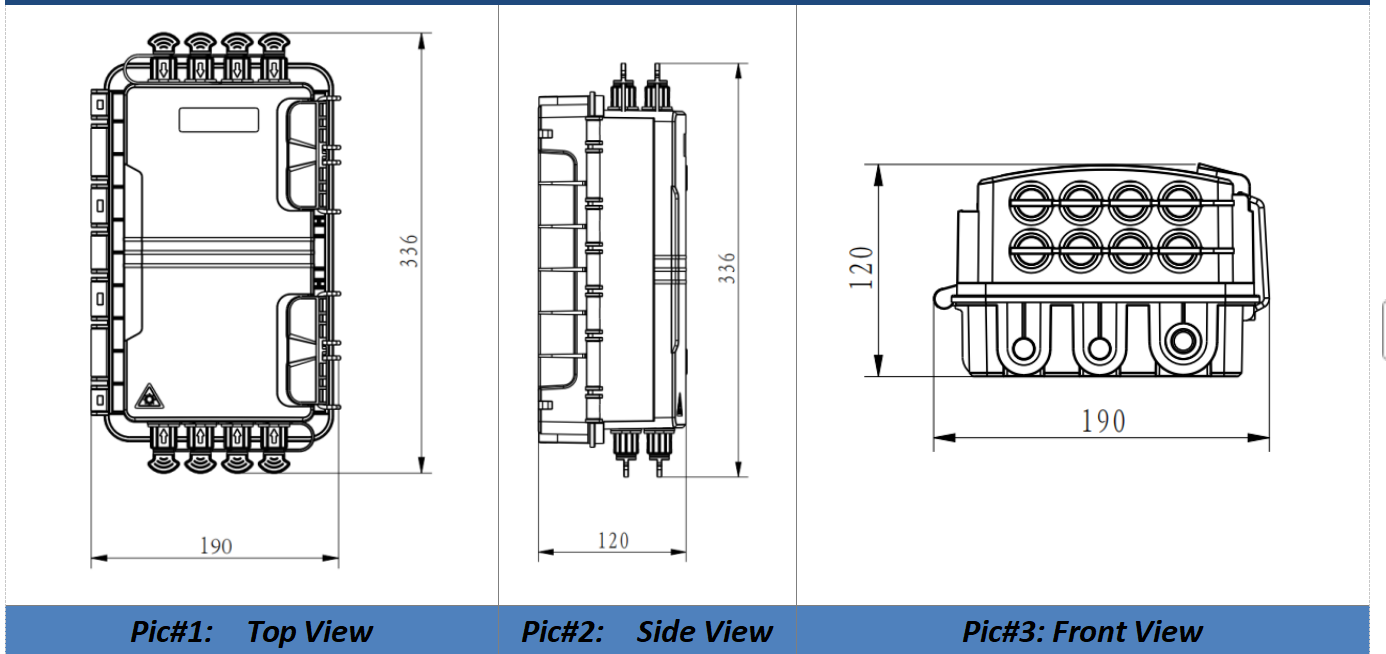

The dimension diagram:(mm)
3 Features
3.1 The body is made of high quality engineering plastic with good strength;

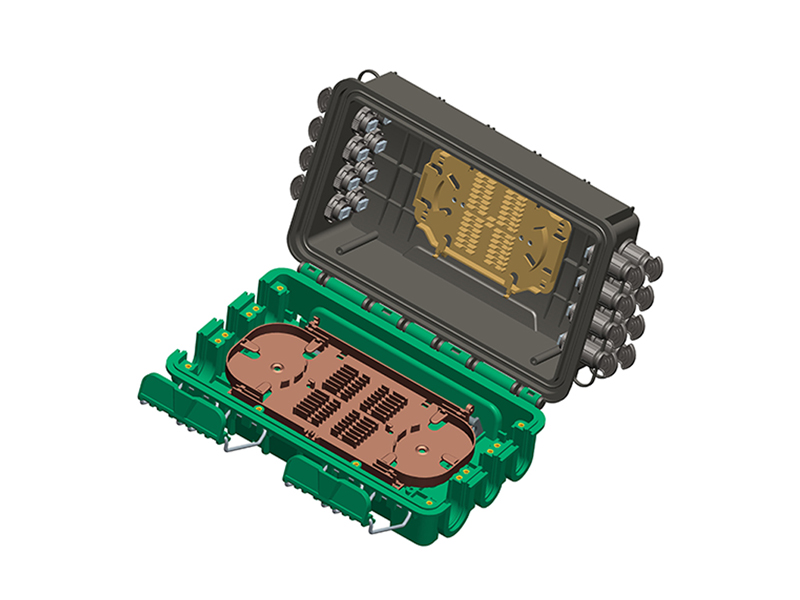

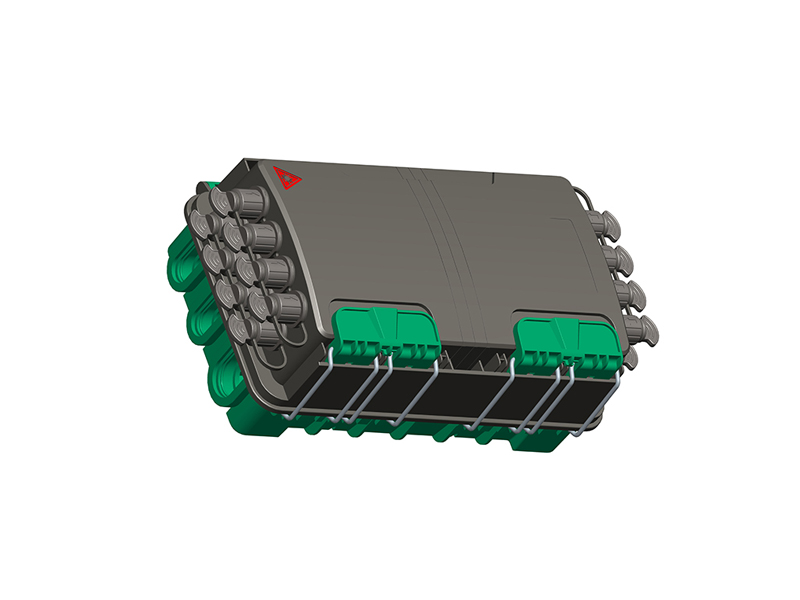

3.2 The box body adopts a three-in and three-out cable port design, which can meet the introduction of optical cables of different diameters ( Pic#4 for details);

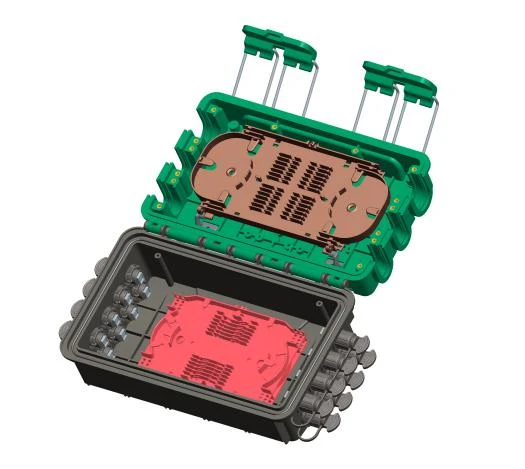

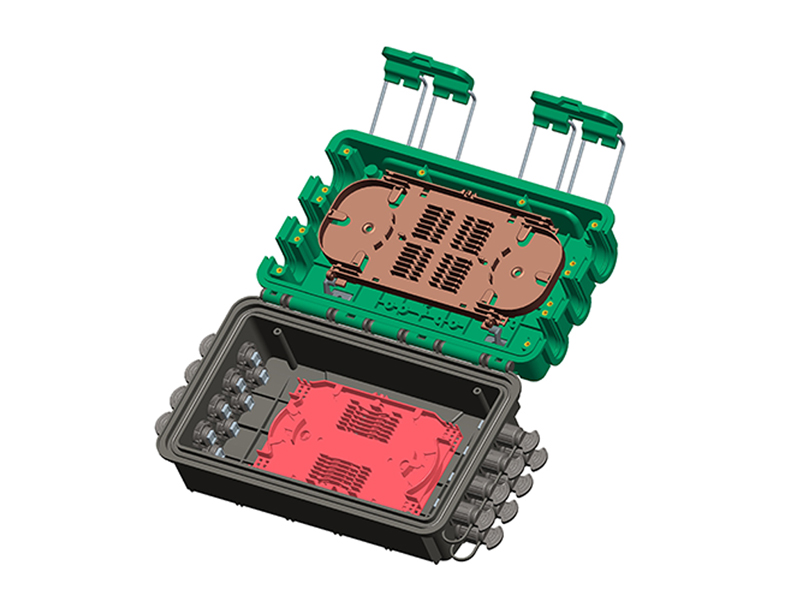

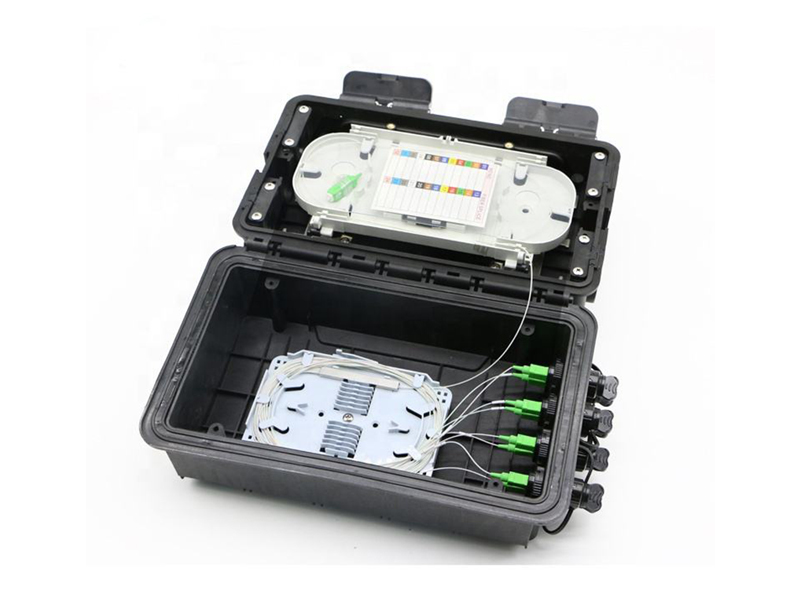

3.3The box body adopts pre-termination adapters, which can accommodate 16 waterproof pigtail cables ( Pic#5 for details);

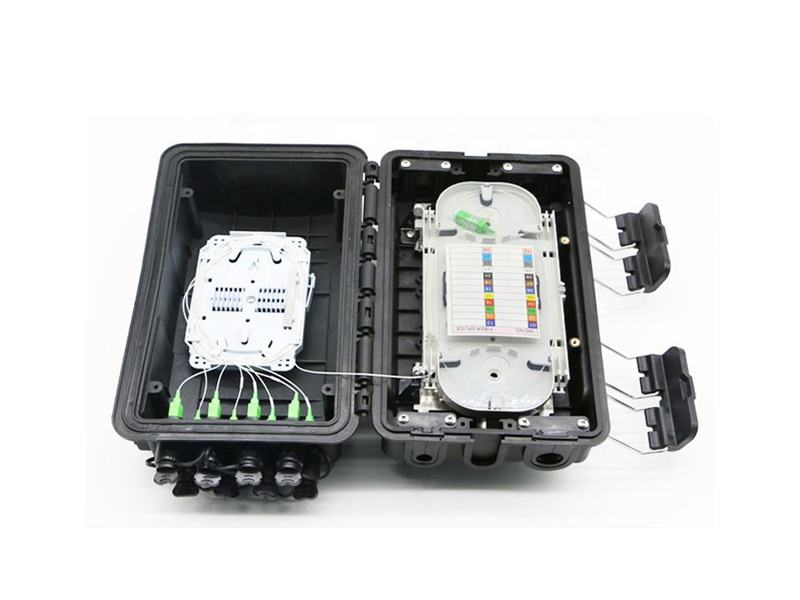

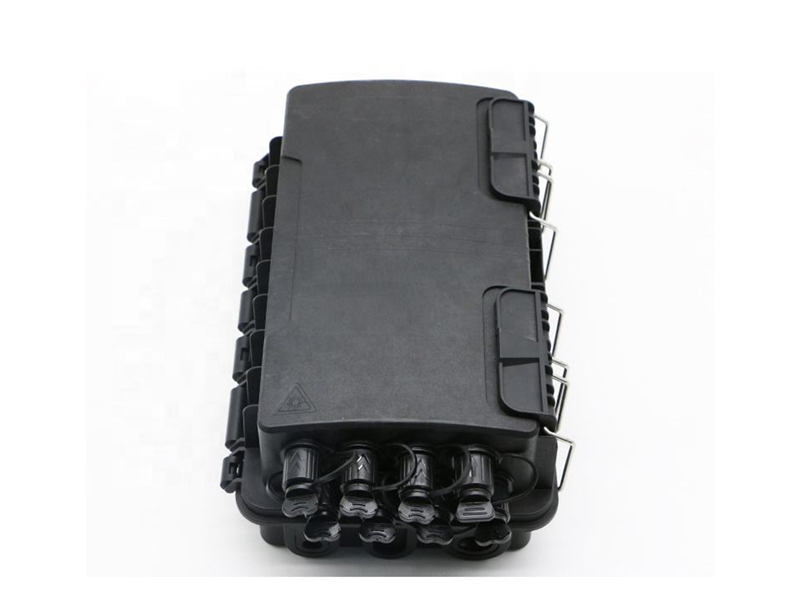

3.4 The drop leaf can be installed 2 pcs of 1*8 tube splitter ( Pic#6 for details);

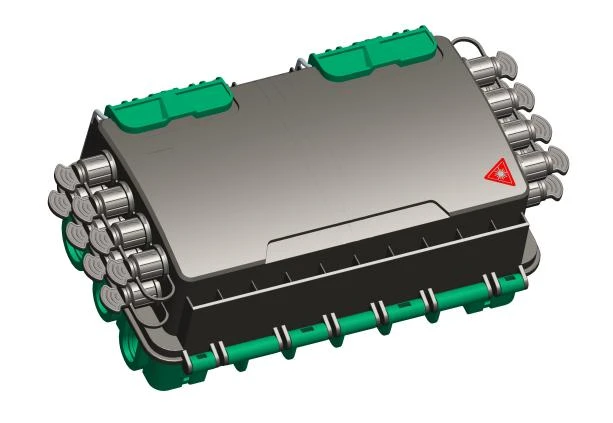

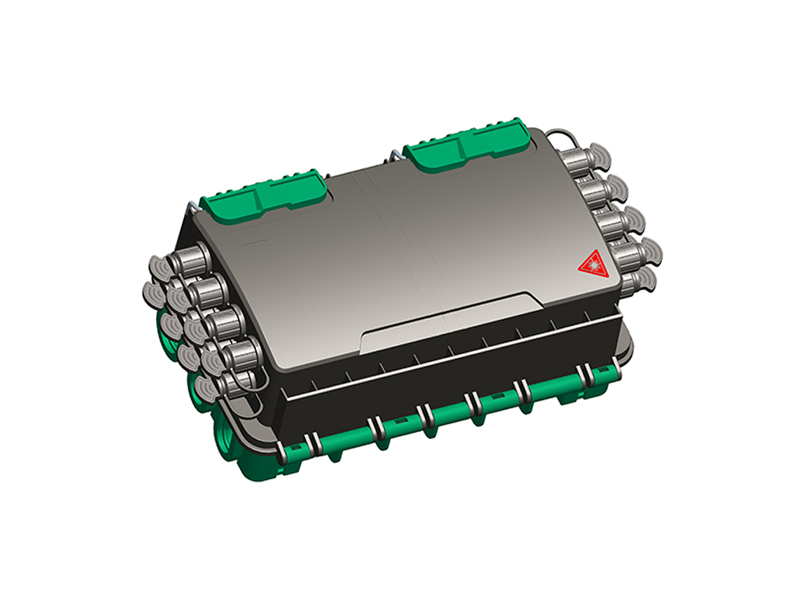

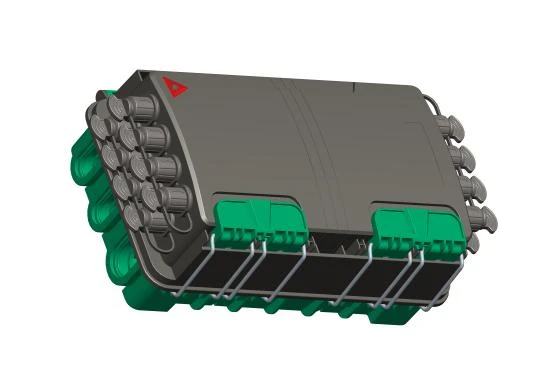

Pictures for reference:
Package Information
4.1 Plastic bag size: 500*410mm
4.2 Inner box with single corrugated size:345*205*130mm
4.3 Carton with double corrugated size:425*360*665mm(10PCS/Box)
