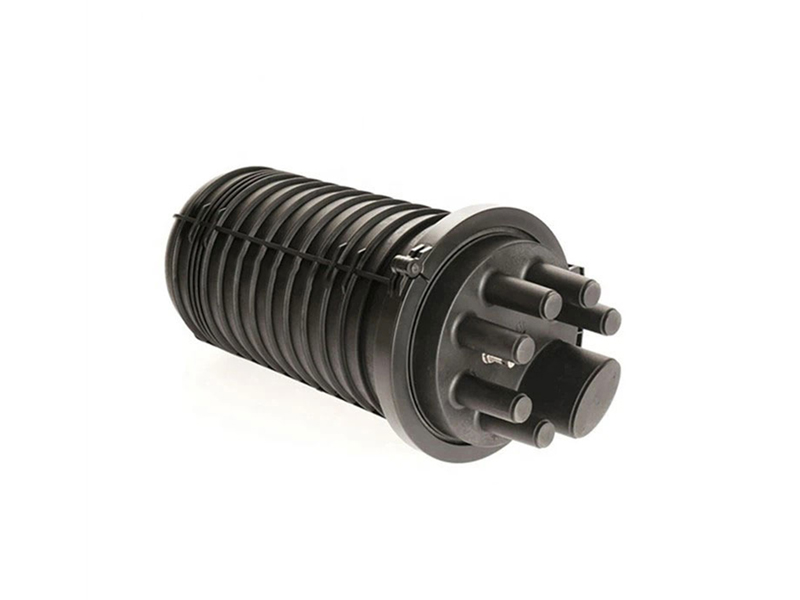

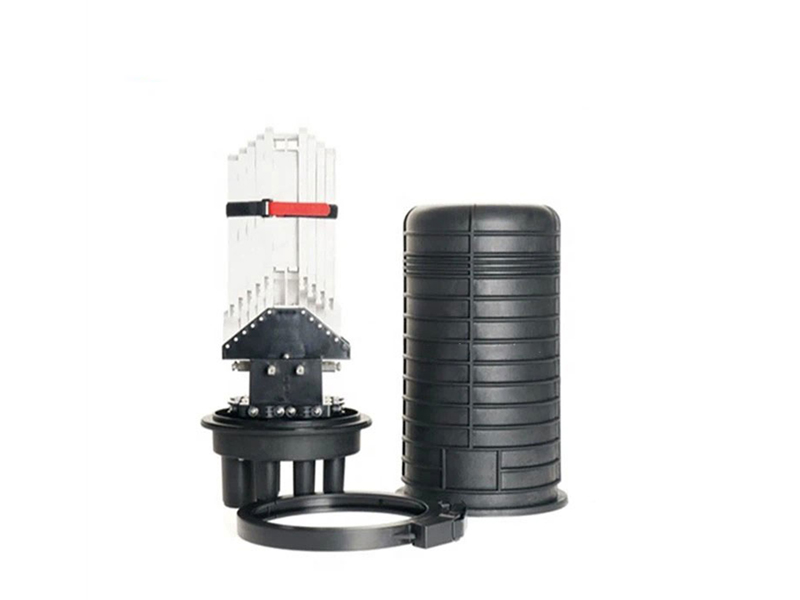

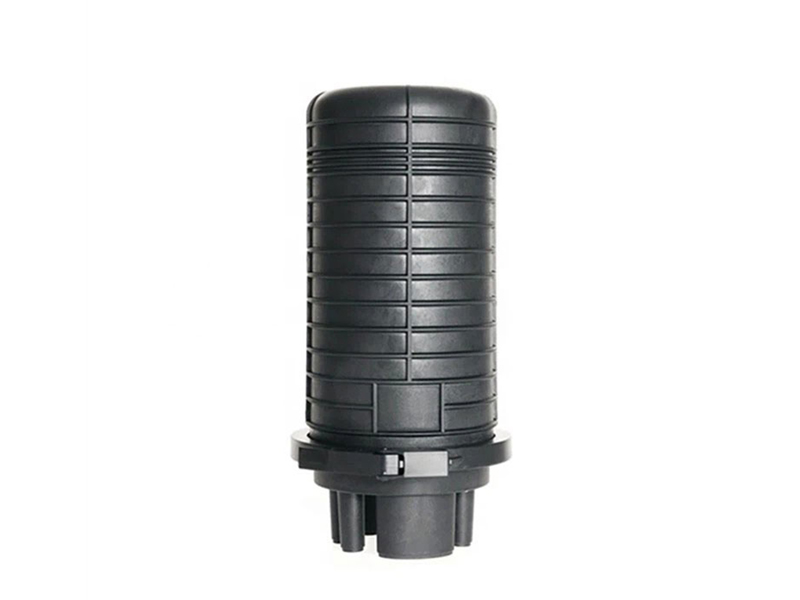

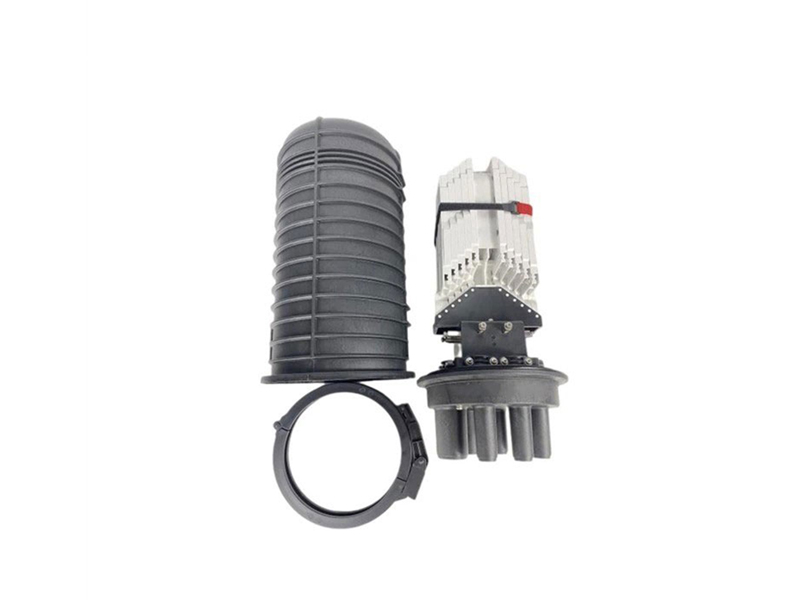

Alteoptic Model No. SC-ATD240-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
1 Overview
Alteoptic Model No. SC-ATD240-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
2 Technical Index
|
Model No. |
SC-ATD240-01 |
Color |
Black |
|
Capacity |
240 cores |
Protection Level |
IP68 |
|
Material |
PP |
Inlet/outlet |

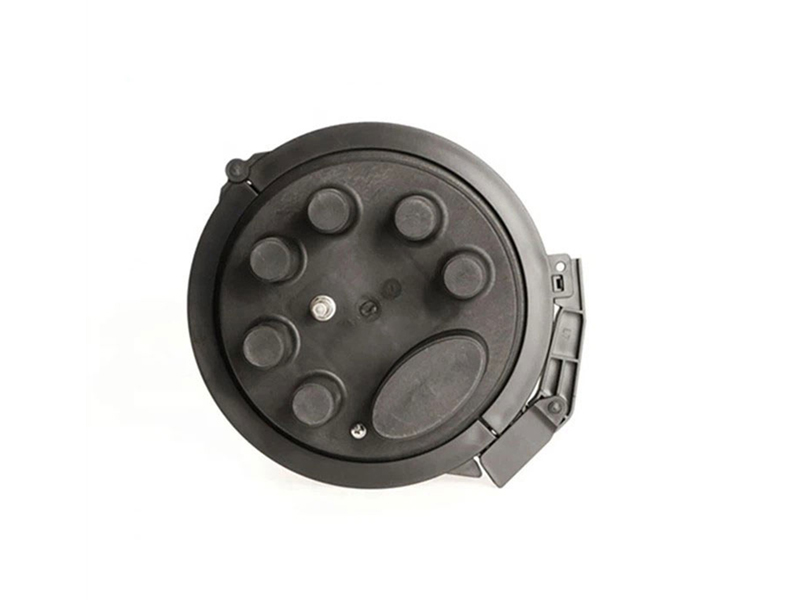

1+6 |
|
Dimension(MM) |
480*Ф260 |
Sealing Method For Inlets |
Heat shrinkable |
|
Inlet cable port |
Ф10-Ф18 |
Outlet cable port |
Ф8-Ф18 |
3 Features
* Having good mechanical performance, strong bad weather resistance capacity as well as electric features by use of high quality polypropylene together with thermal aging additive.
* Made of material with good capability of outdoor environment resistance and high durability
* Having reliable cable fixing and grounding facilities.
* Using self-adhesive isolative tape and glue belt to seal.

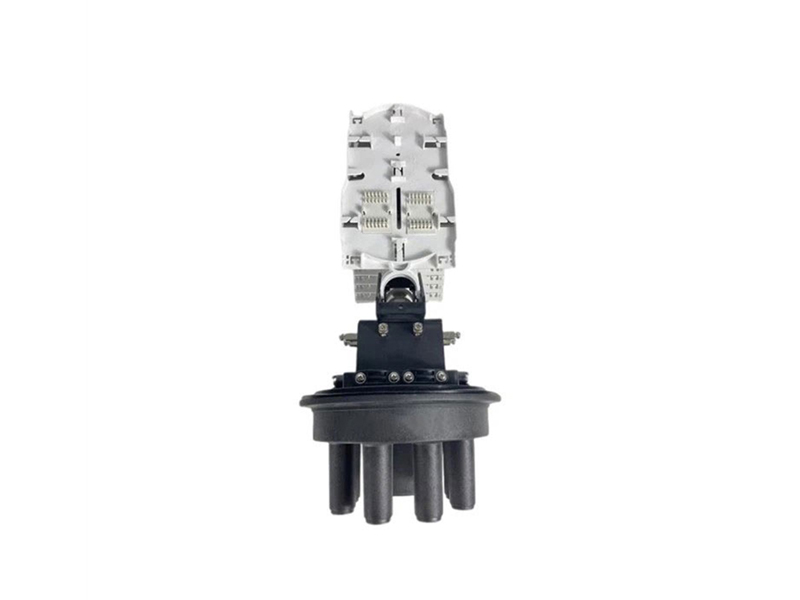

* To use rotating method to connect fiber organizer cassette result in easy installation.
* Mechanical design suitable for installing, fiber splicing storage and cable connection
* Compact and tight.
4 Packaging
* Plastic bag size:600*450mm
* Inner box with single corrugated size: 480*280*255mm
* Carton with double corrugated size: 570*510*550mm(4PCS/Carton)
* Weight per carton: 25 KG
