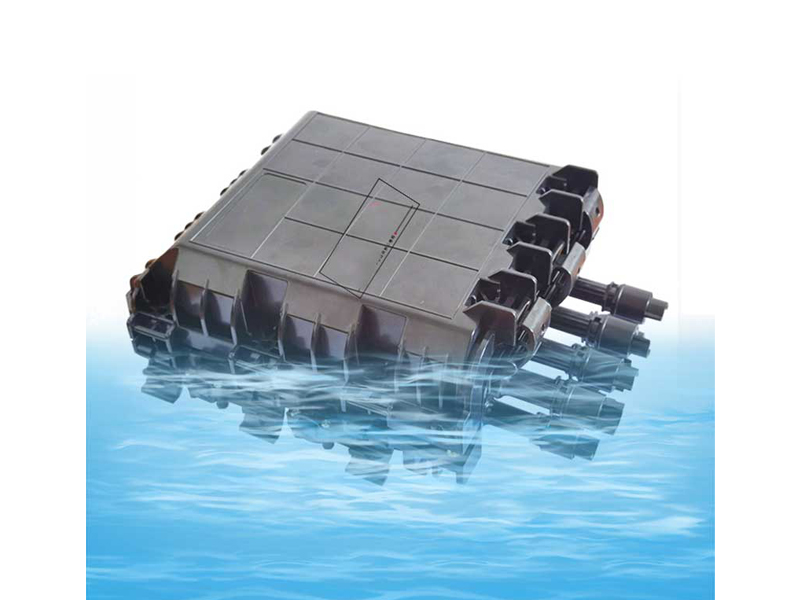

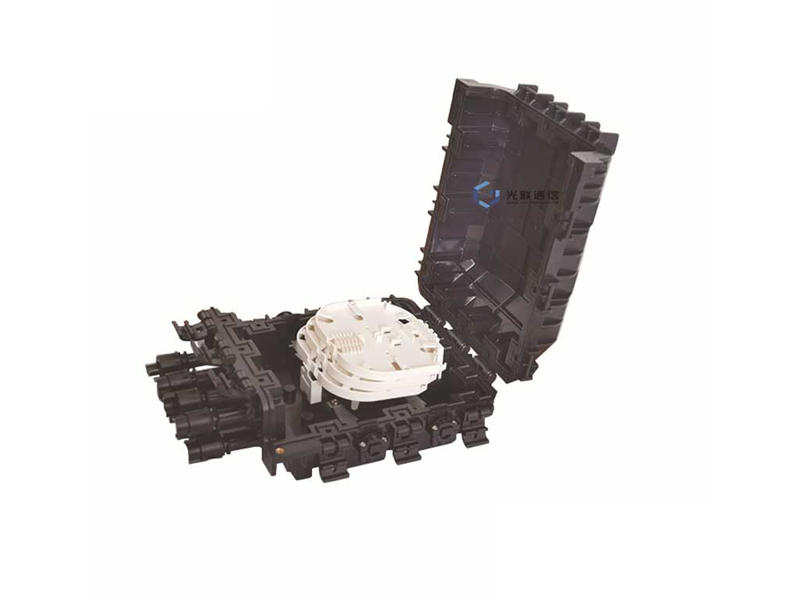

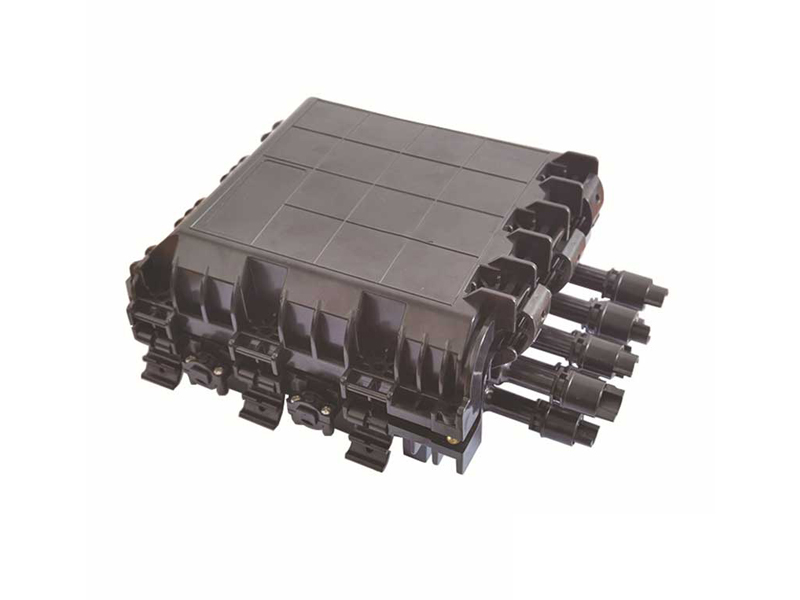

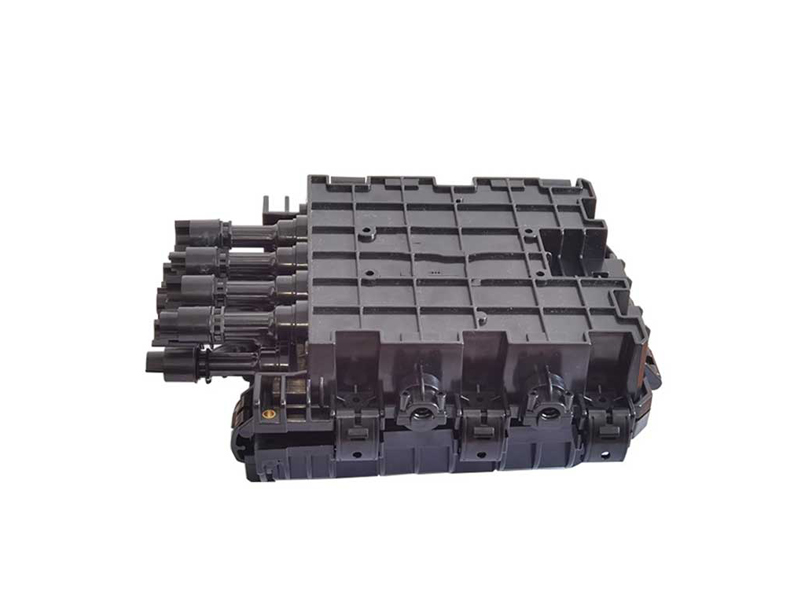

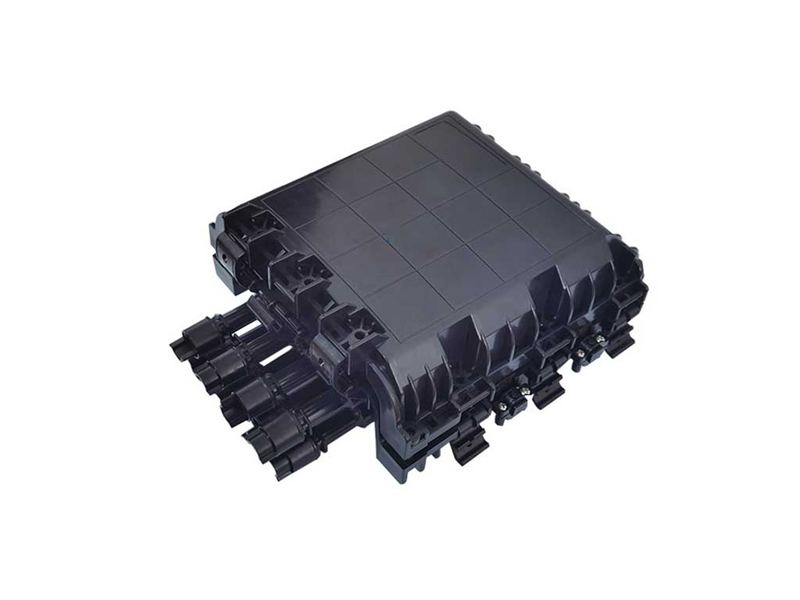

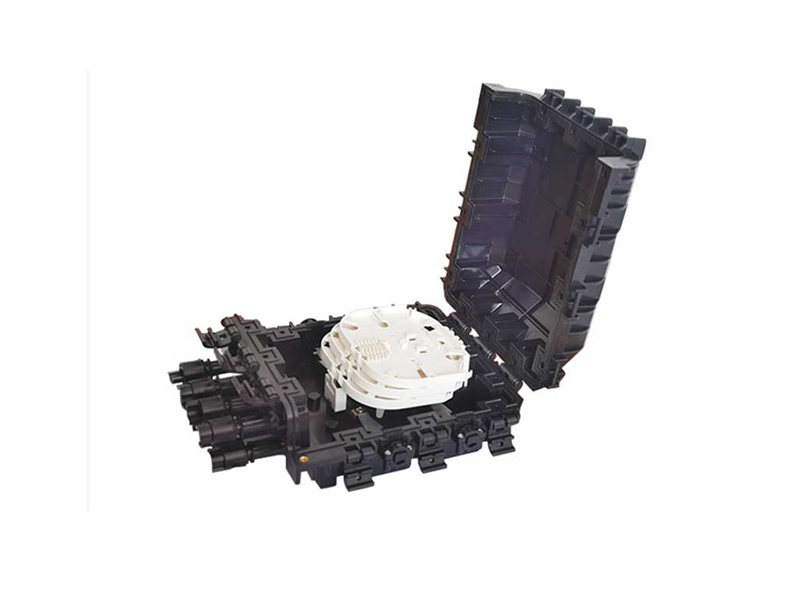

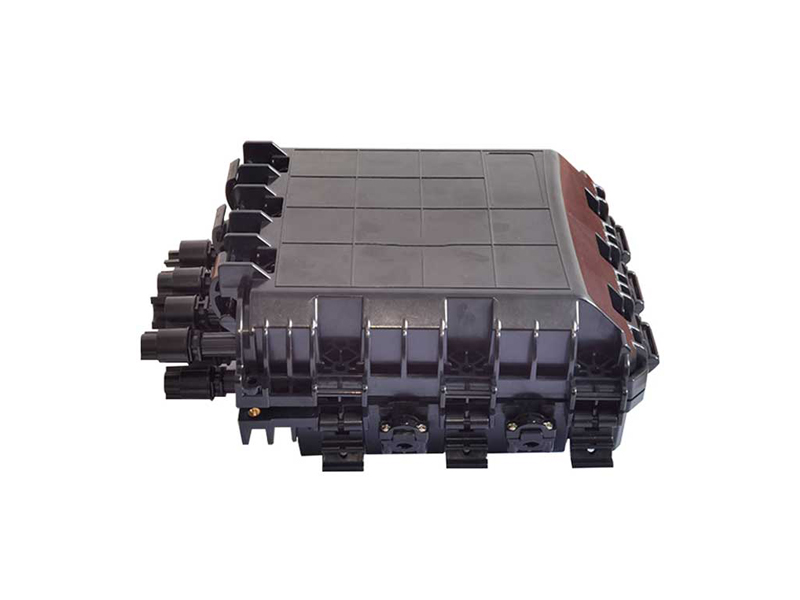

The FTB-AT8AM fiber optic distribution box is a device at the user access point in a fiber optic access network. It enables the installation, fixing, stripping, and protection of the distribution fiber optic cable, as well as its connection and termination with the drop cable. It also meets the needs of optical signal splitting and expansion, fiber optic splicing, protection, storage, and management. It can accommodate the needs of various user fiber optic cables and is suitable for indoor or outdoor wall-mounted installation.

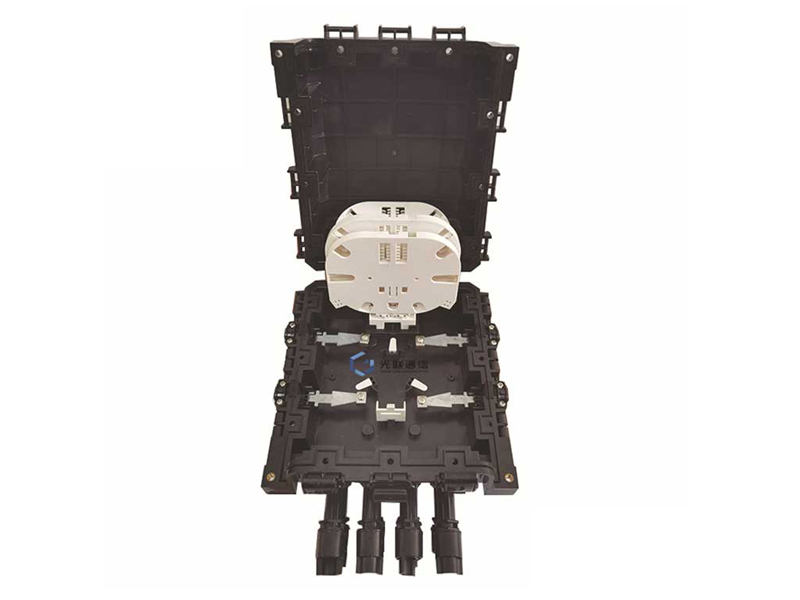

Our Nap box can connect the drop cable with feeder cable as the FDB 8/16 port fiber optic distribution box in the FTTx network, which is able to meet at least 8/16 users' requirements. It is used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
Features:

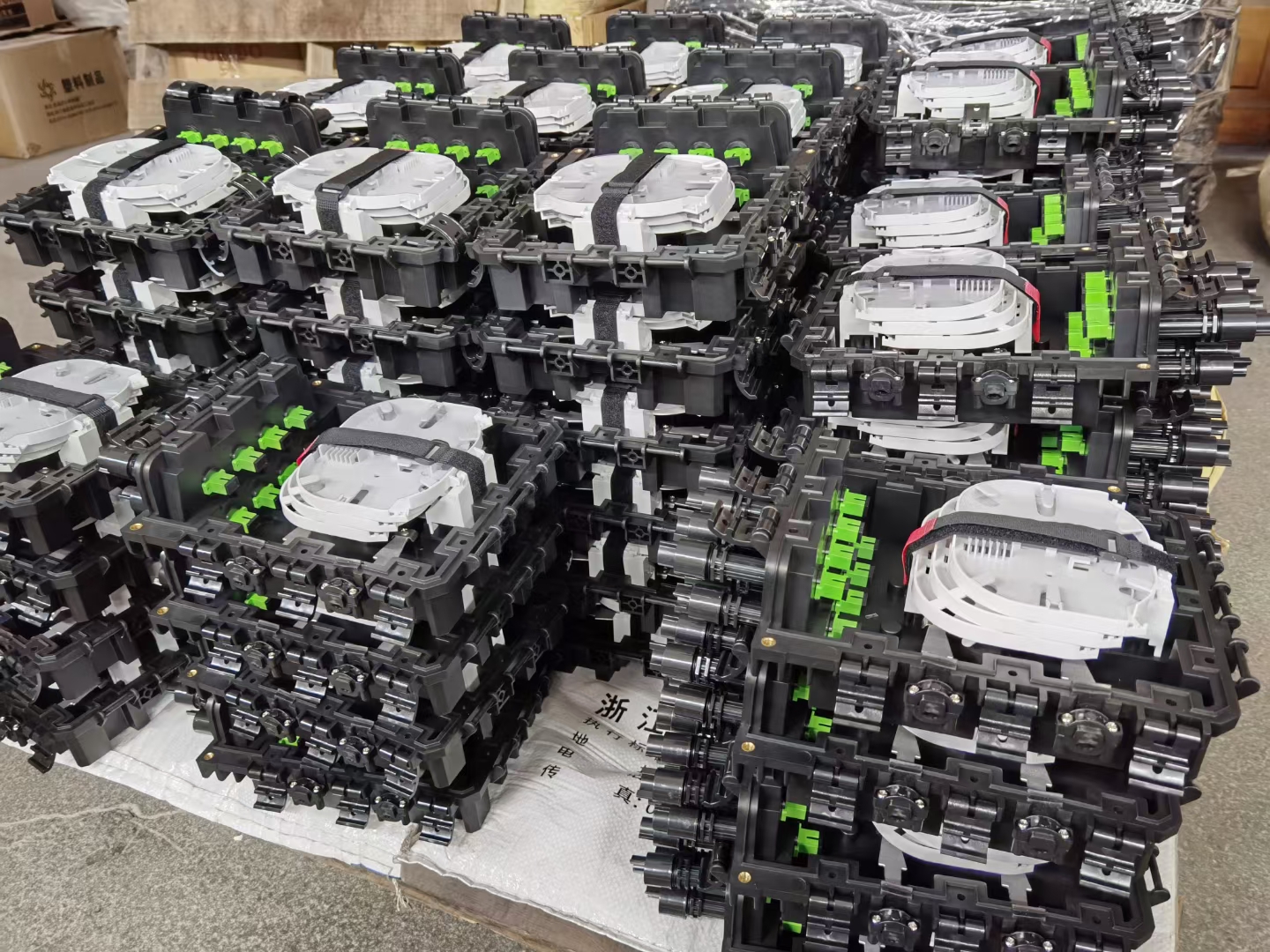

1. Pre-assembled in factory, can be used directly without opening the box.Once prepared the splitters inside, just plug the drop cables outside.
2. It can install 8/16 pcs of SC Tyco adapters, can be waterproof but much more cheaper,easy to operate.
3. Outdoor application and good UV resistant.
4. 8/16 adapters for drop cable with fast connectors.
5. Material: PP+Glass Fiber, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
6. Box can be installed by the way of wall-mounted or poled mounted, suitable for both indoor and outdoor use.
Application:
Wall-mounted Installation
Pole-mounted Installation
Aerial-handing Installation
Suitable for Pre-connectorized drop cable with reinforced connector
| Material | PP+Glass Fiber |
| Model | A/FAT-8/16P |

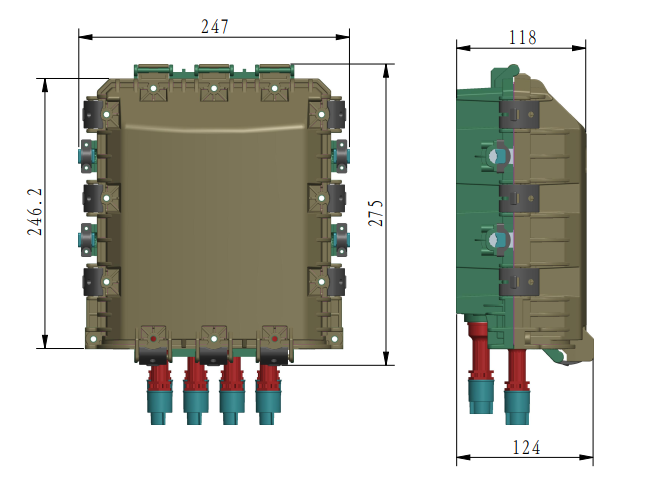

| Dimension | 328mm * 247mm * 124mm |
| Feature | It can enter and exit 4 optical cables of Φ8mm~Φ11mm |
| Temperature range | -40~65℃ |
| Splitter | Can be with 1x1:8/16 tube type splitter |
| Color | Black |
