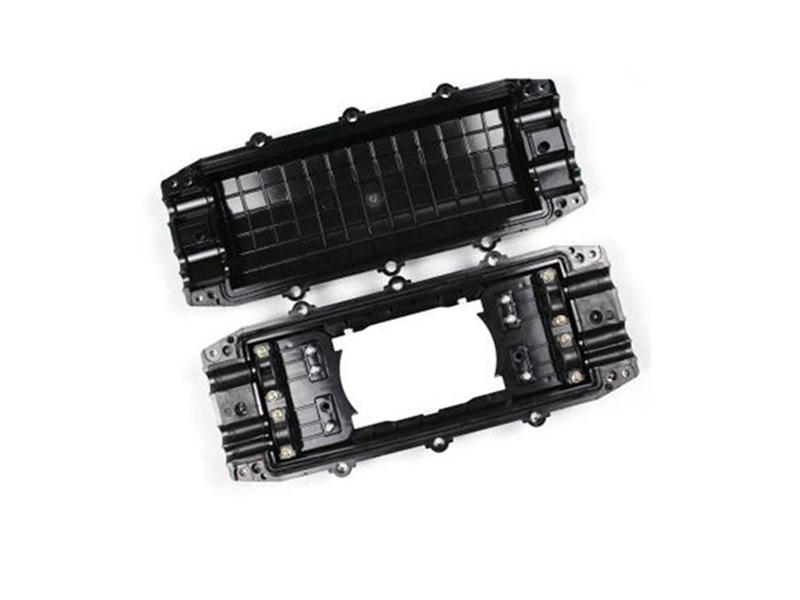

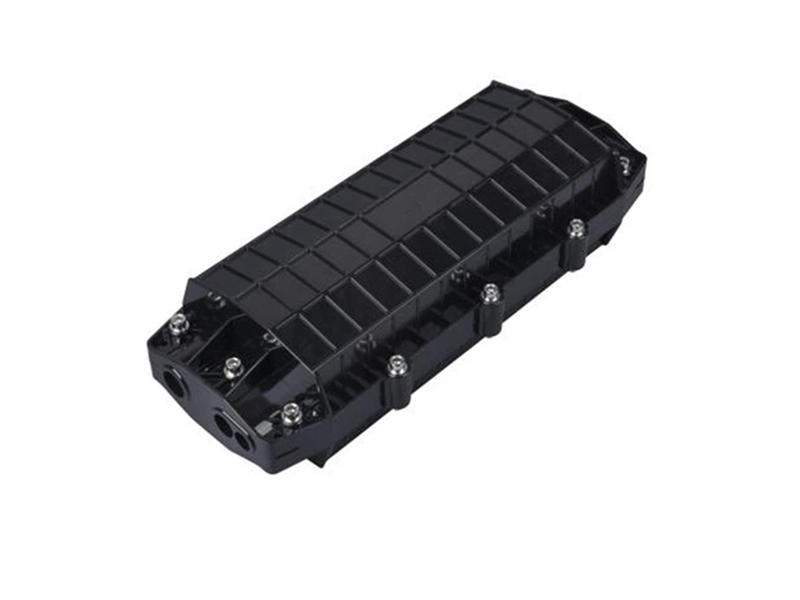

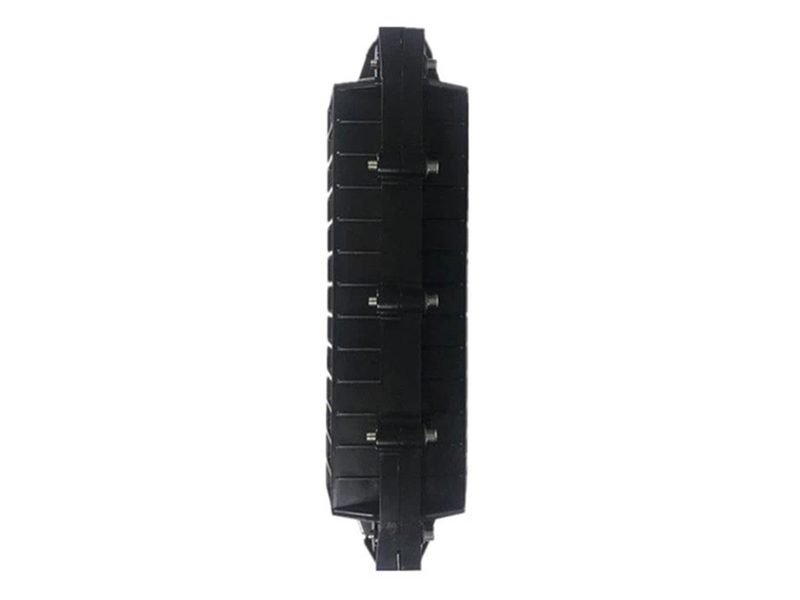

The inner-and-outer doubly buckle-press cable-securing design helps to keep the parameters like torque, tension, pressure and curve qualified. The maximum fiber splice capacity of the closure is 144. The enclosure accepts aerial, duct mounting, as well as manhole application, with a IP68 protection grade.
1.overview
The inner-and-outer doubly buckle-press cable-securing design helps to keep the parameters like torque, tension, pressure and curve qualified. The maximum fiber splice capacity of the closure is 144. The enclosure accepts aerial, duct mounting, as well as manhole application, with a IP68 protection grade.
2.Technical Index
|
Model No. |
SC-ATH144-02 |
Color |
Black |
|
Capacity |
144 cores |
Protection Level |
IP68 |
|
Material |
PC, PC+ABS,PP |
Inlet/outlet |
3+3 |
|
Dimension(MM) |
430*182*124 |
Screw mechanical |
|
|

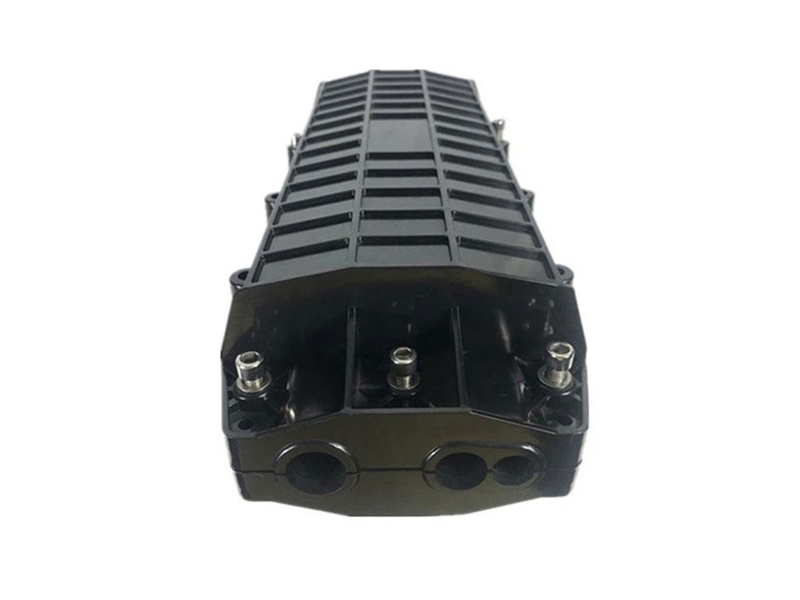

Inlet cable port |
Ф15,Ф18,Ф21 |
Outlet cable port |
Ф15,Ф18,Ф21 |
3.Features
3.1.Suitable for ordinary fiber and ribbon fiber.
3.2.Easy to install and re-entry with a common can wrench.
3.3.Excellent Mechanical Sealed to protect fiber and splice ensuring durability.
3.4.Stand up to severe condition of moisture,vibration and extreme temperatures.
3.5.Fully kitted with all parts for convenient operation.

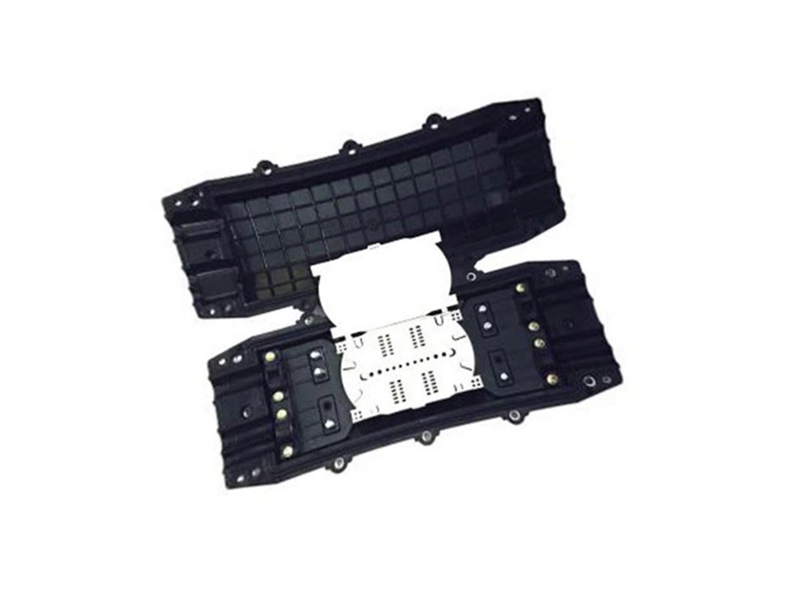

3.6.Overlap structure in splicing tray for easy installation.
4.Applications
4.1.It is belonged to open structure airproof tie-in system of machine pressure.
4.2.It is used for the protective connection between two or more optical cables.
4.3.It is widely used for communication, network system, CATV, the fiber optic cable by network.
4.4.It is uitable for single core fiber optic cable and ribbon fiber optic cable.
