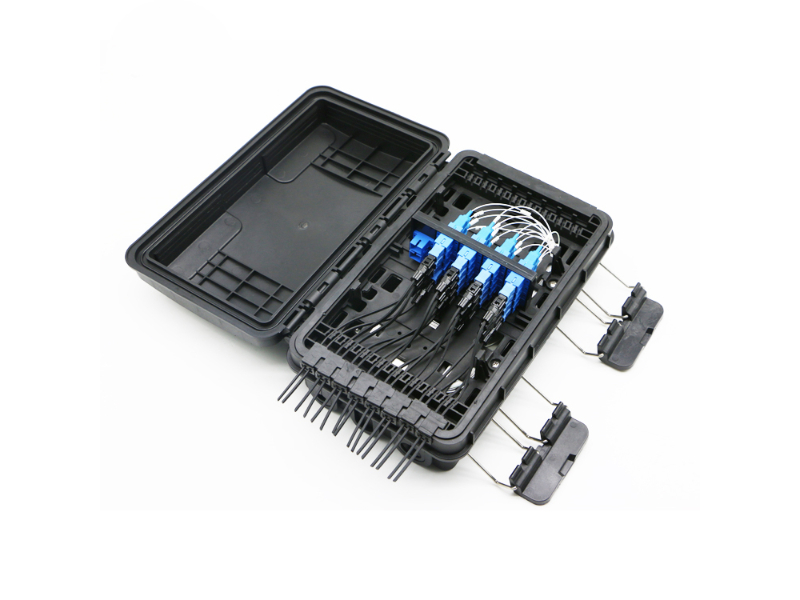

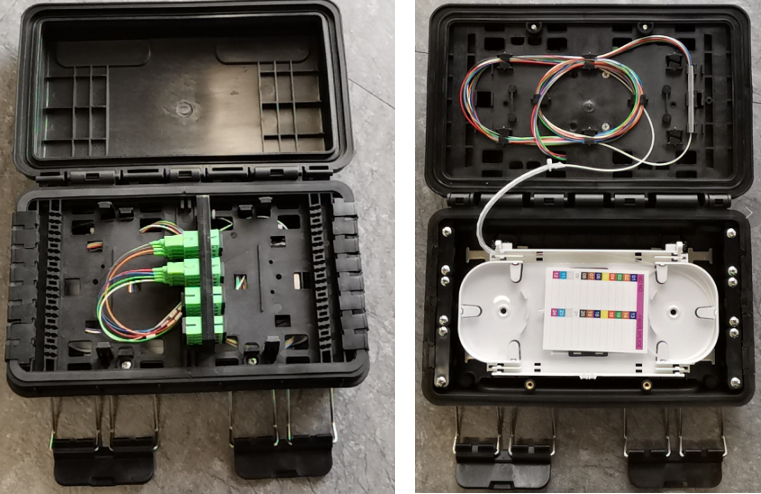

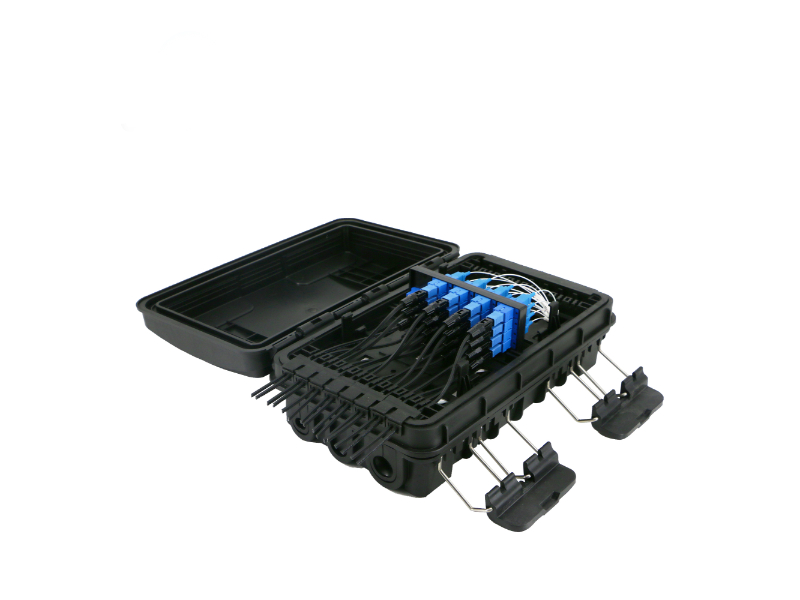

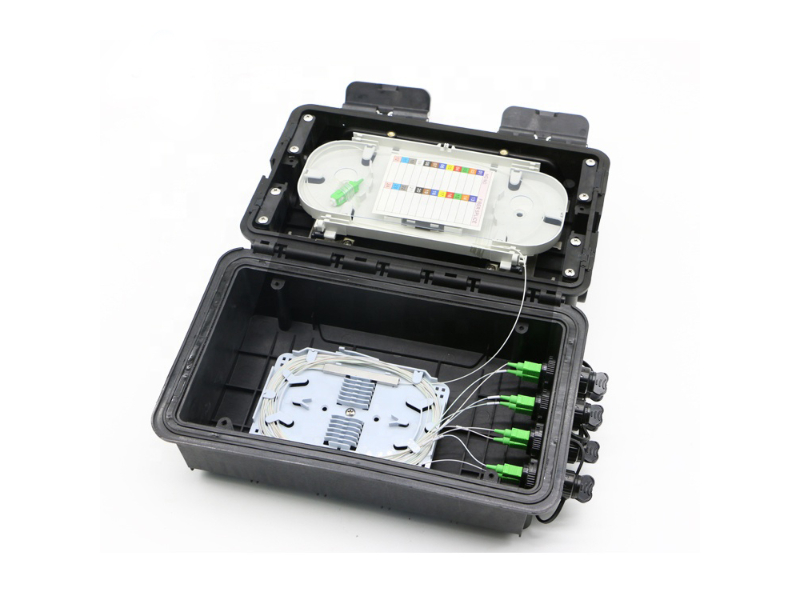

Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Technical Index
Specification
| 1. Environmental requirement | |
| Working temperature | -40℃～+85℃ |
| Relative humidity | ≤85%（+30℃） |
| Atmospheric pressure | 70KPa～106Kpa |
| 2. Main technical datasheet | |
| Insertion loss | ≤0.2dB |
| UPC return loss | ≥50dB |
| APC return loss | ≥60dB |
| Life of insertion and extraction | ＞1000 times |
| 3. Thunder-proof technical datasheet | |
| The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V（DC）；IR≥2MΩ/500V | |
| The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V | |
Configuration table:
Table 1 Model and configuration
|
Model |
Description |
Size（Pic 1） |
Max Capacity |
Into the largest cable diameter |
Cable ways |
|
A*B*C(mm) |
SC |
||||
|
FTB-16N |
Distribution Box |
290*188*108 |
18 |
15mm |
Not cup-joint / cup-joint |
Installation Manual

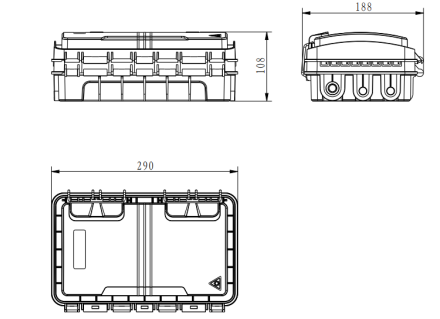

Pic 1 Box Size
Product cable ways
Pic 2 Cable ways
Installation：
Aerial-Mount installation
Take out the Hanging Kit from the Accessory Bag, install the hangers to the Closure by M4 Screws.
Hang the Closure on the line with the two hooks.
Screw the M4 Screws on the hooks to lock the hangers, check if everything is tight after operation.
Check signals and other conditions, if everything is OK, then the whole job is done.(Pic 3)
Installation Manual

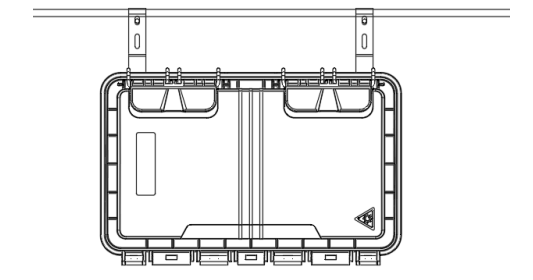

Pic 3 Aerial mounted installation
Pole-mounted installation

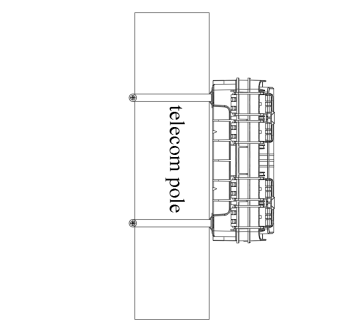

Fix 1 set of the easy pole ring to the telecom pole .（Pic 4）
Pic 4 Pole ring installation
Accessories：
1. Users' Manual*1
2. Accessories Bag * 1

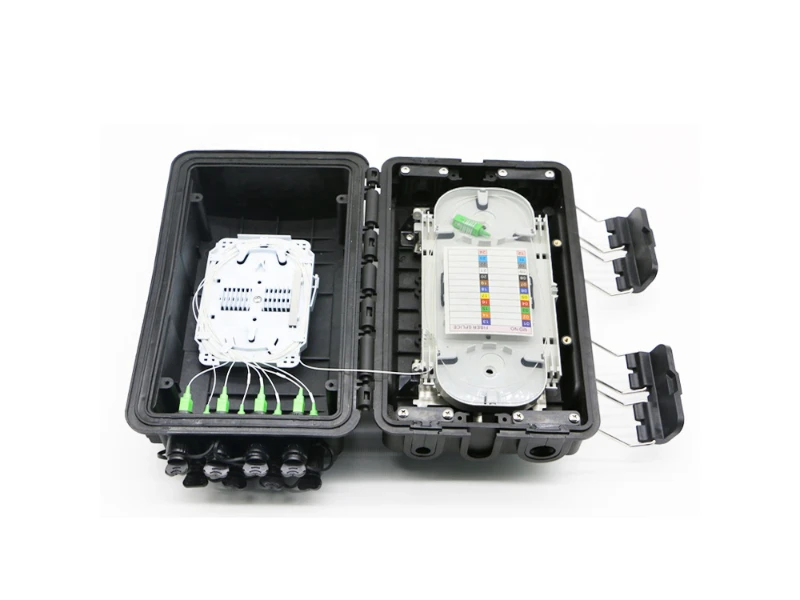

Features
Total enclosed structure.
Material: PP+GF，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55.
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
