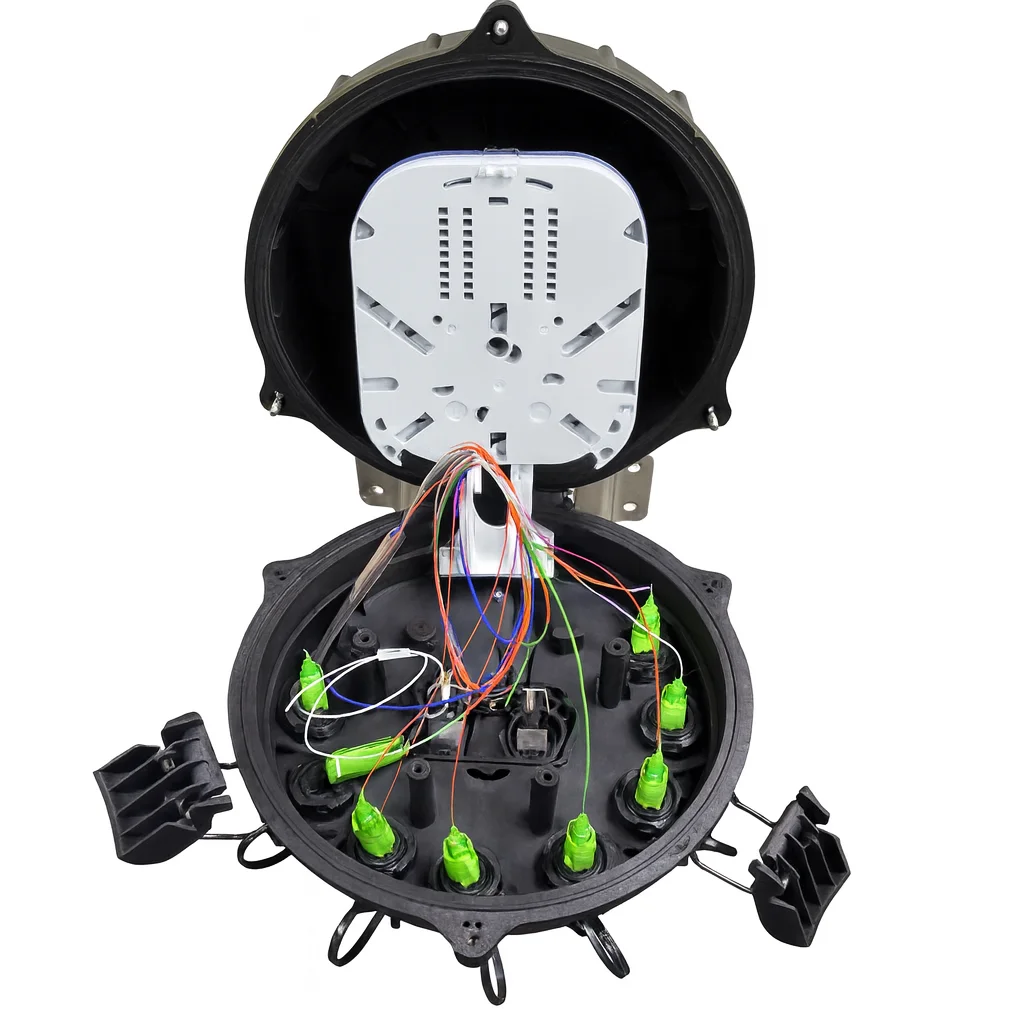

Fiber optic splice closures are specially designed to protect joints of optic cable. excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 12 fibers; Available for 1 trays to splice total 12 fibers. Adopt modified PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.
Product Description
Specification
|
Item |
Specification |
|
Product Name |

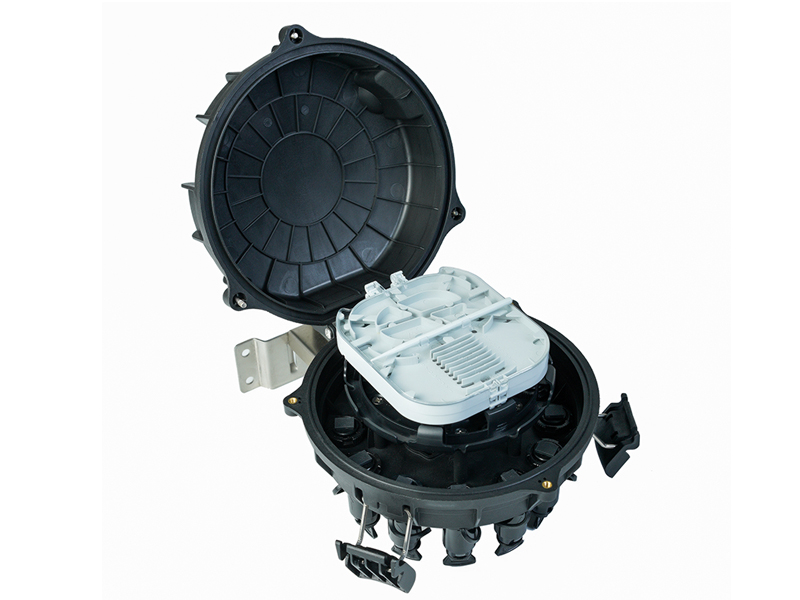

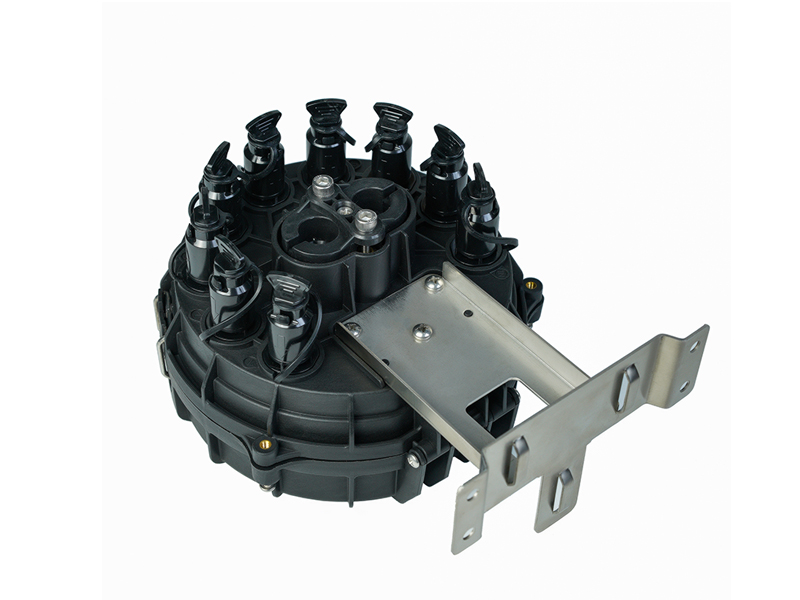

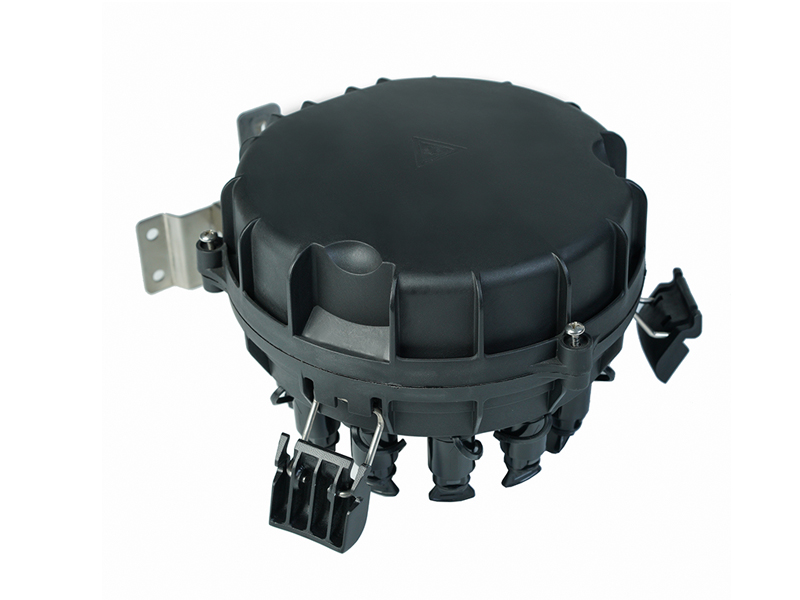

Round Type Pre-terminated Fiber Access Terminal (FAT Box) |
|
Type |
Dome / Round Type, Outdoor Fiber Optic Distribution & Splice Closure |
|
Ports |

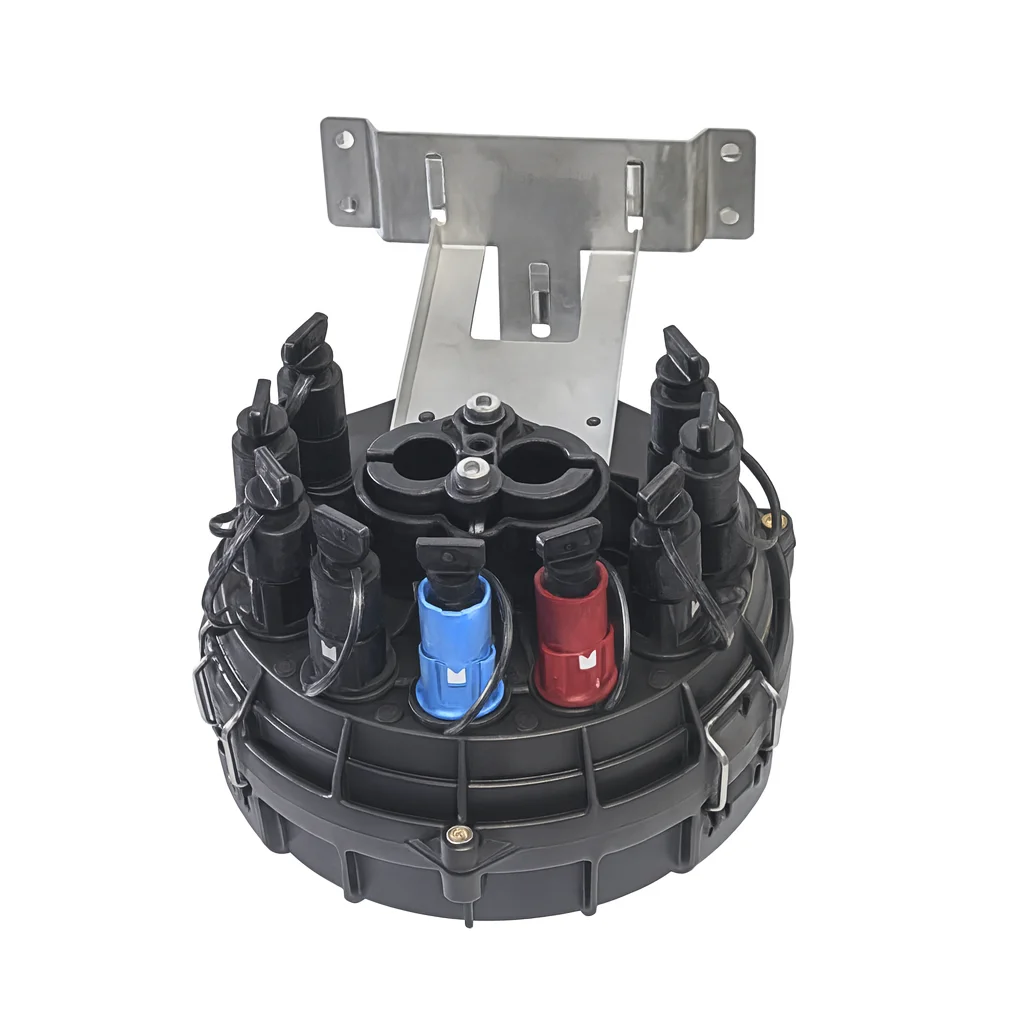

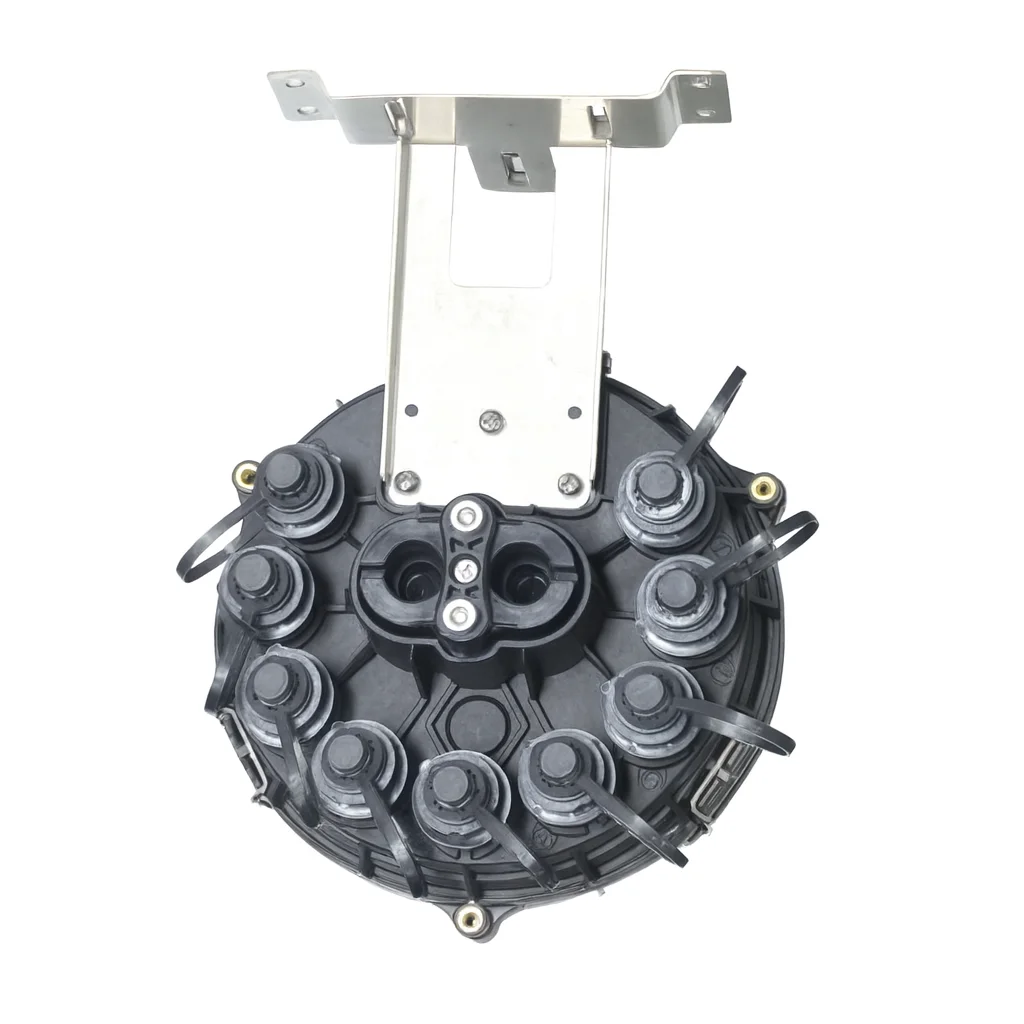

9 Ports (1 IN + 8 OUT or 2 IN + 7 OUT, customizable) |
|
Connector Type |
SC / APC, SC / UPC, LC, or customized |
|
Fiber Capacity |
Up to 24 / 48 cores (depending on configuration) |
|
Pre-terminated Option |
Yes, available with pigtails & adapters installed |
|
Material |
High-strength engineering plastic (PC+ABS), anti-UV, flame-retardant |
|
Sealing Method |
Mechanical seal with rubber gasket + stainless steel lock |
|
Protection Level |
IP65 / IP68 waterproof & dustproof |
|
Installation Method |

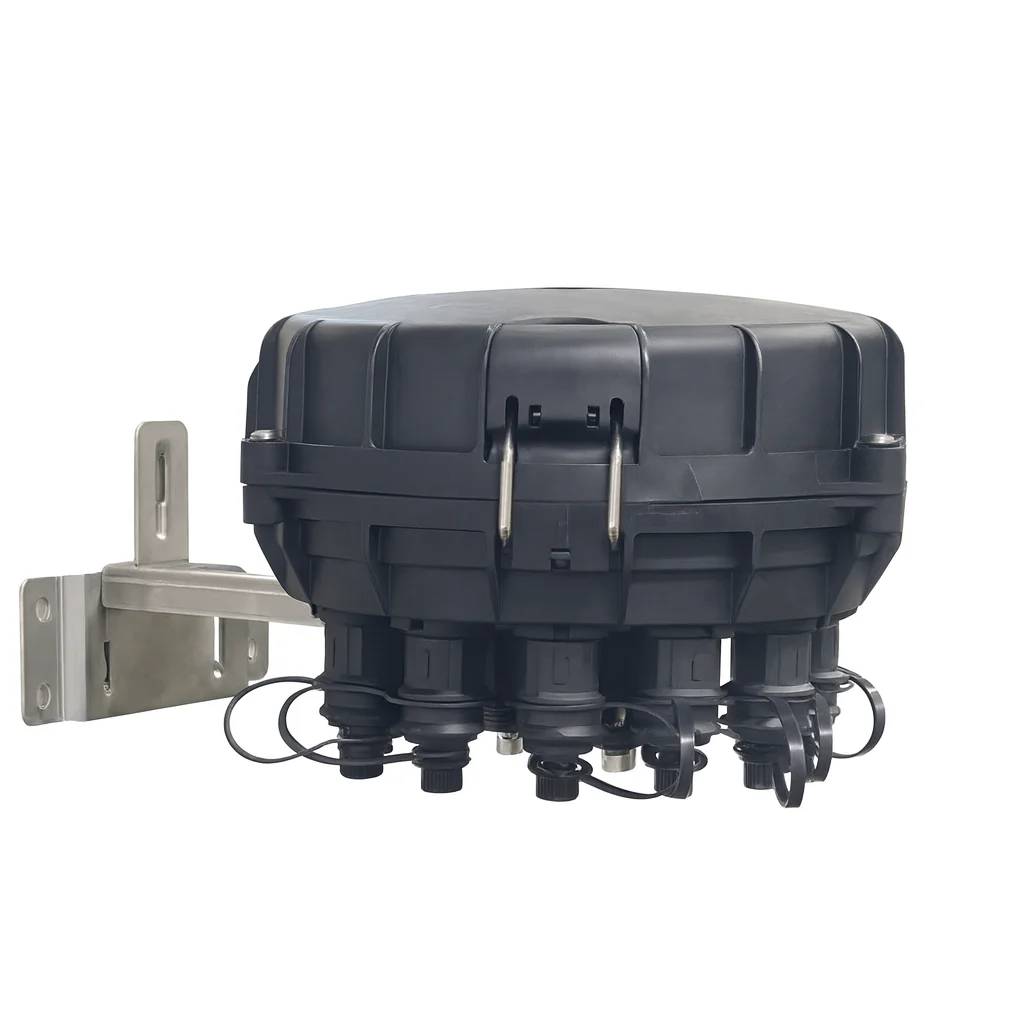

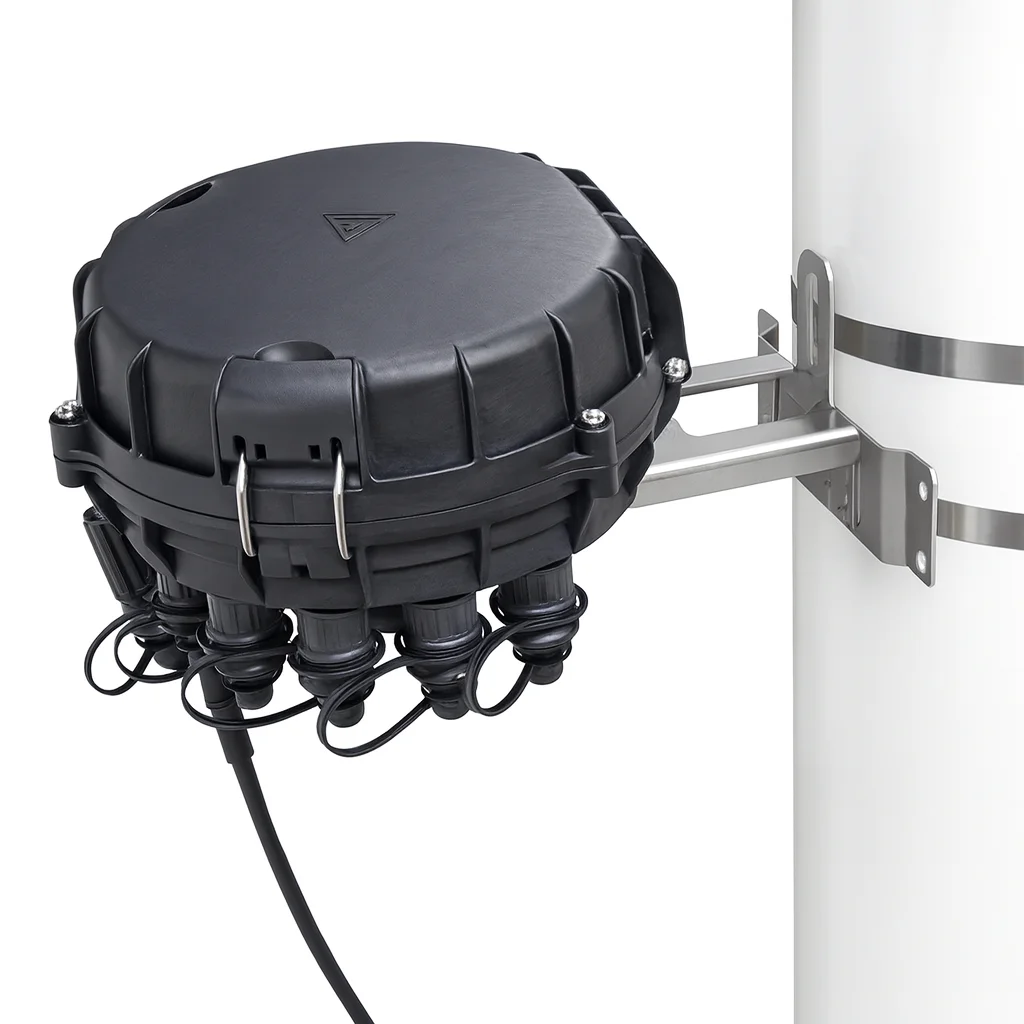

Wall-mounted / Pole-mounted with stainless steel bracket |
|
Dimension |
Ø210mm × H150mm (example, customizable) |
|
Weight |
Approx. 1.2–1.5kg |
|
Operating Temperature |
-40℃ ~ +65℃ |
|
Application |
FTTH, Telecom Network, Data Center, CATV, Outdoor Fiber Acces |
