Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specification
| 1. Environmental requirement | |
| Working temperature | -40℃～+85℃ |
| Relative humidity | ≤85%（+30℃） |
| Atmospheric pressure | 70KPa～106Kpa |
| 2. Main technical datasheet | |
| Insertion loss | ≤0.2dB |
| UPC return loss | ≥50dB |
| APC return loss | ≥60dB |
| Life of insertion and extraction | ＞1000 times |
| 3. Thunder-proof technical datasheet | |
| The grounding device is isolated with the cabinet, isolation resistance is less than 2*104 MΩ/500V（DC）; IR≥2*104 MΩ/500V | |
| The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover; U≥3000V | |
Configuration table:
Table 1 Model and configuration
|
Model |
Description |
Size（Pic 1） |
Max Capacity |
Into the largest cable diameter |
Cable ways |
|
A*B*C(mm) |
PLC(1:8)/SC |
||||
|
|
Distribution Box |
597.5*203*85 |
2 |
15mm |
Not cut-joint / cut-joint |

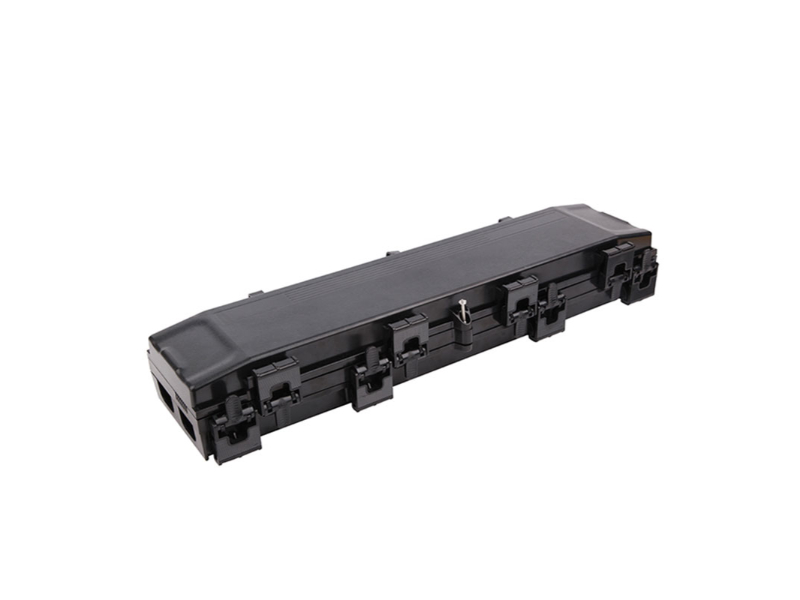

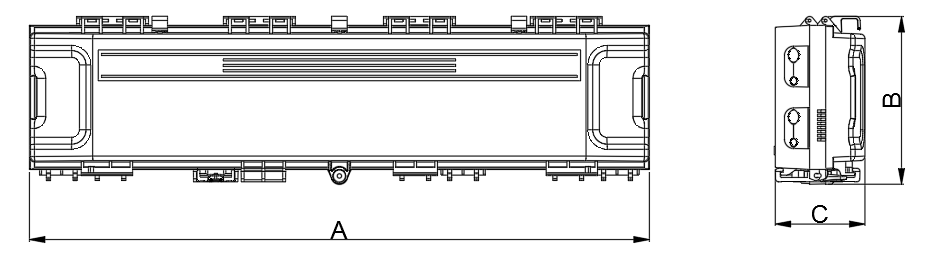

Pic 1 Box Size
5Product cable ways:

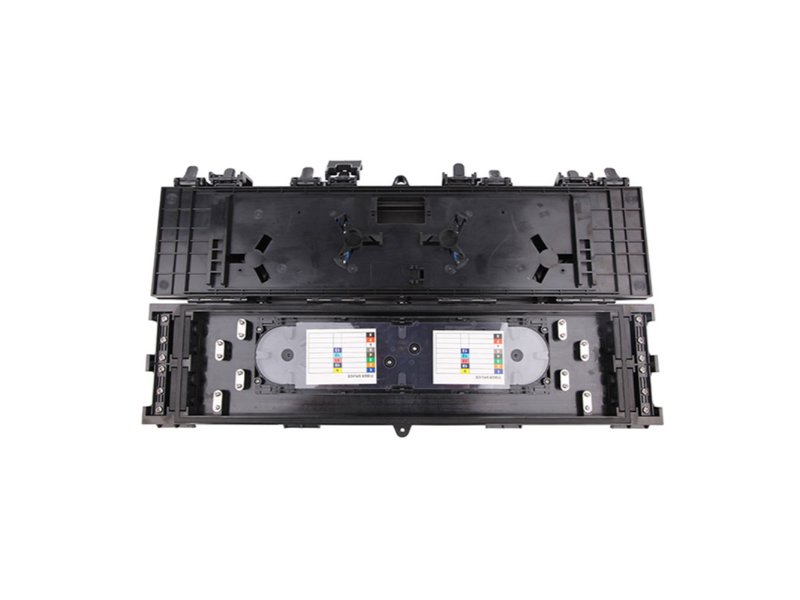

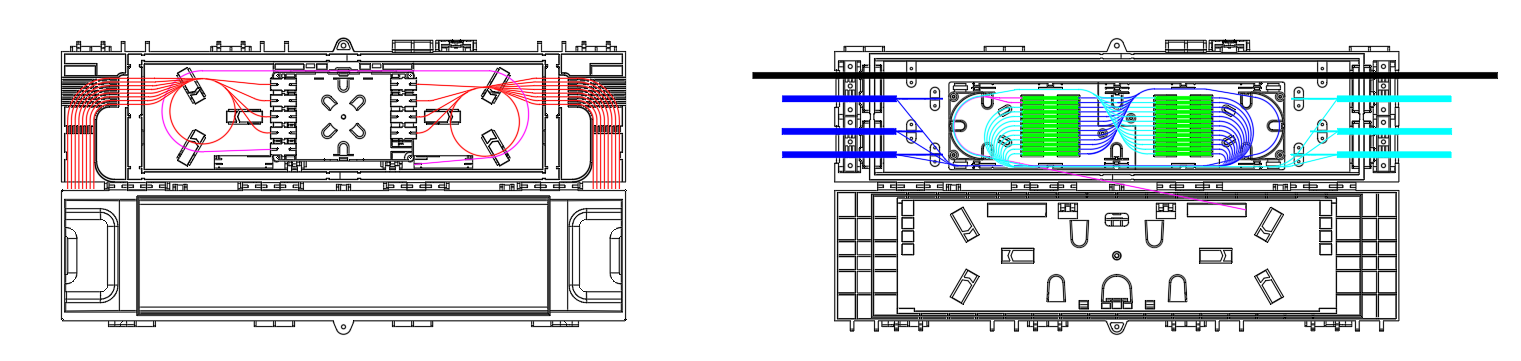

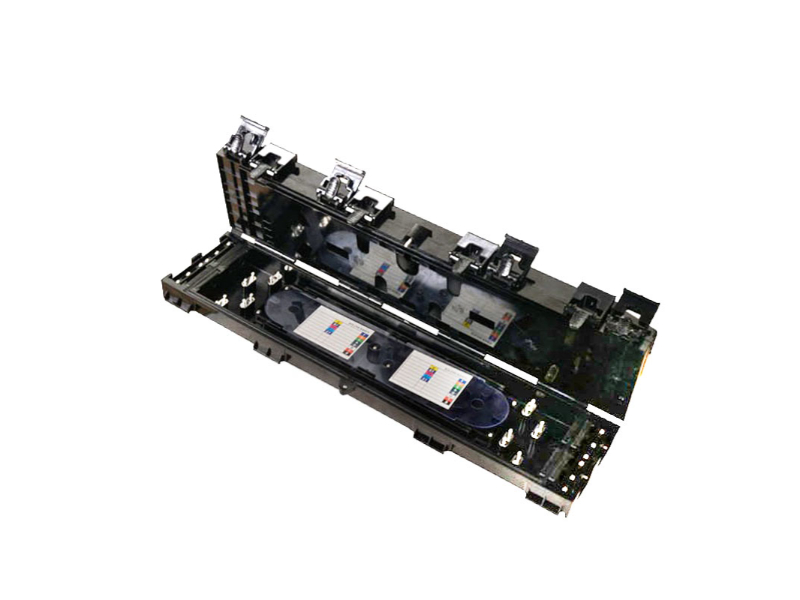

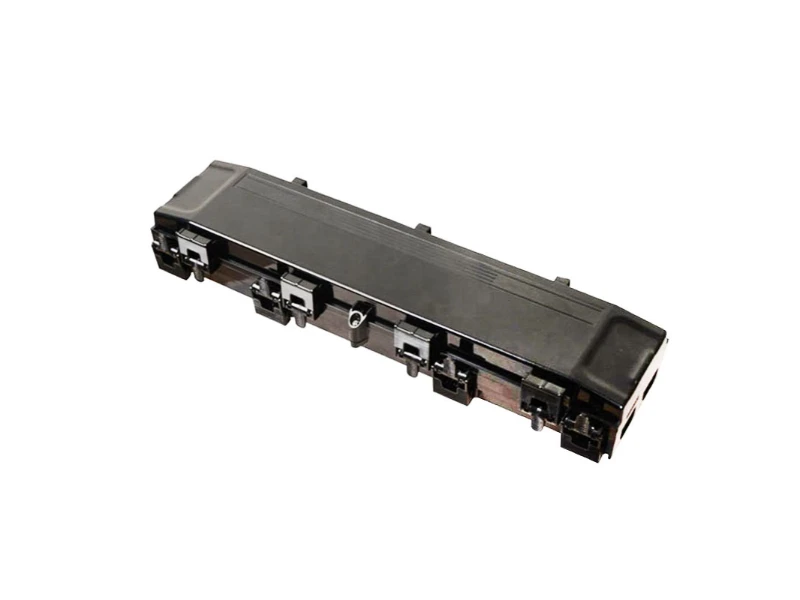

Pic 2 Cable ways
Installation:
1．Hanging wire installation
Install the connector box on the steel strand。(Pic 3)

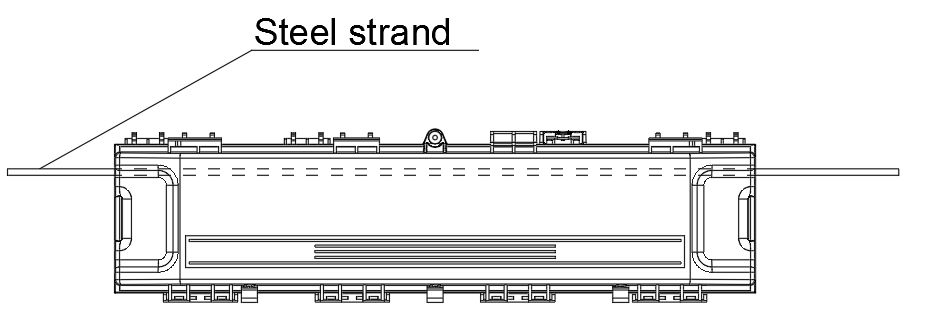

Pic 3 Hanging wire installation
Accessories：
1. Users' Manual*1
2. Key*1
3. Accessories Bag * 1

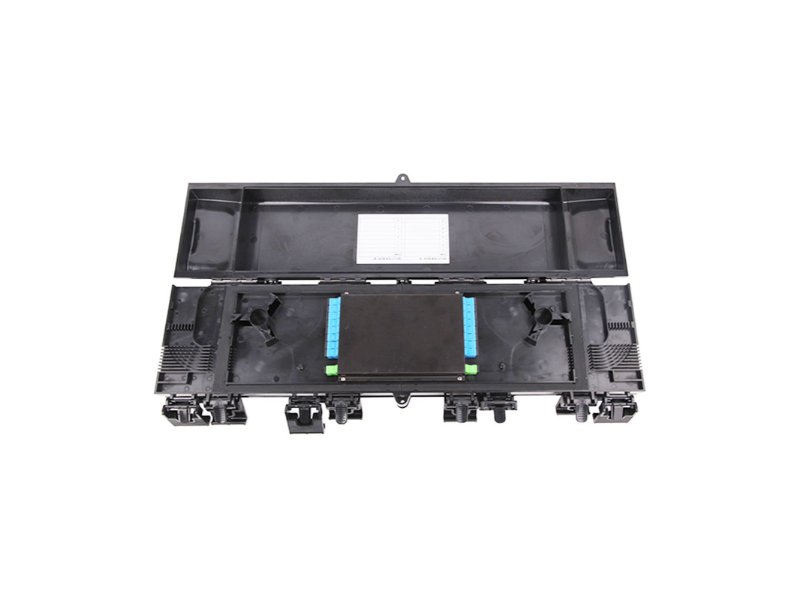

Features
Total enclosed structure.
Material: PC+ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55
Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for outdoor uses.
