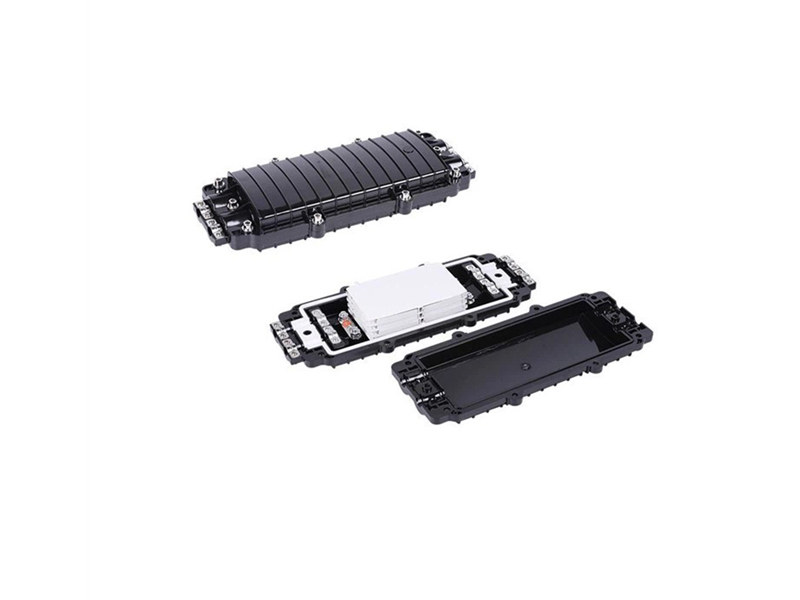

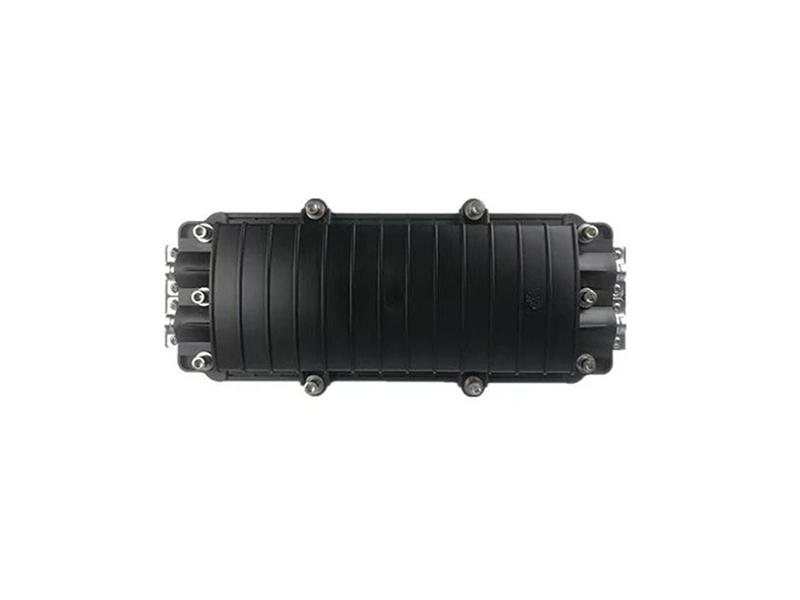

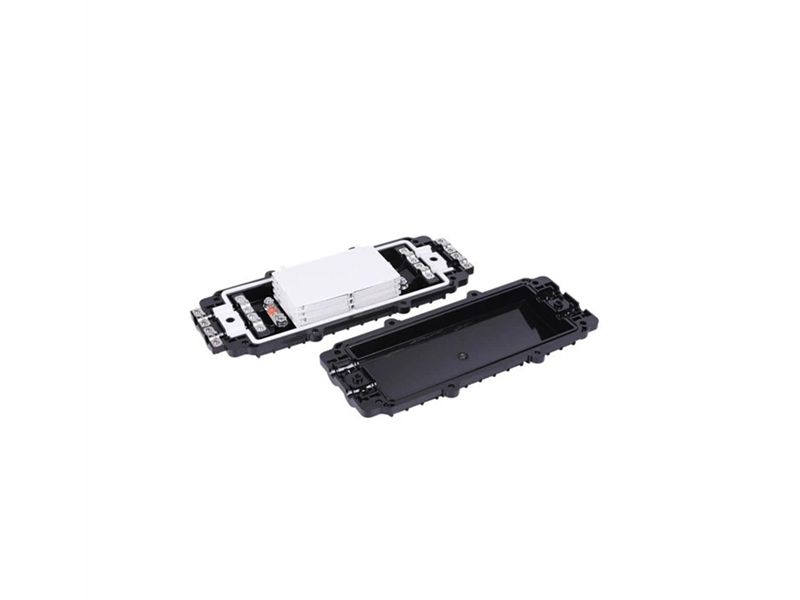

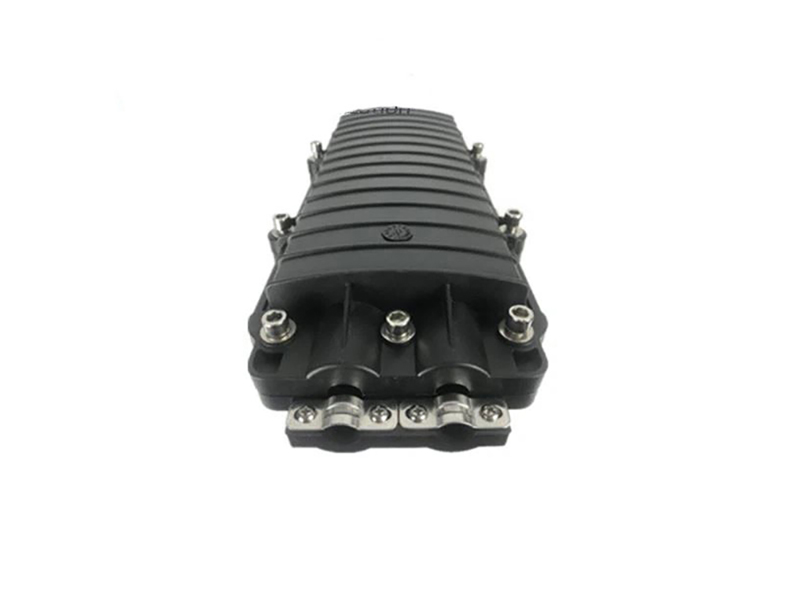

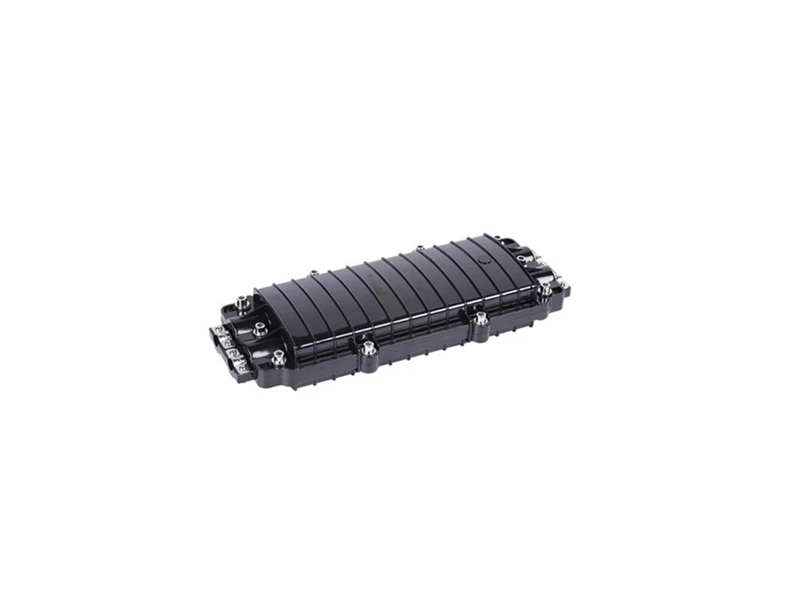

Alteoptic Model No. SC-AT048-04 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Specification
|
Model No. |
SC-AT048-04 |
Color |
Black |
|
Capacity |
48 cores |
Protection Level |
IP68 |
|
Material |
PC, PC+ABS,PP |
Inlet/outlet |
2+2 |
|

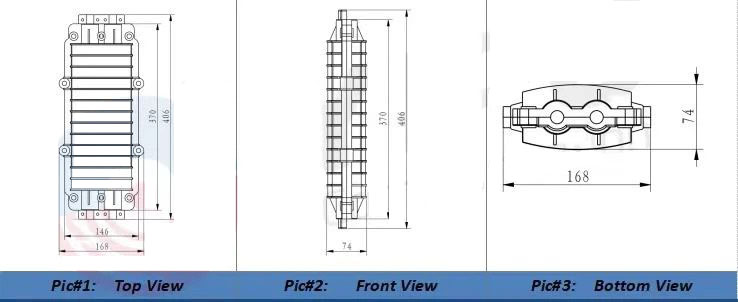

Dimension(MM) |
406*168*74 |
Sealing Method For Inlets |
Screw mechanical |
|
Inlet cable port |
Ф15 |
Outlet cable port |
Ф15 |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
