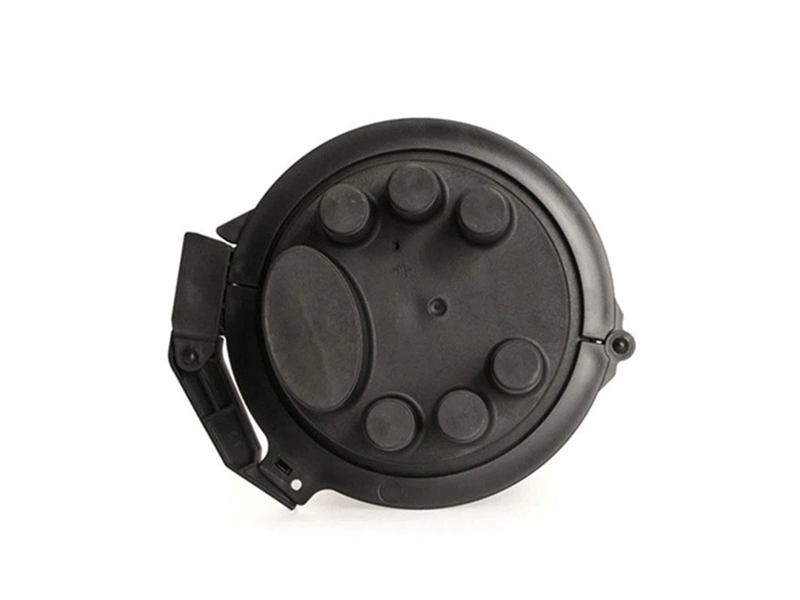

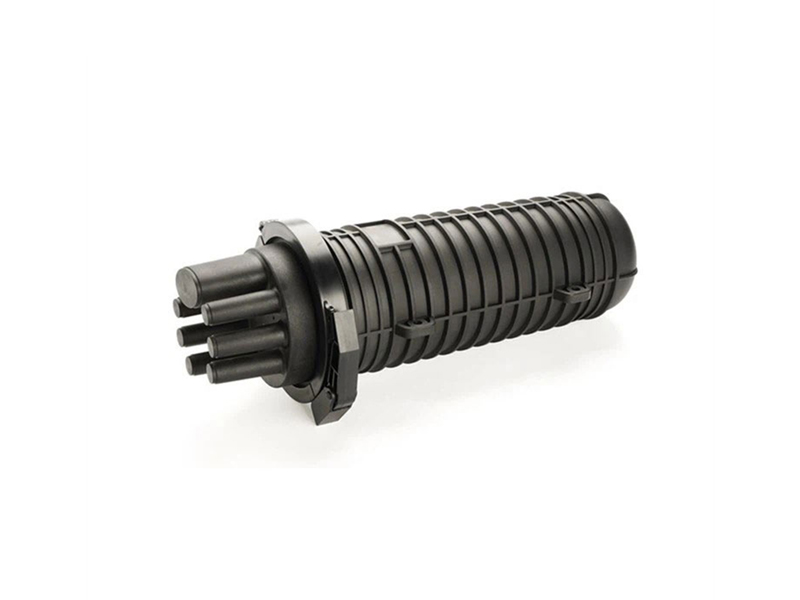

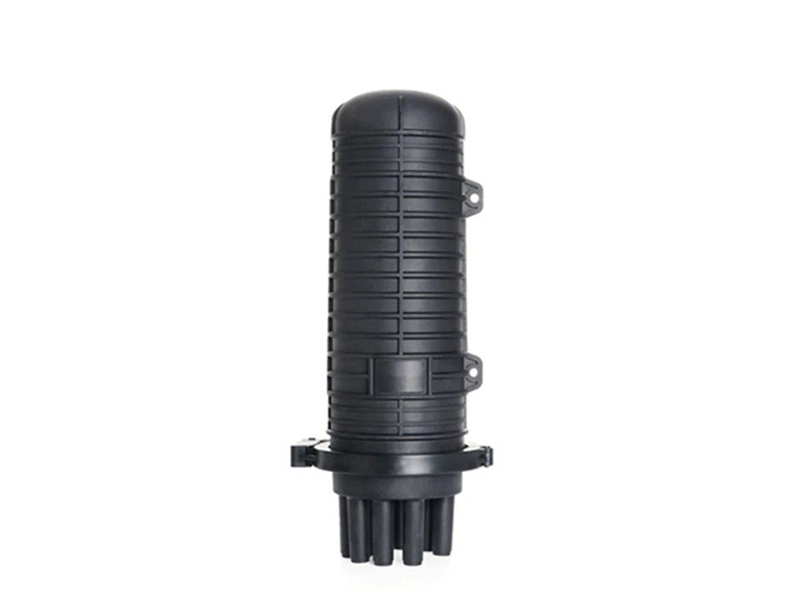

SC-ATD144-03 this FTTH fiber optical mini dome ftth aerial cheap closures can be placed in aerial, underground, wall-mounting, hand hole mounting and duct-mounting applications.The strong housing and main components provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsioning and impacting.
1.Overview
Fiber Optic Splice Closures is used for protective connection of two or multiple optical cable and optic fiber distribution. It is one ofcommonlyused equipment of user access point.Used for the outdoor connection between optical distribution cable and optical inroom cable. Available for aerial,duct,direct buried application.
2.Size specification
|
Model No. |
SC-ATD144-03 |
Color |
Black |
|
Capacity |
144 cores |
Protection Level |
IP68 |
|
Material |
PP |
Inlet/outlet |
1+6 |
|

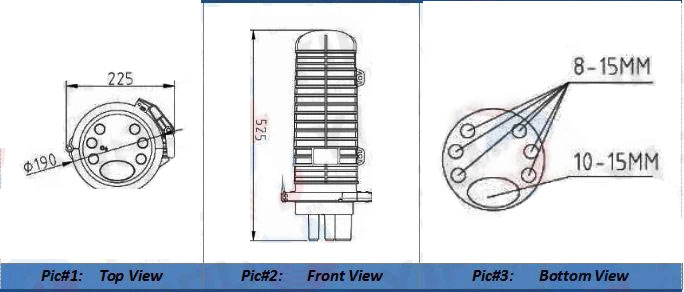

Dimension(MM) |
525*Ф225 |
Sealing Method For Inlets |
Heat shrinkable |
|
Inlet cable port |
Ф10-Ф15 |
Outlet cable port |
Ф8-Ф15 |
3.Features:
1.High-strength engineering plastic shell
2.High mechanical performance
3.Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes
4.Technical Requirements:
Sealing performance : After sealing according to the stipulated operation procedures, the injected air pressure is 70KPa±5Kpa, when immersed in clean water of normal temperature for 15 minutes, there is no air bubbles.
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
SC-ATD144-03 144core Type Fiber Optic Splicing Enclosure
SC-ATD144-03 this FTTH fiber optical mini dome ftth aerial cheap closures can be placed in aerial, underground, wall-mounting, hand hole mounting and duct-mounting applications.The strong housing and main components provide fire resistant, waterproof and quakeproof while protecting splices during pulling, torsioning and impacting.
View More
Alteoptic Model No. SC-ATD048-02A Access Termination Closure is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
View More

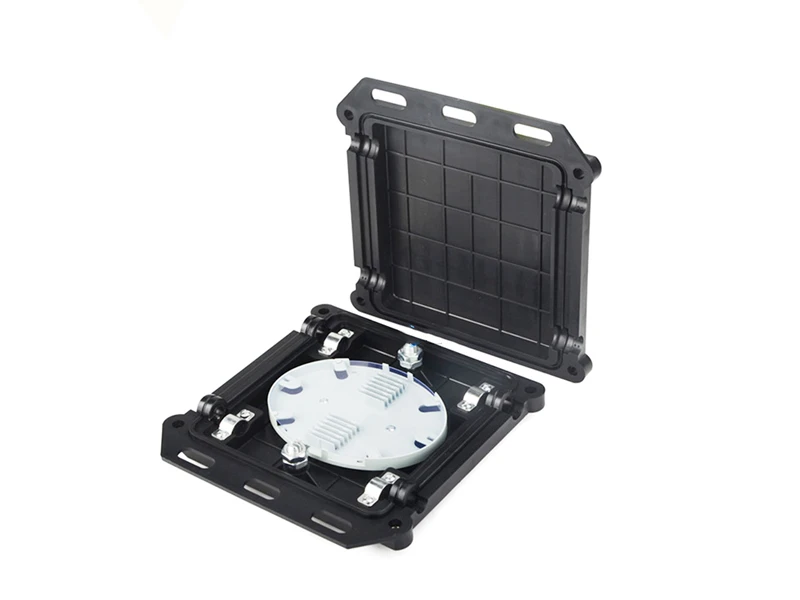

SC-ATH024-01 FTTH 24f 1+1 Inlet/outlet optical fiber cable joint splice enclosure
Alteoptic Model No. SC-ATH024-01 24 fiber closure is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
View More

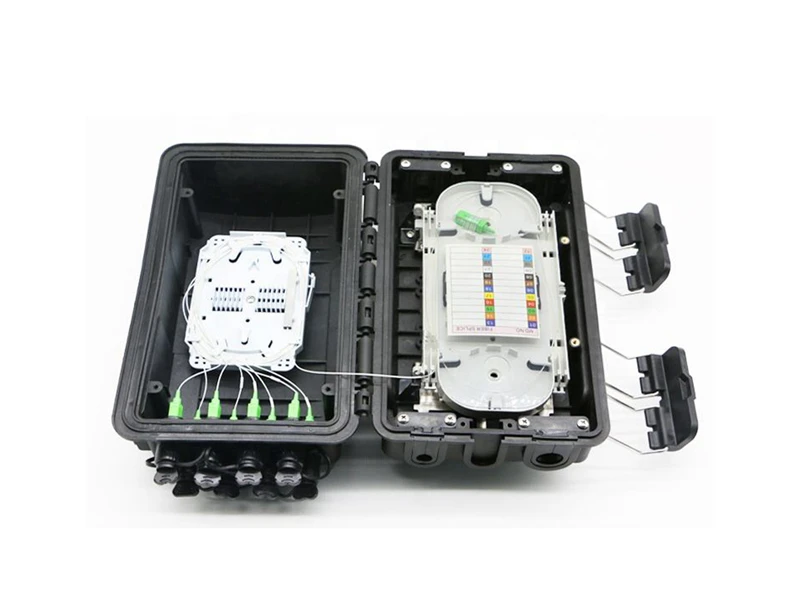

16 Ports Fiber Optic Nap Box for Outdoor Drop Cable Termination Waterproof
Model No. FTB-AT16N-3 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
View More

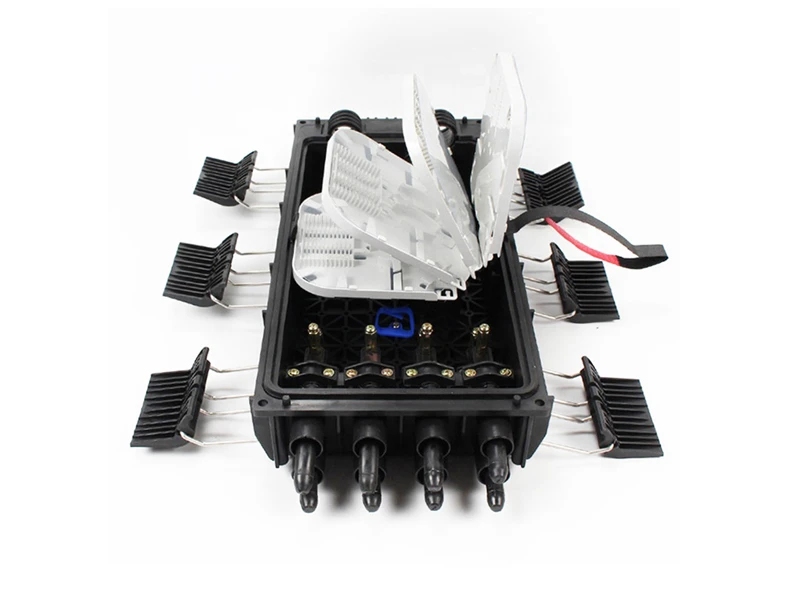

Alteoptic Model No. SC-ATH048-09 is one of the main fiber enclosure for 48 user access points, applied as fiber optic closure outdoor box for protective connection and distribution between two or more cables. The primary function is to connect and splice a maximum of 48 core inlet distribution cables and indoor cable in the open air. fiber enclosure box is widely used in EPON, GPON communication systems, cable TV, optical cable network systems, and others by virtue box of steady structure, good sealing performance, and easy maintenance for inner fiber optic splice, storage in whole one box.
