The strong housing provide fire resistant, anti-aging, anti-UV and waterproof, quake-proof while protecting splices during pulling, torsion and impacting. Highly reliable sealing system. Heat-shrink on the ports. Can be used in aerial, underground, direct buried installation environments. Available for wall, stand or pole mounting.
1.Description
The strong housing provide fire resistant, anti-aging, anti-UV and waterproof, quake-proof while protecting splices during pulling, torsion and impacting. Highly reliable sealing system. Heat-shrink on the ports. Can be used in aerial, underground, direct buried installation environments. Available for wall, stand or pole mounting.

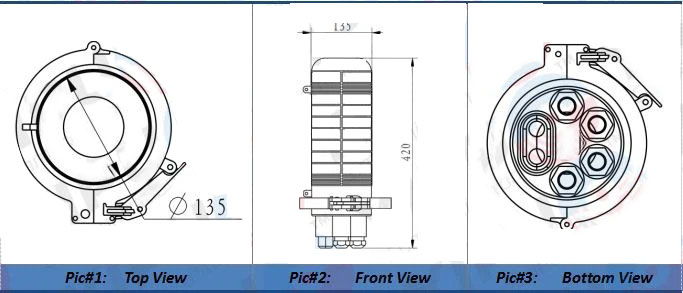

2.Details figure
|
Model No. |
SC-ATS096-02 |
Color |
Black |
|
Capacity |
96 cores |
Protection Level |
IP68 |
|
Material |
PC, PC+ABS,PP |
Inlet/outlet |
2+4 |
|
Dimension(MM) |
420*Ф135 |
Sealing Method For Inlets |
Screw mechanical |
|
Inlet cable port |
Ф8-Ф18 |
Outlet cable port |
Ф8-Ф18 |
3.Features:
3.1. Excessive fibers can be stored in storage baskets. Easy in fiber management.
3.2. Fabricated by mixing the imported material and other chemical assistant agent (ageing resistance & ultraviolet radiation resistance), increase of service life.
3.3. Base-to-dome seals on FOSC are mechanical and heat-shrinkable on ports for ease of installation and reentry. No other sealing adhesive tape is needed.
3.4. Base and dome sealed with clamp and O-ring system.

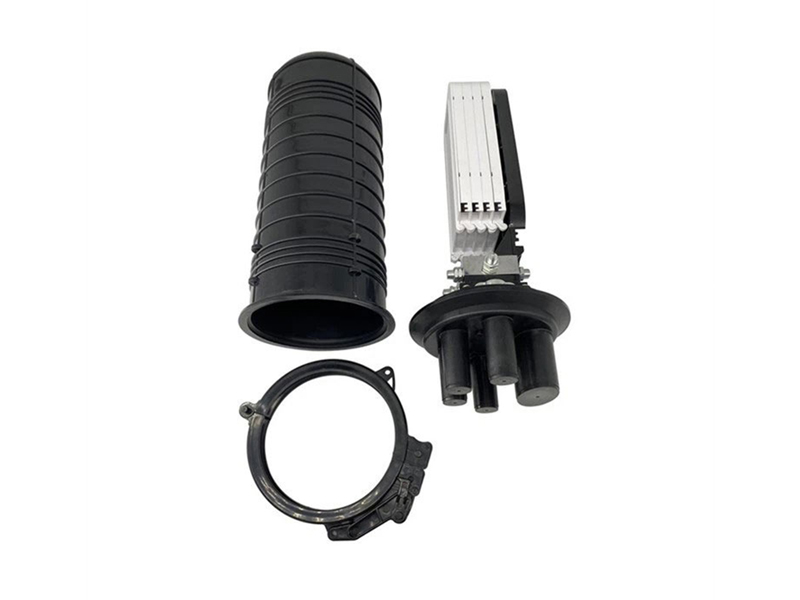

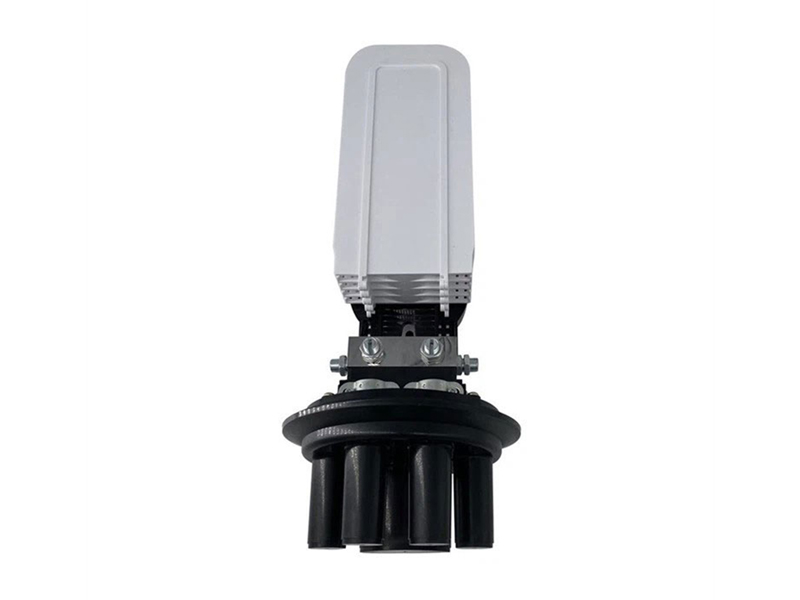

3.5. The splice trays are hinged for access to any splice without disturbing others trays.
3.6. The inner parts and fixing parts are made of 304 stainless steel.
4.Application :
4.1. Sutable for bunchy fibers.
4.2. Aerial ,wall-mounting.
4.3. FTTH optical fiber distribution.
