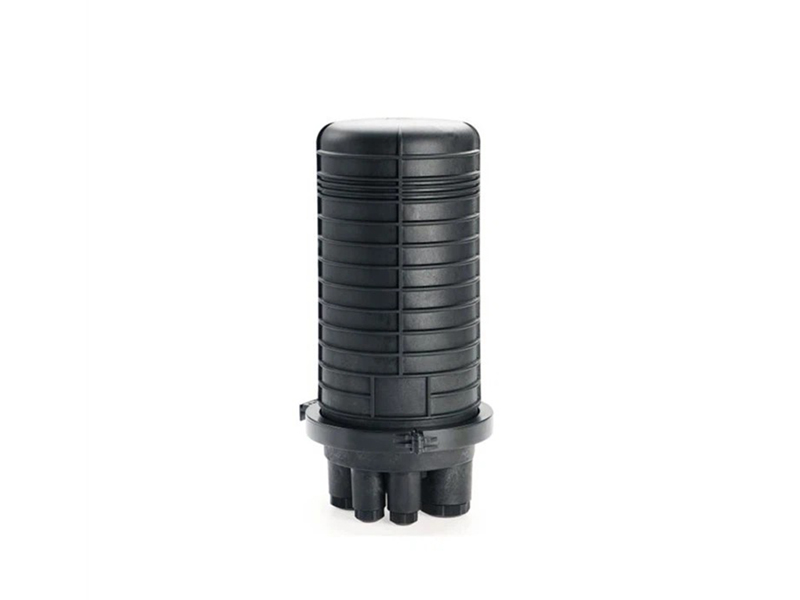

Alteoptic Model No. SC-ATS120-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
1 Overview
Alteoptic Model No. SC-ATS120-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
2 Technical Index
|
Model No. |
SC-ATS120-01 |
Color |
Black |
|
Capacity |
120 cores |
Protection Level |
IP68 |
|
Material |
PP |
Inlet/outlet |
1+4 |
|
Dimension(MM) |
480×Ф260 |
Sealing Method For Inlets |
Screw mechanical |
|
Inlet cable port |
Ф8-Ф22 |
Outlet cable port |
Ф6-Ф14，Ф8-Ф18 |
3 Features

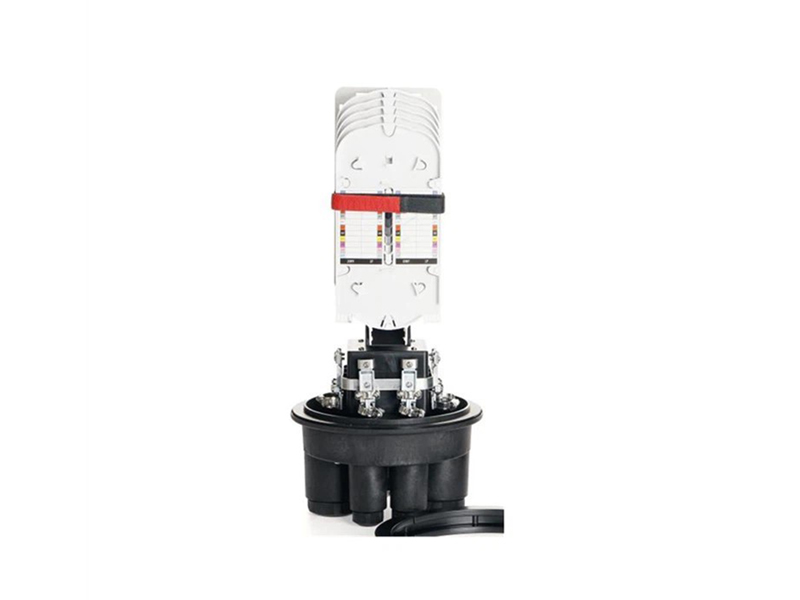

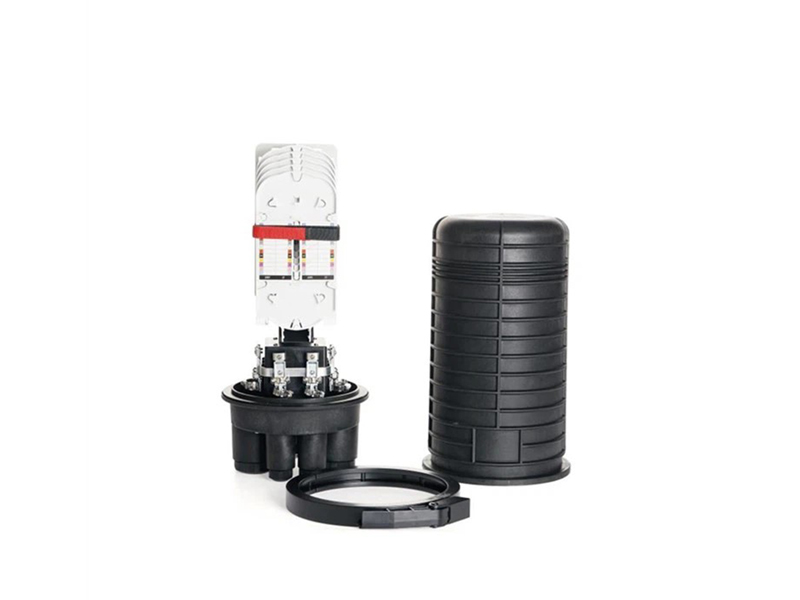

1) Splice tray: Max. 5pcs, each 24cores, capacity 120 FO
2) Cable port: 4pcs round port φ 22mm, 1pc ellipse port for supporting cable entry without cutting. All cable ports are Screw mechanical
3)Waterproof: IP68
4)Wall-mounting, aerial hanger and pole holding
5) Material: High impact resistance PP materials with UV
4 Fiber Joint Closure/Splice Closure Main Technical Parameters
* Applicable environment temperatures: -10°C~+70°C
* Air pressure: 70~106Kpa
* Pull-out strength≥1000N, compressive force to shell≥2000N , impact: 16N.m
* Bending force to fiber cable: 150N (±45°), torsion force to fiber cable: 30N.m (±90°)
* Tightness: no pressure drop within the enclosure pressurized to 60Kpa at 70°C for 100 hours
* Insulation resistance≥2×104MΩ,resistance to 1.5KV/min without break down
* Life expectancy: 30 years
