Overview
Model No. OTB-04A is a kind of end-user product to realize FTTD solutions, applying for home or work area to complete fiber access and port output, meanwhile, protecting the fiber core.
Technical Index
|
Model No. |
OTB-04A |
Color |
White |
|
Capacity |
4cores |
Material |
PC+ABS, ABS,PC |
|
Dimension(L*W*D,MM) |
100*85*29 |
Flame retardant performance |
Non-flame retardant |

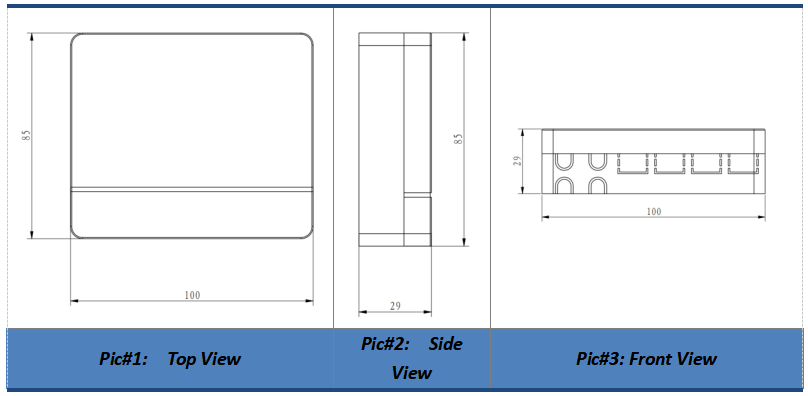

The dimension diagram: (mm)
Features
The body is made of high quality engineering plastic with good strength;

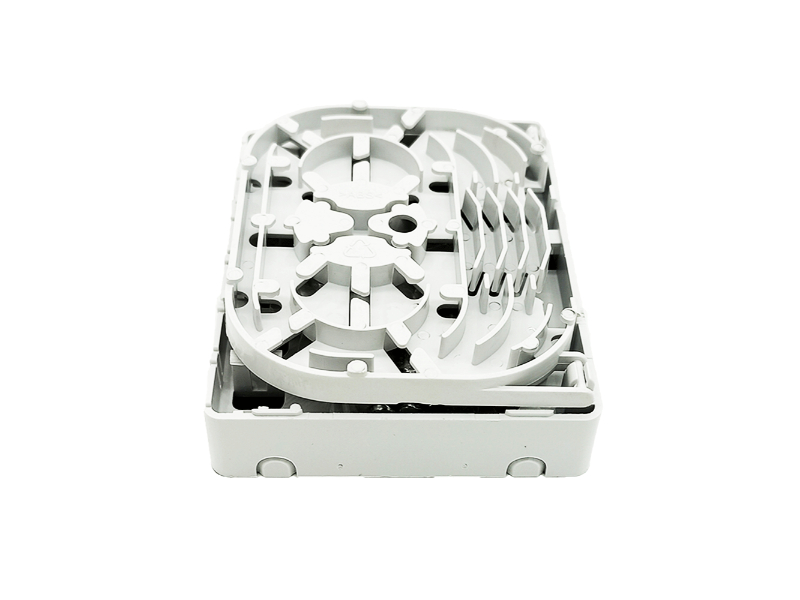

With double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated ( Pic#4 for details);

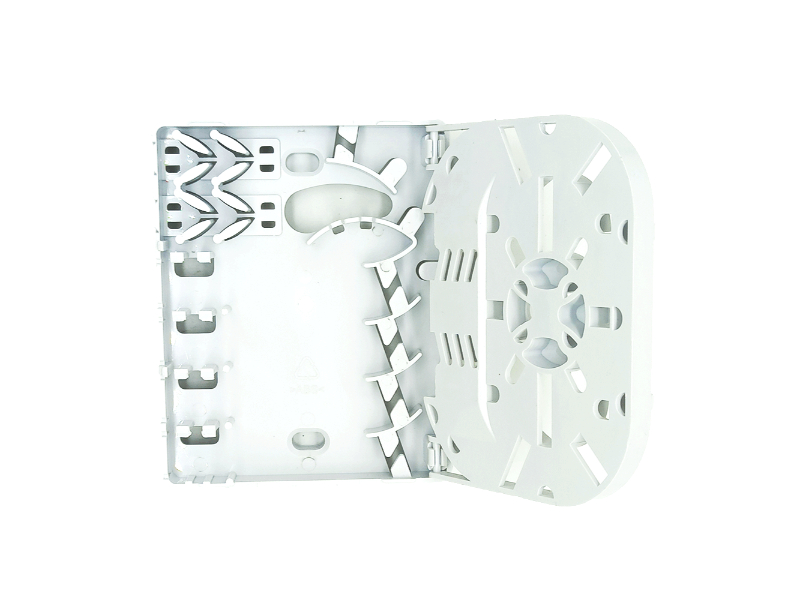

The bottom is provided with knock-out holes, which can accommodate up to four core optical fibers ( Pic#5 for details);
SC adaptor assemble avaliable.
Package Information
Plastic bag size: 120*120mm
Inner box with single corrugated size: 300*210*95mm
Carton with double corrugated size: 435*315*490mm(200PCS/Box)
Weight per carton: 17 KG
