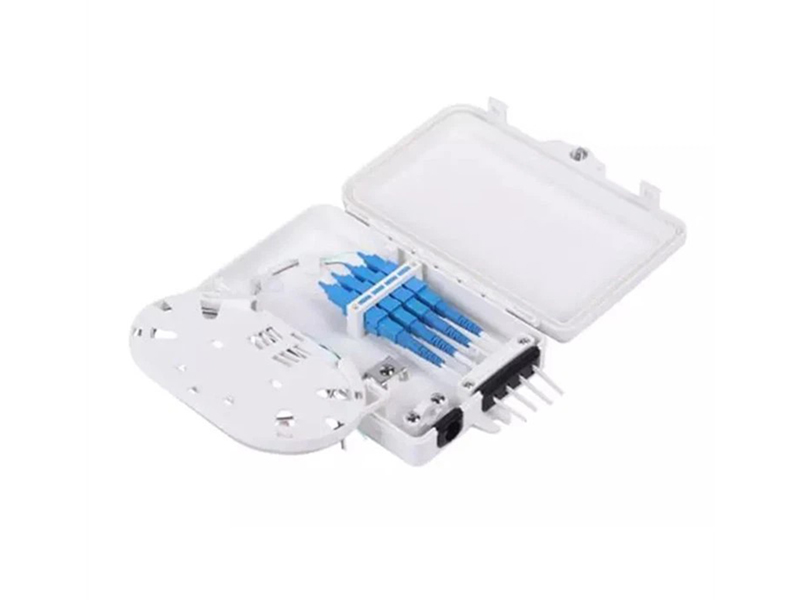

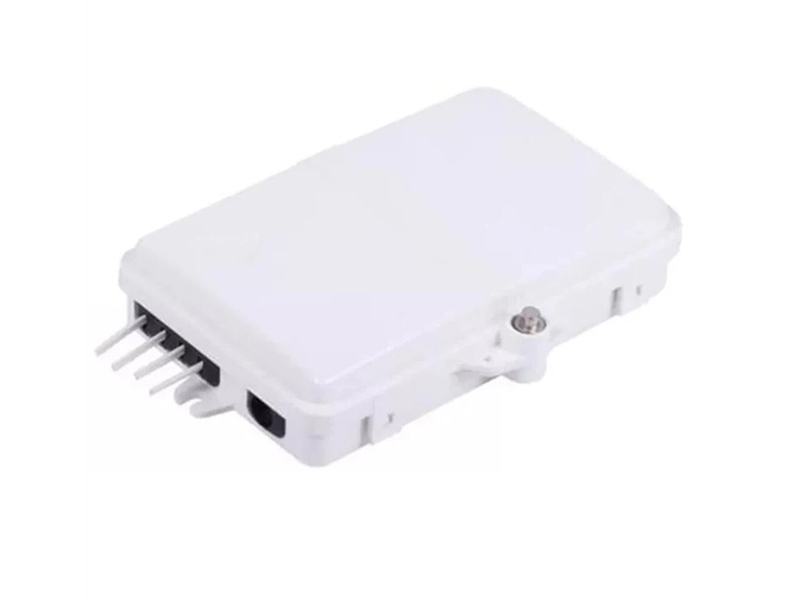

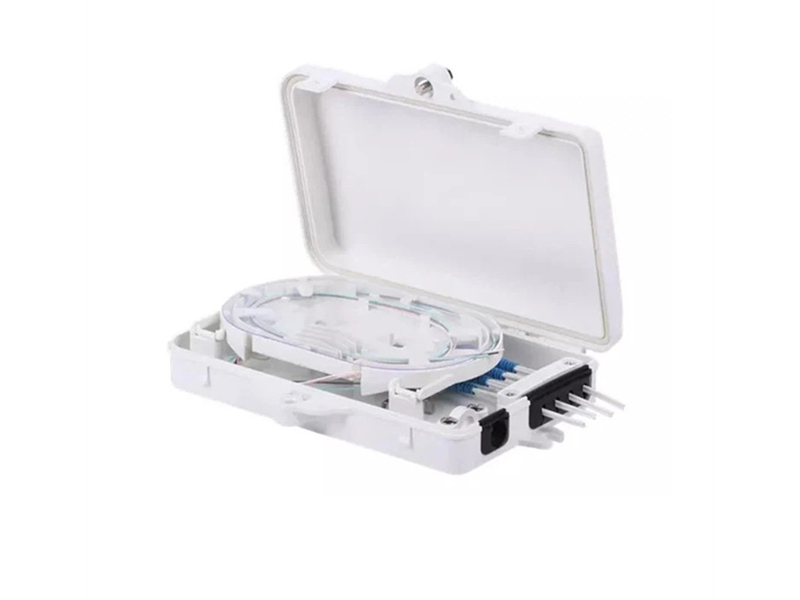

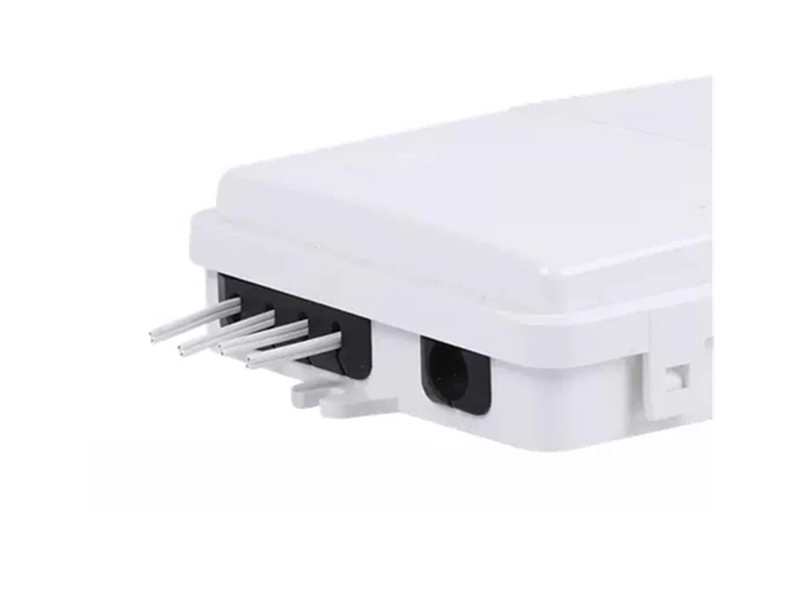

The optical distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
1.The body is made of high quality engineering plastic with good strength;
2.With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments;
3.With double-page design, the box can be installed max 4pcs SC SX adpater
and maintained easily;
4.The fusion and termination are completely separated,the splice tray is 12F;
Technical Index
|
Model No. |
FTB-AT04A-1 |
Color |
Black, Grey White.. |
|
Capacity |
4 cores |
Protection Level |
IP55 |
|
Material |
PC+ABS, ABS |
Flame retardant performance |
Non-flame retardant |
|
Dimension(L*W*D,MM) |
206*134*40 |
Splitter |
/ |
The dimension diagram:(mm)
