Overview
Model No. OTB-01B is a kind of end-user product to realize FTTD solutions, applying for home or work area to complete fiber access and port output, meanwhile, protecting the fiber core.
Technical Index
|
Model No. |
OTB-01B |
Color |
White |
|
Capacity |
1cores |
Material |
PC+ABS, ABS,PC |
|
Dimension(L*W*D,MM) |
115*86*23 |
Flame retardant performance |
Non-flame retardant |

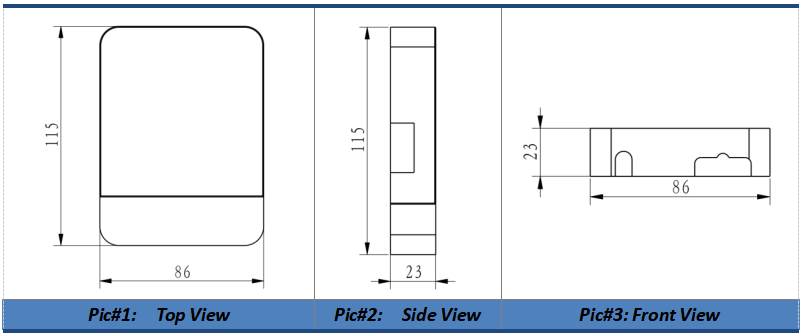

The dimension diagram: (mm)
Features
The body is made of high quality engineering plastic with good strength;

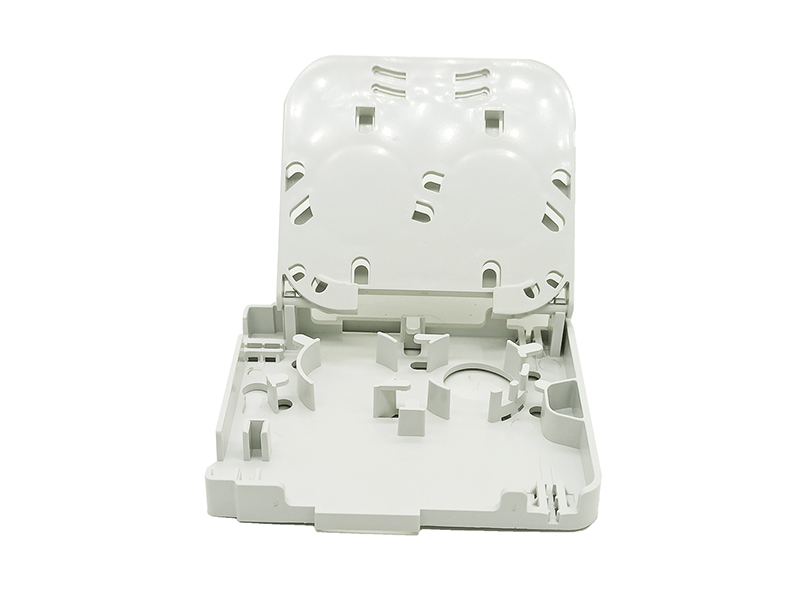

With double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated ( Pic#4 for details);

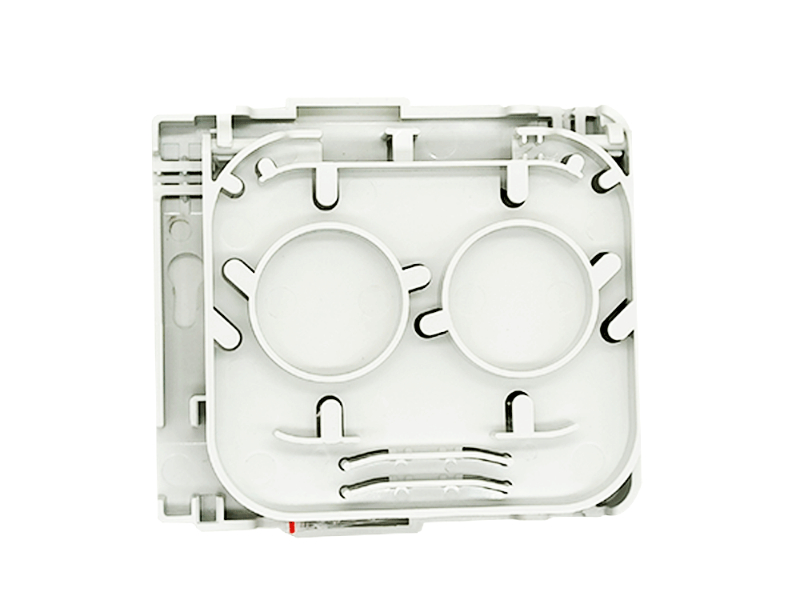

Adopt the clamshell design effectively protects the inlet&outlet optical fibers, making the optical fibers difficult to break. ( Pic#5 for details);
Package Information
Plastic bag size: 150*120mm
Inner box with single corrugated size: 235*235*92mm
Carton with double corrugated size: 485*250*475mm(200PCS/Box)
Weight per carton: 19.5KG
