Factory-terminated SC/APC to SC/UPC connectors enable plug-and-play deployment, reducing field splicing time and installation costs. making it suitable for residential broadband, telecom networks, and FTTH access systems.
FTTH Drop Patch Cord
Features
-Low insertion loss and back reflection loss;
-Ferrule end surface pre-domed;
-Excellent mechanical endurance;
-Good in repeatability;
-Good in exchange;
-Green Production , CE , RoHS Standard;
Application
-Outdoor Drop Cable suitable for aerial application .
-Low bending Cable suitable for Indoor Application
Product Parameters
|
Item |
Parameter |
|||||
|
|
SM-UPC |
SM-APC |
MM-APC |
|||
|
Inseertion Loss |
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
≤0 . 10dB |
≤0 . 30dB |
≤0 . 15dB |
≤0 . 30dB |
≤0 . 10dB |
≤0 . 30dB |
|
Return Loss |
Min . 50dB |
Min . 60dB |
Min . 30dB |
|||
|
Operating Wave Length |
1310nm-1550nm |
850nm-1300nm |
||||
|
Test Wave Length |
1310nm&1550nm |
850nm&1300nm |
||||
|
Durability |
500cycles |
|||||
|
Operating Temperature |
-20to+70℃ |
|||||
|
Storage Temperature |
-40to+85℃ |
|||||
|
Installation Temperature |
-20to+70℃ |
|||||
|
Cable Diameter Range |
⌀3.0mm-⌀5.0mm |
|||||
|
Stadards |
Comply to GR-1320 , IEC61753-1 , IEC61754-4 |
|||||
|
Insertion Loss |
Max .0 . 3dB+0 . 3dB/KM* L |
Max .0 . 3dB+0 . 3dB/KM* L |
|
|
Return Loss |
Min . 50dB |
Min . 60dB |
Min . 30dB |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
Factory-terminated FTTH drop cable with SC/APC to SC/UPC connectors, The outer jacket provides excellent flame-retardant performance, making it suitable for aerial FTTH installations and last-mile broadband access networks.providing excellent tensile strength and reliable installation performance.
View More

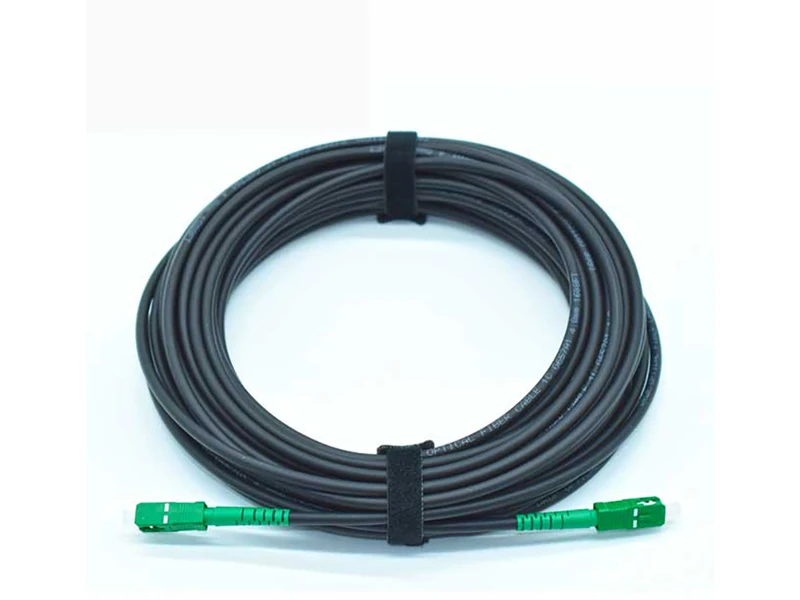

FTTH Round Cable 4.8mm SCAPC SCAPC 1Core G657A1 G657A2 LSZH 30M
Factory-terminated FTTH drop cable with SC/APC to SC/UPC connectors, The outer jacket provides excellent flame-retardant performance, making it suitable for aerial FTTH installations and last-mile broadband access networks.providing excellent tensile strength and reliable installation performance.
View More

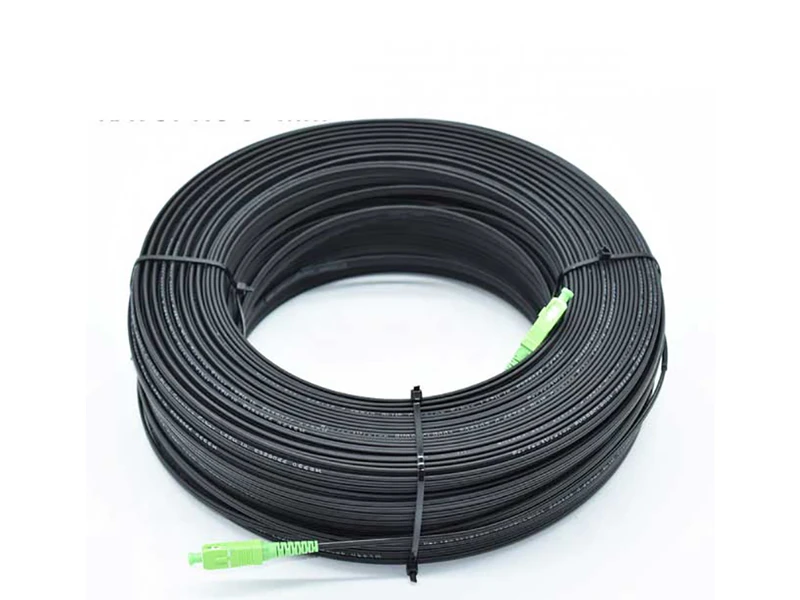

GJYXFCH GJYXCH SM 1core SCAPC SCAPC G657A2 FRP LSZH 200M Outdoor FTTH Drop Cable Patchcord
Factory-terminated FTTH drop cable with SC/APC to SC/UPC connectors, The outer jacket provides excellent flame-retardant performance, making it suitable for aerial FTTH installations and last-mile broadband access networks.providing excellent tensile strength and reliable installation performance.
View More

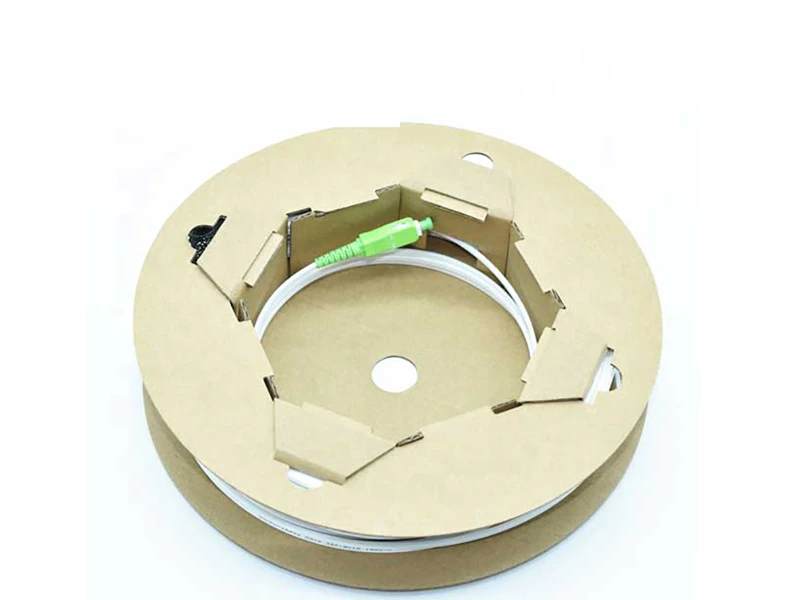

Easy Cabling Packaged Paper Plate SM 1core SCAPC SCAPC For FTTH FTTH Drop Cable Patchcord
Factory-terminated FTTH drop cable with SC/APC to SC/UPC connectors, The outer jacket provides excellent flame-retardant performance, making it suitable for aerial FTTH installations and last-mile broadband access networks.providing excellent tensile strength and reliable installation performance.
View More

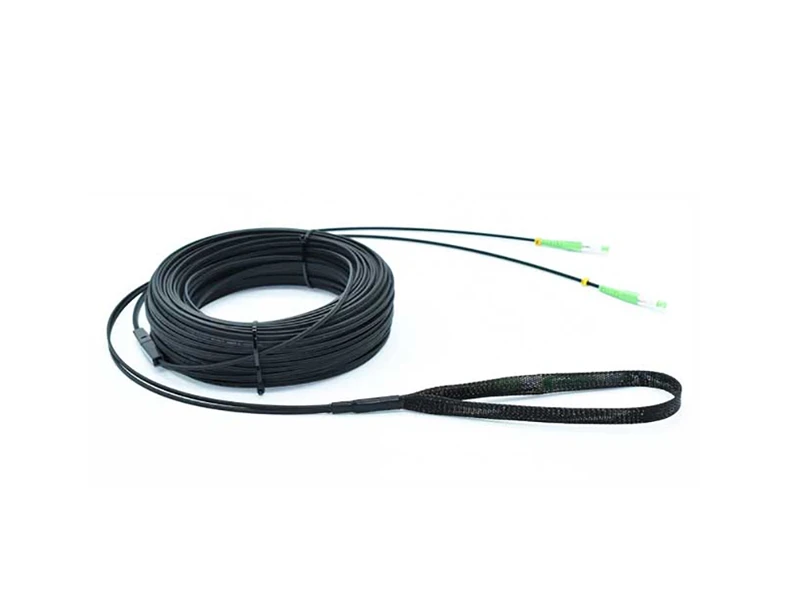

SM 2cores SCAPC SCAPC G657B3 KFRP LSZH Black with Pulling Sock 30M FTTH Drop Cable Patchcord
