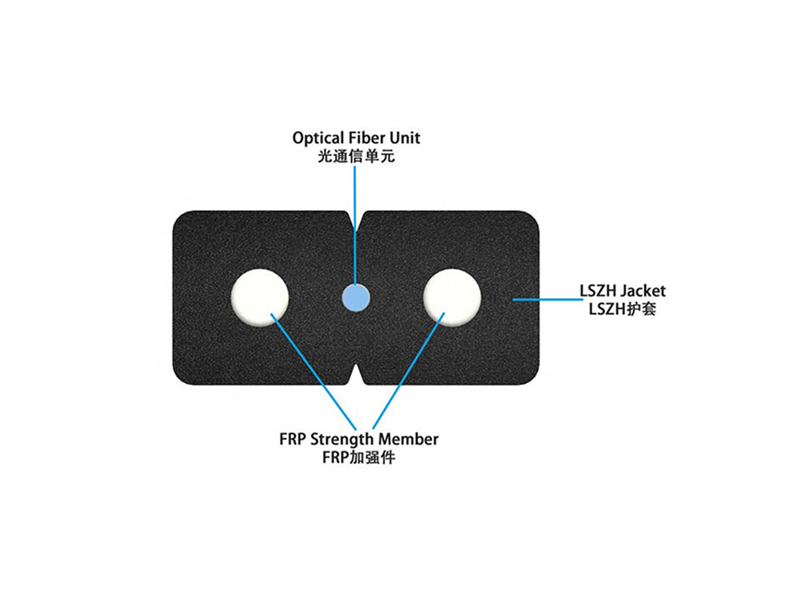

A GJXH cable sends data with light. You can find them in FTTH networks. This optical cable has a special flat design. Central loose tube contains optical fiber. Two parallel FRP give additional support, 2.0(±0.1) x 3.0(±0.2) mm dimension.Operating wavelength is 1310/1550 nm.Maximum attenuation is 0.4 dB/km.Peripheral strengthening element protects fiber. Consequently, jacket material might be PVC . Water blocking tape prevents damaging.Outer sheath protects from weather. Further, you get reliable signal delivery. A ripcord helps with easy opening. Storage temperature spans from -40°C to 70°C. Because insertion loss remains below 0.3dB. Return loss exceeds 50dB.

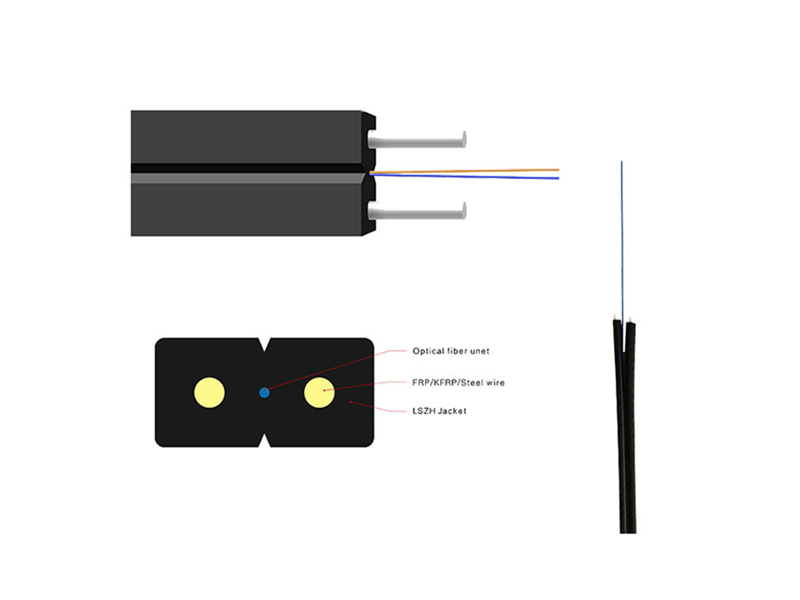

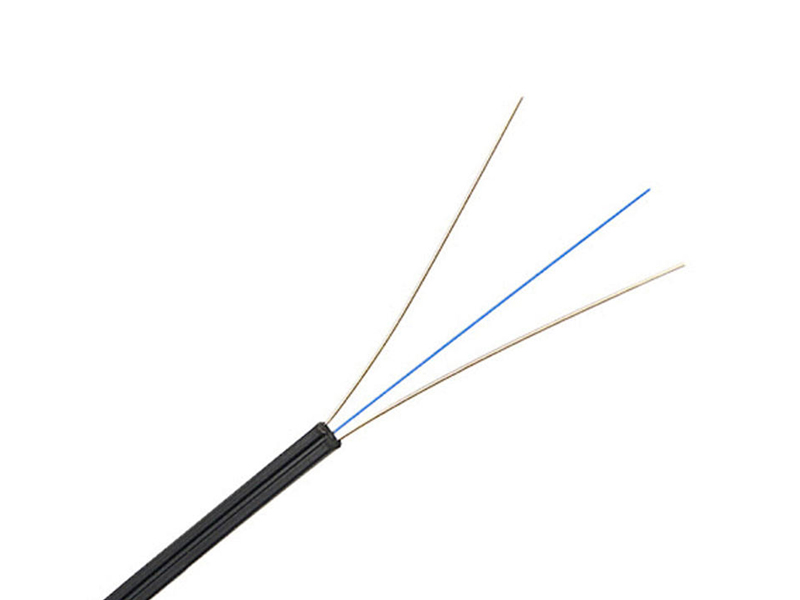

The indoor fiber optical drop cable was developed to connect optical equipment indoors in FTTh network branches. With a simple and compact structure, it presents great practicality for application in access points to the subscriber. The cable constructed with 1 or 2 core single mode bend sensitive fibers (ITU-T G657A/G652D), protected by two strength member. This cable is very light and easy to install and strip. These FTTH cables are ideal for indoor cabling, direct cabling to end users, and to the access network.
|
Item
|
FTTH Indoor Optical Drop Cable
|
|
Cable Type
|
GJXFH
|
|
Fiber Type
|
G657A,G652D
|
|
Number of Fiber
|
1,2,4
|
|
Cable Size(mm)
|
2.0*3.0
|
|
Cable Weight(Ref)
|
8.5kg/km
|
|
Attenuation(Db/km)
|
≤0.3 at 1310nm,≤0.4 at 1550nm
|
|
Short Tensile Strength
|
80N
|
|
Long Tensile Strength
|
40N
|
|
Sheath Color
|
Black or White
|
|
Sheath Material
|
LSZH,PVC
|
|
Crush Resistance(N/100mm)
|
500
|
|
Min.Bending Radius(G657A)
|
30nm(dynamic) 15mm(static)
|
|
Min.Bending Radius(G652D)
|
60nm(dynamic) 15mm(static)
|
|
Transport/Storage/Operating temperature
|
From -20℃ to + 60℃
|
|
Installation temperature
|
From -5℃ to + 50℃
|
Product Parameters
