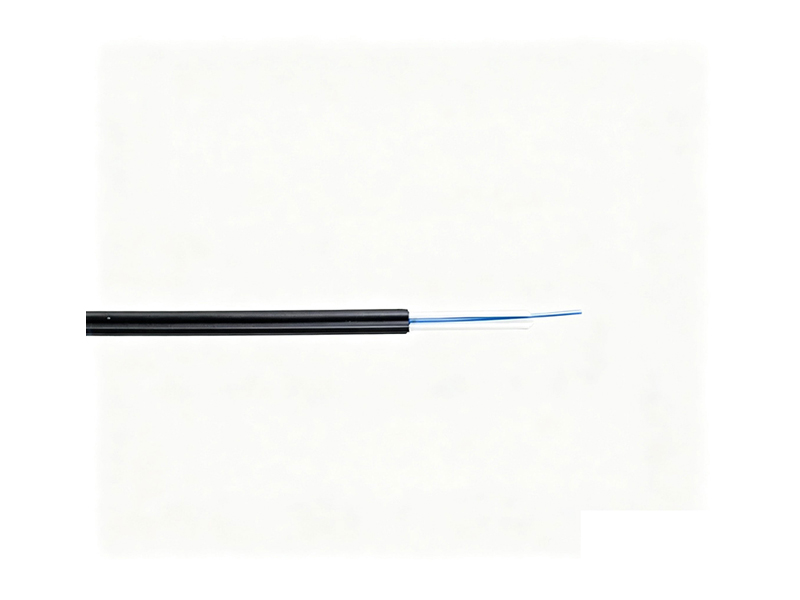

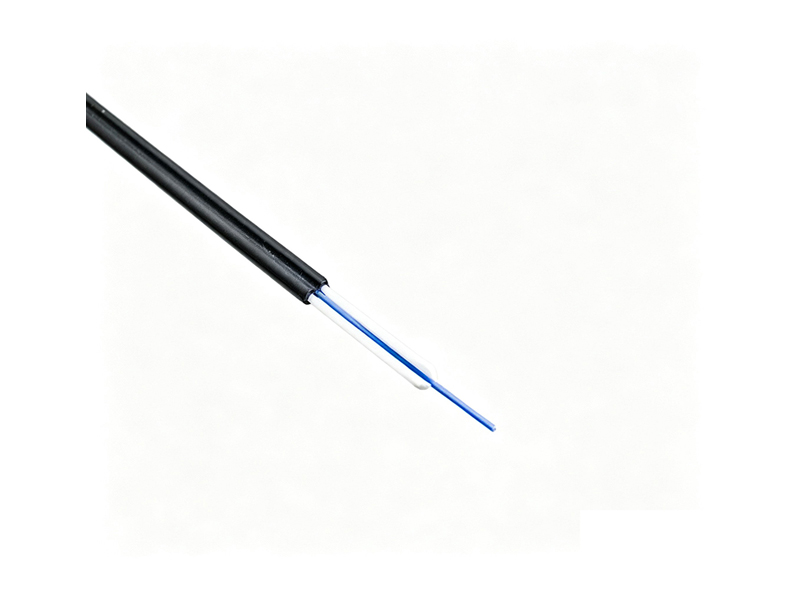

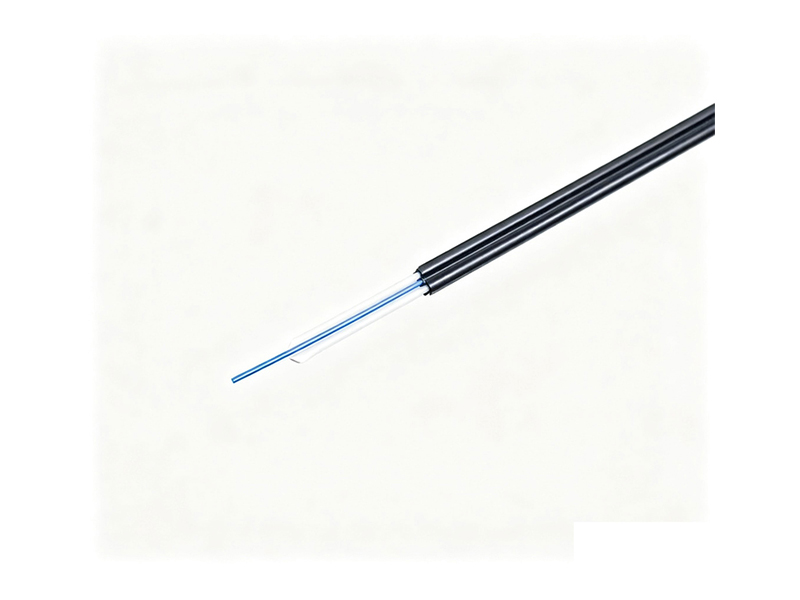

ROC Drop Dielectric Cables with Fast AccessTechnology provides a more efficient, craft-friendly cable preparation unparalleled by traditional flat drop cables. The innovative Fast Access Technology design simplifies removal of the cable jacket resulting in up to 55 percent faster fiber access time than traditional drop cables. This technology improves ease of use because no special tools are needed. The cable design is backward compatible for easy connectorization or splicing. Optimized for both field-and-factory termination processes, the compact design allows for easier handling in the field, reduces slack storage requirements and improves transportation and storage costs. The toneable version allows for easy detection of buried cables with a toning conductor. ROC Drop Toneable with FastAccess Technology are also available in preconnectorized assemblies.
ROC Aerial Drop fibre cables with factory terminated OptiTap connection at one end have been designed as an aerial, pole drop cable. FastAccess technology allows the easy removal of the outer jacket reducing preparation time for splicing and terminating.
Features:

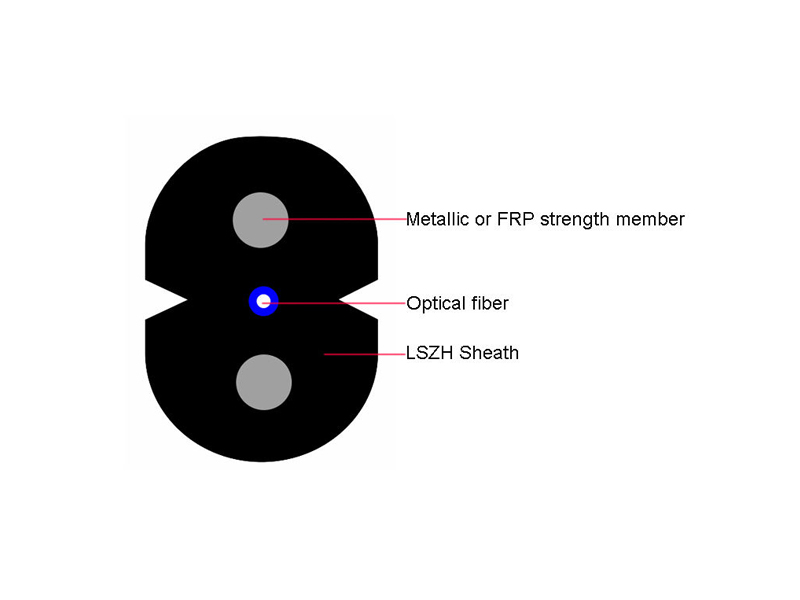

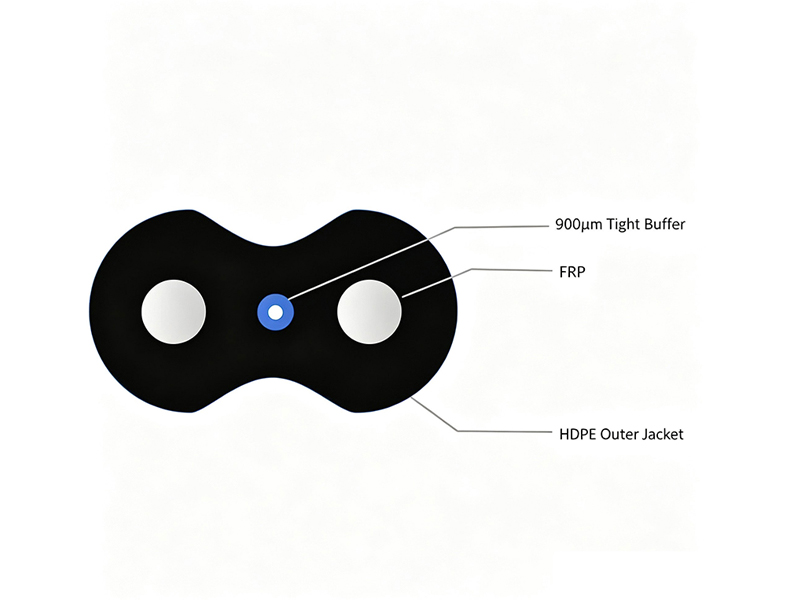

Cable structures:
| Tight Buffer Fiber Type | |
| Single Mode Fiber | G657A1 G657A2 |
| Materails | PVC |
| Color | Blue |
| Diameter | 0.9±0.05mm |
| Number | 1 Root |
| Strength Member | |
| Materials | FRP-Glass fiber reinforced plastic rods |
| Color | White |
| Diameter | 1.2±0.05mm |
| Number | 2 Root |
| Outer Sheath | |
| Material | PE-Polyethylene |
| Color | Black |
| Diameter | 3.0*5.4±0.2mm |
| Thickness | 0.85*0.50±0.2mm |
| Sheath Marking | |
| Print Color | White |
| Print Method | INK-Jet |
Specifications:
| Tensile Preperties | Index |
| Tensile Strength Long Term | 300N |
| Tensile Strength Short Term | 1000N |
| Envisonmental Conditions | Index |
| Storage temperature Range | -40-70℃ |
| Install temperature Range | -0-70℃ |
| Operating temperature Range | -40-70℃ |
| Referred Standard ITU/T G.657A | EN-60974-1-2-E1, EN-60974-1-2-E3 |
| Packaging | Index |
| Length and Packaging | 2000m/Plywood Reel |
| Wooden Drum | 500x200x410mm |
| Carton Size | 510*510*430mm |
| Net Weight | 38.0kg/2km |
| Gross Weight | About 50.0kg/box |
|
Item |
Content |
Value |
|
Fiber |
Fiber Category |
G657A1 |
|
Fiber Count |
1F |
|
|
Primary Coating |
900µm PVC |
|
|
Strength Member |
Material |
FRP |
|
O.D. |
1.2±0.1mm |
|
|
Outer Jacket |
Material |
HDPE |
|
Color |
Black |
|
|
Size |
3X5.4 ±0.1mm (HxW) |
|
|
Aerial Installation Maximum Tensile Load |
1350 N (300 lbf) |
|
|
Duct/Direct Buried Installation Maximum Tensile Loads |
Installation |
1350 N (300 lbf) |
|
Long-Term |
400 N (90 Ibf) |
|
|
Storage Temperature |
-40~+70°C |
|
|
Installation Temperature |
-10~+70°C |
|
