Description

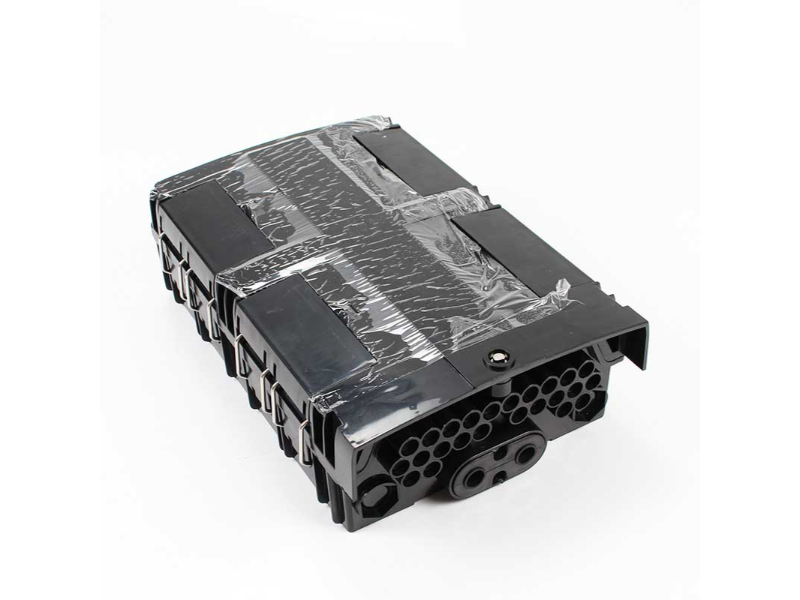

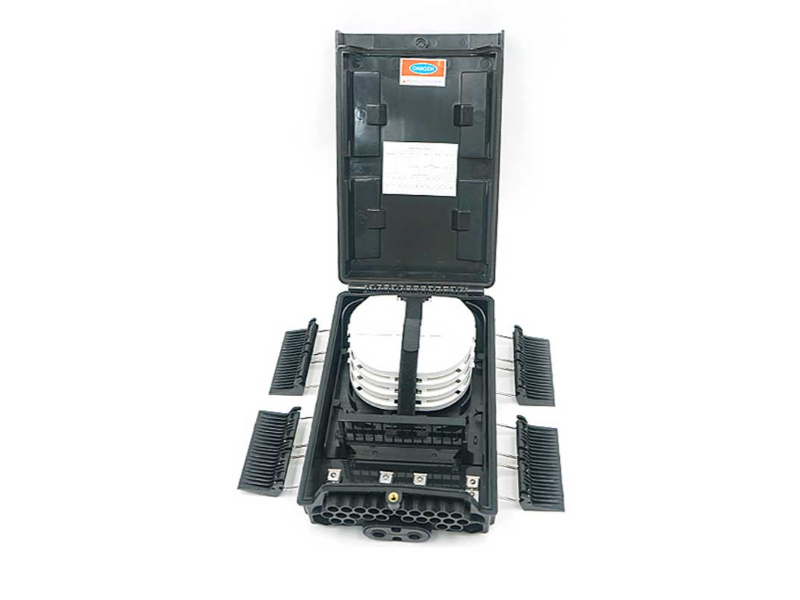

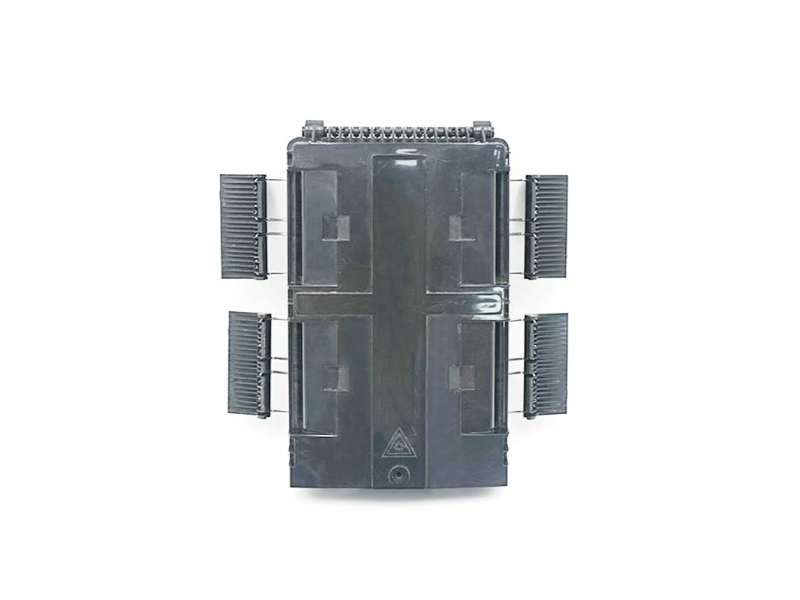

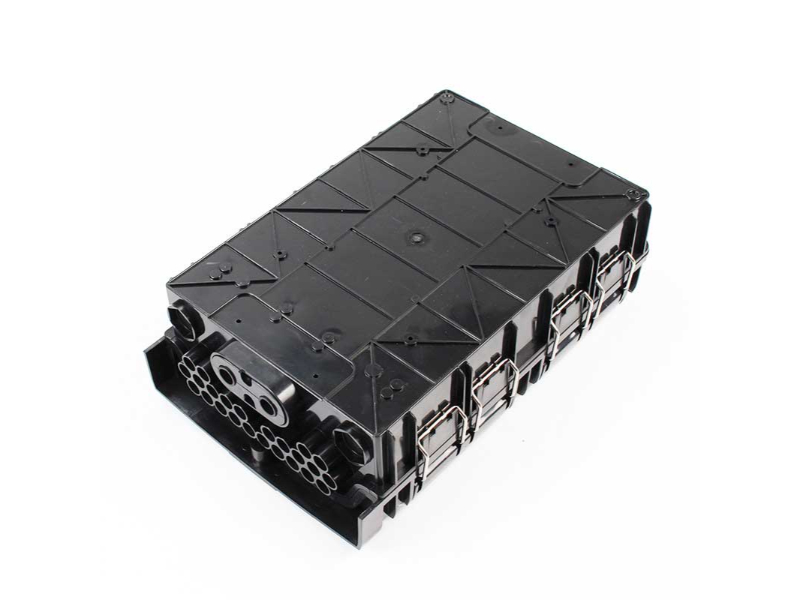

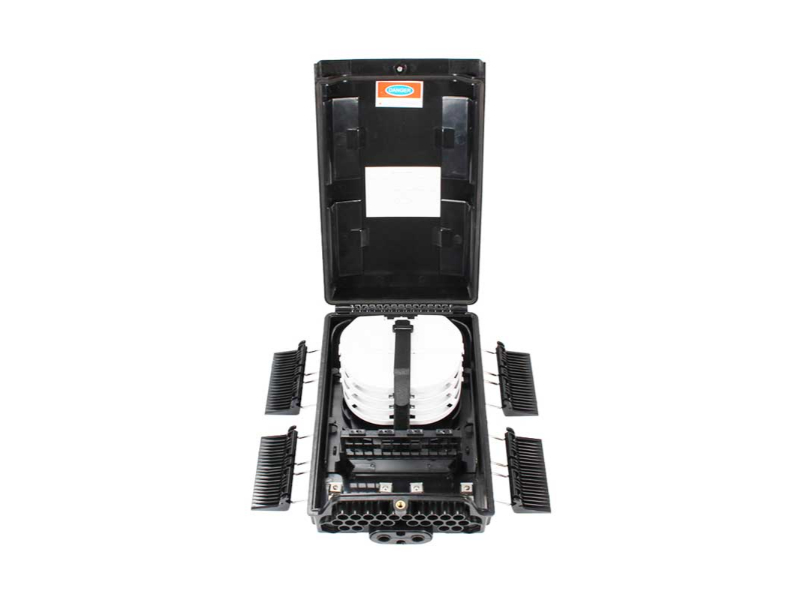

AT-1608-24N This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.
It intergtates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTx network building.
Technical Data
|
Model |
AT-1608-24N |
|
Material |
PC+ABS |
|
Size |
340*220*95 |
|
PLC |
3pcs 1x8 steel tube PLC Splitter |
|
Adapter |
24pcs SC/UPC or SC/APC Adapters |
|
Color |
Gray/Black |
|
Net. Weight |
1.85kg |
|
Work Temperature |
-40 ⁰ C ~+75 ⁰ C |
|
Max Capacity |
Splice 120 Fibers (5 trays,24fiber/tray) |
|
Relative Humidity |
≤ 85% (+30 ⁰ C) |
|
Atmospheric Pressure |
70Kpa~106Kpa |
|
Insert Loss |
≤ 0.2dB |
|
UPC Return Loss |
≥ 50dB |
|
APC Return Loss |
≥ 60dB |
|
Insert and Pull out Life |
≥ 1000 times |
|
Insulation |
The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (direct current) |
|
Withstand Voltage |
Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and flashover. U ≥3000V (direct current) |
Standard Accessories
Splice cassette and cable management tools, Installation nuts and bolts, Protection sleeves, hose clamp, cable tube, key.
Features
Water-proof design with IP65 Protection level
Integrated with splice trays.
Maximum 120 fiber splice capacity, stainless anti-rust bolts and nuts
Easy for maintenance and expansion, neat cabling.
Fiber bend radius control more than 40mm.
180 degree access with buckled lock structure.
3pcd 1x8 PLC Splitter can be installed.
24 pcs of mechanical ports for 3-7mm drop cable.
1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)
