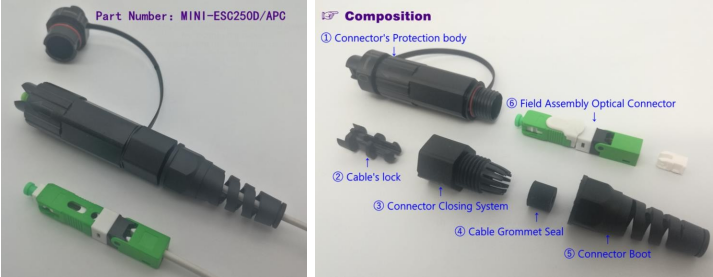

MINI-SC/APC Field Installable Reinforced Connector for 2x3mm flat cable(ESC250D/APC) compatible with the Telefonica closure Instruction Manual

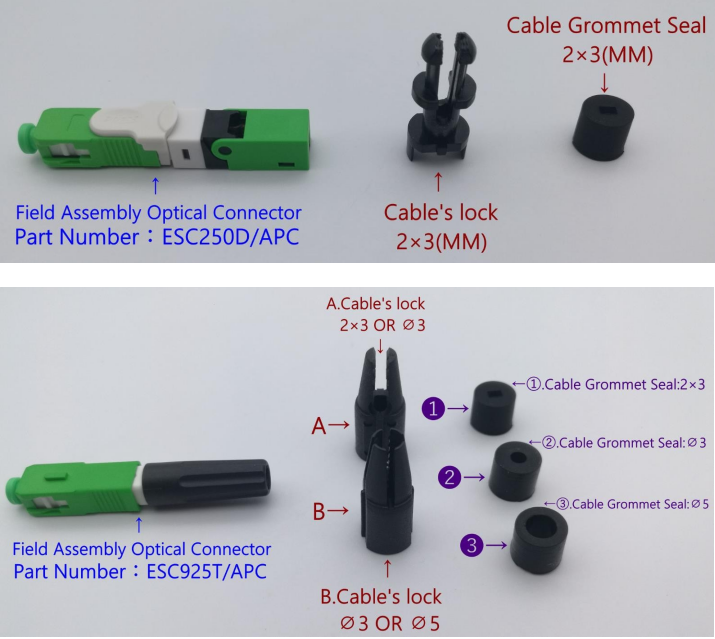

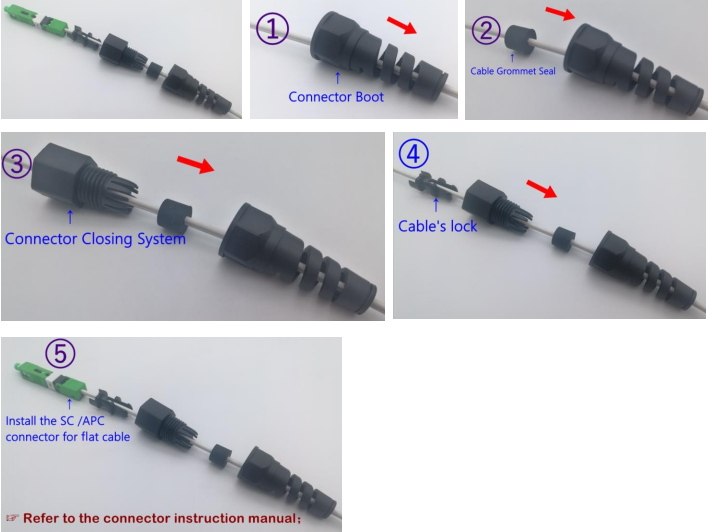

【1】 Insert the parts in numerical order then install the connector

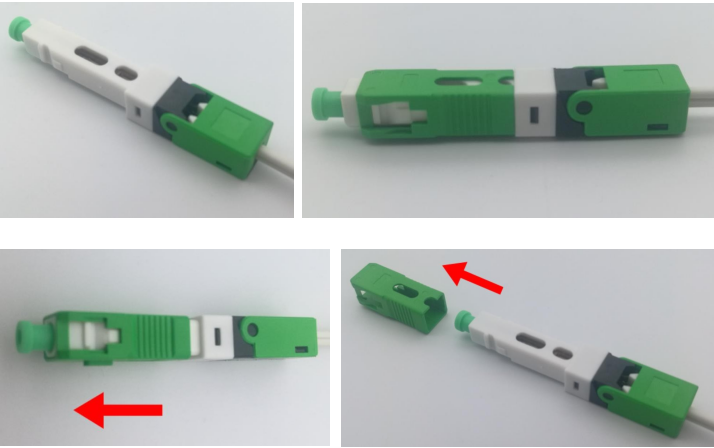

【2】 Remove the outer housing from the connector;

Grip the connector’s outer shell(green) like the upper picture;
Push the outer shell on the table until removing the shell like the upper picture;

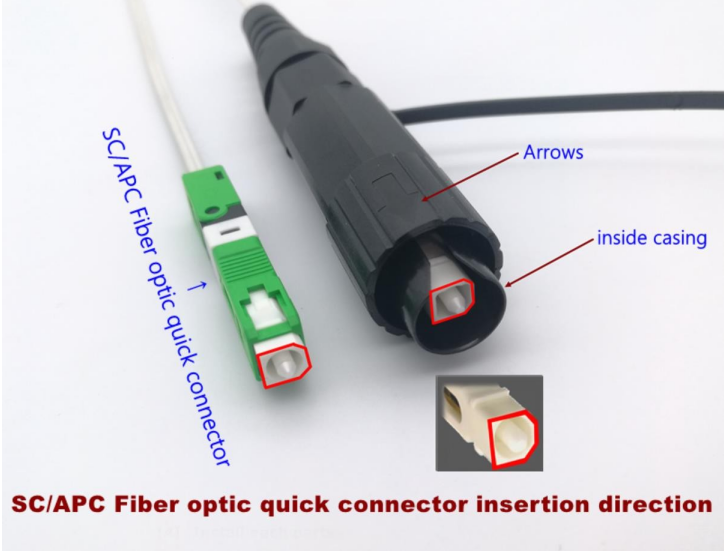

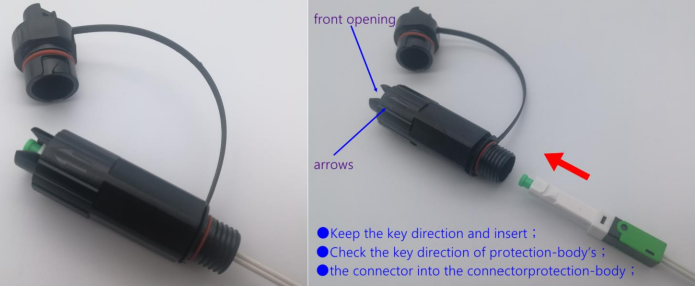

【3】 Insert the connector to the Connector's Protection body;

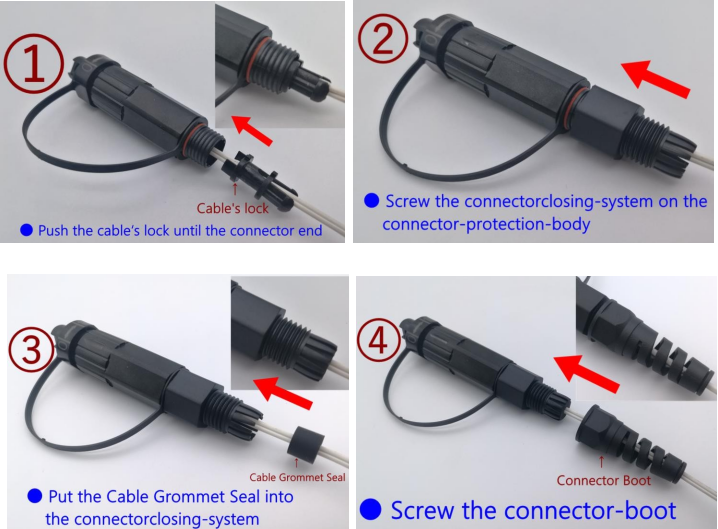

【4】 Install each parts;

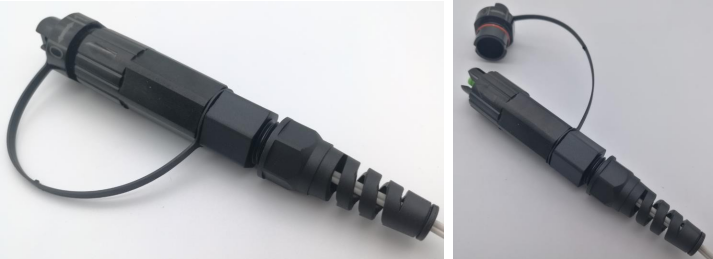

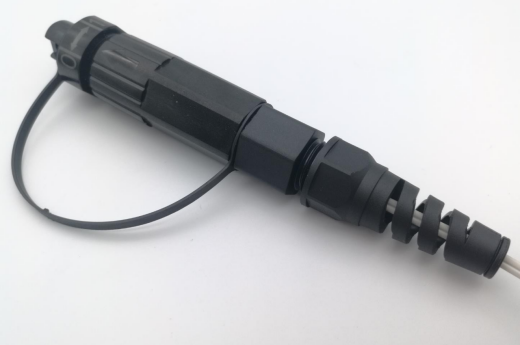

Completion

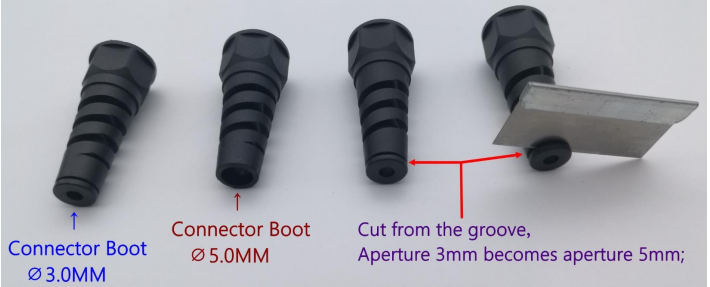

☞ Annotation
