ROC Drop Toneable Cables with Fast AccessTechnology provides a more efficient, craft-friendly cable preparation unparalleled by traditional flat drop cables. The innovative Fast Access Technology design simplifies removal of the cable jacket resulting in up to 55 percent faster fiber access time than traditional drop cables. This technology improves ease of use because no special tools are needed. The cable design is backward compatible for easy connectorization or splicing. Optimized for both field-and-factory termination processes, the compact design allows for easier handling in the field, reduces slack storage requirements and improves transportation and storage costs. The toneable version allows for easy detection of buried cables with a toning conductor. ROC Drop Toneable with FastAccess Technology are also available in preconnectorized assemblies.
Features:

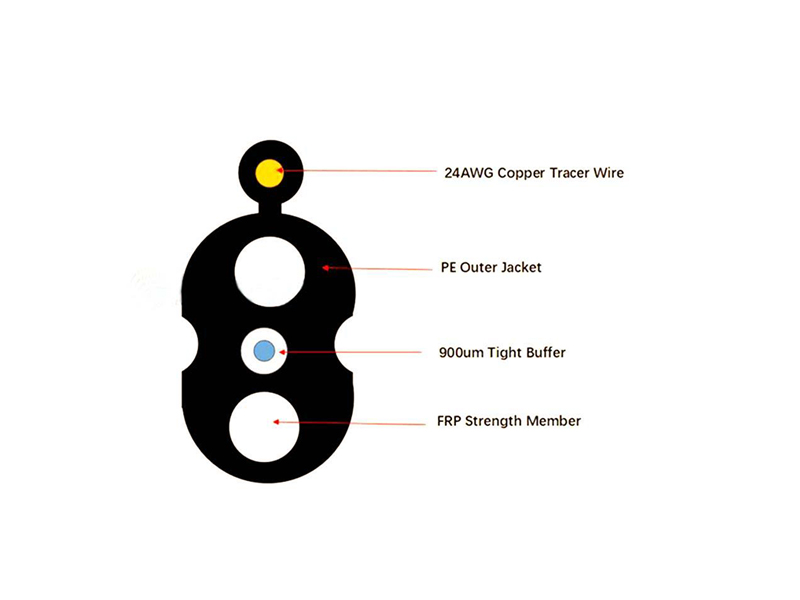

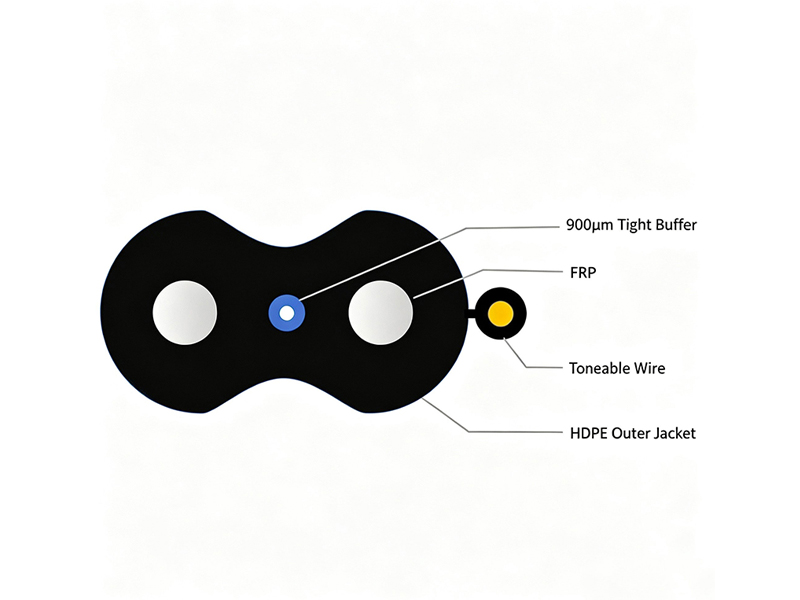

Cable structures:
| Tight Buffer Fiber Type | |
| Single Mode Fiber | G657A1 G657A2 |
| Materails | PVC |
| Color | Blue |
| Diameter | 0.9±0.05mm |
| Number | 1 Root |
| Strength Member | |
| Materials | FRP-Glass fiber reinforced plastic rods |
| Color | White |
| Diameter | 1.2±0.05mm |
| Number | 2 Root |
| BC-Bare Copper Wire | |
| Diameter | 0.5±0.03mm |
| Outer Sheath | |
| Material | PE-Polyethylene |
| Color | Black |
| Diameter | 3.0*6.0±0.2mm |
| Thickness | 0.85*0.50±0.2mm |
| Sheath Marking | |
| Print Color | White |
| Print Method | INK-Jet |
Specifications:
| Tensile Preperties | Index |
| Tensile Strength Long Term | 300N |
| Tensile Strength Short Term | 1000N |
| Envisonmental Conditions | Index |
| Storage temperature Range | -40-70℃ |
| Install temperature Range | -0-70℃ |
| Operating temperature Range | -40-70℃ |
| Referred Standard ITU/T G.657A | EN-60974-1-2-E1, EN-60974-1-2-E3 |
| Packaging | Index |
| Length and Packaging | 2000m/Plywood Reel |
| Wooden Drum | 500x200x410mm |
| Carton Size | 510*510*430mm |
| Net Weight | 38.0kg/2km |
| Gross Weight | About 50.0kg/box |
