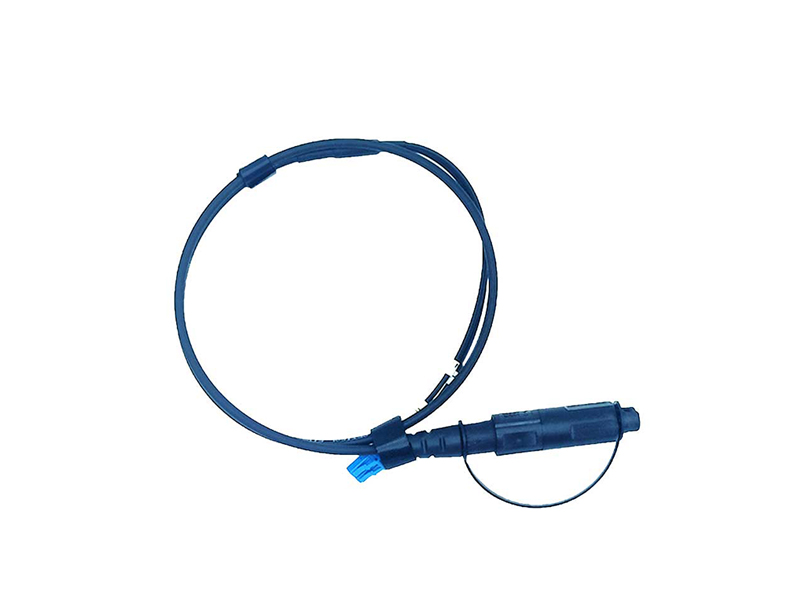

Alteoptict's OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an LC/UPC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The LC/UPC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Duplex Parallel Indoor Cable

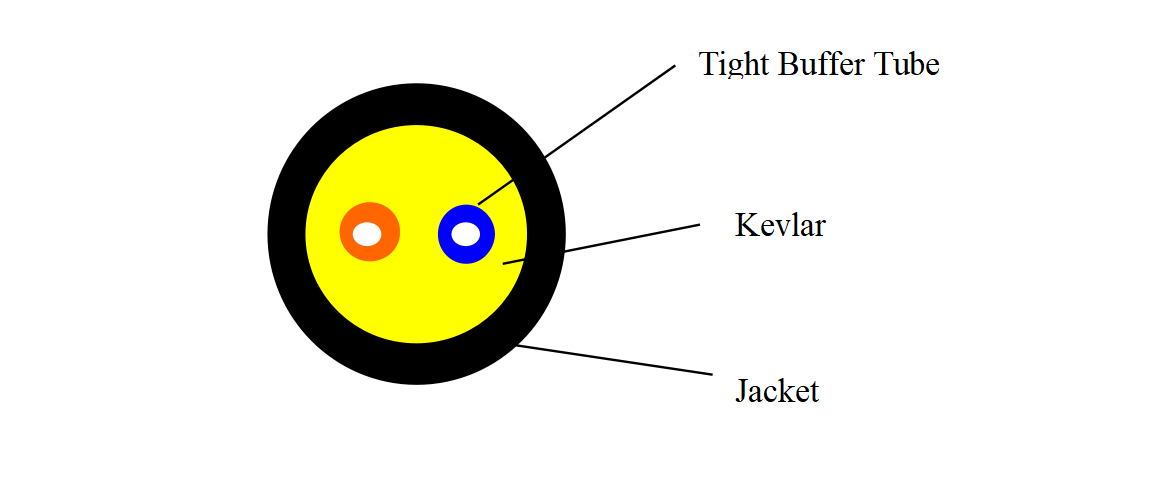

Profile View
Fiber Parameters
|
No. |
Items |
Unit |
Specification |
||
|
G.657A2 |
|||||
|
1 |
Mode Field Diameter |
1310nm |
μm |
8.8±0.4 |
|
|
1550nm |
μm |
9.8±0.5 |
|||
|
2 |
Cladding Diameter |
μm |
124.8±0.7 |
||
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
||
|
4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
||
|
5 |
Coating Diameter |
μm |
245±5 |
||
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
||
|
7 |
Cladding-Coating Concentricity Error |
μm |
≤12.0 |
||
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
||
|
9 |
Attenuation(max.) |
1310nm |
dB/km |
≤0.35 |
|
|
1550nm |
dB/km |
≤0.21 |
|||
|
10 |
Macro-Bending Loss |
1turn×7.5mm radius @1550nm |
dB |
≤0.5 |
|
|
1turn×7.5mm radius @1625nm |
dB |
≤1.0 |
|||
Cable Parameters
|
Items |
Specifications |
|
|
Fiber Type |
SM |
|
|
Fiber Count |
2 |
|
|
Tight-buffered Fiber |
Dimension |
850±50μm |
|
Material |
PVC |
|
|
Color |
Blue /Orange |
|
|
Jacket |
Dimension |
4.8±0.2mm |
|
Material |
LSZH |
|
|
Color |
Black |
|
Mechanical and Environmental Characteristics
|
Items |
Unite |
Specifications |
|
Tension(Long Term) |
N |
150 |
|
Tension (Short Term) |
N |
300 |
|
Crush（Long Term） |
N/10cm |
100 |
|
Crush（Short Term） |
N/10cm |
500 |
|
Min. Bend Radius（Dynamic） |
mm |
20D |
|
Min. Bend Radius（Static） |
mm |
10D |
|
Operating Temperature |
℃ |
-20～+60 |
|
Storage Temperature |
℃ |
-20～+60 |
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
It is a robust pre-terminated solution designed for outdoor FTTH deployment. Featuring a factory-installed hardened LC/UPC connector on one end and an open stub on the other, this assembly enables quick plug-and-play installation with excellent optical performance.Manufactured at alteoptic’s factory in China, this product is rigorously tested in accordance with GR-3120-Core standards to guarantee reliability and long-term field performance.
View More

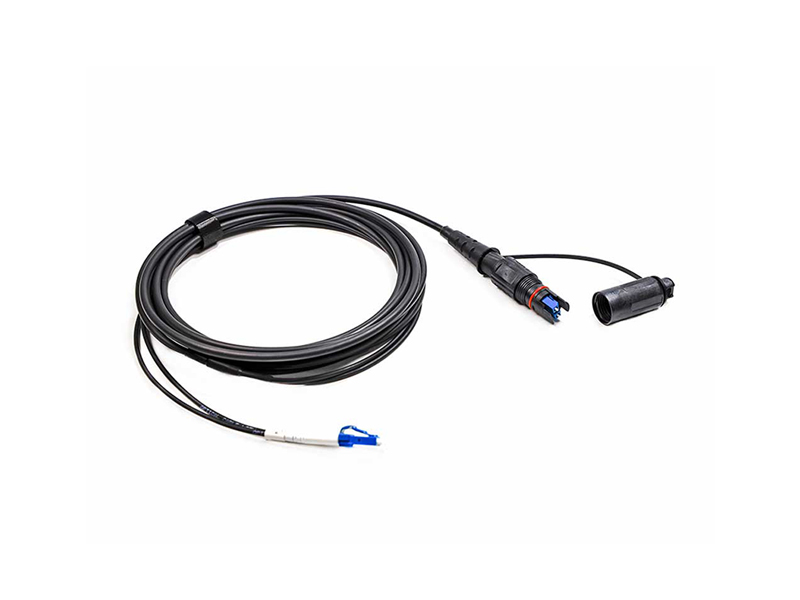

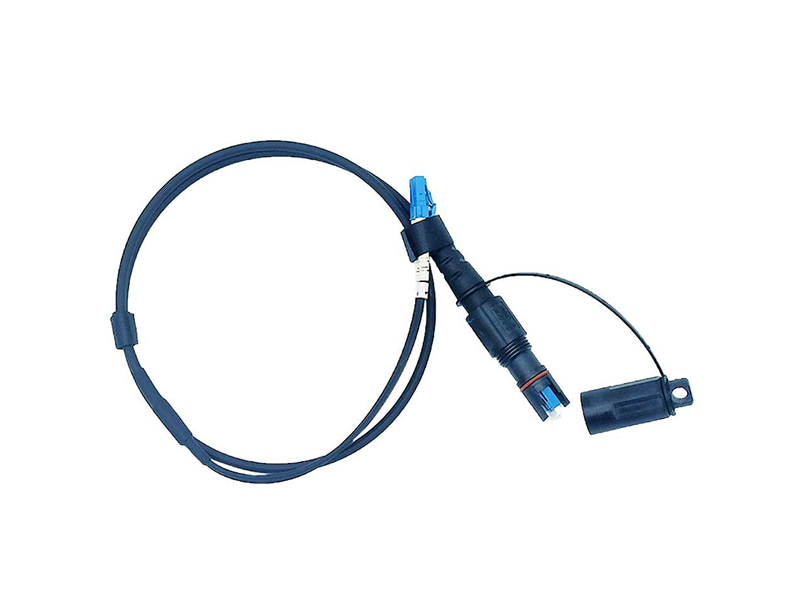

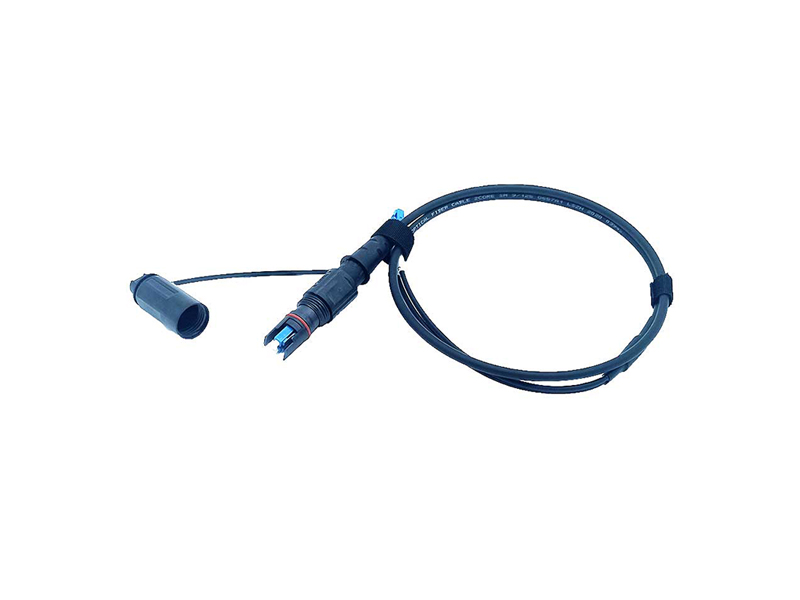

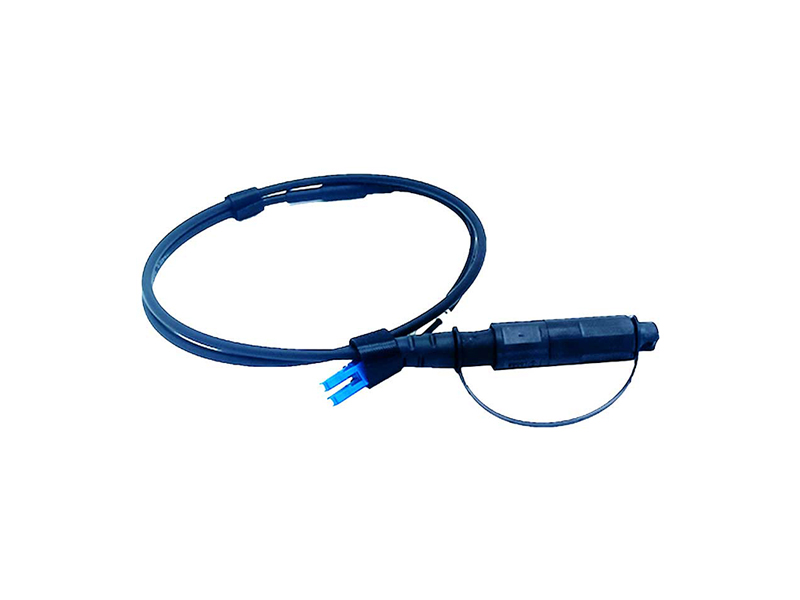

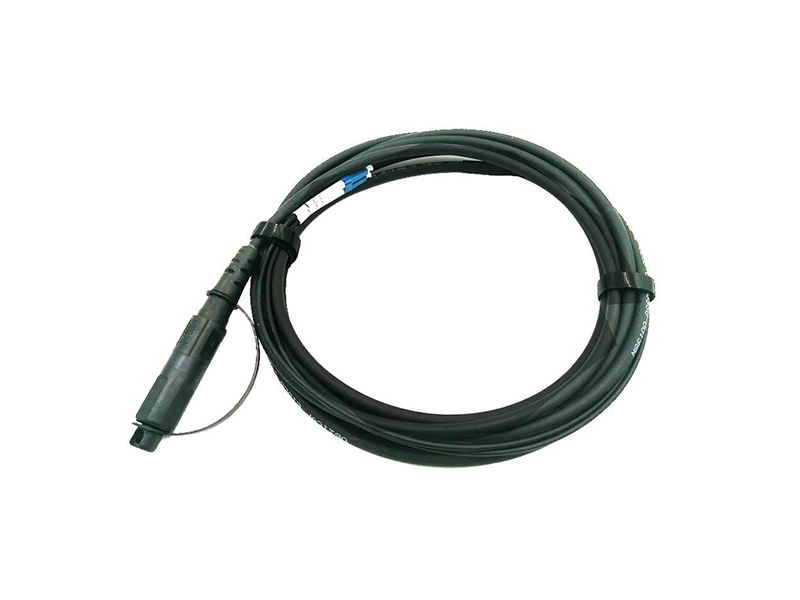

2 Cores optitap LSZH DLC Optical Cable Assembly Outdoor 4.8m Drop cable patch cords for optitap RRU
It is a robust pre-terminated solution designed for outdoor FTTH deployment. Featuring a factory-installed hardened LC/UPC connector on one end and an open stub on the other, this assembly enables quick plug-and-play installation with excellent optical performance.Manufactured at alteoptic’s factory in China, this product is rigorously tested in accordance with GR-3120-Core standards to guarantee reliability and long-term field performance.
View More

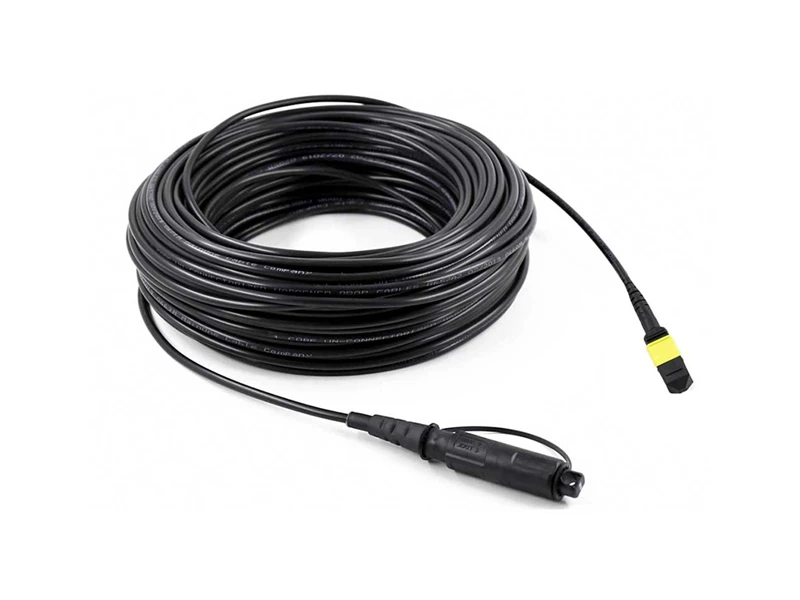

FTTA Optitap MPO/APC(male) to Optitap LC/APC 24 core Outdoor Fiber Optic Cable Assemblies
