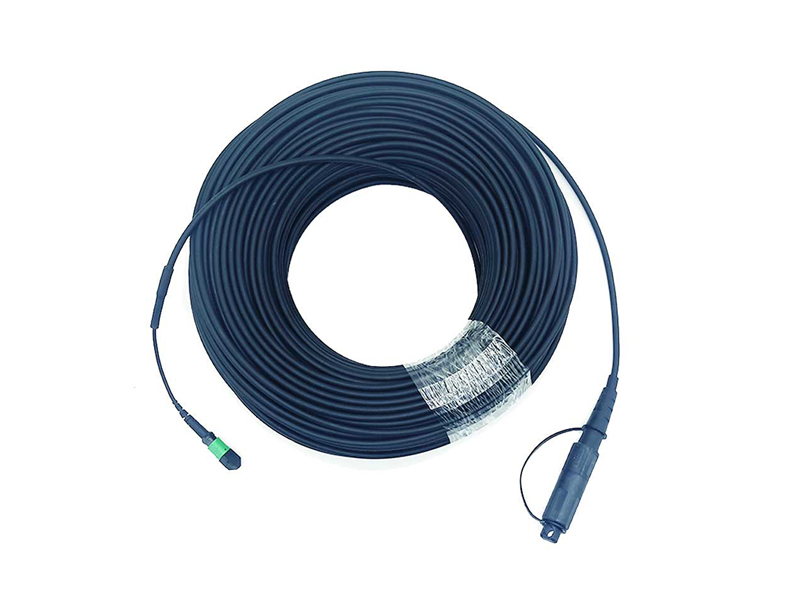

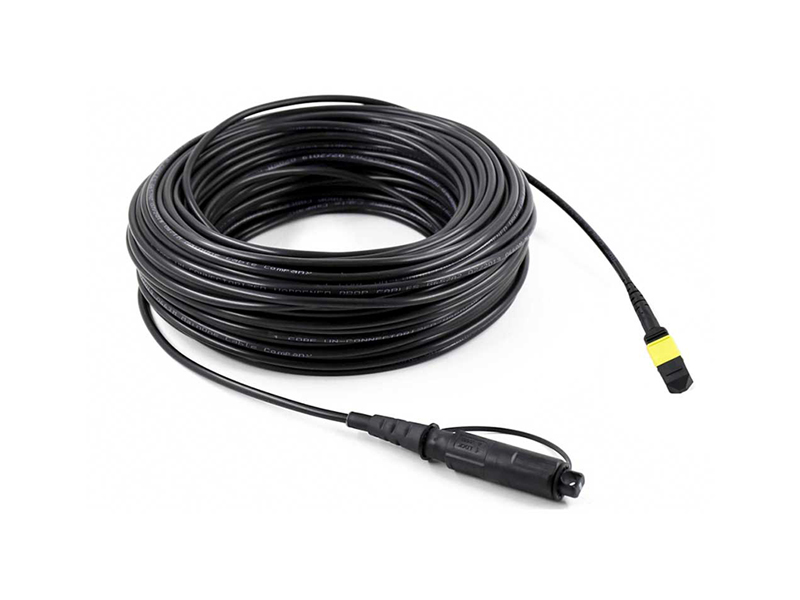

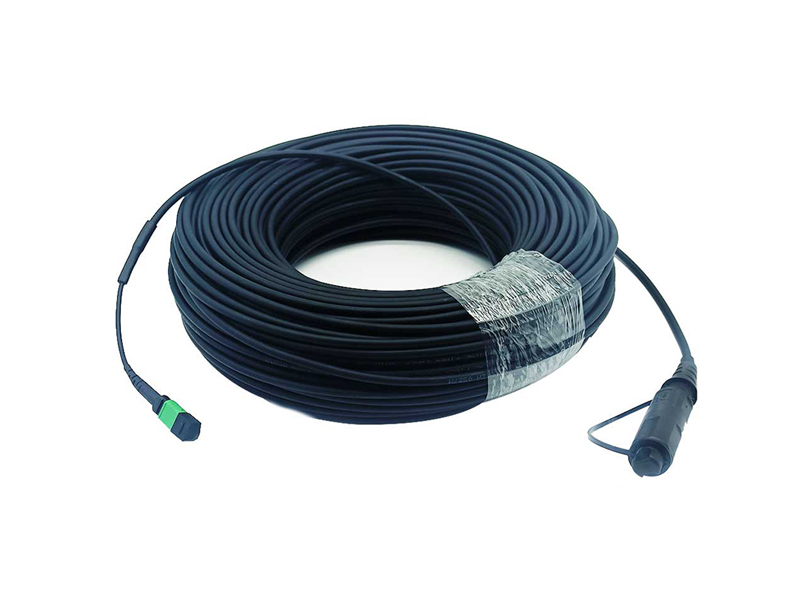

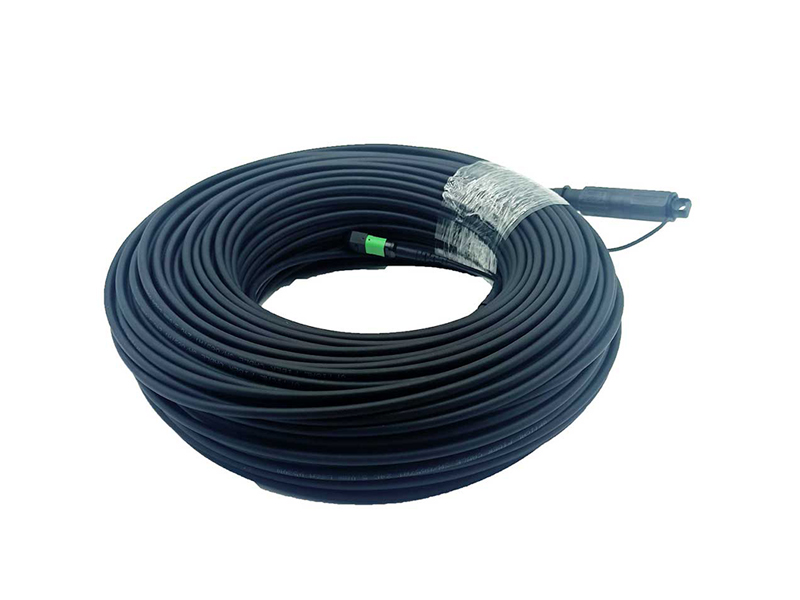

Alteoptict's OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an LC/UPC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The LC/UPC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Round Optical Cable GJFJY TYPE Duplex LSZH Jacket
Features:
1.Cost effective solution for in house termination
2.Low insertion loss and added loss.
3.Height of attenuation.
4.Water proof, dust proof and corrosion resistant
5.The material in the jumpel cable are all-weather and UV-resistant.
6.IP68 water and dust protection.
7.Mechanical performance: IEC 61754-7 standard.
8.RoHS and REACH materials compliant.

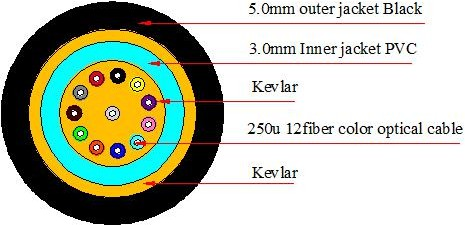

Cable Structure
 |
Cable Parameters
|
Cable Count |
Out sheath Diameter （MM) |
Weight （KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature （℃） |
|||
|
short term |
long term |
short term |
long term |
short term |
long term |
||||
|
8/12/24 |
5.0±0.3 |
32 |
500 |
250 |
750 |
300 |
20D |
10D |
-20 ~~ +70 |
Optical Characteristics
|
Item |
Parameter |
Reference |
|||
|
Single mode |
Multimode |
||||
|
Standard |
Elite |
Standard |
Elite |
||
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
|
Return loss |
≥ 50dB (PC) ≥ 60dB (APC) |
≥ 55dB (PC) ≥ 65dB (APC) |
≥30dB(PC) |
≥30dB(PC) |
IEC 61300-3-6 |
End-Face Geometry
|
Ferrule parameter |
IEC-61300--3-30 |
|||
|
Minimum |
Maximum |
|||
|
ROC |
ROC-X: |
2000mm |
∞ |
|
|
ROC-Y: |
50mm |
∞ |
||
|
Angle |
Angle-X: |
-0.2° |
0.2° |
|
|
Angle-Y: |
PC |
-0.2° |
0.2° |
|
|
APC |
7.85° |
8.15° |
||
|
Fiber Hight: |
1000nm |
3500nm |
||
|
Max.DH.All: |
-300nm |
300nm |
||
|
DH.Adj: |
-300nm |
300nm |
||
|
DH.Ave Fiber: |
-300nm |
300nm |
||
|
Core Dip: |
MM |
-200nm |
300nm |
|
|
SM |
N/A |
N/A |
||
|
Ferrule height |
7.9mm |
8.05mm |
||
End-Face Qualty (SM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
25 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
End-Face Qualty (MM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
65 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
Mechanical Characteristics
|
Test |
Conditions |
Reference |
|
Endurance |
500 matings |
IEC 61300-2-2 |
|
Vibration |
Frequency: 10 to 55Hz, Amplitude: 0.75mm |
IEC 61300-2-1 |
|
Cable retention |
400N (main cable); 50N (connector part) |
IEC 61300-2-4 |
|
Strength of coupling mechanism |
80N for 2 to 3mm cable |
IEC 61300-2-6 |
|
Cable torsion |
15N for 2 to 3mm cable |
IEC 61300-2-5 |
|
Fall |
10 drops, 1m drop height |
IEC 61300-2-12 |
|
Static lateral load |
1N for 1h (main cable); 0.2N for 5min (ranch part) |
IEC 61300-2-42 |
|
Cold |
-25°C, 96h duration |
IEC 61300-2-17 |
|
Dry heat |
+70°C, 96h duration |
IEC 61300-2-18 |
|
Change of temperature |
-25°C to +70°C, 12 cycles |
IEC 61300-2-22 |
|
Humidity |
+40°C at 93%, 96h duration |
IEC 61300-2-19 |
