Application
1. Multi-purpose Outdoor.
2. For connection between distribution box and RRH.
3. Deployment in Remote Radio Head cell tower applications.
Technical Index
Connector Types
|
Type |
Reference |
Note |
|
|
SC |
IEC 61754-4 |
Single mode Simplex |
APC: Green connectors UPC: Blue connectors |
|
Multimode Simplex |
UPC: Grey Connectors |
||

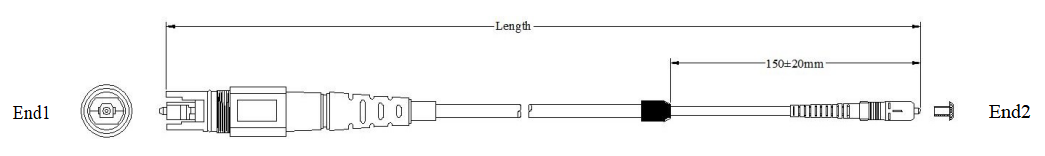

Dimensional Diagrams

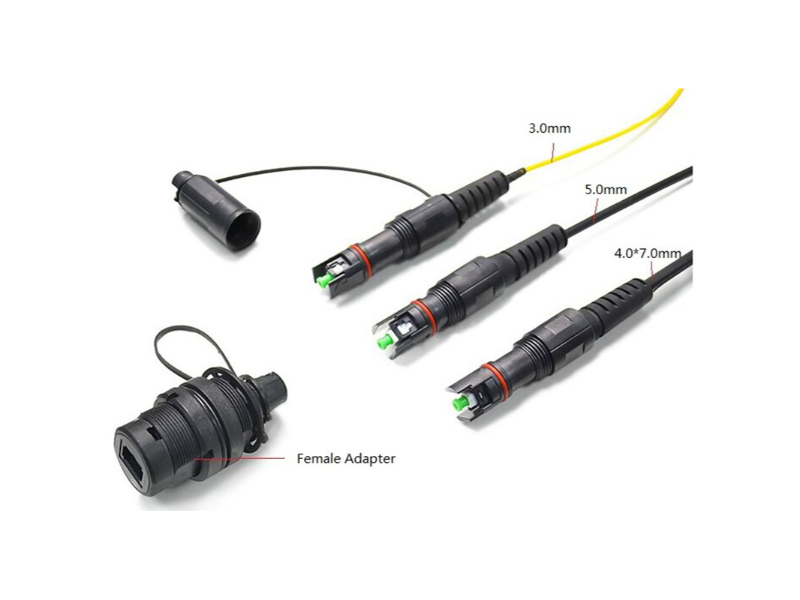

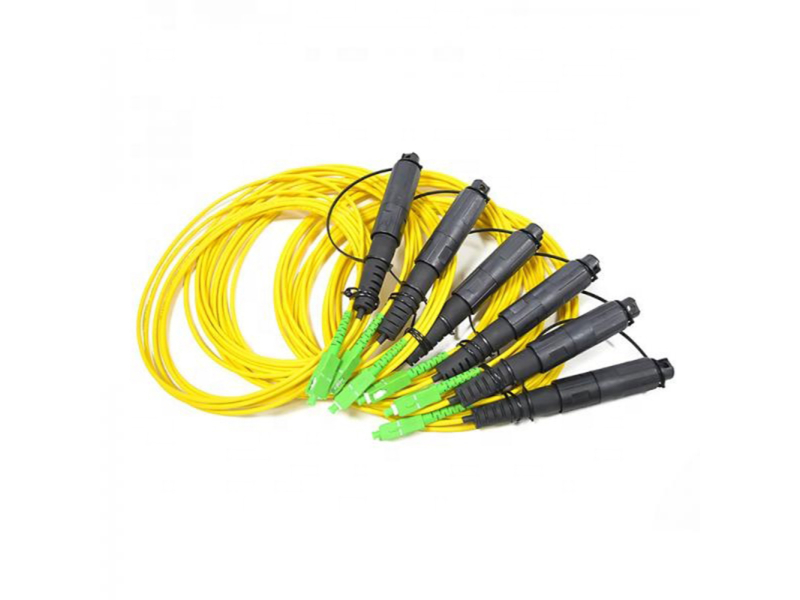

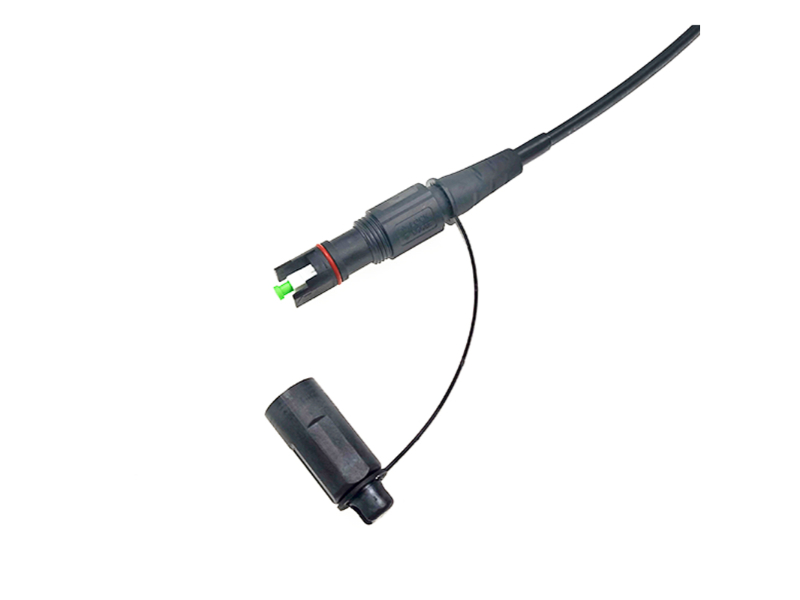

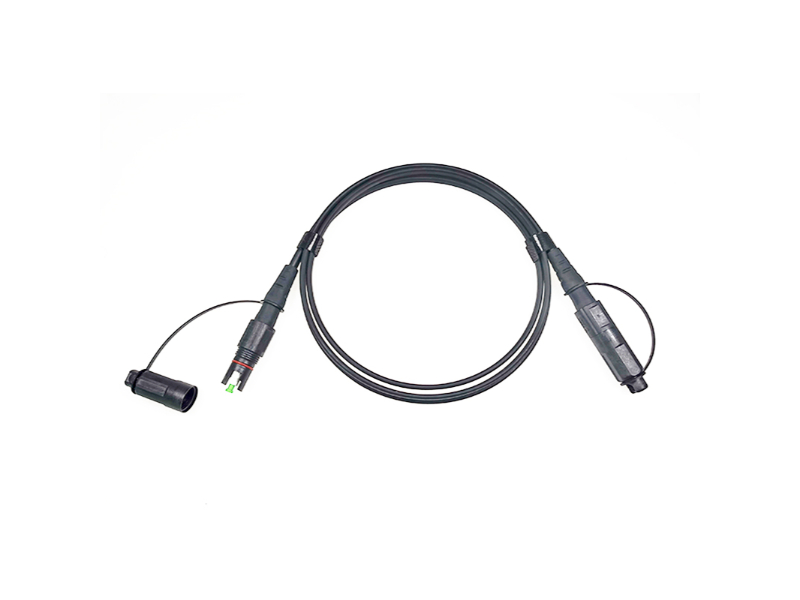

1. Mini IP SC Outer Cable Assemblies

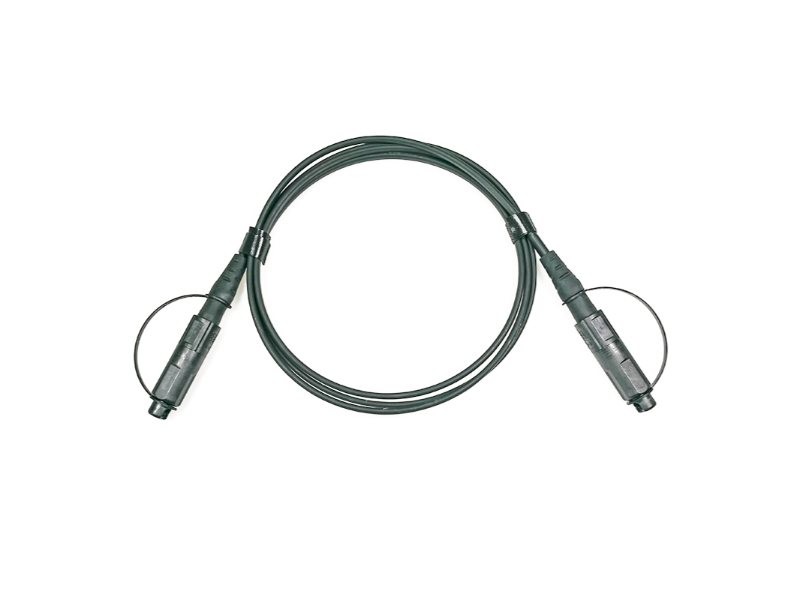

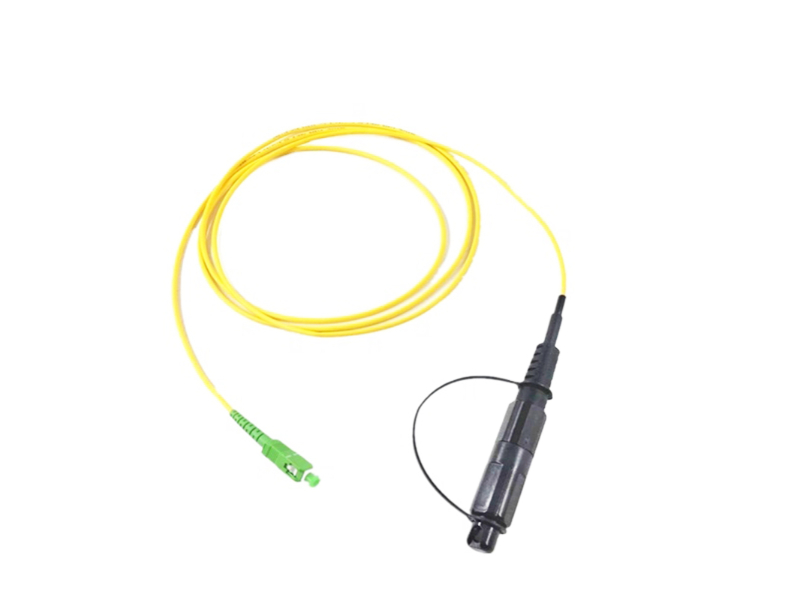

Patch cord versions
|
Jumper tolerance requirement |
|
|
Overall length (L) （M） |
length of tolerance（CM） |
|
0＜L≤20 |
+10/-0 |
|
20＜L≤40 |
+15/-0 |
|
L＞40 |
+0.5%L/-0 |

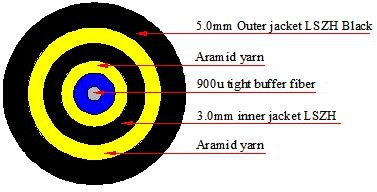

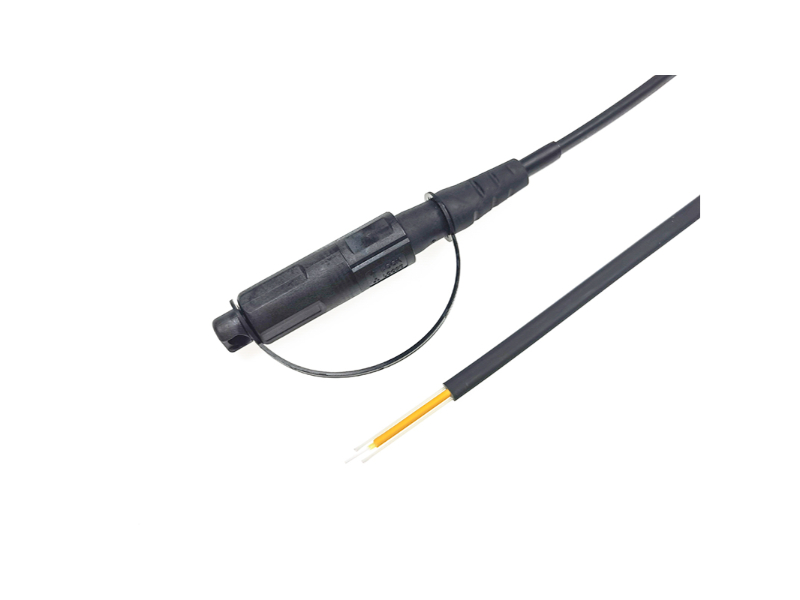

Cable Structure
Cable Parameters
|
Cable Count |
Out sheath Diameter （MM) |
Weight （KG) |
Minimum allowable Tensile Strength (N) |
Minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature （℃） |
|||
|
short term |
long term |
short term |
long term |
short term |
long term |
||||
|
1 |
5.0±0.2 |
26.5 |
800 |
400 |
2000 |
1000 |
20D |
10D |
-20 ~~ +60 |

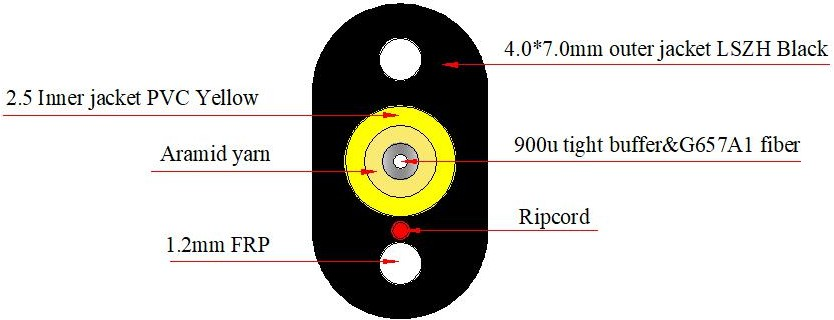

Cable Structure
Cable Parameters
|
Cable Count |
Out sheath Diameter （MM) |
Weight （KG) |
Minimum allowable Tensile Strength (N) |
Minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature （℃） |
|||
|
short term |
long term |
short term |
long term |
short term |
long term |
||||
|
1 |
(4.0±0.2)x(7.0±0.2) |
42 |
1350 |
400 |
2200 |
1000 |
20D |
10D |
-20 ~~ +60 |
Optical Characteristics
|
Item |
Parameter |
Reference |
|||
|
Single mode |
Multimode |
||||
|
Standard |
Elite |
Standard |
Elite |
||
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
|
Return loss |
≥ 50dB (PC) ≥ 60dB (APC) |
≥ 55dB (PC) ≥ 65dB (APC) |
≥30dB(PC) |
≥30dB(PC) |
IEC 61300-3-6 |
End-Face Geometry
|
Item |
UPC (Ref: IEC 61755-3-1) |
APC (Ref: IEC 61755-3-2) |
|
Radius of curvature (mm) |
10 to 25 |
5 to 12 |
|
Fiber height (nm) |
-100 to 100 |
-100 to 100 |
|
Apex offset (μm) |
0 to 50 |
0 to 50 |
|
APC angle (°) |
/ |
8° ±0.2° |
|
Key error (°) |
/ |
0.2° max |
End-Face Qualty (SM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
25 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
End-Face Qualty (MM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
65 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
Mechanical Characteristics
|
Test |
Conditions |
Reference |
|
Endurance |
500 matings |
IEC 61300-2-2 |
|
Vibration |
Frequency: 10 to 55Hz, Amplitude: 0.75mm |
IEC 61300-2-1 |
|
Cable retention |
100N (main cable); 50N (connector part) |
IEC 61300-2-4 |
|
Strength of coupling mechanism |
80N for 2 to 3mm cable |
IEC 61300-2-6 |
|
Cable torsion |
15N for 2 to 3mm cable |
IEC 61300-2-5 |
|
Fall |
10 drops, 1m drop height |
IEC 61300-2-12 |
|
Static lateral load |
1N for 1h (main cable); 0.2N for 5min (ranch part) |
IEC 61300-2-42 |
|
Cold |
-25°C, 96h duration |
IEC 61300-2-17 |
|
Dry heat |
+70°C, 96h duration |
IEC 61300-2-18 |
|
Change of temperature |
-25°C to +70°C, 12 cycles |
IEC 61300-2-22 |
|
Humidity |
+40°C at 93%, 96h duration |
IEC 61300-2-19 |
Features
Cost effective solution for in house termination.
Low insertion loss and added loss.
Height of attenuation.
IP67 water, dust proof and corrosion resistant
The material in the jumpel cable are all-weather and UV-resistant.
Mechanical performance: IEC 61754-4 standard.
RoHS and REACH materials compliant.
