Alteoptict's OptiTap/H connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The hardened connector end incorporates an LC/UPC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle. The LC/UPC connector mates to a standard adapter, providing a common interface for FTTH applications. Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.
Features:
1. Compatible with Corning-OptiTap and H-Connector;
2. Factory terminated for high performance;
3. Available with one or both ends connectorized;
4. Hybrid (one end with an OptiTap Connector, one end with standard SC connector) available with or without pulling grip;
5. Available in dielectric or toneable;
6. Designed for aerial, direct-buried or duct installation;
7. IP-68 water and dust protection ;
8. -40℃~85℃ operating temperature;
Pre Connectorized Opti-tap Cable 200FT 300FT 500FT SST Drop Cable for FTTH FTTA FTTX
Cable Structure:
| Product name | Indoor/outdoor drop cable assemblies |
| Cable Type | dielectric or Tonable |
| Cable diameter | 5.0mm round cable or 4.5*8.1mm flat cable or 4.5*9.8mm tonable cable |
| Application | Aerial , Direct Buried , Duct |
| Termination | Both end or one end |
| Specifications - Connector A | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC/APC OptiTap connector(H Connector) |
| Specifications - Connector B | |
| Reflectance, Typical | -65 dB |
| Insertion Loss, Typical | ≤ 0.15 dB |
| Connector Type | SC APC Connector (simplex) with 2.0mm or 2.9mm leg |
| Optical Characteristics | |
| Fiber Type | Single-mode |
| Fiber count | 1F |
| Fiber Category | G.652.D, G657A1,G657A2 |
| Wavelengths | 1310 nm / 1550 nm |
| Maximum Attenuation | 0.35 dB/km / 0.25 dB/km |
Application:
FTTH; Outdoor Areas; Harsh Environment
Pre Connectorized Opti-tap Cable 200FT 300FT 500FT SST Drop Cable for FTTH FTTA FTTX
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
OptiTap Female SCAPC Fiber Optic Patchcord For FTTH FTTA
It is a robust pre-terminated solution designed for outdoor FTTH deployment. Featuring open stub on the each other, this assembly enables quick plug-and-play installation with excellent optical performance.Manufactured at alteoptic’s factory in China, this product is rigorously tested in accordance with GR-3120-Core standards to guarantee reliability and long-term field performance.
View More
OptiTap Female SCAPC To LCUPC Fiber Optic Patchcord For FTTH FTTA
It is a robust pre-terminated solution designed for outdoor FTTH deployment. Featuring a factory-installed hardened LC/UPC connector on one end and an open stub on the other, this assembly enables quick plug-and-play installation with excellent optical performance.Manufactured at alteoptic’s factory in China, this product is rigorously tested in accordance with GR-3120-Core standards to guarantee reliability and long-term field performance.
View More
OptiTap SCAPC Corning H To LCUPC Corning H Optic Patchcord For FTTH FTTA
It is a robust pre-terminated solution designed for outdoor FTTH deployment. Featuring a factory-installed hardened LC/UPC connector on one end and an open stub on the other, this assembly enables quick plug-and-play installation with excellent optical performance.Manufactured at alteoptic’s factory in China, this product is rigorously tested in accordance with GR-3120-Core standards to guarantee reliability and long-term field performance.
View More
It is a robust pre-terminated solution designed for outdoor FTTH deployment. Featuring open stub on the each other, this assembly enables quick plug-and-play installation with excellent optical performance.Manufactured at alteoptic’s factory in China, this product is rigorously tested in accordance with GR-3120-Core standards to guarantee reliability and long-term field performance.
View More

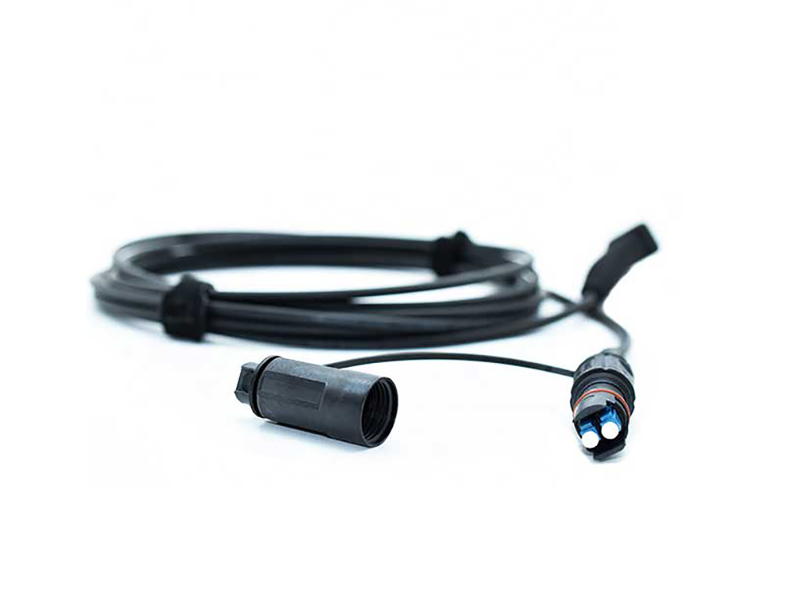

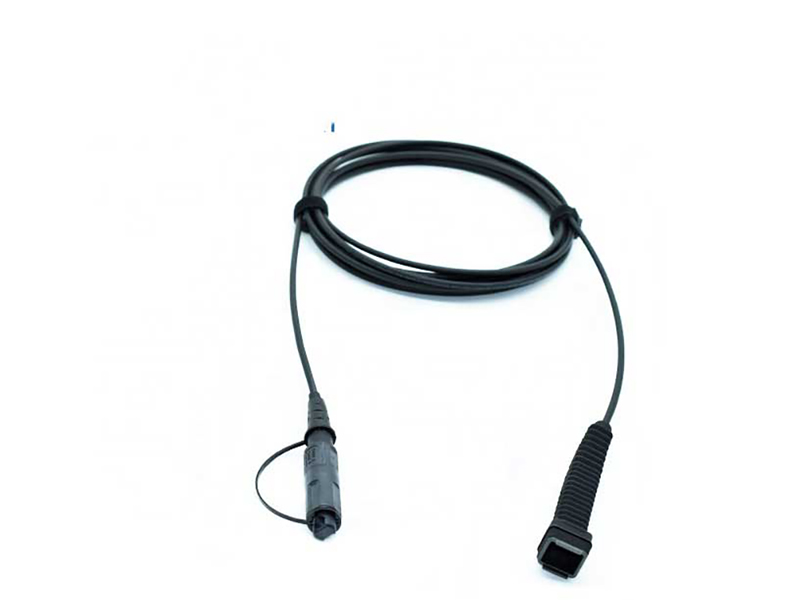

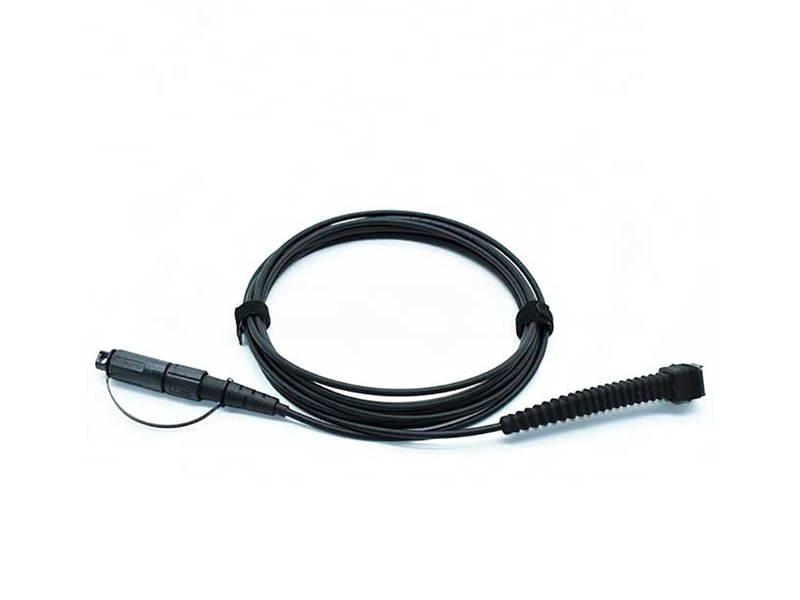

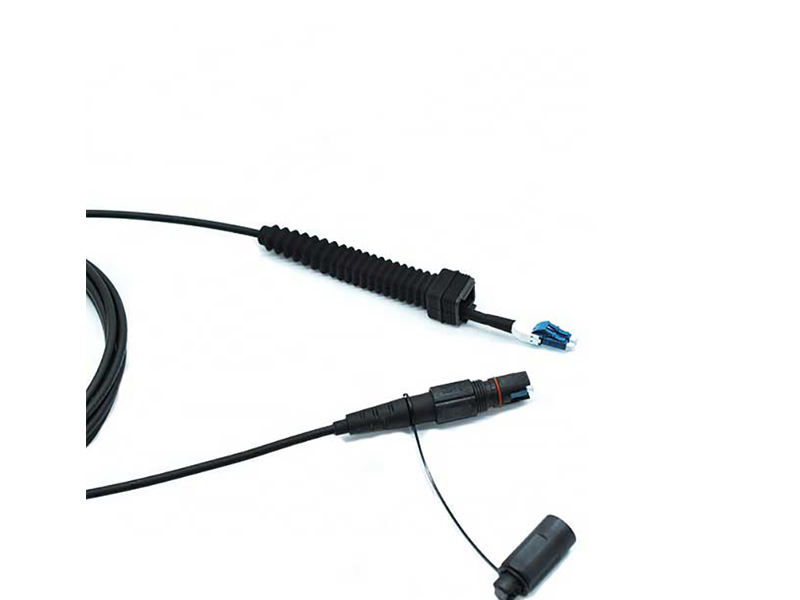

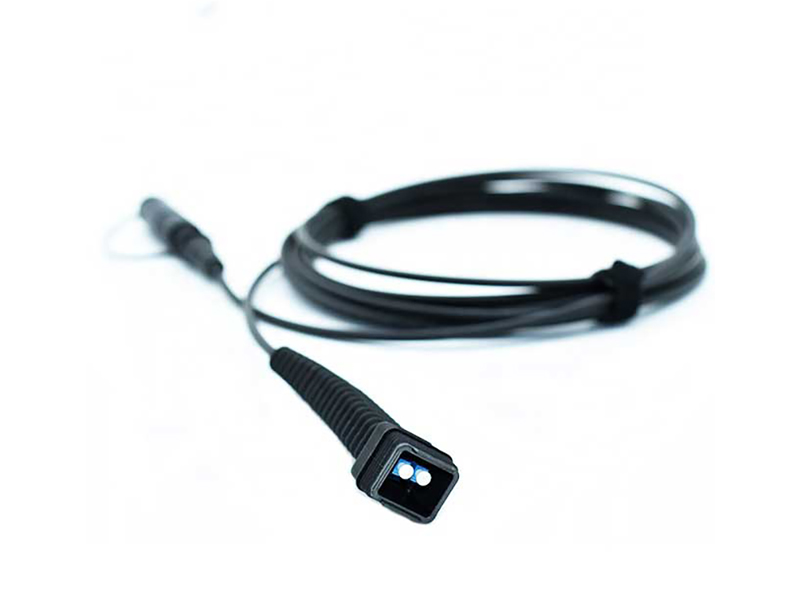

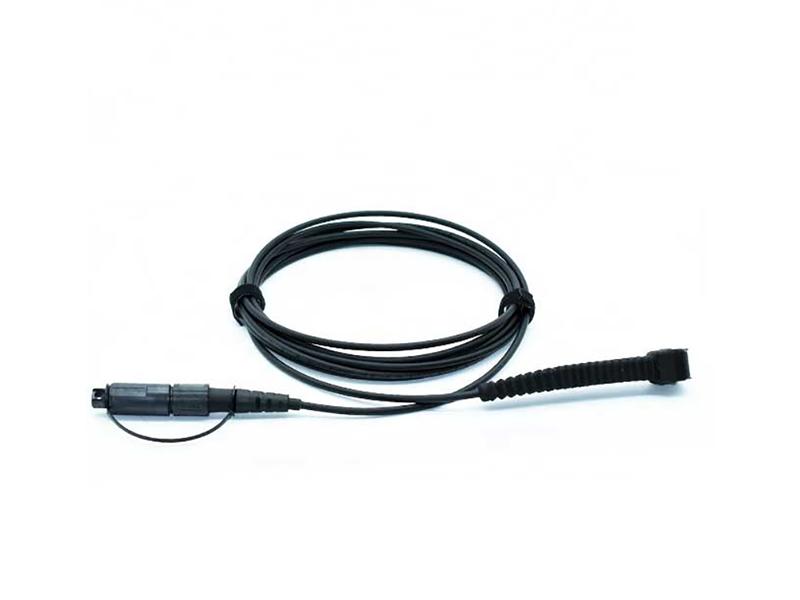

OptiTap LC/UPC Corning to FTTA NSN Boot Duplex LC Fiber Optic Patchcord For FTTH FTTA
