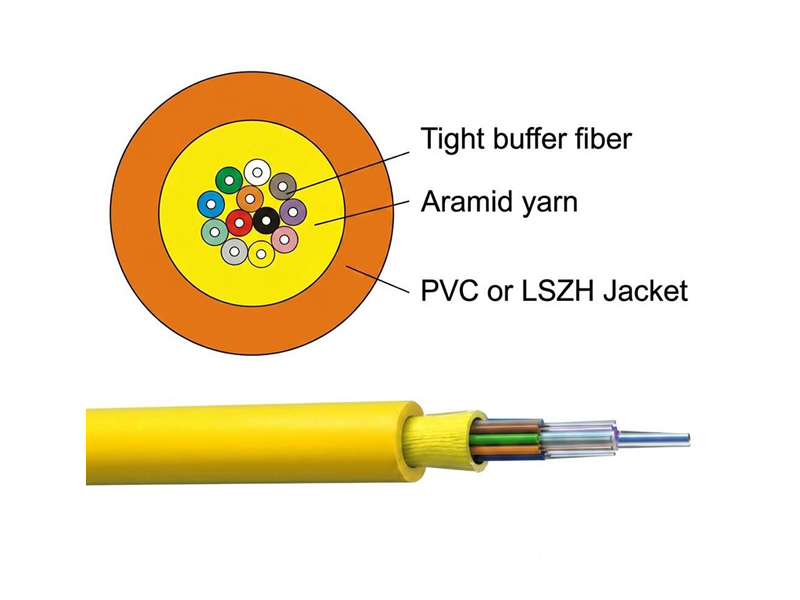

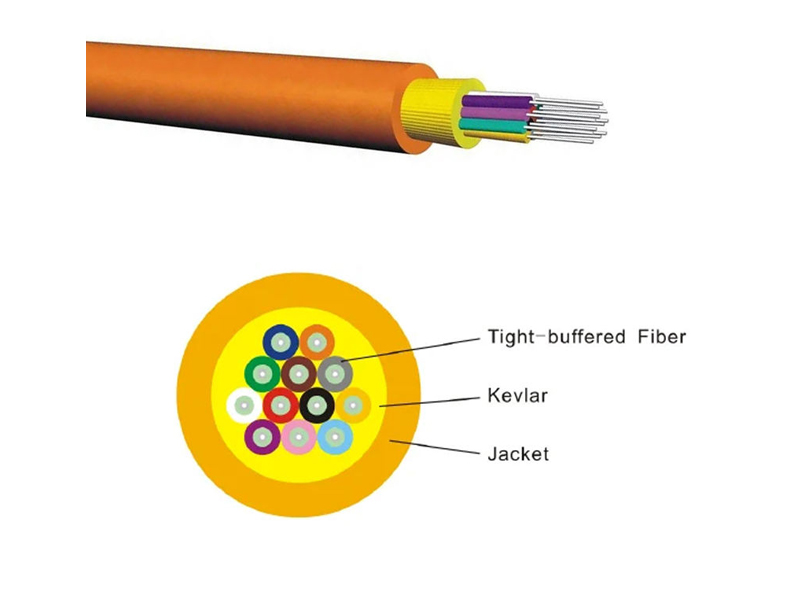

Fiber Optic Riser Cables are flame-retardant, UV-resistant, indoor/outdoor cables designed for aerial, duct and direct-buried applications with no need for a transition splice when entering the building. Available in fiber counts of 1-24 fibers, the tight-buffered construction facilitates easier termination for low-fiber-count applications in the local area network (LAN) and eliminates need for fan-out kits. The design features TIA-598 color-coded 900 µm TBII Buffered Fibers for easy identification, consistent stripping and direct termination. Available in 50 µm, 62.5 µm, single-mode and hybrid versions, the cable design meets ICEA S-104-696 test criteria and is also OFNR and FT-4 listed for riser and general purpose use. The small diameter and bend radius of the cable allow for easy installation in space-constrained areas while the innovative water-blocking technology is ideal for OSP applications.

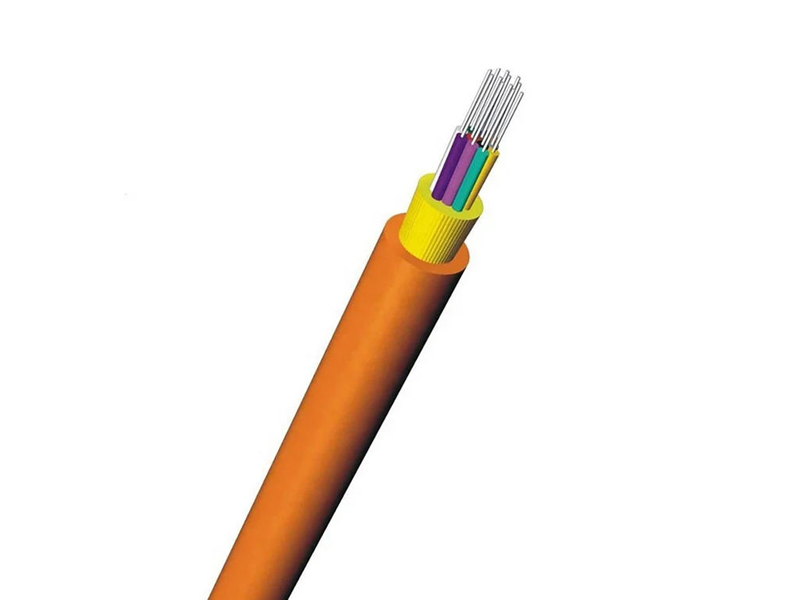

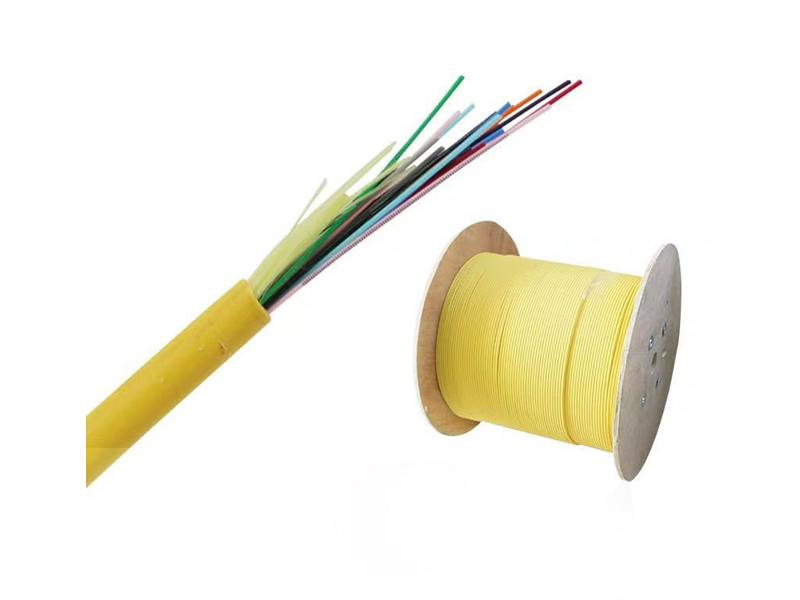

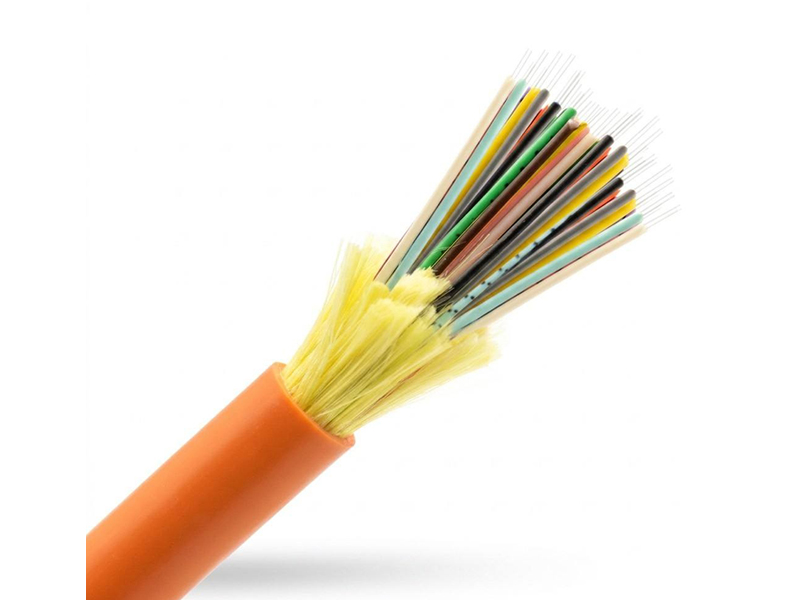

Our 4.8–8.0mm indoor fiber optic bundle cables are designed for standard indoor horizontal cabling where balanced fiber capacity and installation flexibility are required. Compared with mini fiber optic cables, these indoor fiber optic bundle cables support higher core counts while remaining compact enough for conduits, trays, and risers in offices, classrooms, and commercial buildings.
Technical Paramenters
|
Fiber Type |
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
≤3.0dB/km |
≤3.0dB/km |
||
|
@1300nm |
≤1.0dB/km |
≤1.0dB/km |
|||
|
@1310nm |
≤0.36dB/km |
≤0.36dB/km |
|||
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|||
|
Bandwidth(Class A) |
@850 |
≥500MHZ·km |
≥200MHZ·km |
||
|
@1300 |
≥1000MHZ·km |
≥600MHZ·km |
|||
|
Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
|||
|
Cable Cut-off Wavelength λ |
≤1260nm |
≤1480nm |
|||
|
Fiber Count (F) |
Cable Diameter (mm) |
Cable Weight (kgs) |
Tensile Strength (N) |
Crush Strength (N) |
Min. Bending Radius |
Temperature Range (℃) |
|||
|
Long term |
Short Term |
Long term |
Short Term |
Long term |
Short Term |
||||
|
4 |
5.0 |
19 |
130 |
440 |
200 |
1000 |
10D |
20D |
-20~+60 |
|
6 |
5.2 |
23 |
130 |
440 |
200 |
1000 |
10D |
20D |
-20~+60 |
|
8 |
5.5 |
26 |
130 |
440 |
200 |
1000 |
10D |
20D |
-20~+60 |
|
12 |
6.5 |
36.5 |
200 |
660 |
200 |
1000 |
10D |
20D |
-20~+60 |
|
24 |
8.2 |
54.5 |
200 |
660 |
200 |
1000 |
10D |
20D |
-20~+60 |
|
36 |
9.0 |
72 |
200 |
660 |
200 |
1000 |
10D |
20D |
-20~+60 |
|
48 |
10.5 |
90 |
200 |
660 |
200 |
1000 |
10D |
20D |
-20~+60 |
