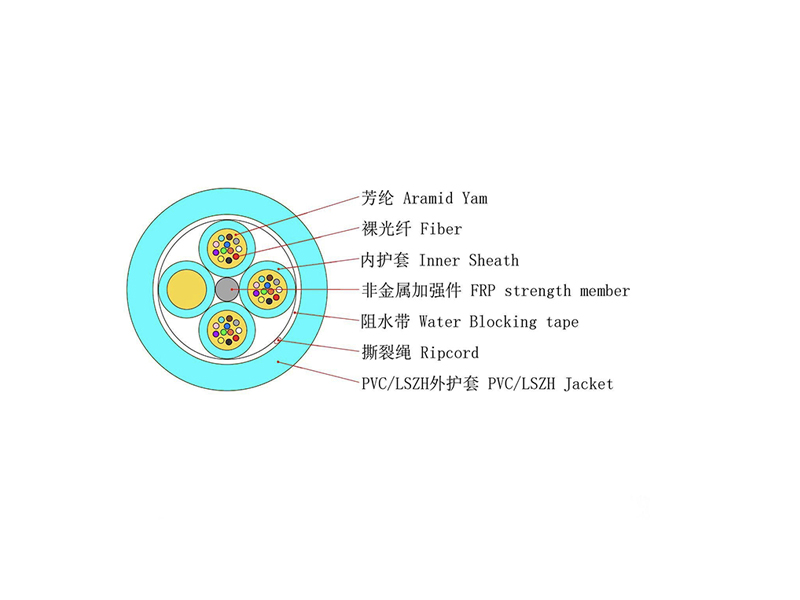

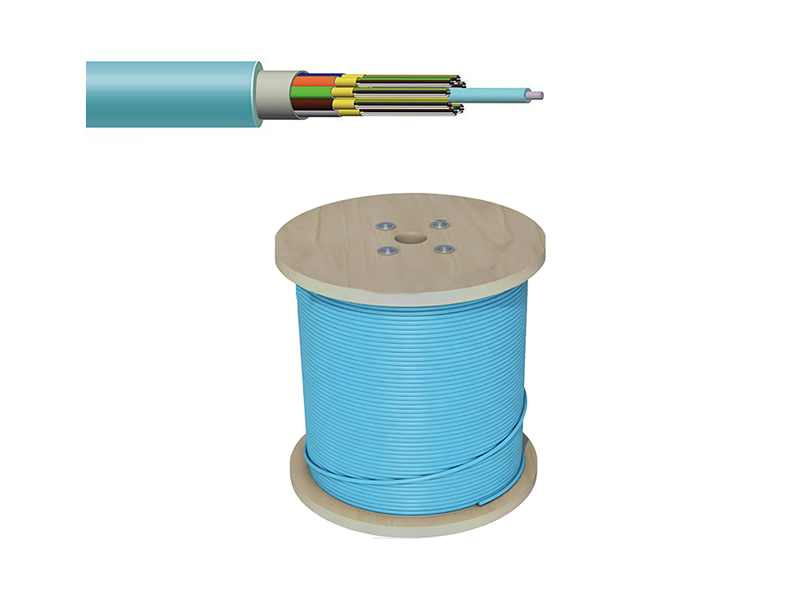

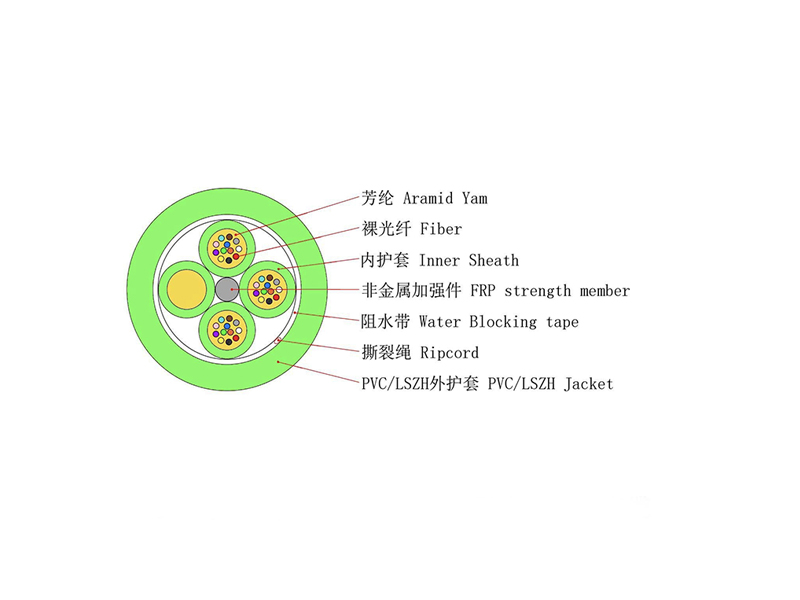

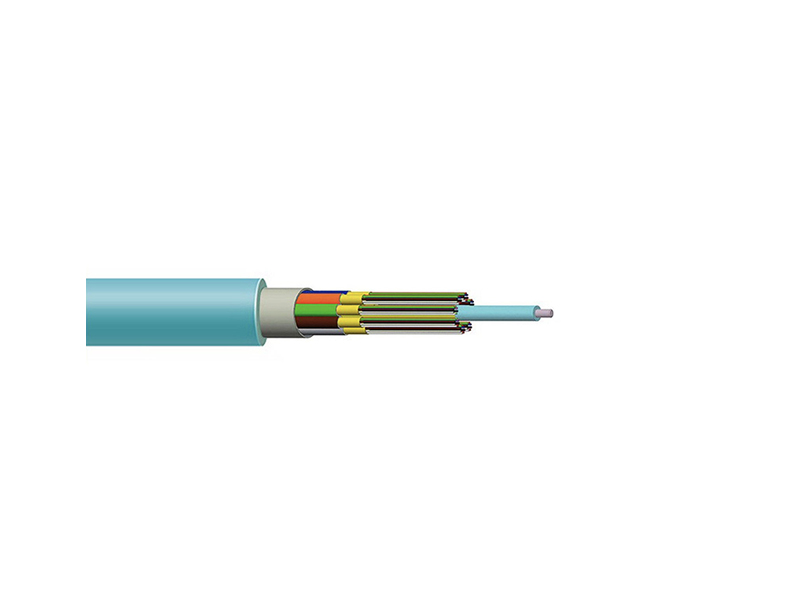

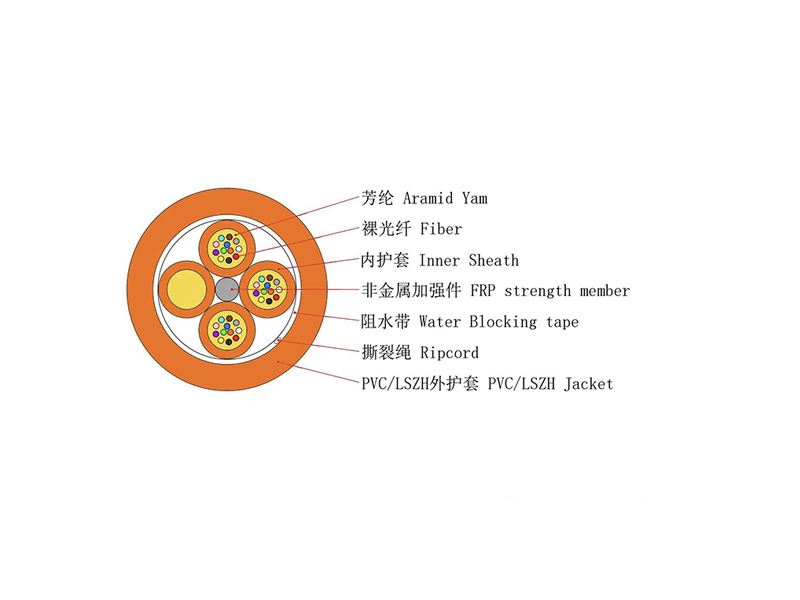

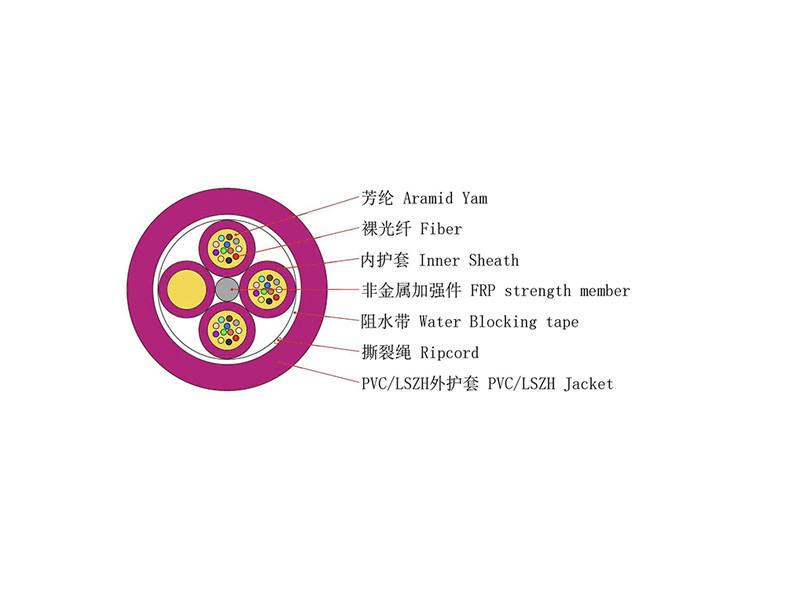

The 9.0mm fiber optic bundle cables provide medium- to high-density indoor fiber solutions. These fiber optic bundle cables support 48–144 fibers in a compact design, ideal for data center floors, commercial buildings, or horizontal and vertical indoor runs. Flexible structure ensures organized routing without sacrificing manageability.

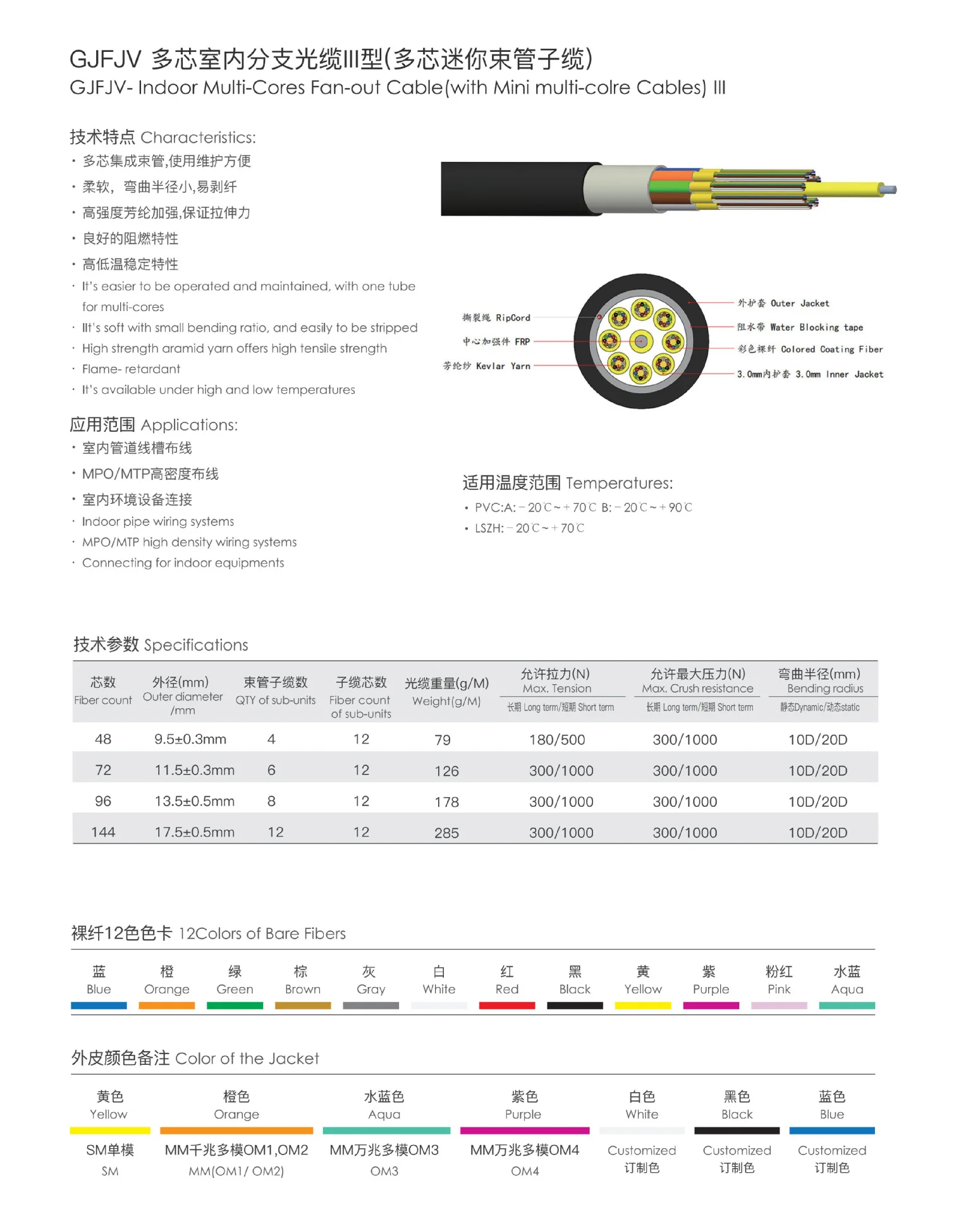

Technical Specifications of 9.0mm Fiber Optic Bundle Cable
|
Parameter |
Value |
|---|---|
|
Fiber Type |
OM3 / OM4 / Single-mode |
|
Core Count |
48 / 72 / 96 / 144 |
|
Outer Diameter |
9.0 ± 1.7 mm |
|
Outer Jacket |
PVC / LSZH |
|
Filling Material |
None |
|
Long-term Tensile Force |
400 N |
|
Short-term Tensile Force |
1300 N |
|
Working Temperature |
-30℃ to +80℃ |
|
Storage Temperature |
-40℃ to +80℃ |
|
Net Weight |
79–285 KG/KM |
