Armored Indoor cable Number： Application: Adopted to indoor distribution.. As pigtail of communication equipment. Suitable for communication equipment served. Can be installed conveniently and perated simply.
Product Description
Characteristics
Sturcture Size
| Cable Type | Cable OD .mm | S.S.T.OD.mm | T.B.O.F.OD.mm |
| 1.8 GJFJKV | φ1.8+/-0.1 | φ0.9+/-0.03 | φ0.5 |
| 2.0 GJFJKV | φ2.0+/-0.1 | φ0.9+/-0.03 | φ0.5 |
| 2.4 GJFJKV | φ2.4+/-0.1 | φ0.9+/-0.03 | φ0.5 |
| 2.8 GJFJKV | φ2.8+/-0.1 | φ0.9+/-0.03 | φ0.5 |
| 3.0 GJFJKV | φ3.0+/-0.1 | φ1.4+/-0.05 | φ0.9 |
Mechanical Properties
| Cable Type | Cable OD.mm | Cable Weight KG/KM | Maximum | Bend Radius | L.P.N/100mm | ||
| S.T | L.T | Dyn. | Sta. | ||||
| 1.8 GJFJKV | φ1.8+/-0.1 | 9.6 | 160 | 80 | 50 | 30 | 5000 |
| 2.0 GJFJKV | φ2.0+/-0.1 | 13.0 | 200 | 100 | 50 | 30 | 4500 |
| 2.4 GJFJKV | φ2.4+/-0.1 | 14.0 | 250 | 130 | 50 | 30 | 4500 |
| 2.8 GJFJKV | φ2.8+/-0.1 | 21.0 | 500 | 250 | 60 | 30 | 3500 |
| 3.0 GJFJKV | φ3.0+/-0.1 | 22.0 | 600 | 300 | 60 | 30 | 3500 |
Application:
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products
GJFJV Indoor Tight Buffered Riser Distribution Single-mode/MultiCore cable
GJFJV 24/48 Core Indoor Fiber Cable Tight Buffered Riser Distribution Single-mode/MultiCore SM Indoor Optical Fiber
View More
Indoor Non-metal Central Tight Tube Out Cables
Adopted to Outdoor distribution.Adopted to trunk power transmission system.access network and local network in high electromagnetic interference places.
View More
Indoor Fiber Cable Duplex Flat Twin Cable Fiber
The zipcord cable is made by evenly applying strands of Aramid yarns as the strength member over ф900μm or ф600μm tight bufferfibers and then is completed with PVC(LSZH)jacket. A duplex fiber optic cable consists of two strand fibers of glass or plastic,and it can be regarded as two simplex cables.
View More

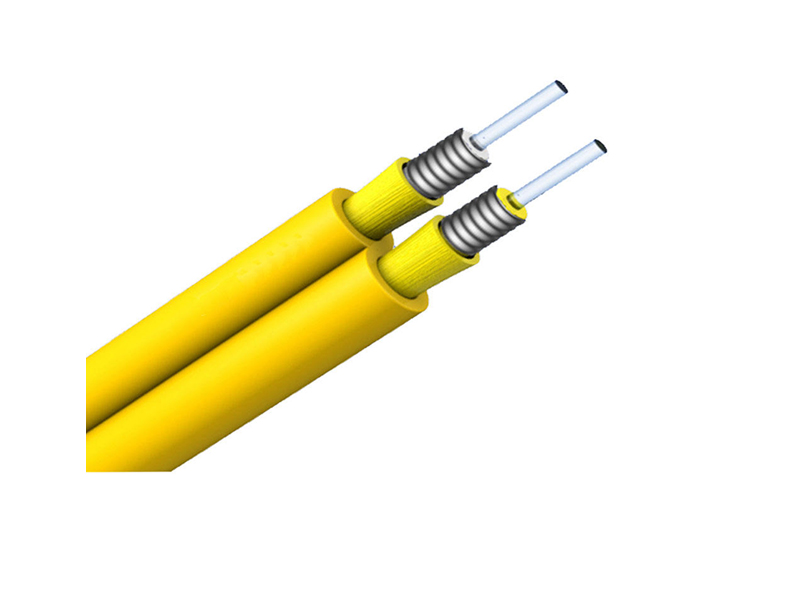

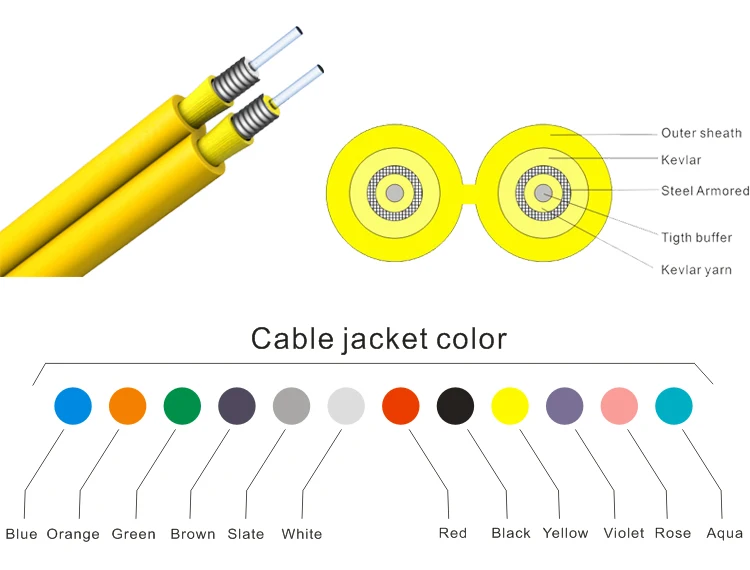

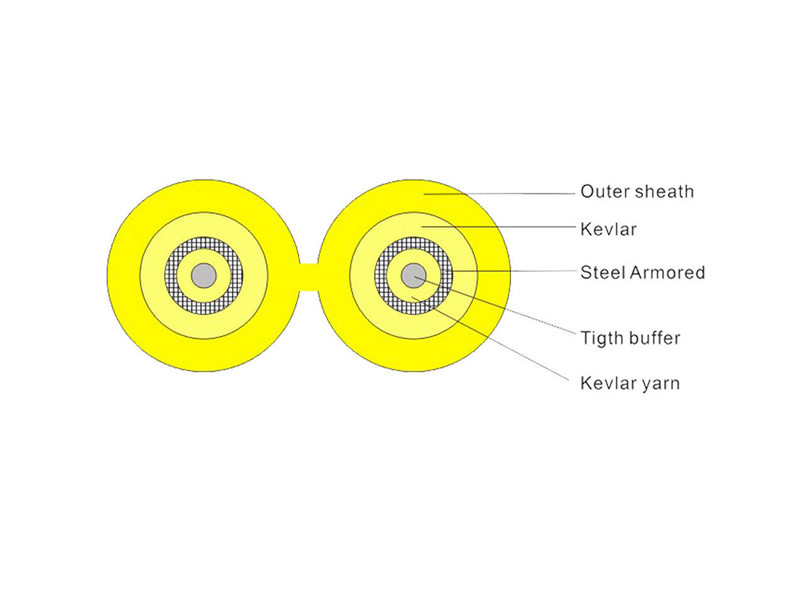

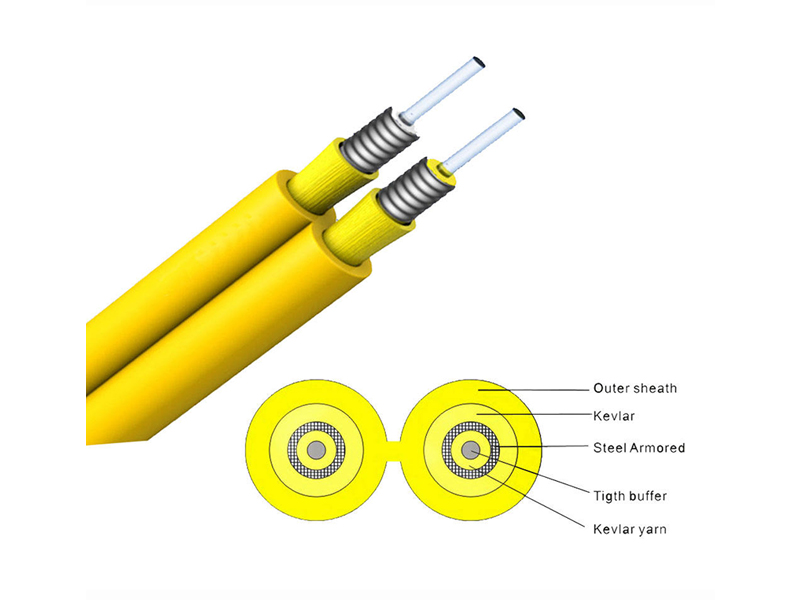

Duplex Armored Fiber Optic Cable
