Pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and
installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps. The Ruggedized Connector, an outside plant Mini SC/APC, is compatible with industry standard OSP terminals.
FTTA MINI (SCAPC) Outdoor Cable Assemblies

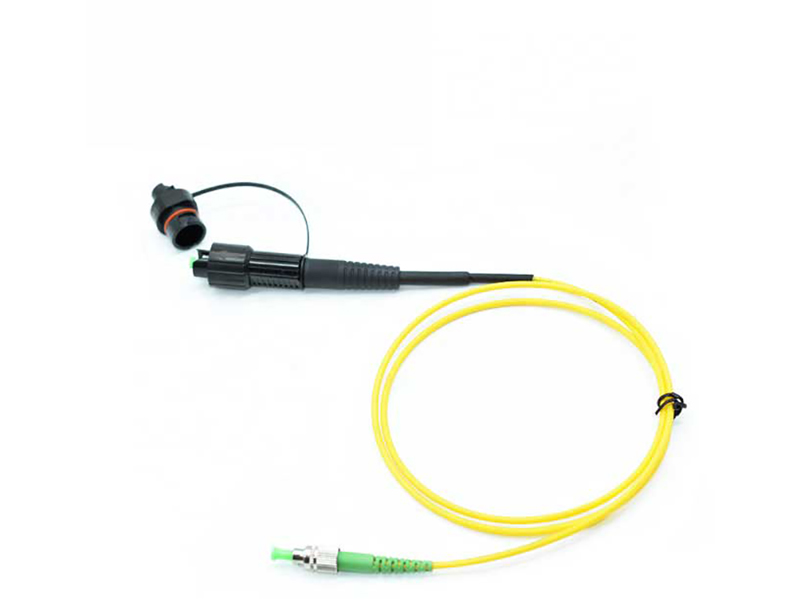

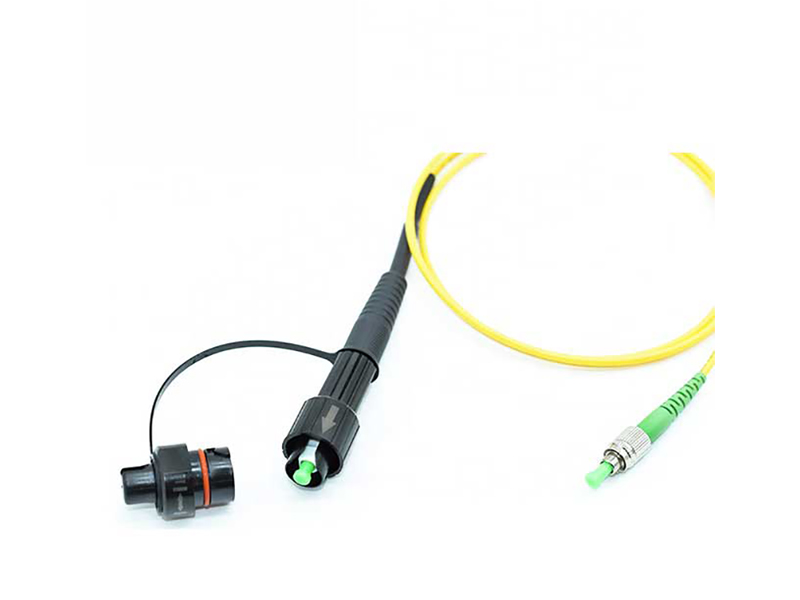

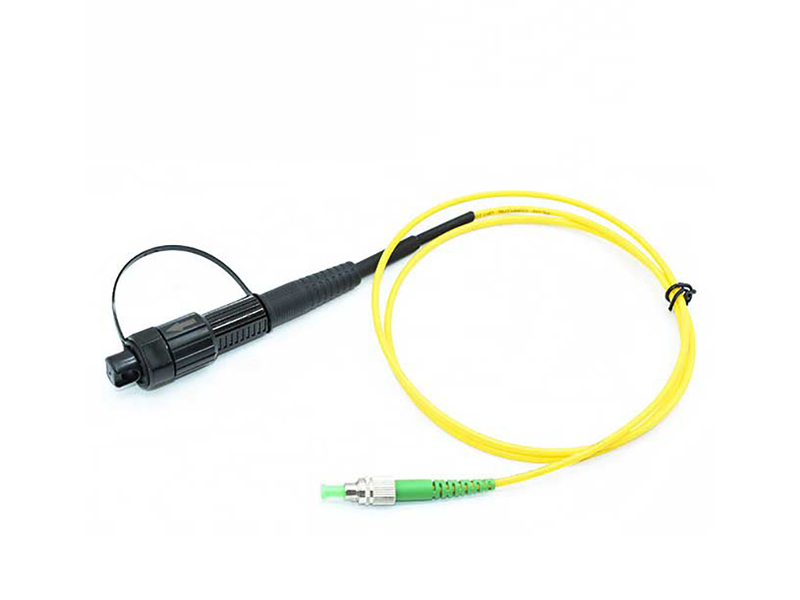

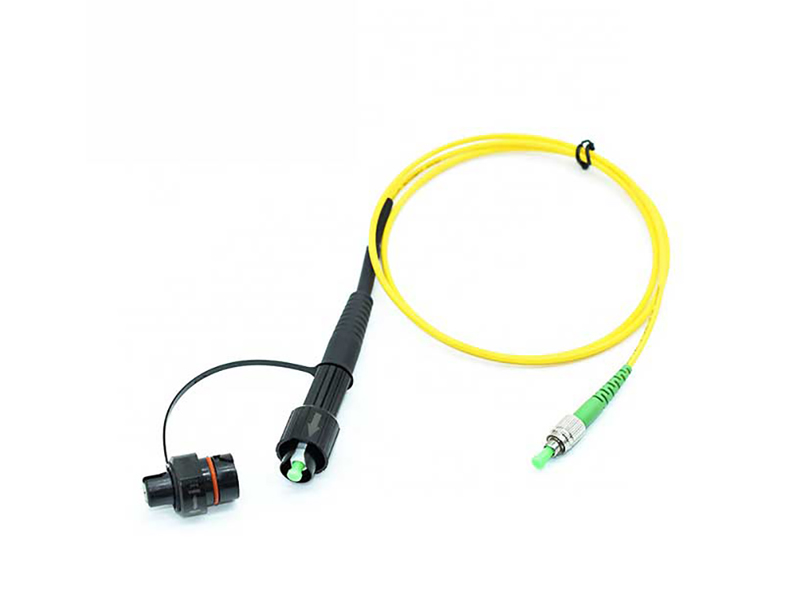

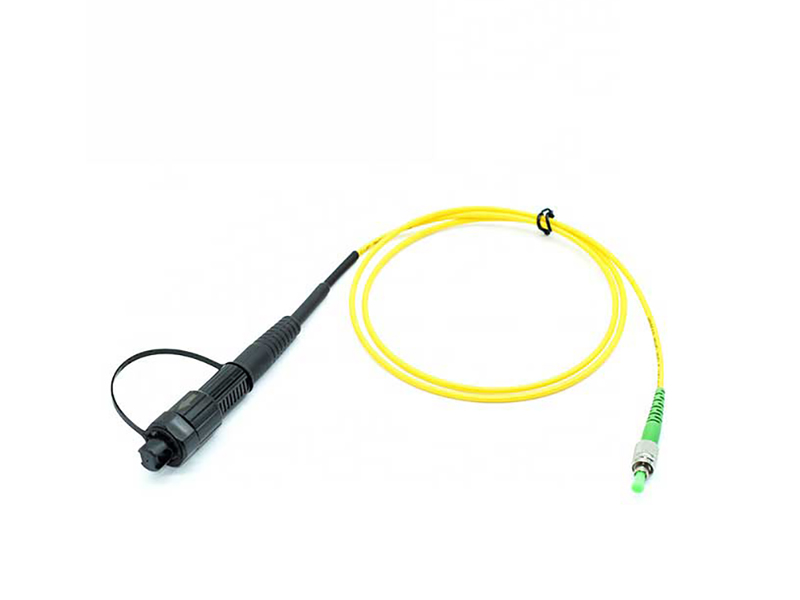

Optical Mini SC APC Patchcord Waterproof IPSC((Mini-SC) Patch Cords is a small high waterproof SC single core waterproof connector. Built-in SC connector core, to better reduce the size of the waterproof connector. Mini SC APC Patchcord is made of special plastic shell IP68 (which is resistant to high and low temperature, acid and alkali corrosion resistance, anti-UV) and auxiliary waterproof rubber pad.Cable Diameter can be 3.0/2.0*3.0/2.0*5.0/5.0/4.0*7.0mm many different sizes.We also accept OEM Services. Insertion loss SM /APC≤0.3dB, Return loss SM/APC≥60dB.Cable outer jacket LSZH or HDPE Materials. Outer jacket color can be yellow and black. Cable can be flat bow drop cable or round cables.
Features
- Provides moisture and dust protection for use in harsh industrial environments;
- IP68 protection against salt spray, moisture, and dust.;
- Significantly reduces field splicing with predetermined loss at each waterproof tethered access point;
- Leverages traditional field installation techniques for aerial, underground, and duct applications;
- Reduces installation time by up to 50% per network access point；
- Available in single-mode and multimode styles for use with all common fiber types；
Application
-Multi-purpose Outdoor
-For connection between distribution box and RRH
-Deployment in Remote Radio Head cell tower applications
Drawing:
Product Parameters
|
Item |
Parameter |
|||||
|
|
SM-UPC |
SM-APC |
||||
|
Inseertion Loss |
Typical |
MAX |
Typical |
MAX |
||
|
|
≤0 . 15dB |
≤0 .4dB |
≤0 .20dB |
≤0 .4dB |
||
|
Return Loss |
Min .50dB |
Min .60dB |
||||
|
Operating Wave Length |
1310nm-1550nm |
|||||
|
Test Wave Length |
1310nm&1550nm |
|||||
|
Durability |
500cycles |
|||||
|
Operating Temperature |
-40to+85℃ |
|||||
|
Storage Temperature |
-40to+85℃ |
|||||
|
Installation Temperature |
-20to+70℃ |
|||||
|
Waterproofing Grade |
IP68(1M , 1hour) |
|||||
|
Cable Diameter Range |
⌀3.0mm-⌀5.0mm |
|||||
|
Stadards |
Comply to GR-1320 , IEC61753-1 , IEC61754-4
|
|||||
|
Assembly |
|||
|
Insertion Loss |
Max .0 .3dB+0 .3dB/KM* L |
Max .0 .3dB+0 .3dB/KM* L |
|
|
Return Loss |
Min .50dB |
Min .60dB |
Min .30dB |
-Deployment in Remote Radio Head cell tower applications
