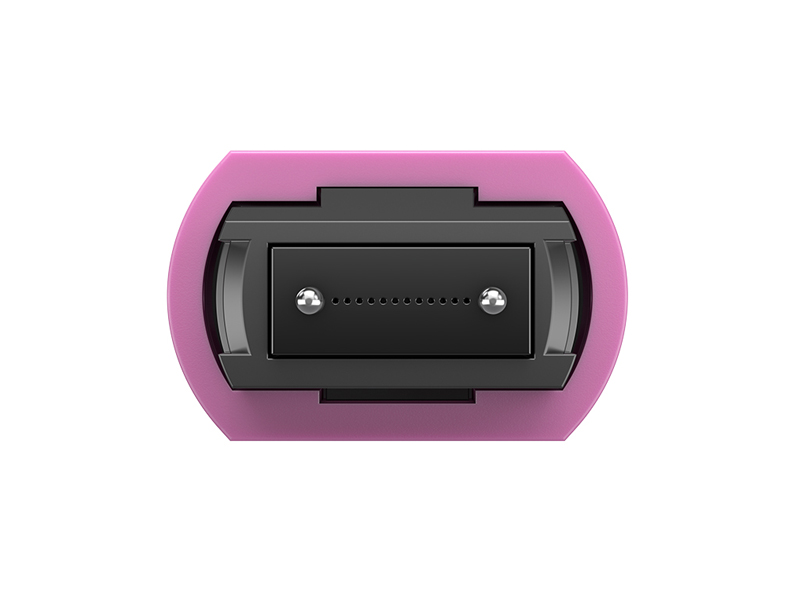

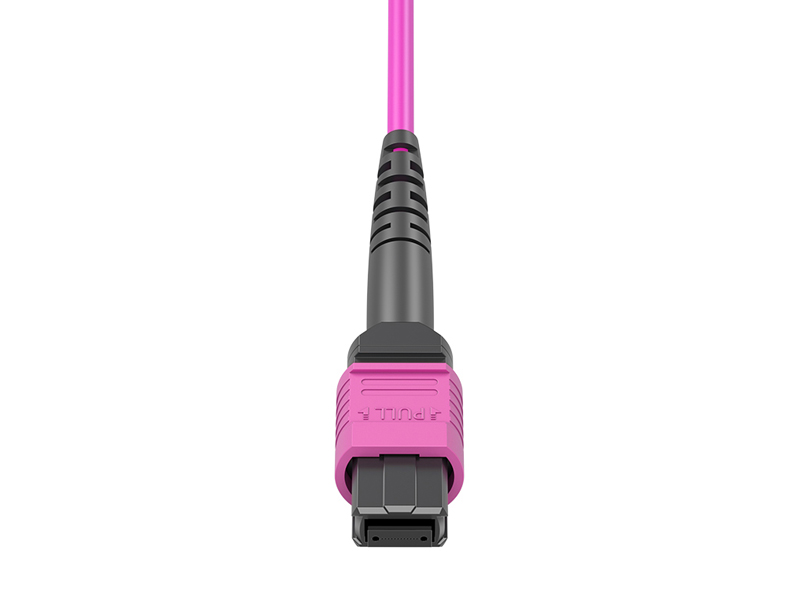

MPO/MTP multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. The spring - loaded push/pull locking mechanism of the MPO is easy to handle while guaranteeing the secure mating of the connectors. High- precision guiding pins ensure the exact adjustment of the ferrule. It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact , and with multimode and singlemode fibers secure transition between MPO/MTP and LC or SC connections.
Application
1.Data communication network. 2.Optical System Access network. 3.Storage area networking fiber channel. 4.High density architectures.
Features
1.100% pre-terminated and tested in factory to ensure transfer performance.
2.Rapid configuration and networking, reduce installation time.
Supports 40G and 100G network applications.
Cable Jacket material: LSZH, OFNR, OFNP available.
Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
imensional Diagrams

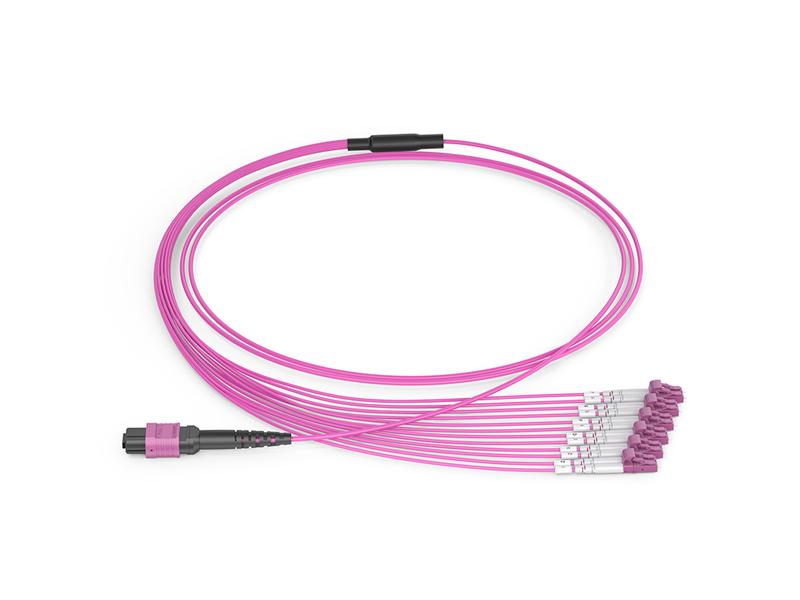

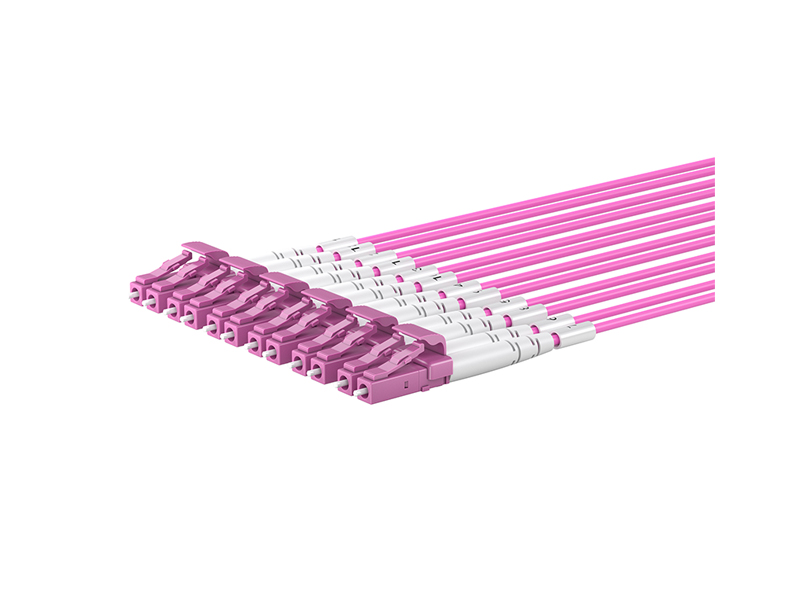

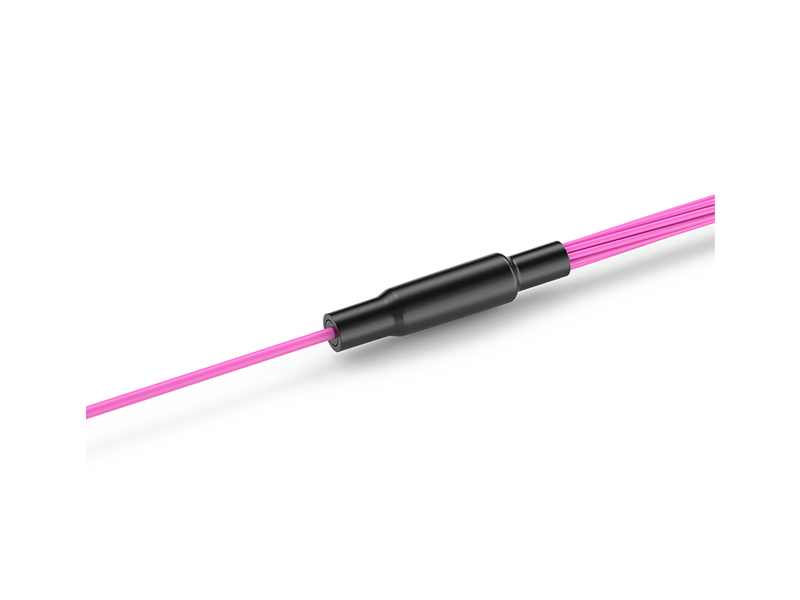

1. MPO/MTP Harnesses Cables
End1 End2
Patch cord versions
|
Jumper tolerance requirement |
|
|
Overall length (L) （M） |
length of tolerance（CM） |
|
0＜L≤20 |
+10/-0 |
|
20＜L≤40 |
+15/-0 |
|
L＞40 |
+0.5%L/-0 |
Cable Structure
|
|
|
|
|
|
Cable Parameters
|
Fiber account |
OD(mm) |
Nominal Weight (kg/km) |
Max.tensile Strength(N) |
Max.Crush Resistance (N/100mm) |
Min.Bending Radius(mm) |
|||
|
Short-term |
Long-term |
Short-term |
Long-term |
Dynamic |
Static |
|||
|
12 |
3.0±0.15 |
7.0 |
180 |
90 |
500 |
150 |
20D |
10D |
MPO&MTP Optical Characteristics
|
Item |
Parameter |
Reference |
|||
|
Single mode |
Multimode |
||||
|
Standard |
Elite |
Standard |
Elite |
||
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
|
Return loss |
≥ 50dB (PC) ≥ 60dB (APC) |
≥ 55dB (PC) ≥ 65dB (APC) |
≥30dB(PC) |
≥30dB(PC) |
IEC 61300-3-6 |
LC/SC/FC/ST Optical Characteristics
|
Item |
Parameter |
Reference |
|
|
Single mode |
Multimode |
||
|
Insertion loss |
Typical value≤0.15dB;Maximum≤0.30 |
Typical value≤0.15dB;Maximum≤0.30 |
IEC 61300-3-34 |
|
Return loss |
≥ 60dB (APC); ≥ 50dB (UPC) |
≥30dB (UPC) |
IEC 61300-3-6 |
End-Face Geometry
|
Item |
UPC (Ref: IEC 61755-3-1) |
APC (Ref: IEC 61755-3-2) |
|
Radius of curvature (mm) |
10 to 25 |
5 to 12 |
|
Fiber height (nm) |
-100 to 100 |
-100 to 100 |
|
Apex offset (μm) |
0 to 50 |
0 to 50 |
|
APC angle (°) |
/ |
8° ±0.2° |
|
Key error (°) |
/ |
0.2° max |
End-Face Geometry
|
Ferrule parameter |
IEC-61300--3-30 |
|||
|
Minimum |
Maximum |
|||
|
ROC |
ROC-X: |
2000mm |
∞ |
|
|
ROC-Y: |
50mm |
∞ |
||
|
Angle |
Angle-X: |
-0.2° |
0.2° |
|
|
Angle-Y: |
PC |
-0.2° |
0.2° |
|
|
APC |
7.85° |
8.15° |
||
|
Fiber Hight: |
1000nm |
3500nm |
||
|
Max.DH.All: |
-300nm |
300nm |
||
|
DH.Adj: |
-300nm |
300nm |
||
|
DH.Ave Fiber: |
-300nm |
300nm |
||
|
Core Dip: |
MM |
-200nm |
300nm |
|
|
SM |
N/A |
N/A |
||
|
Ferrule height |
7.9mm |
8.05mm |
||
End-Face Qualty (SM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
25 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
End-Face Qualty (MM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
65 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
Mechanical Characteristics
|
Test |
Conditions |
Reference |
|
Endurance |
500 matings |
IEC 61300-2-2 |
|
Vibration |
Frequency: 10 to 55Hz, Amplitude: 0.75mm |
IEC 61300-2-1 |
|
Cable retention |
400N (main cable); 50N (connector part) |
IEC 61300-2-4 |
|
Strength of coupling mechanism |
80N for 2 to 3mm cable |
IEC 61300-2-6 |
|
Cable torsion |
15N for 2 to 3mm cable |
IEC 61300-2-5 |
|
Fall |
10 drops, 1m drop height |
IEC 61300-2-12 |
|
Static lateral load |
1N for 1h (main cable); 0.2N for 5min (ranch part) |
IEC 61300-2-42 |
|
Cold |
-25°C, 96h duration |
IEC 61300-2-17 |
|
Dry heat |
+70°C, 96h duration |
IEC 61300-2-18 |
|
Change of temperature |
-25°C to +70°C, 12 cycles |
IEC 61300-2-22 |
|
Humidity |
+40°C at 93%, 96h duration |
IEC 61300-2-19 |
