Overview

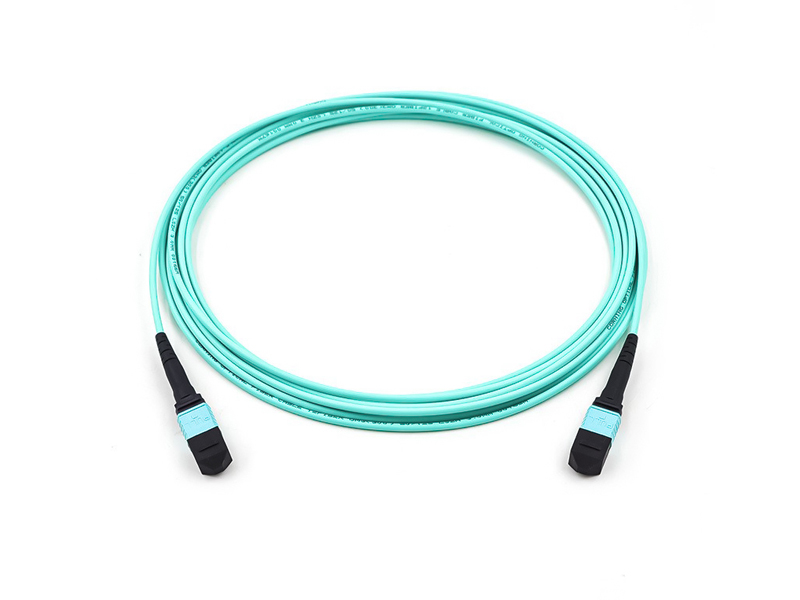

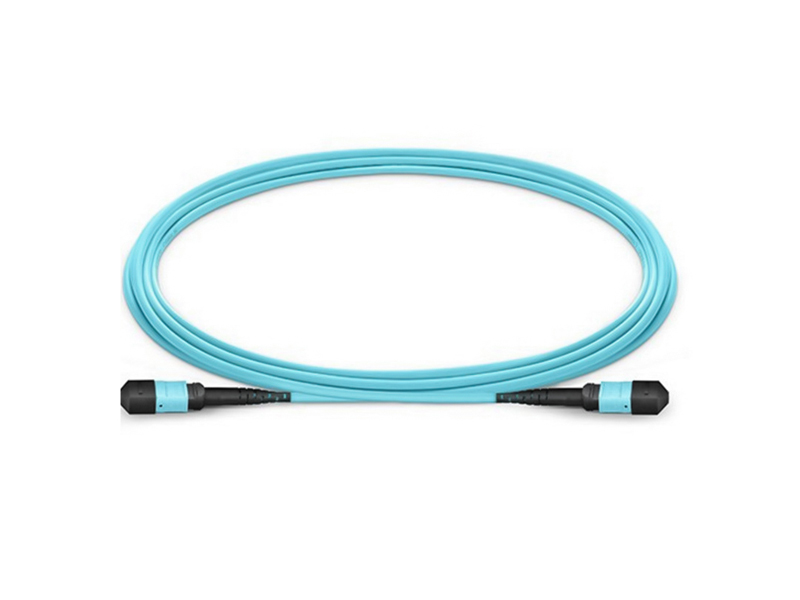

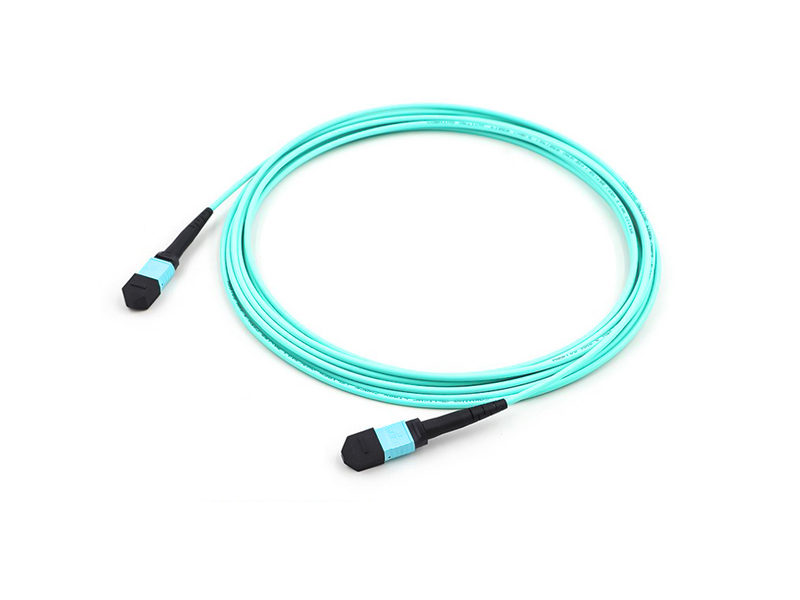

MTP cable assemblies are multi-fiber patch cords suitable for high-density back plane and PCB solutions. MTP brand Fan-Out, Interconnect and Trunk cable offer up to 36 times the density (based on a 72 fiber ferrule) of traditional patch cords, providing significant space and cost savings. There are several configurations for MTP brand cable assemblies. The most popular is a MTP brand connector to MTP connector interconnect patch and trunk cable that connects an MTP brand cassette to another MTP brand cassette. MTP brand adapter panel is installed in a patch panel, then an MTP brand cable to MTP brand can be used as well.
Application
1.Data communication network.
2.Optical System Access network.
3.Storage area networking fiber channel.
4.High density architectures.
Features
1.100% pre-terminated and tested in factory to ensure transfer performance.
2.Rapid configuration and networking, reduce installation time.
3.Supports 40G and 100G network applications.
4.Cable Jacket material: LSZH, OFNR, OFNP available.
5.Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

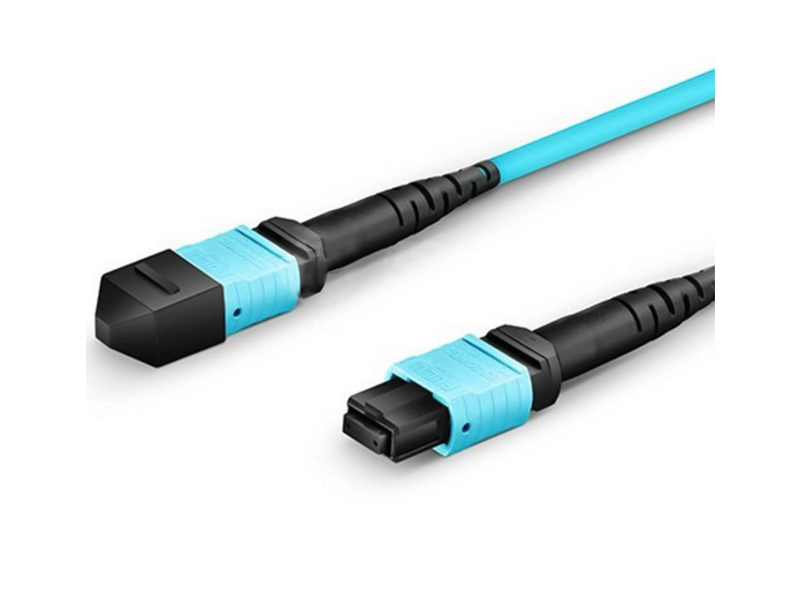

Connector Types
|
Type |
Reference |
Note |
|
|
MPO |
IEC 61754-7 |
Single mode |
APC: Green connectors (Standard ) APC: Yellow connectors (Elite) |
|
Multimode |
PC: Aqua Connectors |
||
|
MTP |
IEC 61754-7 |
Single mode |
APC: Green connectors (Standard ) APC: Yellow connectors (Elite) |
|
Multimode |
PC: Aqua Connectors |
||
Dimensional Diagrams
1. MPO/MTP Trunk Cable (Method A, Method B, Method C).
End1End2
Patch cord versions
|
Jumper tolerance requirement |
|
|
Overall length (L) （M） |
length of tolerance（CM） |
|
0＜L≤20 |
+10/-0 |
|
20＜L≤40 |
+15/-0 |
|
L＞40 |
+0.5%L/-0 |
Cable Structure
|
|
|
|
|
|
Cable Parameters
|
Cable Count |
Out sheath Diameter （MM) |
Weight （KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load （N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature （℃） |
|||
|
short term |
long term |
short term |
long term |
short term |
long term |
||||
|
12 |
(5.1±0.3)*(2.3±0.3) |
11.6 |
150 |
80 |
500 |
200 |
20D |
10D |
-20 ~~ +70 |
Cable Structure
|
|
|
|
|
|
Cable Parameters
|
Fiber account |
OD(mm) |
Nominal Weight (kg/km) |
Max.tensile Strength(N) |
Max.Crush Resistance (N/100mm) |
Min.Bending Radius(mm) |
|||
|
Short-term |
Long-term |
Short-term |
Long-term |
Dynamic |
Static |
|||
|
12 |
3.0±0.15 |
7.0 |
180 |
90 |
500 |
150 |
20D |
10D |
Optical Characteristics
|
Item |
Parameter |
Reference |
|||
|
Single mode |
Multimode |
||||
|
Standard |
Elite |
Standard |
Elite |
||
|
Insertion loss |
Typical≤0.30dB Max≤0.75dB |
Typical≤0.15dB Max≤0.35dB |
Typical≤0.50dB Max≤0.25dB |
Typical≤0.10dB Max≤0.35dB |
IEC 61300-3-34 |
|
Return loss |
≥ 50dB (PC) ≥ 60dB (APC) |
≥ 55dB (PC) ≥ 65dB (APC) |
≥30dB(PC) |
≥30dB(PC) |
IEC 61300-3-6 |

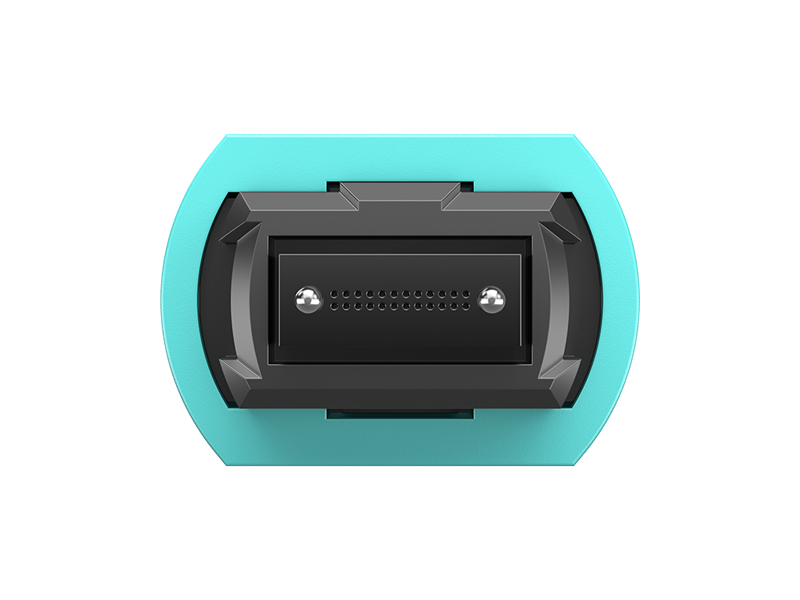

End-Face Geometry
|
Ferrule parameter |
IEC-61300--3-30 |
|||
|
Minimum |
Maximum |
|||
|
ROC |
ROC-X: |
2000mm |
∞ |
|
|
ROC-Y: |
50mm |
∞ |
||
|
Angle |
Angle-X: |
-0.2° |
0.2° |
|
|
Angle-Y: |
PC |
-0.2° |
0.2° |
|
|
APC |
7.85° |
8.15° |
||
|
Fiber Hight: |
1000nm |
3500nm |
||
|
Max.DH.All: |
-300nm |
300nm |
||
|
DH.Adj: |
-300nm |
300nm |
||
|
DH.Ave Fiber: |
-300nm |
300nm |
||
|
Core Dip: |
MM |
-200nm |
300nm |
|
|
SM |
N/A |
N/A |
||
|
Ferrule height |
7.9mm |
8.05mm |
||
End-Face Qualty (SM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 25 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
25 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
End-Face Qualty (MM)
|
Zone |
Range (μm) |
Scratches |
Defects |
Reference |
|
A: Core |
0 to 65 |
None |
None |
IEC 61300-3-35:2015 |
|
B: Cladding |
65 to 115 |
None |
None |
|
|
C: Adhesive |
115 to 135 |
None |
None |
|
|
D: Contact |
135 to 250 |
None |
None |
|
|
E: Rest of ferrule |
None |
None |
||
Mechanical Characteristics
|
Test |
Conditions |
Reference |
|
Endurance |
500 matings |
IEC 61300-2-2 |
|
Vibration |
Frequency: 10 to 55Hz, Amplitude: 0.75mm |
IEC 61300-2-1 |
|
Cable retention |
400N (main cable); 50N (connector part) |
IEC 61300-2-4 |
|
Strength of coupling mechanism |
80N for 2 to 3mm cable |
IEC 61300-2-6 |
|
Cable torsion |
15N for 2 to 3mm cable |
IEC 61300-2-5 |
|
Fall |
10 drops, 1m drop height |
IEC 61300-2-12 |
|
Static lateral load |
1N for 1h (main cable); 0.2N for 5min (ranch part) |
IEC 61300-2-42 |
|
Cold |
-25°C, 96h duration |
IEC 61300-2-17 |
|
Dry heat |
+70°C, 96h duration |
IEC 61300-2-18 |
|
Change of temperature |
-25°C to +70°C, 12 cycles |
IEC 61300-2-22 |
|
Humidity |
+40°C at 93%, 96h duration |
IEC 61300-2-19 |
