A field technician opens a new fiber distribution box on site. The port numbers are already faded. Inside, a pigtail is bent too tightly. During testing, one port shows high insertion loss. These problems are common when the production process focuses on speed instead of care. The result is a box that looks acceptable in the warehouse but fails after installation. Service calls increase. Project timelines slip. We avoid this by building every box as if it will be inspected by the end customer on day one. Our recent sample batch for a telecom project in Spain is a good example of this approach.
We manufacture fiber optic distribution boxes by applying durable screen-printed markings, assembling adapters and pre-arranged pigtails with controlled fiber routing, verifying sealing performance with an air-pressure test, testing every port for insertion loss and return loss, and performing a final quality check before shipment.
Carlos, a project engineer from the Spanish telecom operator, visited our workshop when we prepared his samples. He stood next to our pressure testing station and watched the gauge hold steady. After seeing the complete process, he said he finally understood why some boxes from other suppliers had condensation inside after just one winter. Let me walk you through the exact steps his samples went through.
The first impression of a fiber box comes from its markings. Port numbers, connection labels, and laser warning symbols must be clear and stay legible for years. If the print wears off after a few months of outdoor exposure, the installation team loses the port mapping. Troubleshooting becomes a guessing game. We start our production with precise screen printing and proper curing.
We confirm the customer's artwork file first. Then the operator aligns the screen with the housing, applies the ink, and transfers the design. After a visual check, the printed housing goes through a curing process so the markings bond firmly to the surface.
Before any ink touches the housing, we confirm the artwork with the customer. This includes the port numbers, connection arrows, warning symbols, and their exact positions. The Spanish project required specific numbering sequences and a laser warning symbol in a fixed location. Our operator loads the approved artwork onto the screen. Then the housing is placed in a jig. The operator checks the alignment carefully. Even a one-millimeter shift makes the finished box look unprofessional. We check the first printed piece against the artwork printout. If the alignment is correct, we proceed with the batch.
After printing, the housing enters a curing station. The ink must cure completely to bond with the plastic surface. If the curing is rushed, the markings can scratch off during handling or fade under sunlight. We control the curing time and temperature based on the ink type and housing material. After curing, each box is checked again. The table below shows the inspection points we use.
| Inspection Item | What We Look For |
|---|---|
| Marking clarity | No smudges, sharp edges |
| Position accuracy | Matches approved artwork |
| Completeness | All port numbers and symbols present |
| Surface adhesion | Ink does not lift with tape test |
Once the printed housing is ready, we move to the internal assembly station. This step turns an empty box into a functional optical distribution point. The operator installs adapters and pre-arranged fiber pigtails inside the housing. Every port layout follows the specific project requirement. For the Spanish project, the port assignment and adapter types matched the operator's existing network design.
We install adapters and factory-prepared pigtails into the box according to the customer's port layout. Each fiber is routed with a controlled bending radius to keep the signal stable and to make the box easy for field technicians to work with during installation.
Different projects use different adapter types. SC, LC, FC, and ST are all common. The Spanish project required SC/APC adapters in a specific port sequence. Our operator installs the adapters from the inside, locking them into the pre-cut openings. The order of installation matters because the pigtails connect to the back of the adapters. If an adapter is installed in the wrong slot, the port mapping becomes incorrect. We double-check the adapter types and positions against the production drawing before inserting any pigtail.
The pigtails we use are pre-terminated and tested in our own workshop. Each one has a connector that plugs into the back of the adapter. The operator routes the fiber carefully inside the box. The bending radius must stay above the minimum allowed value for the fiber type. G.657.A2 fiber tolerates tight bends, but we still keep the radius generous. A tight bend can increase attenuation or cause a micro-crack over time. The table below shows our internal routing guidelines.
| Fiber Type | Minimum Bend Radius (Assembly) | Recommended Practice |
|---|---|---|
| G.652.D | 30 mm | Keep loops wide and smooth |
| G.657.A1 | 10 mm | Avoid sharp corners |
| G.657.A2 | 7.5 mm | Still maintain gentle curves |
After the internal assembly is complete, we move to a station that many customers never hear about — the sealing and air-pressure test. An outdoor fiber box faces rain, dust, and temperature swings for years. If the housing leaks, moisture gets inside. Condensation forms. Connectors corrode. The network experiences slow signal degradation that is hard to trace. Carlos knew about this problem. He had replaced boxes in a coastal region where salt mist had entered through a poorly sealed cable entry. He was glad to see this test in our line.
We connect the fiber box to a pressure testing setup, seal all ports, and pressurize the enclosure. Then we monitor the gauge. A stable pressure reading confirms that the sealing ring, cable entry points, and housing structure are all assembled correctly with no gaps or loose areas. If we find a leak, the box is adjusted and retested until it passes.
The operator attaches a pressure hose to a sealed port on the box. All other cable entry points and adapter ports are plugged or capped. Compressed air is introduced until the internal pressure reaches the target value. Then the valve is closed, and the operator watches the pressure gauge for a set period. The gauge must stay steady. Even a small drop points to a gap somewhere. The test is simple in concept but reveals assembly problems that visual checks miss.
Not every box passes on the first try. When the pressure drops, we find the leak. The table below lists the common trouble spots and what we do about them.
| Leak Location | Common Cause | Corrective Action |
|---|---|---|
| Sealing ring | Pinched or twisted during assembly | Reseat or replace the gasket |
| Cable entry point | Gland not tightened fully | Adjust and retest |
| Housing joint | Misaligned halves or loose screw | Realign and torque correctly |
| Adapter port | Dust cap not sealed | Replace cap and retest |
After the box passes the pressure test, it moves to optical testing. A box that cannot keep air out will not keep moisture out. This test gives our customers confidence that the internal components stay protected, no matter where the box gets installed.
A well-assembled and properly sealed box can still have optical problems. A dirty connector end face, a stressed fiber, or a misaligned adapter can cause high insertion loss or low return loss. These defects are invisible to the naked eye. Only testing can find them. That is why every port on every box goes through optical testing.
We connect each port of the distribution box to calibrated test equipment and measure insertion loss and return loss one by one. Only ports with stable data pass. This ensures the samples we send, like those for the Spain telecom project, are not just assembled correctly and well sealed, but also perform reliably in the network.
Insertion loss tells us how much optical power is lost when light passes through the box from the input port to an output port. Return loss tells us how much light is reflected back from a connection point. For SC/APC connections, return loss is particularly important. The angled end face is designed to minimize back reflection. The table below shows the typical pass criteria we use for testing.
| Parameter | Acceptable Range (SC/APC) | What a Failure Indicates |
|---|---|---|
| Insertion Loss | ≤ 0.5 dB per channel | Dirty connector, bent fiber, bad splice |
| Return Loss | ≥ 60 dB | Scratched ferrule, poor contact, dirt |
The operator records the test data for each port. If a port fails, the box is moved to a rework station. The operator checks the connector, cleans the end face, and tests again. If it still fails, the pigtail or adapter is replaced. No box with a failing port leaves the testing station.
Some manufacturers test only a sample from each batch. We test every port on every box. A sample test can miss a single bad connector that was installed on one unit. In a live network, that one bad port takes down a subscriber connection. The Spanish telecom operator specifically asked about our testing coverage during Carlos’s visit. When he saw the full test log for his sample batch, he did not ask any more questions about quality.
After all ports pass optical testing, the box moves to the final quality station. This is not just another visual glance. It is a step-by-step verification that matches the product against the order requirements. We check the physical condition, the markings, the internal layout, the pressure test record, and the optical test report.
We perform a final check on the printed markings, adapter positions, fiber routing, connector cleanliness, sealing performance, and test data. The box is cleaned, labeled, and packed. Only samples with complete and correct documentation are released for shipment.
The operator uses a checklist specific to the order. For the Spanish project, the checklist included the items shown in the table below.
| Check Item | Pass Condition |
|---|---|
| Markings | All port numbers clear and correct |
| Adapters | Type and position match drawing |
| Fiber routing | No sharp bends, fibers not pinched |
| Connector end faces | Clean, inspected with scope |
| Air-pressure test | Recorded pass, no leaks |
| Optical test report | All ports within spec, report attached |
| Packaging | Box protected, label matches order |
If any item fails, the box goes back for correction. We do not ship boxes with incomplete inspection records. After the final check, the box is cleaned, the ports are capped, and the unit is packed. The shipping label and the internal test report are placed together so the customer receives a ready-to-evaluate sample.
Every network project has its own specifications. A rural FTTH rollout in Spain uses a different box design than an urban data center in Germany. Our production line handles these differences through flexible customization options. We do not force customers to accept a standard off-the-shelf configuration.

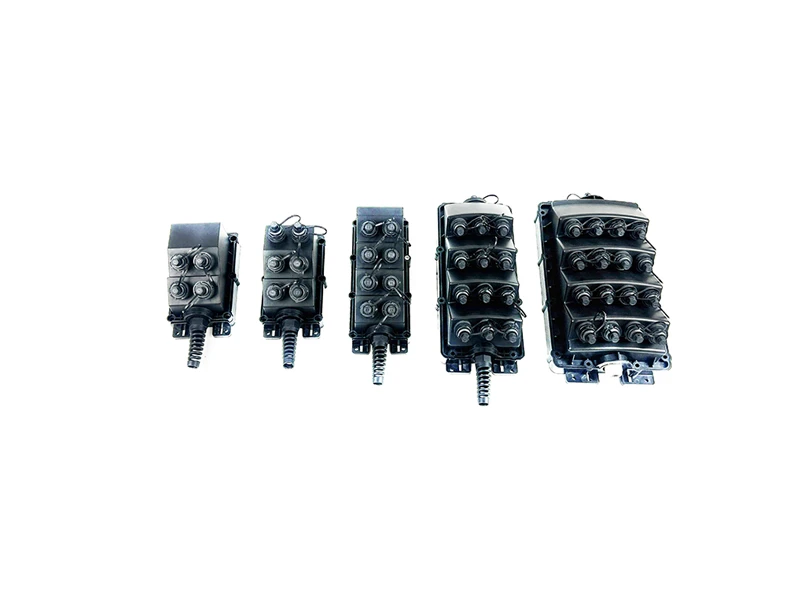

We manufacture terminal boxes, distribution boxes, splice closure boxes, FTTH boxes, and customized outdoor waterproof enclosures. We support different port counts, adapter types, splitter installation, pigtail assembly, logo printing, labeling, and packaging based on the project requirements. Sealing tests and optical tests are standard for every outdoor unit.
We keep a range of designs in our catalog, but most orders involve some level of customization. The table below shows the main categories and the common customization requests we receive.

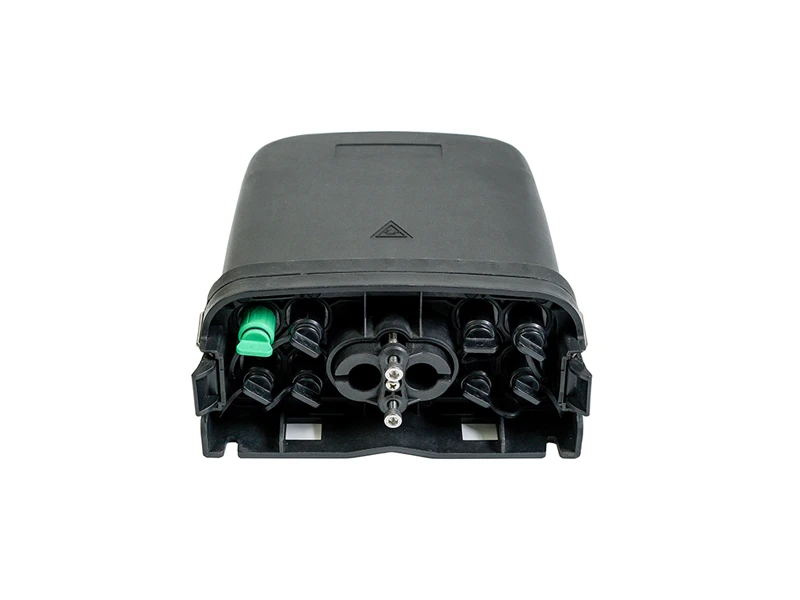

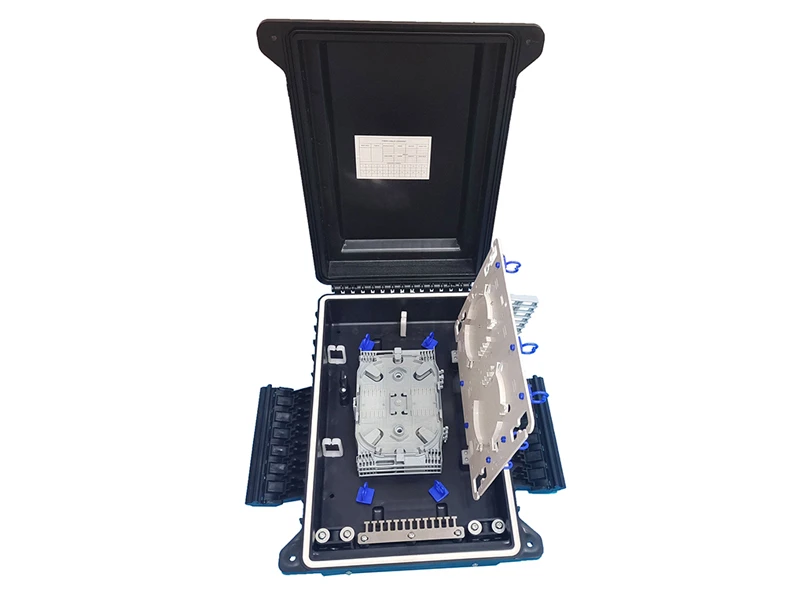

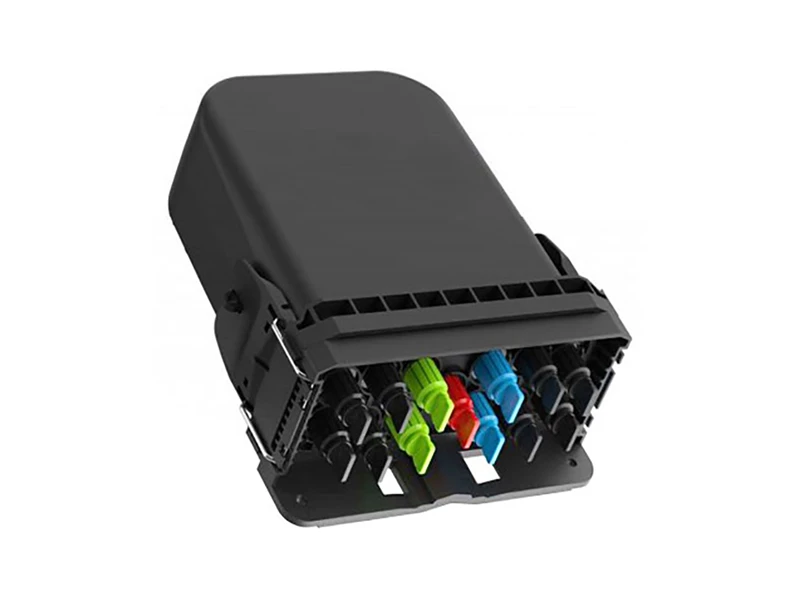

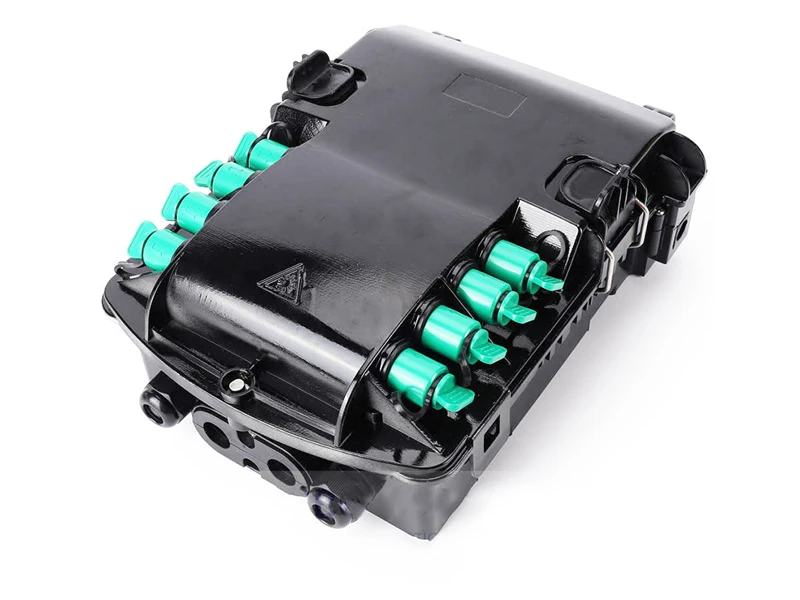

| Box Type | Typical Port Count | Common Customizations |
|---|---|---|
| FTTH terminal box | 1-8 ports | Pigtail length, adapter type, logo |
| Outdoor distribution box | 4-72 ports | Splitter integration, waterproof rating, air-pressure test |
| Dome splice closure | 12-96 fibers | Cable entry configuration, tray count, sealing test |
| Horizontal splice closure | 24-144 fibers | Sealing method, port layout, pressure test |
| Indoor desktop box | 2-16 ports | Color, printing, connector type |
The Spanish project started with a sample order. The customer sent us their port layout drawing and artwork file. We confirmed the specifications, produced five sample units, and shipped them with full test reports including the air-pressure test logs. After the field evaluation, they placed a batch order. We follow the same process for every custom order. The sample stage proves the design. The batch stage repeats the same quality steps at a larger scale. This approach removes surprises when the boxes arrive on site.
Building a reliable fiber optic distribution box is not complicated. But it requires attention at every step. We start with accurate screen printing and proper curing so the markings last. We assemble adapters and pigtails with careful fiber routing to protect the signal. We verify the sealing performance with an air-pressure test to keep out moisture and dust. We test every port for insertion loss and return loss. We do a final inspection that checks everything from markings to packaging. The samples for the Spanish telecom project went through all these steps, just like every box we ship. If your next project needs fiber boxes with full testing and flexible customization, Alteoptic can support you from the first sample to the final batch.
