Summary
When customers plan high-density fiber networks in the United States, they need more than a cable assembly that only looks correct. They need stable polarity, clean end faces, low insertion loss, reliable return loss, and a production process that can repeat the same quality from preparation to final testing.
At Alteoptic.com, this is exactly what we focus on when manufacturing MPO/APC to 8LC/UPC fiber assemblies. For this production batch, our team prepared single-mode G.652D MPO fanout test jumpers for shipment to the USA, supporting data centers, telecom rooms, backbone cabling, and other high-density optical network environments.
Alteoptic manufactures MPO/APC to 8LC/UPC fiber assemblies for USA shipment through a controlled process that includes cable preparation, fiber sorting, MT ferrule assembly, curing, MPO polishing, end-face inspection, optical testing at 1310nm and 1550nm, and final packing. This batch uses G.652D single-mode fiber, 3.0mm yellow LSZH cable, 0.9mm fanout branches, low insertion loss, and stable return loss for high-density fiber applications.
For this USA shipment, Alteoptic produced MPO/APC to 8LC/UPC single-mode fiber assemblies. This product is designed as a compact fanout cable, with one MPO/APC female connector on one side and eight LC/UPC connectors on the other side.
This structure is commonly used when high-density MPO cabling needs to connect with LC-based equipment, patch panels, testing ports, or optical distribution systems. It helps simplify cable management while keeping each fiber channel clearly separated.
| Item | Specification |
|---|---|
| Product type | MPO/APC to 8LC/UPC fiber assembly |
| Connector 1 | MPO/APC female |
| Connector 2 | 8LC/UPC |
| Fiber type | Single-mode G.652D |
| Fiber size | 9/125um |
| Main cable | 8-core 3.0mm yellow LSZH cable |
| Cable jacket | LSZH |
| Fanout branch | 0.9mm loose tube |
| Main cable length | 1.5 +/- 0.1m, excluding connector length |
| Branch length | 0.5m |
| MPO frame color | Yellow |
| LC connector color | Blue outer frame |
| Working temperature | -40°C to +85°C |
| Packing method | Self-sealing bag or protective film, carton |
This batch was prepared for shipment to the United States, so we paid close attention to both optical performance and handling details. The finished assemblies needed to be easy to identify, easy to install, and consistent enough for real network deployment.
Every MPO cable assembly starts with careful preparation. At the beginning of production, our technicians check the cable length, strip the outer jacket, prepare the buffer layers, and separate the fibers by hand.
This step looks simple, but it requires stable hands and production experience. The glass fiber must not be scratched, bent, contaminated, or stressed during preparation. Each fiber is cleaned and arranged according to the required color sequence and polarity before it moves to the next process.
For MPO/APC to 8LC/UPC assemblies, fiber sequence is especially important because the MPO side must match the correct LC breakout order. If the sequence is wrong, the final cable may not support correct polarity during installation or testing.
The fanout kit is also prepared during this stage. It protects the transition from the main cable to the individual LC branches and helps keep the cable structure neat. Each 0.9mm branch needs enough flexibility for patching while still maintaining stable protection around the fiber.
After the fibers are sorted and prepared, they are inserted into the MT ferrule. This is one of the most important steps in MPO production. The technician must make sure the fibers are aligned correctly, with no crossing, no excessive bending, and no contamination on the fiber ends.
For MPO connectors, multiple fibers are positioned inside one ferrule. This means the process has less room for error than ordinary single-fiber connector assembly. A small issue on one fiber can affect the performance of the complete connector.
After insertion, the connector goes through curing. The adhesive inside the ferrule must be fully cured so the fibers stay firmly in place. Good curing improves mechanical strength and prepares the connector for stable polishing.
MPO polishing is also different from standard LC or SC polishing. The polishing angle, pressure, polishing film, polishing time, and end-face control must all stay consistent. For this batch, the MPO connector uses APC polishing with an 8-degree angle, which helps support stronger return loss performance.
| MPO/APC Item | Requirement |
|---|---|
| Ferrule surface x-angle | -0.2° to 0.2° |
| Ferrule surface y-angle | 8° +/- 0.2° |
| Ferrule surface x-radius | >= 2000mm |
| Ferrule surface y-radius | >= 5mm |
| Fiber height | 1um to 2um |
| Adjacent fiber height difference | 0 to 0.3um |
| All fiber height difference | 0 to 0.5um |
These geometry requirements help control how the connector end face contacts the mating adapter or equipment port. For high-density fiber networks, this level of control is important for stable signal transmission.
After assembly and polishing, every connector needs inspection. The end face is checked to make sure there are no scratches, chips, dust, glue residue, or other defects that could affect optical transmission.
For MPO and pre-terminated fiber assemblies, we check not only the MPO connector, but also each LC branch. The goal is simple: correct polarity, clean end face, low insertion loss, strong return loss, and stable performance before packing.
| Test Item | Requirement |
|---|---|
| Test wavelength | 1310nm and 1550nm |
| Fiber attenuation at 1310nm | 0.35dB/km |
| Fiber attenuation at 1550nm | 0.22dB/km |
| MPO insertion loss | <= 0.35dB |
| LC insertion loss | <= 0.20dB |
| MPO return loss | >= 55dB |
| LC return loss | >= 50dB |
| LC Connector Item | Requirement |
|---|---|
| Fiber height | -100nm to 50nm |
| Radius of curvature | 7mm to 24mm |
| Apex offset | 0 to 50um |
For the USA shipment, the finished assemblies were tested before packing to confirm optical performance. We also checked the physical structure, connector condition, fanout branches, labels, and packing details.
At Alteoptic.com, we know that customers do not want to discover cable problems after installation. That is why our inspection work happens before shipment, not after the product reaches the project site.
MPO/APC to 8LC/UPC fiber assemblies are useful in networks where high-density cabling needs to connect with LC-based ports. This makes them suitable for many U.S. fiber optic projects, especially where space, installation speed, and cable organization matter.
| Application | How the Assembly Helps |
|---|---|
| Data centers | Connects high-density MPO cabling to LC equipment ports |
| Telecom rooms | Supports organized fiber routing and patching |
| Backbone cabling | Helps transition between trunk cables and active devices |
| Optical distribution systems | Provides clear breakout from MPO to LC channels |
| Testing environments | Works as a structured MPO-to-LC test jumper |
| Enterprise networks | Supports clean and reliable fiber interconnection |
For data center cabling, MPO products are often used in high-density and high-speed transmission environments. That means the cable must be easy to install, stable in connection, and consistent in performance.
This is why Alteoptic focuses on process control from the first preparation step to the final optical test. Machines help improve consistency, but skilled workers are still essential for fiber routing, connector assembly, visual inspection, and final quality checks.
This USA shipment of MPO/APC to 8LC/UPC fiber assemblies shows how Alteoptic turns careful production steps into reliable fiber connection solutions. From G.652D cable preparation and MPO ferrule assembly to polishing, end-face inspection, optical testing, and final packing, every detail is controlled to support stable performance in modern high-density fiber networks.
YOUR VACATION IS HERE
Prepare your network for seamless 5G deployment. Get direct access to factory pricing, custom OEM/0DM solutions, and rapid prototyping,
Let's Build Your Optical Network, Kindly have a chat with our sales experts!
Get A Free Quote
Related Products

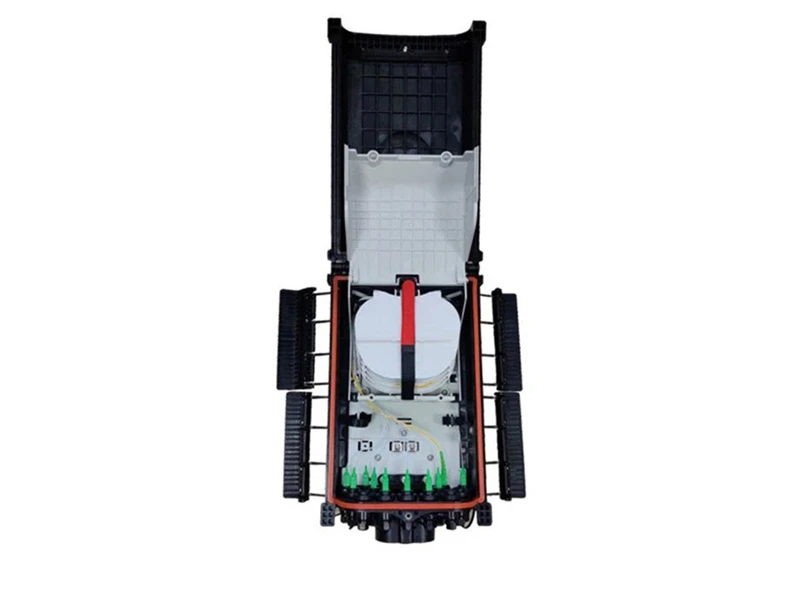

FTB-AT13A-1 Fiber Optical Optic Box With 13Cores
Alteoptic Model No. FTB-AT13A-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 13 users requirements. It can help splicing, splitting, storage and management with suitable space.
View More

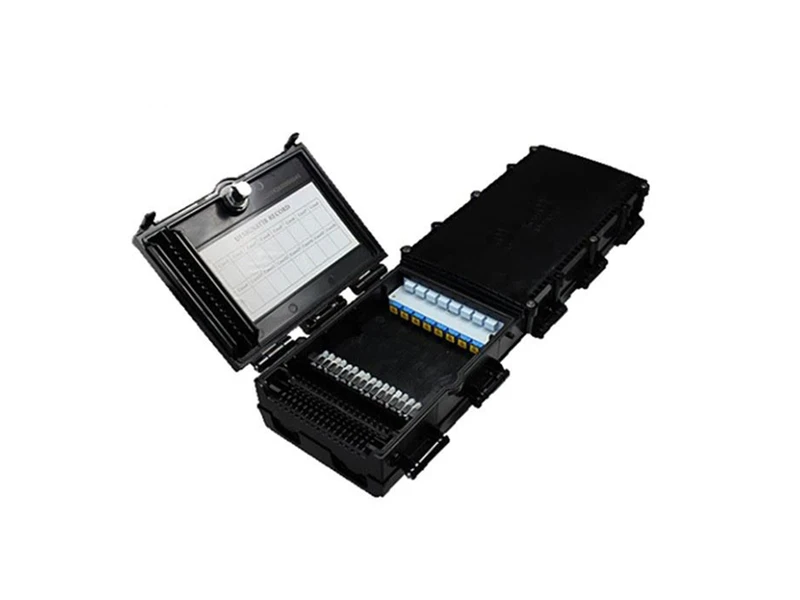

Alteoptic Model No. FTB-16J-2 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements. It can help splicing, splitting, storage and management with suitable space.
View More

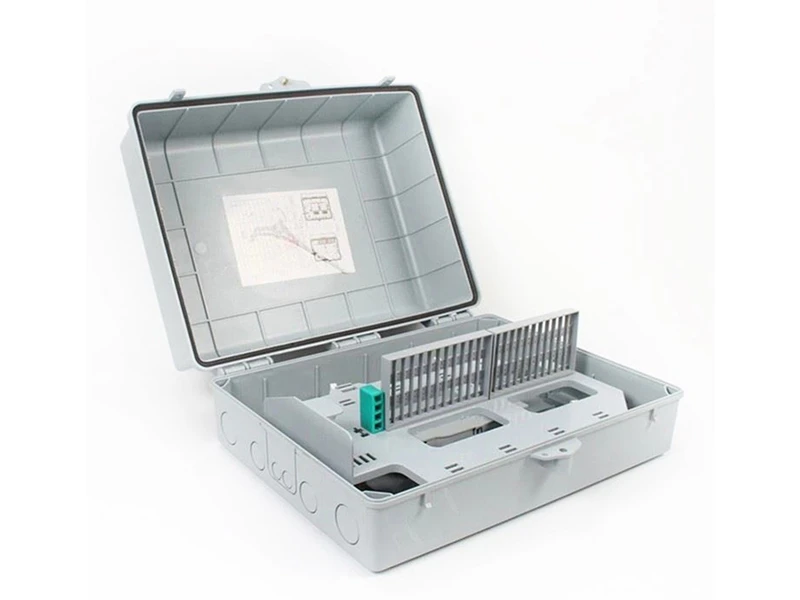

Alteoptic Model No. FTB-AT72B-1 can connect the drop cable with feeder cable as the FDB 72port fiber optic distribution box in the FTTx network, which is cable to meet at least 72 users requirements. fiber optic junction box can help fiber cable splicing, splitting, storage, and termination management with suitable space in a solid protection enclosure box. Most importantly, the optical fiber junction box has good waterproof performance, reaches Protection level IP68, acted as an FDP fiber optical 72core terminal point for fiber home access. Direct sale from Chinese factory with good price.
