OPGW optical cable is to place the optical fiber in the ground wire of the overhead high-voltage transmission line to form the optical fiber communication network on the transmission line. This structure has the dual functions of ground wire and communication. The optical power ground wire is more reliable, stable and firm due to the metal wire wrapping. Because the overhead ground wire and the optical cable are combined as a whole, compared with other methods of optical cables, the construction period is shortened and the construction cost is saved.

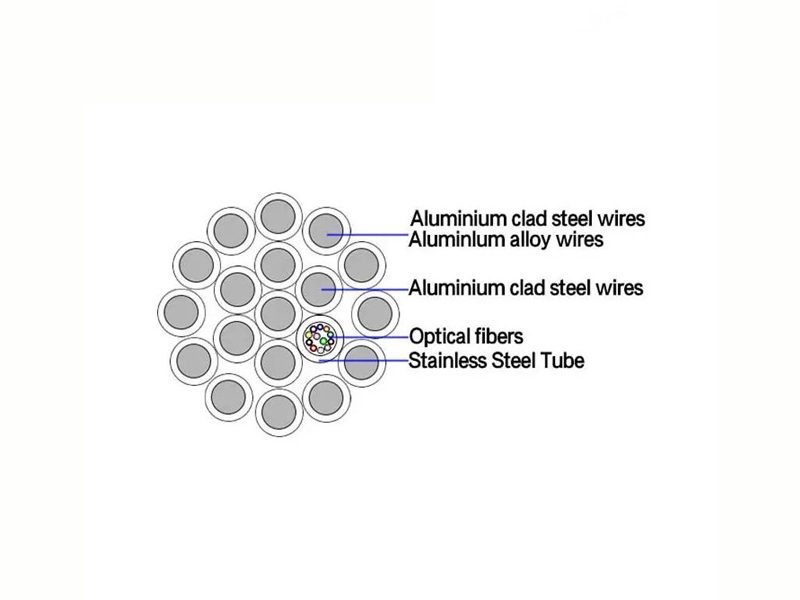

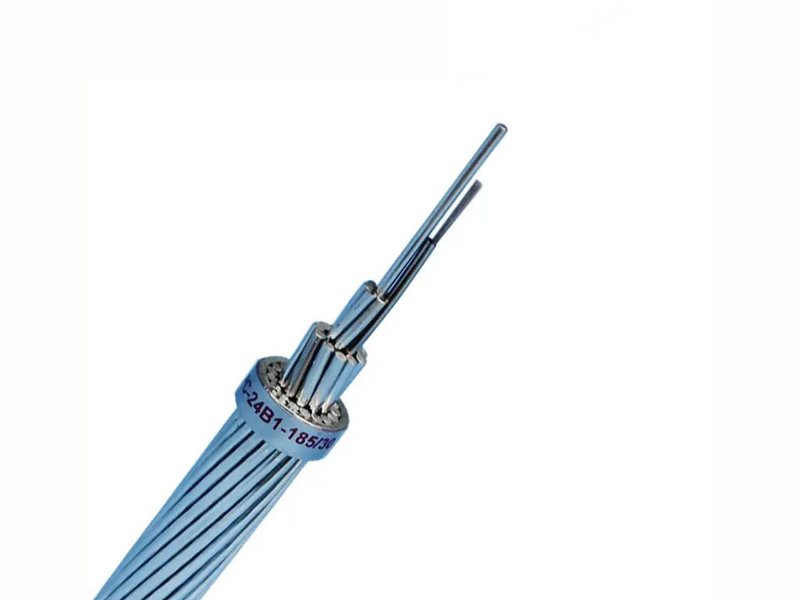

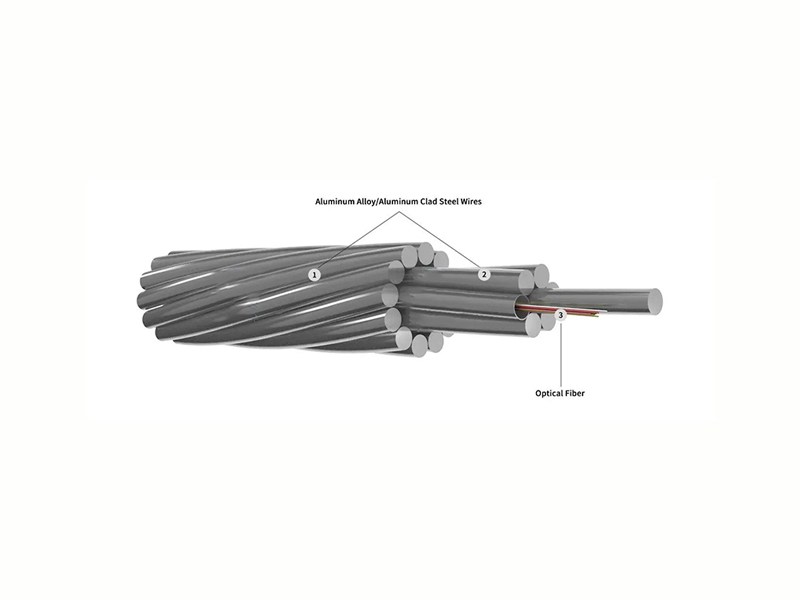

Stranded Type Stainless Steel Tube OPGW Cable, The stainless steel tube is stranded by double or three layers of aluminum clad steel wires (ACS) or mix ACS wires and aluminum alloy wires.
Self-support Aerial installation
Main Features
1. High quality standards for designing, testing and producing with grade A materials available to ensure long-term reliability
2. Engineering support supervising and providing its own line of accessories hardware
3. Larger tensile strength and fault current capacity to reach a better balance of electrical and mechanical performance
Technical Parameters
| Specification | Fiber Count | Diameter (mm) | Weight (kg/km) | RTS (KN) | Short Circuit (KA2s) |
| OPGW-178(88;75.8) | 48 | 13.4 | 531 | 88 | 75.8 |
| OPGW-178(110.4;299.1) | 24 | 17.6 | 837 | 110.4 | 299.1 |
| OPGW-347(366.9;687.7) | 48 | 24.7 | 2156 | 366.9 | 687.7 |
| OPGW-282(358.7;372.1) | 96 | 22.5 | 1938 | 358.7 | 372.1 |
